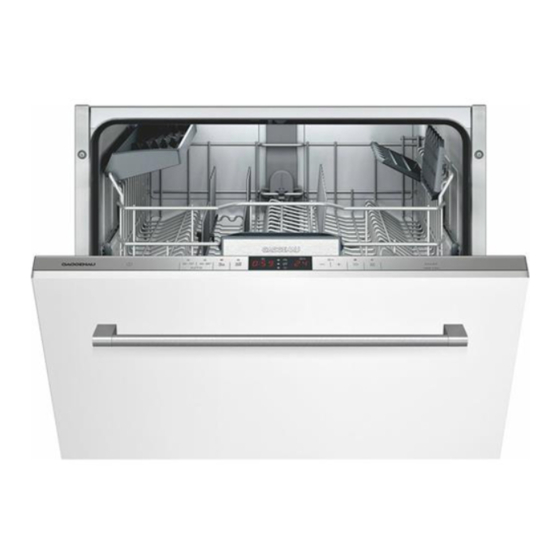

Gaggenau DF240 Operating Instructions Manual
Hide thumbs
Also See for DF240:
- Operating instructions manual (23 pages) ,
- Operating instructions manual (21 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Gaggenau DF240
Summary of Contents for Gaggenau DF240
- Page 1 Gaggenau Operating instructions Dishwasher DF240 DF241...
- Page 2 h : min. Start Reset 3 sec. A B C...
-
Page 3: Table Of Contents
en Table of contents Extra drying Safety instructions Energy Save Delivery Installation Washing the dishes In daily use Programme data Children in the household Aqua sensor Door lock Switching on the appliance Damage Optical display while the programme is running Disposal Remaining running time display Timer programming... -
Page 4: Safety Instructions
ã= Safety instructions Warning Knives and other utensils with sharp points must be placed in the cutlery basket with the points downwards or horizontally on the knife shelf *. Delivery * depending on model Check the packaging and dishwasher immediately for damage caused in transit. -
Page 5: Disposal
Disposal Getting to know your appliance Make redundant appliances unusable to prevent subsequent accidents. Diagrams of the control panel and the interior of the appliance can be found in the envelope at the front. Dispose of the appliance in an environmentally friendly manner. -
Page 6: Water Softening System
Water hardness table Water softening system Water Hardness mmol/l Set value hardness range on the To ensure good washing results, the dishwasher value machine °Clarke requires soft water, i.e. containing low amounts of 0‒8 0‒1.1 soft lime, otherwise white limescale will be deposited on the utensils and inner container. -
Page 7: Special Salt
Switching off salt refill indicator/ Special salt water softening system If the salt refill indicator H is impaired (e.g. when using combined detergents containing salt Using special salt component), it can be switched off. Always refill with special salt immediately before Proceed as described under “Adjusting the water switching on the appliance. -
Page 8: Rinse Aid
Setting amount of rinse aid Rinse aid The amount of rinse aid dispensed can be set from . This is the factory setting As soon as the rinse-aid refill indicator P is lit on the fascia, there is still a rinse-aid reserve of 1 – 2 Do not change the amount of rinse aid unless streaks rinsing processes. -
Page 9: Utensils
Loading the dishwasher Utensils Remove large food remnants. It is not necessary to prerinse utensils under running water. Place the utensils so that Not suitable they are secure and cannot tip over. Cutlery and utensils made of wood. all utensils with their openings face down. Delicate decorative glasses, craft and antique parts with curves or indentations are at an utensils. -
Page 10: Pans
Pans Folding spikes * Bottom basket 1j * depending on model The spikes can be folded down to improve arrangement of pans, bowls and glasses. Cup support clip * Heavily soiled utensils (pans) should be placed in the * depending on model bottom basket. -
Page 11: Small Accessories Holder
Small accessories holder * Adjusting the height of the basket The height of the upper utensils basket 1* can be * depending on model adjusted in 3 stages to create more space either in the Light-weight plastic accessories, e.g. cups, lids, etc. upper or lower basket. -
Page 12: Detergent
Close the cover on the detergent dispenser Detergent by sliding it up until the lock engages without difficulty. You can use tablets as well as powder or liquid detergents for dishwashers, but never use washing up liquid. The dosage can be individually adjusted with powder or a liquid detergent according to the degree of soiling. - Page 13 Notes You will obtain optimum rinsing and drying results by using solo detergents and applying salt and rinse aid separately. If programmes are short, tablets may not have full cleaning effect due to different dissolving properties and there may even be undissolved detergent residue.
-
Page 14: Overview Of Programmes
Overview of programmes The max. possible number of programmes is illustrated in this overview. The corresponding programmes for your appliance can be found on the fascia. Type of utensils Type of soiling Programme Possible addi- Programme sequence tional options pots and pans, non-sensitive very adhesive ¹... -
Page 15: Additional Options
Additional options Washing the dishes * depending on model Programme data Additional options can be set with the buttons h. The programme data (consumption values) can be found in the summary of instructions. They refer to ¥ normal conditions and the water hardness set value Turbo * . -
Page 16: Optical Display While The Programme Is Running
Optical display while the Timer programming programme is running * You can delay the start of the programme in 1 hour steps up to 24 hours. * depending on model Open the door. While the programme is running, a light spot shines on the floor under the appliance door. -
Page 17: Switching Off Automatically After The End Of The Programme
Switching off automatically after Interrupting the programme the end of the programme Open the door. To save energy, the dishwasher is switched off Switch off ON/OFF switch (. 1 minute after the programme ends (factory setting). The LEDs go out. The programme is saved. Automatic disconnection can be adjusted from If the door was opened on an appliance which has a warm water connection or is heated, first leave... -
Page 18: Intensive Drying
Intensive drying Maintenance and care The final rinse uses a higher temperature which improves the drying result. The running time may A regular inspection and maintenance of your machine increase slightly. (Caution if utensils are delicate!) will help to prevent faults. This saves time and Open the door. -
Page 19: Filters
Filters Spray arms The filters 1Z keep large foreign objects in the Limescale and contaminants in the rinsing water may block nozzles and bearings on the spray arms 1B and rinsing water away from the pump. These foreign objects may occasionally block the filters. The filter system consists of a coarse filter, a flat fine Check outlet nozzles on the spray arms for filter and a microfilter. -
Page 20: Waste Water Pump
Waste water pump Troubleshooting Large food remnants in the rinsing water not retained by the filters may block the waste water pump. The The majority of faults which could occur in daily rinsing water is then not pumped out and covers the operation can be rectified by the user. -
Page 21: On The Appliance
... on the appliance Water is left in the appliance at the end of the programme. Lower spray arm rotates sluggishly. Spray arm blocked. ) Waste water hose is blocked or The door is difficult to open. * kinked. Child-proof lock is activated. The deactivation Filters blocked. -
Page 22: On The Utensils
... on the utensils Streaks on glasses and cutlery, glasses have metallic appearance. Food residue on the utensils. Too much rinse aid. Utensils placed too closely together, utensils Plastic parts discoloured. basket overfilled. Too little/unsuitable detergent. Too little detergent. Too weak programme selected. Rinse programme too weak. -
Page 23: Customer Service
Customer service Installation If the advice given does not resolve your problem, The dishwasher must be connected correctly, please contact your customer service. Contact details otherwise it will not function properly. The can be found on the back cover of this instruction specifications for the inlet and outlet as well as the manual or in the enclosed customer service list. -
Page 24: Delivery
Installation Some models: The plastic housing on the water connection The required installation dimensions can be found in contains an electric valve, the connecting cables the installation instructions. Level the appliance with are in the supply hose. Do not cut through this the aid of the height-adjustable feet. -
Page 25: Warm Water Connection
Warm water connection Electrical connection The dishwasher can be connected to cold or hot water Connect the appliance to an alternating current up to max. 60 °C. only, ranging from 220 V to 240 V and 50 Hz or 60 Hz via a correctly installed socket with Connection to hot water is recommended if the hot protective earth conductor. -
Page 26: Transportation
Transportation Waste disposal Empty the dishwasher and secure loose parts. Drain the appliance according to the following Both the packaging of new appliances and the old appliances themselves contain valuable raw materials steps: and recyclable materials. Turn on the tap. Please dispose of the individual parts separated Open the door. - Page 27 Childproof lock (door lock) * 40 Activate the childproof lock. Always close the appliance door completely 41 Open the door with activated when you leave the appliance. childproof lock. This is the only way you can protect your 42 Deactivate childproof lock. children from potential dangers.
- Page 28 Gaggenau Hausgeräte GmbH Carl-Wery-Straße 34 D-81739 München AQUA-STOP guarantee (does not apply to appliances without Aqua-Stop) In addition to warranty claims against the seller based on the purchase contract and in addition to our appliance warranty we will pay damages under the following conditions: If our Aqua-Stop system is defective and causes water damage, we will make good the damage for private users.
