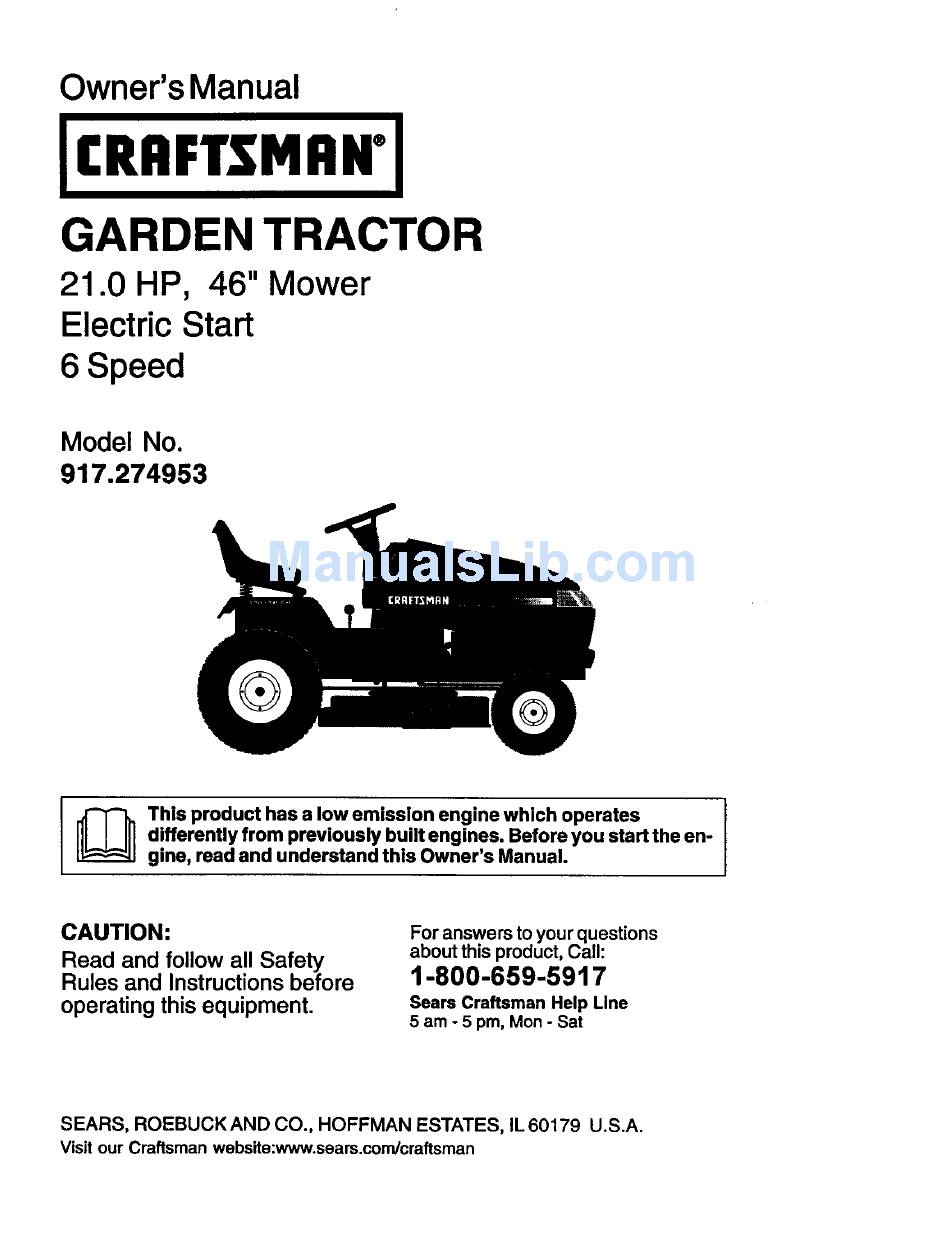

Owner's Manual
ICRRFTSMRN'I
GARDEN TRACTOR
21.0 HP, 46" Mower
Electric Start
6 Speed
Model No.
917.274953
I _
This product has a low emission engine which operates
differently from previously built engines. Before you start the en-
gine, read and understand this Owner's Manual.
CAUTION:
Read and follow all Safety
Rules and Instructions before
operating this equipment.
For answers to your questions
about this product, Call:
1-800-659-5917
Sears Craftsman Help Line
5 am ° 5 pm, Mon - Sat
SEARS,
ROEBUCKAND
CO., HOFFMAN
ESTATES,
IL60179
U.S.A.
Visit our Craftsman website:www.sears.com/craftsman

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 917.274953 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Craftsman 917.274953

Summary of Contents for Craftsman 917.274953

  • Page 1 Read and follow all Safety Rules and Instructions before operating this equipment. SEARS, ROEBUCKAND CO., HOFFMAN Visit our Craftsman website:www.sears.com/craftsman For answers to your questions about this product, Call: 1-800-659-5917 Sears Craftsman Help Line 5 am ° 5 pm, Mon - Sat...
  • Page 2 Maintenance Schedule ... 16 LIMITED WARRANTY ON CRAFTSMAN RIDING EQUIPMENT For two (2) years from the date of purchase, if this Craftsman Riding Equipment is maintained, lubricated and tuned up according to the instructions in the owner's manual, Sears will repair or replace free of charge any parts that are found to be defective in matedal or workmanship according to the guidelines of coverage listed below.

  • Page 3: Slope Operation

    IMPORTANT:. This cutting machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructionscould result in serious injury or death. &Look for this symbol to point out important safety precautions. It means CAUTIONll! BECOMEALERTI!I SAFETY IS INVOLVED.
  • Page 4 • Mow up and down slopes, not across. • Remove obstacles such as rocks, tree limbs, etc. • Watch for holes, ruts, or bumps. Uneven terrain could overtum the machine. Tall grass can hide obstacles. • Use slow speed. Choose a low gear so that you will not have to stop or shift while on the slope.
  • Page 5 • Be sure the area is clear of other people before mowing. Stop machine if anyone enters the area. • Never carry passengers or children even with the blades off. • Do not mow in reverse unless abso- lutely necessary. Always look down and behind before and while backing.

  • Page 6: Product Specifications

    PRODUCT SPECIFICATIONS Gasoline 5 Gallons Unleaded Capacity and Type: Regular SAE 10W30 Oil Type (above 32°F) SAE 5W-30 API-SF-SJ): (below 32°F) W/Filter:. Oil Capacity: W/O Filter: 4.0 Pints Spark Plug: Champion RC12YC '_Gap:.030') Ground Speed (MPH): Reverse: Tire Pressure: Front: Rear: Charging System:...

  • Page 7: Unpack Carton

    Video Cassette Your new tractor has been assembled at the factory. Review the video cassette before you begin. When right or left hand is mentioned in this manual, it means, from your point of view, when you are in the operating position (seated behind the steering wheel).

  • Page 8: Adjust Seat

    ADJUST SEAT I. Raise seat and loosen adjustment knobs. 2. Lower seat into operating position and sit in seat. 3. Slide seat until a comfortable position is reached which allows you to press clutch/brake pedal all the way down. 4. Get off seat without moving its adjusted position.
  • Page 9 CHECK TIRE PRESSURE The tires on your tractor were overinflated at the factory for shipping purposes. Correct tire pressure is important for best cutting performance. • Reduce tire pressure to PSI shown in "PRODUCT SPECIFICATIONS" section of this manual. CHECK MOWER LEVELNESS For best cutting results, mower should be properly leveled.
  • Page 10 These symbols may appear on your tractor or In literature supplied with the product. Leam and understand their meaning. BATTERY CAUTION OR WARNING ENGINE ON ENGINE OFF OIL PRESSURE FUEL CHOKE MOWER HEIGHT ATTACHMENT REVERSE NEUTRAL CLUTCH ENGAGED ATTACHMENT IGNmON CLUTCH DISENGAGED DANGER, KEEP HANDS AND FEET AWAY REVERSE...
  • Page 11 KNOWYOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrationswith your tractor to familiadze yourself with the locations of vadous controls and adjustments. Save this manual for future reference. Height Adjustment Knob Gear Shift Lever Our tractors conform to the safety standards of the Amedcan National Standards Institute.
  • Page 12 The operationof any tractor can resultin foreign objectsthrowninto the J eyes, which can result in severeeye damage. Alwayswear safety glasses or eye shields while operating your tractor or performing any adjustments or repairs. We recommend standard safety glasses or a wide vision safety mask wom over spectacles.
  • Page 13 The cutting height range is approximately 1-1/2" to 4-1/2". The heights are mea- sured from the ground to the blade tip with the engine not running. These heights are approximate and may vary depending upon soil conditions, height of grass and types of grass being mowed. •...
  • Page 14 TO TRANSPORT • Raise attachment lift to highest position with attachment lift control. • When pushing or towing your tractor, be sure gearshift lever is in neutral (N) posi- tion. • Do nct push ortowtrector at morathanfive (5) MPH. NOTE: To protect hood from damage when transporting your tractor on a truck or a trailer, be sure hood is closed and secured to tractor.
  • Page 15 • The attachments and ground drive can now be used. If the engine does not accept the load, restart the engine and allow it to warm up for one minute using the choke as described above. COLD WEATHER STARTING (50 ° F and below) 7.

  • Page 16: General Recommendations

    REGULAR SERVICE Check Broke OpemUon Cheo_ Tire p_ R c_ _ u_ F=_ra 0 c_ B=._ L,,_ R c_ eaa,Ny = ,_d Tem,a_,_ Check Trans.,de Cooang V-Genl Change E_ne Oil(w,lholtfilter) E Ch=_ F-_ O= (wU_,t oaIt_ N C_n _ R.= Ammter Inspect Muffler/Spark...
  • Page 17 TRACTOR Always observe safety rules when performing any maintenance. BRAKE OPERATION If tractor requires more than six (6) feet stopping distance at high speed in highest gear, then brake must be ad- justed. (See =TO ADJUST BRAKE" in the Service and Adjustments section of this manual).

  • Page 18: Engine Lubrication

    • Keep battery and terminals clean. • Keep battery bolts tight. • Keep small vent holes open. • Recharge at 6-10 amperes for I hour. NOTE: The odginal equipment battery on your tractor is maintenance free. Do not attempt to open or remove caps or covers. Adding or checking level of electrolyte is not necessary.

  • Page 19: Spark Plugs

    ENGINE OIL FILTER Replace the engine oil filter every season or every other oil change if the tractor is used more than 100 hours in one year. AIR FILTER Your engine will not run properly using a dirty air filter. Clean the foam pre-cleaner after every 25 hours of operation or every season.
  • Page 20 WARNING: TO AVIOD SERVICE OR ADJUSTMENTS: 1. Depress clutch/brake 2. Place gearshift lever in neutral (N) position. 3. Place attachment clutch in "DISENGAGED" position. 4. Turn ignition key to =STOP" and remove key. 5. Make sure the blades and all moving parts have completely stopped. 6.
  • Page 21 NOTE: To assist in locating hole in flanged pin, the hole in pin is inline with notch on head of pin. If necessary, move mower side-to-side to give space between plate and mower brackets. IMPORTANT: Check belt for proper routing in all mower pulley grooves. Connect anti-sway bar to chassis bracket under left footrest and retain with double loop retainer spring.
  • Page 22 TO REPLACEMOWERDRIVEBELT MOWERDRIVEBELTREMOVAL 1. Parktractoron a levelsurface. Engageparkingbrake. 2. Removescrewsfrom LH. mandrel cover and removecover. 3. Roll belt over the top of L.H. mandrel pulley. 4. Removebelt from electric clutch pulley. 5. Remove belt from idler pulleys. 6. Remove any dirt or grass clippings which may have accumulated around mandrels and entire upper deck surface.
  • Page 23 TO REPLACE MOWER BLADE BELT Park the tractor on level surface. parking brake. 1. Remove mower drive belt (See "TO REPLACE MOWER DRIVE this section of this manual). Remove mower (See =TO REMOVE MOWER" in this section of this manual). Remove screws from R.H.
  • Page 24 4. Road test tractor for proper stopping distance as stated above. Readjust if necessary. If stopping distance is still greater than six (6) feet In highest gear, further maintenance is necessary. Contact a Sears or other qualified service center. With Parking Brake "Engaged" "Operating TO REPLACE MOTION DRIVE BELT Park the tractor on level surface.

  • Page 25: Front Wheel

    Jam Nuts TO REMOVE WHEEL FOR REPAIRS FRONT WHEEL - 1. Block up axle securely. 2. Remove axle cover, retaining ring and washers to allow wheel removal. 3. Repair tire and reassemble. 4. Replace washers and snap retaining ring securely in axle groove. 5.

  • Page 26: Interlocks And Relays

    Terminal..::; Access :: _ Door:----'_'fl_ _ ][----Positive _L (Red) Terminal Cable "_ "(_egb_ive (Black) Guard TO REPLACE HEADLIGHT BULB 1. Raise hood. 2. Pull bulb holder out of the hole in the backside of the grill. 3. Replace bulb in holder and push bulb holder securely back into the hole in the backside of the grill.
  • Page 27 TO ADJUST CHOKE CONTROL The choke control has been preset at the factory and adjustment should not be necessary, check adjustment as de- scribed below before loosening cable. If adjustment is necessary, proceed as follows: 1. With engine not running, move choke control (located on dash panel) to full choke position.
  • Page 28 Immediately prepareyour tractor storage at the end of the season or if the tractor will not be used for 30 days or more. _CAUTION: Never store the tractor with gasoline In the tank inside a building where fumes may reach an open flame or spark.

  • Page 29: Troubleshooting Chart

    TROUBLESHOOTING CHART: See appropriate section In manual unless directed PROBLEM CAUSE Will not start 1. Out of fuel. Engine not =CHOKED" properly. Engine flooded. Bad spark plug. Dirty air filter. Dirty fuel filter. Water in fuel. 8. Loose or damaged 9.
  • Page 30 TROUBLESHOOTINGCHART: See appropriate section in manual unless directed to Sears service center PROBLEM CAUSE Loss of power Cutting too much grass/too fast. Throttle in "CHOKE" position. Build-up of grass, leaves and trash under mower. Dirty air filter. Low oil level/dirty oil. Faulty spark plug.
  • Page 31 TROUBLESHOOTINGCHART: See appropriate section in manual unless directed to Sears service center PROBLEM CAUSE Mower blades will 1. Obstruction in clutch not rotate mechanism. 2. Worn/damaged drive belt. 3. Frozen idler pulley. 4. Frozen blade mandrel. Poor grass 1. Engine speed too slow, discharge Travel speed too fast.
  • Page 33 +E+AI WIRING I_U_TED NO_: IF WIRING INSULTED CLIPS WERE RE_VED SERVICING OF UN_, _ BE REP_CED PROPERLY SECURE YOUR WIRING. MODEL NUMBER 917.274953 SEAT SWrTCH FUEL _dUT'OFF SOLENOID PTO SWITCH l,o_.oN [ c.o., • C÷G,B_H It+ F_B*E,A+ O_ NON.REMOVABLE REMOVABLE...
  • Page 34 TRACTOR - - MODEL NUMBER 917.274953 ELECTRICAL...
  • Page 35 TRACTOR -- MODEL NUMBER 917.274953 ELECTRICAL PART 144927 74760412 7603J 145211 150109 145769 176138 175688 4152J 150755 108824X 73510400 170697 160784 175566 140403 170238 154336 122822X 174652 141940 179763 109748X NOTE: All componentdimensionsgiven in U.S. inches 1 lbch = 25.4 mm...

  • Page 36: Chassisand Enclosures

    TRACTOR -- MODEL NUMBER 917.274953 CHASSISAND ENCLOSURES...
  • Page 37 TRACTOR - - MODEL NUMBER 917.274953 CHASSIS AND ENCLOSURES PART DESCRIPTION 180372 Rail,Frame RH 175282 Drawbar,Gt 73680700 Nut,CrownlockHex 7/16-14UNC 163976X428 Dash YI"GT 2 Cyl 157882 Dash, LowarVgt One Piece 177204(_ Screw, Thd Cut 1/4-20 x 1/2 145166 Support, Battery 175259X558 HoodAsm., Pnt Stealth YTGT...

  • Page 38: Ground Drive

    TRACTOR - - MODEL NUMBER 917.274953 GROUND DRIVE...
  • Page 39 Washer 13i32xlx16Ga, 71673 Cap, Plunger 137648 Rod, Parking Brake 149412 Spdng, Drive Ground 121749X Washer 25/32 x1-1/4 x 16 Ga. - - MODEL NUMBER 917.274953 KEY PART NO. NO. DESCRIPTION 150035 NyUnsr 74321016 Screw, Fin. #10-24 x 1 Actuator, Interlock Switch...

  • Page 40: Steering Assembly

    TRACTOR - - MODEL NUMBER 917.274953 STEERING ASSEMBLY...
  • Page 41 TRACTOR -- MODEL NUMBER 917.274953 STEERING ASSEMBLY NOTE: Allcomponent dimensionsgiven in U.S. inches PART DESCRIPTION 139768 Wheel, Steedng 178557 Axle Asm., Front 6855M Fitting,Grease 161849 SpindleAsm, LH 161848 SpindleAsm., RH 6_66H Beadng, Race Thrust Harden 121748X Washer 25/32 x 1-5/8 x 16 Ga.
  • Page 42 TRACTOR -- MODEL NUMBER 917.274953 ENGINE 21 _ PART DESCRIPTION Engine(See Breakdown) KohlerModel No. CV624-65577 149723 Muffler 121361X Pulley V-Idler 177748 Keeper Asm. Belt Engine 175287 Boshing LongRH 170056 Clutch Electric 143996 Pulley Engine VGT Elect Clth 179115 Tank Fuel Rear...

  • Page 43: Seat Assembly

    TRACTOR -- MODEL NUMBER 917.274953 SEATASSEMBLY PART DESCRIPTION 180597 Seat 180166 Bracket Pivot Fender 14O675 Strap, Fender 145OO6 Clip, Push In, Hinged STD541437 Nut, Crownlock 3/8-16 Unc 124181X Spring,Seat Cprsn 171877 Bolt5/16-18Uncx 3/4 w/Sems 180186 Pan, Seat 121246X Bracket, Mounting Switch...

  • Page 44: Wheels And Tires

    TRACTOR -- MODEL NUMBER 917.274953 DECALS 1"_ KEY PART DESCRIPTION 177423 Decal, Dash Panel 164085 Decal, Dash 171702 Decal, Hood, Craftsman, RH 171703 Decal, Hood, Craftsman, LH 149516 Decal, Battery DNGR/PSN ENG Asm 133644 Decal, Maintenance 177415 Decal SD, PNL...

  • Page 45: Lift Assembly

    73800800 Nut, Lockw/Wsh 1/2-13 Unc 150233 Trunnion, Infin He,hi 110807X Nut, Special 19131016 Washer 13/32 x 5/8 x 16 Ga. MODEL NUMBER 917.274953 36 73 KEY PART DESCRIPTION 137150 Spring, Compression Inf Hgt 137167 Rod, Adj Lift Knob, Inf 3/8-16 Unc...
  • Page 46 TRACTOR -- MODEL NUMBER 917.274953 MOWER DECK >3O 116 117...

  • Page 47: Mower Deck

    TRACTOR - - MODEL NUMBER 917.274953 MOWERDECK KEY PART DESCRIPTION 156948 DeckWeldment 138457 Bracket Asm., Sway Bar STD624008 Retainer Spdng 178024 Bar SWay Deck 850857 Boll, Patched 3/8-24 x 1-1/4 Gr. 8 STD551137 Washer, Lock Hvy., Unplated 3/8 140296 Washer, Herd Blade, Mower...
  • Page 48 TRACTOR -- MODEL NUMBER 917.274953 TRANSAXLE 28 29...
  • Page 49 TRACTOR - - MODEL NUMBER 917.274953 TRANSAXLE KEY PART DESCRIPTION NO. NO. Axle Shaft 4197R 12O00O34 RetainingRing Rr_d Drive Gear 4199R DifferentialGear 42161:1 DifferentialPinion 4215R DiffarenttalCarder 4217R Axle Thrust Washer 174728 Bolt, Hex Head 3/8-24 x 3-1/4 74020652 (t" Thread Length)
  • Page 50 TRACTOR - - MODEL NUMBER 917.274953 KOHLER ENGINE-MODEL NUMBER CV624, TYPE NUMBER 65577 CYLINDER HEAD, VALVE AND BREATHER _--13 CRANKCAS_ O_Ig...
  • Page 51 TRACTOR -- MODEL NUMBER 917.274953 KOHLER ENGINE-MODEL NUMBER CV624, TYPE NUMBER 65577 HEADNALVF./BREATHER KEY PART DESCRIPTION 24-033-01-S Kit, breather cover w/gasket (Includes 2, 3, 5) 24-041-23-S Gasket, breather 24-096-59-S Cover, breather M-645020 Screw, hex. flange M6xl.0x20 X-75-23-S Plug, allen hd. 1/8"...
  • Page 52 TRACTOR -- MODEL NUMBER 917.274953 KOHLERENGINE-MODEL NUMBERCV624,TYPE NUMBER65577 IGNITION/ELECTRICAL I s_-V AIR INTAKE BLOWER HOUSING AND BAFFLES I 14--'1. _ 13_. e--s...
  • Page 53 24-176-82-S Harness, widng Lead, black (mct.oreg.5" - 12 o; n (aM e 24-518-12-S rnsurated grip barrel eyelets) 24-113-18-B Decal, grass screen 25-454-03-S Tie, wire (3) MODEL NUMBER 917.274953 BLOWER HOUSING & BAFFLES KEY PART NO. NO. DESCRIPTION 24-027-20-S Housing, blower (Incl.
  • Page 54 TRACTOR -- MODEL NUMBER 917.274953 KOHLER ENGINE-MODEL NUMBER CV624, TYPE NUMBER 65577 STARTING SYSTEM J OIL PAN/LUBRICATION...

  • Page 55: Starting System

    TRACTOR -- MODEL NUMBER 917.274953 KOHLER ENGINE-MODEL NUMBER CV624, TYPE NUMBER 65577 STARTING SYSTEM KEY PART NO. NO. DESCRIPTION M-839080-S Screw, hex. flange M8x1.25x80 (2) 25-098-08-S Starter, solenoid shift (Includes 4-7) M-841080-S Nut, hex. flange M8xl.25 25-435-04-S Kit, solenoid 25-755-33-S Kit, pinion drive (Includes6)
  • Page 56 TRACTOR -- MODEL NUMBER 917.274953 KOHLERENGINE-MODEL NUMBERCV624,TYPENUMBER65577 EXHAUST I CRANKSHAFT J FUEL SYSTEM I ® "_ _/.#,,_...
  • Page 57 TRACTOR - - MODEL NUMBER 917.274953 KOHLERENGINE-MODEL NUMBERCV624,TYPE NUMBER65577 CRANKSHAFT PART DESCRIPTION 24-014-72-S Crankshaft (includes 2) 52-139-09-S Plug, cup EXHAUST KEY PART NO. NO. DESCRIPTION 24-041-02-S Gasket, exhaust (2) 25-072-04-S Stud, M8x1.25x33 (4) NOT ILLUSTRATED PA-65577 Replacement Engine 24-782-24 Miniblock...
  • Page 58 _ , i •...

  • Page 59: Suggested Guide For Sighting Slopes For Safe Operation

    SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION 1. Fold this page along dotted line Indicated above. 2. Hold page before you so that Its left edge Is vertically parallel to a tree trunk or other upright structure. 3. Sight across the fold In the direction of hill slope you want to measure. 4.
  • Page 60 For rep_r of majorbrandappliancesin your own home... no matterwho made it,no matterwhosold_ 1-800-4-MY-HOME _ (1-_o469.4a_ W_WI.I_EblLcom For repairofcarry-inproductslikevacuums,lawnequipment,and electronics, c allfor the nearestSeats Parts and Repair Center. 1-800-488-1222 For the replacementparts,accessories and owner'smanuals thatyou need to do-it-yourseff, callSears PartsDIrectS=! 1-800-366-PART (1-800-366-7278) To purchaseor inquireabouta SearsServiceAgreement or Sears MaintenanceAgreement:...
