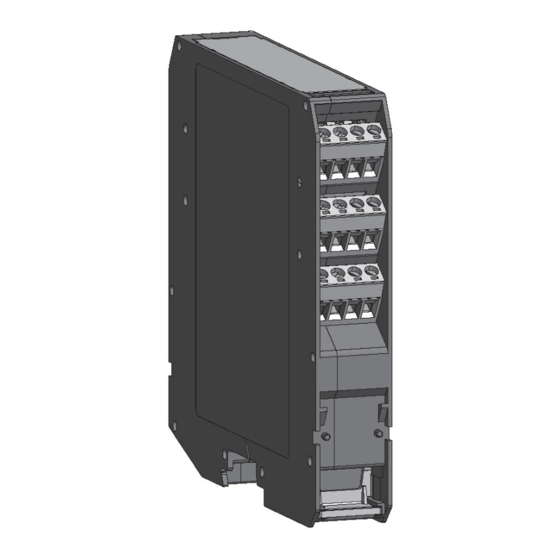

D6231E
INSTRUCTION MANUAL
SIL 2 Switch / Proximity
Detector Repeater,
Open Collector Output
DIN-Rail and Termination Board,
Model D6231E
D6231 - SIL 2 Switch/Proximity Detector Repeater, O.C. Output
G.M. International ISM0217-3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D6231E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GMI D6231E

Summary of Contents for GMI D6231E

  • Page 1 D6231E INSTRUCTION MANUAL SIL 2 Switch / Proximity Detector Repeater, Open Collector Output DIN-Rail and Termination Board, Model D6231E D6231 - SIL 2 Switch/Proximity Detector Repeater, O.C. Output G.M. International ISM0217-3...

  • Page 2: Technical Data

    Characteristics General Description: The Switch/Proximity Detector Repeater type D6231E is a unit with eight independent channels suitable for applications requiring SIL 2 level (according to IEC 61508:2010) in safety related systems for high risk industries. The unit can be configured for switch or proximity detector (EN60947-5-6 NAMUR), NO or NC input and for NO or NC floating solid-state relay (photo-MOS) isolated output compatible with logic circuits.

  • Page 3: Ordering Information

    Ordering Information Power Bus and DIN-Rail accessories: Model: D6231 Connector JDFT049 Cover and fix MCHP196 8 channels Terminal block male MOR017 Terminal block female MOR022 Front Panel and Features 8 fully independent channels NO/NC switch/proximity Detector Input, NO/NC solid-state output relay . Field open and short circuit detection.

  • Page 4: Function Diagram

    Function Diagram MODEL D5231E MODEL D6231E 10 - Supply 24 Vdc Common voltage free positive Contact Proximity connection Common Ch. 1 to 8 In 1 Out 1 SIL 2 In 2 Out 2 SIL 2 In 3 Out 3 SIL 2...

  • Page 5: Operation

    Any unauthorized modification must be avoided. Operation The Switch/Proximity Detector Repeater type D6231E is a unit with eight independent channels suitable for applications requiring SIL 2 level (according to IEC 61508:2010) in safety related systems for high risk industries. The unit can be configured for switch or proximity detector (EN60947-5-6 NAMUR), NO or NC input and for NO or NC floating solid-state relay (photo-MOS) isolated output compatible with logic circuits.
  • Page 6 General Notes: SWC5090 Software can be downloaded for free at www.gminternational.com PPC5092 Adapter is needed to interface PC to D6231E module. The PC supplies the module via USB, therefore operating power supply (24 Vdc) is not Input / Output status real-time monitor strictly needed when configuring the module.

  • Page 7: Parameters Details

    Supported Modbus parameters: Parameters details: D6231E communicates via Modbus RTU RS-485 protocol. Below are all available registers. Addr. Description Notes Type Address 17: Supported ModBus Baudrates G.M. Factory Code Index Baudrate Instrument Code 4800 Option Code Identification Data 9600 Hardware Release...
