Download
Share
Print this page
  1. Manuals
  2. Brands
  3. VSPL Manuals
  4. Safety Equipment
  5. viraj SECURE FIRST SF-RFA-20R
  6. Instruction manual

VSPL viraj SECURE FIRST SF-RFA-20R Instruction Manual

Retractable block with retrieval system
Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual
Retractable Block with Retrieval System device cable (CR)
EN 360:2002 & EN 1496:2017 CLASS B. The Fall Arrester Cable (CR)
Handle rota ng mechanism
for li ing or lowering
Snap Hook (SF-1404)
with swivel func on
: XXXX
: XXXX
Batch No.
: XXXX
: XXXX
EN 360:2002
EN 1496:2017 CLASS B
RETRACTABLE BLOCK WITH RETRIEVAL SYSTEM
8
European Regulation 2016/425
TM
SF-RFA-20R
not for horizontal use
100 kg max
only for
vertical
use
only for vertical use
40
TM
20 Mtr.
Cable retractor with brake and
energy dissipa ng mechanism
inside plas c casing
Min 15KN
EN 795
Access Confined
Space with
system having
min. strength of
12kN.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the viraj SECURE FIRST SF-RFA-20R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VSPL viraj SECURE FIRST SF-RFA-20R

Summary of Contents for VSPL viraj SECURE FIRST SF-RFA-20R

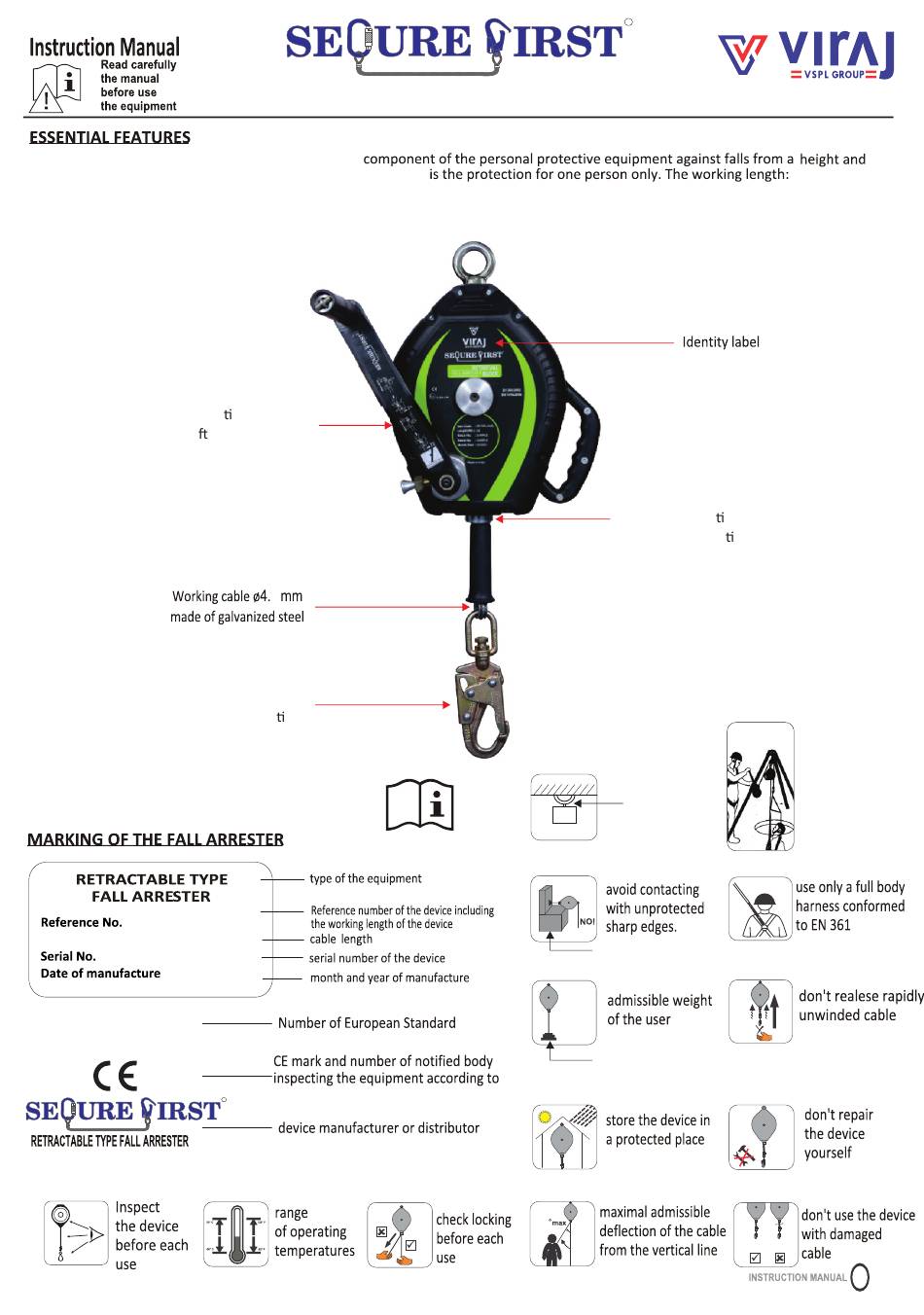

  • Page 1 RETRACTABLE BLOCK WITH RETRIEVAL SYSTEM Retractable Block with Retrieval System device cable (CR) 20 Mtr. EN 360:2002 & EN 1496:2017 CLASS B. The Fall Arrester Cable (CR) SF-RFA-20R Handle rota ng mechanism for li ing or lowering Cable retractor with brake and energy dissipa ng mechanism inside plas c casing Snap Hook (SF-1404)
  • Page 2 The fall arrester must be connected with a connector conforms to EN362 to an Anchor device, conforms to EN 795 and max 40° CALCULATION OF WORKING HEIGHT Under the Feet of User with a mass of 100 kg. Arrest Total = Fall Arrest Distance+person Max height Additional Safety Model...
  • Page 3 Should not Let self acting Disconnecting of the device...
  • Page 4 INSTALLATION OF RETRIEVAL BLOCK ON TRIPOD Insert retrieval block in bracket guided Place the retrieval mounting bracket on the tripod leg and insert the guiding pin into the slot. by aluminum guide provided on both side of retrieval. Lock the anchorage eye with bracket lock solid pin from other end by Now the retrieval block is ready to be followed by solid pin.
  • Page 5 USE IN RESCUE MODE: The person attached to the wire rope of the fall arrester is unable to climb back up by his/her own means. Pull the button located next to the rotation axis of the handle and at the same time, pull the rotation axis until the green ring appears (Fig.
