THANK YOU FOR CHOOSING RYVYR
Please take a few minutes to review this manual before you start installation. If you
encounter any installation problems, please don't hesitate to contact us. Before you
begin, please observe all local building codes. Unpack the new product and inspect
for damage. Please ensure the finished wall is straight and plumb and the floor is flat
and perpendicular to the finished wall.
SUGGESTED TOOLS AND MATERIALS
Phillips Screwdriver

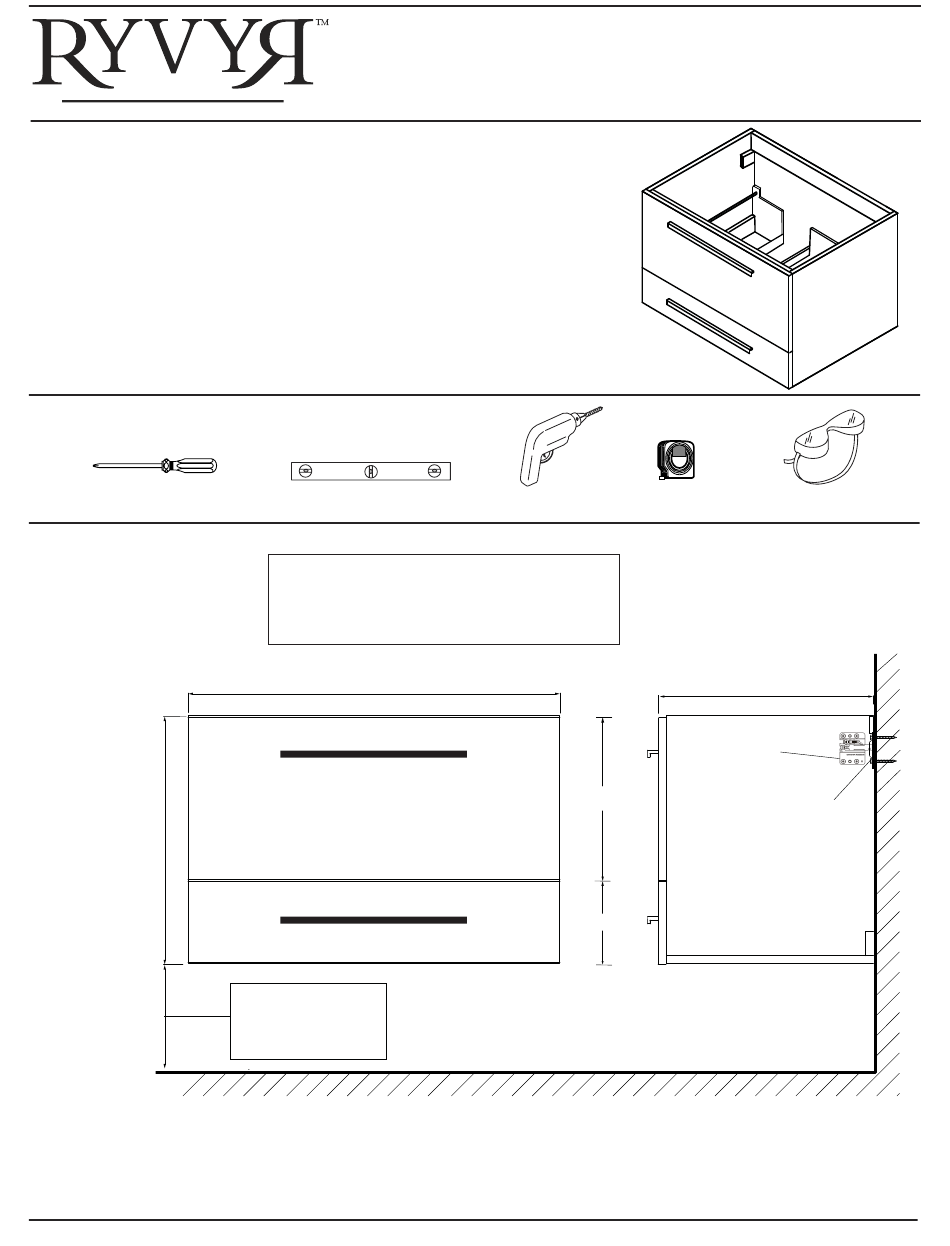

ROUGH-IN DIMENSIONS
20.67" [525mm]
FLOOR
For customer support please visit www.ryvyr.com or call 866.395.8112 weekdays 8:00 to 5:00 EST or fax 866.395.8113 any time
Level
Model #
V-SELLA-M60XX
V-SELLA-M80XX
x [y]
SUGGESTED HEIGHT:
Undermount Application:
13.25" (336.6mm)
Vessel Application:
7.25" (184mm)
Drill
Width
x = 23.6"
y= [600mm]
x = 31.5"
y= [800mm]
13.7" [348mm]
6.8" [173mm]

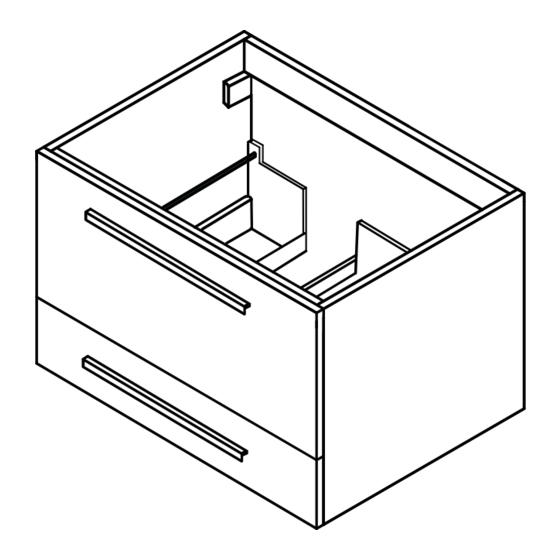

INSTALLATION INSTRUCTIONS
SELLA
V-SELLA-60MXX| V-SELLA-80MXX
10'
Tape Measure
Safety Glasses
17.7" [450mm]
PRE-MOUNTED
TO VANITY
WALL-MOUNTED
BRACKET
(CONTRACTOR INSTALLED)
WALL-HANGING
BRACKET SYSTEM
TM
VANITY
FINISHED
WALL
10.2014
