Related Manuals for Mega Lite Memo Splitter P8
Summary of Contents for Mega Lite Memo Splitter P8
-

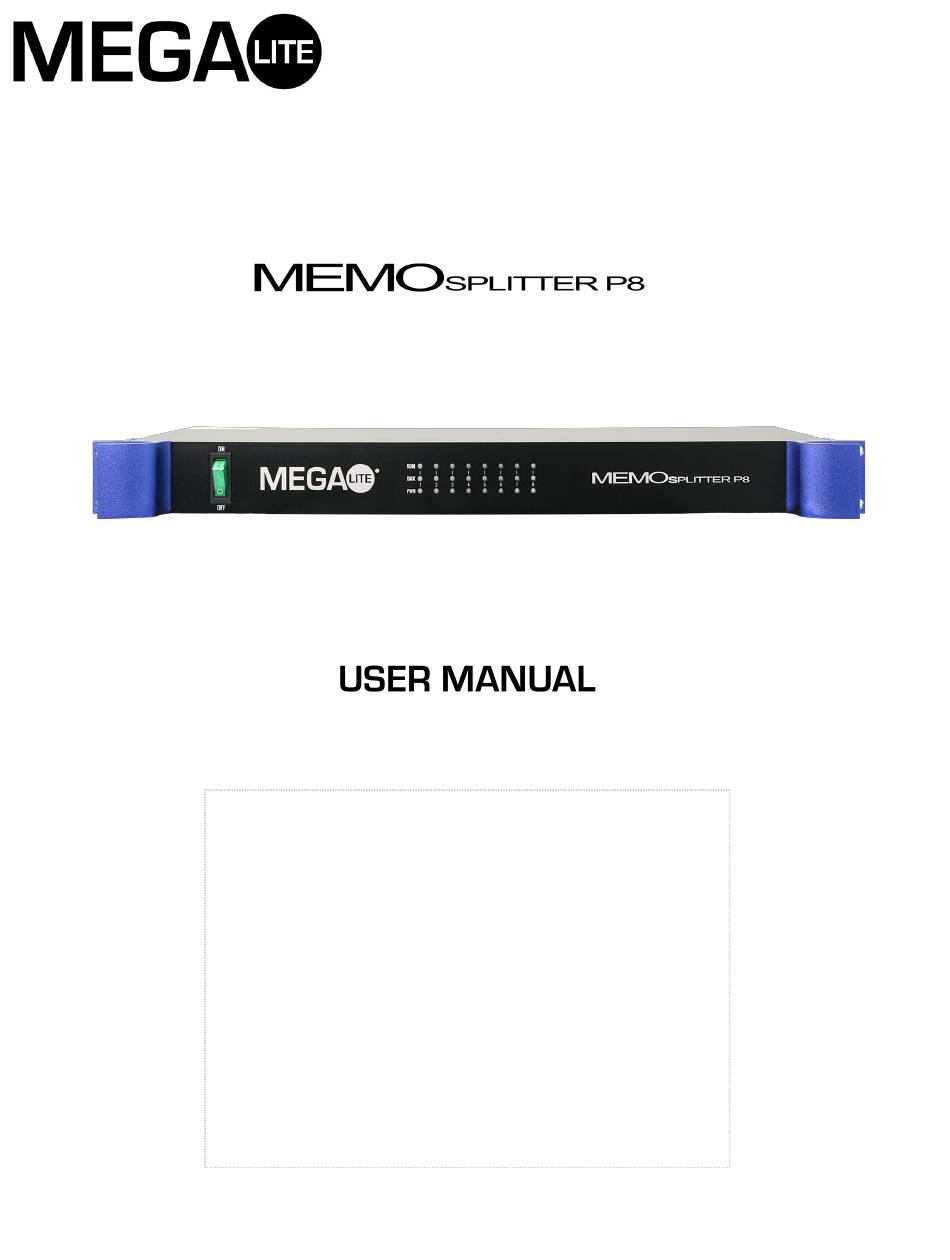

Page 1: Table Of Contents
Table of Contents Safety Information What Is Included Specifications Main Power Connection DMX-512 Connection Installation Operation Size & Weight Cleaning & Maintenance Warranty Customer Support... -
Page 2: Safety Information
1. Unit surface may reach high temperature. Allow about 5 minutes after powering the unit before moving. 2. When repositioning rack ears make sure they are securely attached. What is Included Memo Splitter P8 Power Con Type Cable 1set Removable rear ears & wall mount hardware... -
Page 3: Specifications
Part Numbers Fixture MC1071– Memo Splitter P8 Mechanical Specifications Input DMX Connections: Rear 5 Pin XLR connectors In and Out Output DMX Connectors: 8 output, 5 Pin XLR connectors Power Connection: Power Con (type) (Power Con to Nema 5-15 cable included) Fastening System: 1U Rack Mountable Front or Back &... -
Page 4: Main Power Connection
DMX-512 Connection The Memo Splitter P8 is a DMX signal amplifier, distributor and RDM signal regenerator. The unit allows you to split a DMX signal into eight separate signal outputs. Also it boost your DMX signal for extensive cable runs between DMX lighting fixtures DMX—output... -
Page 5: Installation
Installation The Memo Splitter P8 can be rack mounted from the front, back or wall mounted. For wall or rear mount, use the acces- sory rack ears and remove the front mount using the same screw use them on the side panels. -
Page 6: Size & Weight
Size and Weight 17.62” 5.8” 7.25” 1.75” 19” Fixture Size 19" X 7.25” X 1.75" Fixture Packaged 21.6" X 9.5" X 3" Net Weight Gross Weight Cleaning and Maintenance Installation Maintenance: The operator has to make sure that the unit is operating safely and has the installations and electronics checked by an expert every 2 years. -
Page 8: Customer Support
Customer Support Mega Lite has a customer support line to provide set up help and to answer any question should you encounter a prob- lem. Please visit our website for any other related technical documents. For service related issue please contact our service dept.
