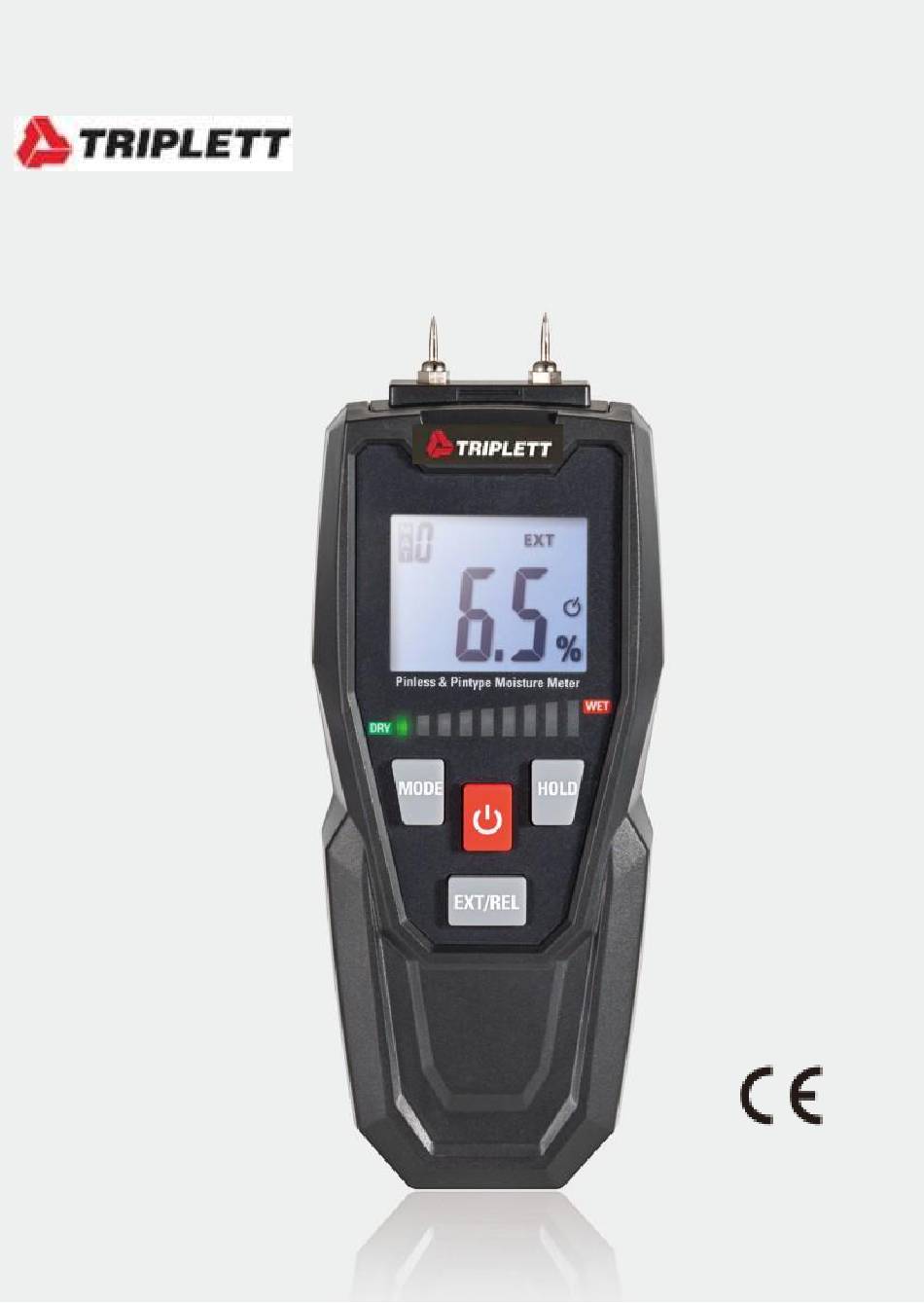

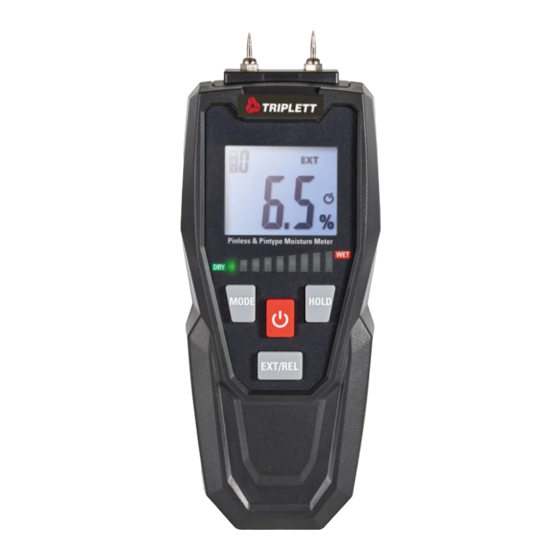

- Page 1 User Manual MS245 Pin/Pinless Moisture Meter...
-
Page 2: Table Of Contents
Pinless & Pintype Moisture Meter Content Page Introduce..............4 Function..............4 Description..............5 3-1.Meter Description............5 3-2.Symbols Used on LCD Display ........6 Technical Parameter ............. 7 Operation..............8 5-1.Startup & Shutdown..........8 5-2.EXT/REL Mode Switch..........8 5-3.Material Type Switch. -
Page 3: Introduce
Pinless & Pintype Moisture Meter Introduction • The tester professionally measuring moisture in the material using probe and inductive sensors. • The two modes can be switched at will, material moisture values can be displayed in real-time. • Two materials can be measured in probe mode: wood and construction. •... -
Page 4: Description
Pinless & Pintype Moisture Meter 3.Description 3-1.Meter Description 1-Probe Sensor 2-LCD Display 3-Indicator Light 4-MODE Button 5-ON/OFF Button 6-HOLD Button 7-EXT/REL Button 8-Induction Sensor 9-Battery Cover 10-CAP... -
Page 5: 3-2.Symbols Used On Lcd Display
Pinless & Pintype Moisture Meter 3-2.Symbols Used on LCD Display 1-Material Type Number 2-HOLD sign 3-Inductive Formula (REL) Mode 4-Probe-Type (EXT) Mode Low-Power Symbols Cellular Alarm Symbol Automatically Shut Down Symbol 8-Percent (%) 9-Displays the Values... -
Page 6: Technical Parameter
Pinless & Pintype Moisture Meter Technical Parameter Material Range Resolution Accuracy Probe-Type Wood 6 to 99% 0.1% ±2% Build 0.2 to 2% 0.1% Relative Readings Induction Type Material Range Resolution Precision Hardwood 0 to 35% 0.1% ±4% Softwood 0 to 55% 0.1% ±4% Drywall... -
Page 7: Operation
Pinless & Pintype Moisture Meter Operation 5-1.Startup & Shutdown • Press the ON/OFF Button to start on, press the ON/OFF Button to shut down. • The hand shall be kept as far as possible from the humidity board. 5-2.EXT/REL Mode Switch •... -
Page 8: 5-5.Low-Power Display Function
Pinless & Pintype Moisture Meter 5-5.Low-Power Display Function When the instrument battery voltage is low, “ ” indicates that the battery needs to be replaced at this time. 5-6.HOLD Function When HOLD function turns on, HOLD character display, start data hold function and prohibit key function. -
Page 9: 5-9.Functional Check
Pinless & Pintype Moisture Meter 5-9.Functional Check Probe-type functional inspection requires using the T contacts (T1, T2) and B contacts (B1, B2) on the protective cover, as shown below: Place the probe to the T1, T2 contact with the instrument reference is as follows: Wood (10M): 18.3%±2% Build (10M): 0.8±0.1% Place the probe to the B1, B2 contact with the instrument reference is as follows:... -
Page 10: Appendix
Pinless & Pintype Moisture Meter 7.Appendix Number Function Range Resolution Probe-Type Wood 6 to 99% 0.1% Build 0.2 to 2% 0.1% Induction Type Number Function Range Resolution Drywall 0 to 100% 0.1% Masonry 0 to 89.5% 0.1% Hardwood 0 to 35.0% 0.1% Softwood 0 to 55.0%... - Page 11 Warranty Triplett / Jewell Instruments extends the following warranty to the original purchaser of these goods for use. Triplett warrants to the original purchaser for use that the products sold by it will be free from defects in workmanship and material for a period of (1) one year from the date of purchase.
