TLX LIVERPOOL SERIES
TLX215L/TLX212L
Compact Dual 15"/ 12" Subwoofer for Portable and Fixed Installation Applications
TLX84
Dual 2 Way 8" Line Array Element for Portable and Fixed Installation Applications
TLX43
Compact Dual 2 Way 4" Line Array Element for Portable and Fixed Installation Applications

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLX215L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Turbosound TLX215L

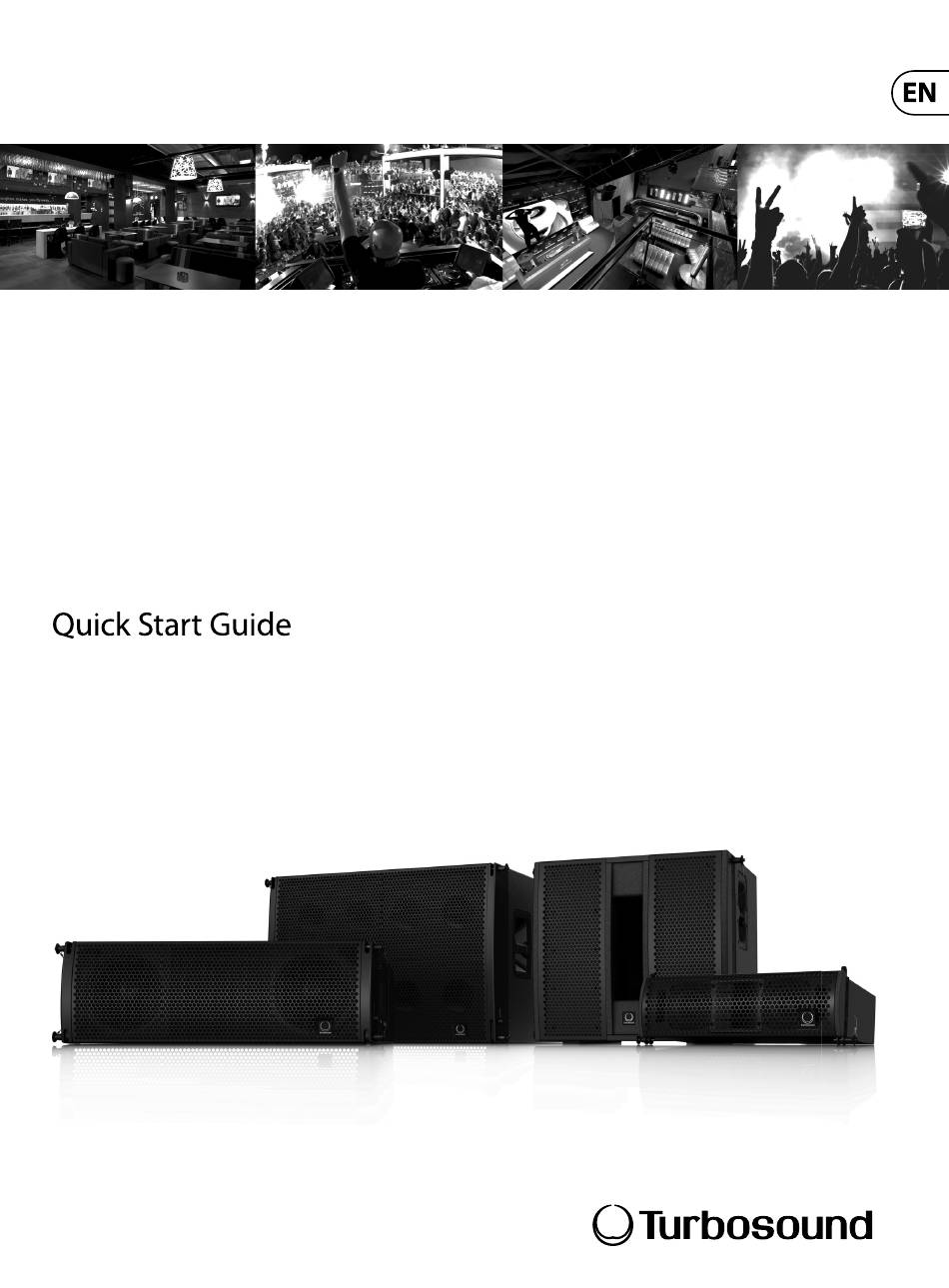

  • Page 1 TLX LIVERPOOL SERIES TLX215L/TLX212L Compact Dual 15"/ 12" Subwoofer for Portable and Fixed Installation Applications TLX84 Dual 2 Way 8" Line Array Element for Portable and Fixed Installation Applications TLX43 Compact Dual 2 Way 4" Line Array Element for Portable and Fixed Installation Applications...
  • Page 2: Legal Disclaimer

    11. Use únicamente los dispositivos o accesorios LAB GRUPPEN, LAKE, TANNOY, TURBOSOUND, por un técnico cualifi cado. manufacturer, or sold with cualquier persona por confi ar total o parcialmente en la...
  • Page 3: Garantie Limitée

    Um eine Gefährdung durch Stromschlag Standvorrichtungen, chariots, des diables, TANNOY, TURBOSOUND, TC ELECTRONIC, TC HELICON, sans notifi cation. Toutes les marques appartiennent à auszuschließen, darf die Geräteabdeckung Attention Stative, Halter oder Tische, des présentoirs, des pieds...
  • Page 4: Garantia Limitada

    Por favor leia o manual de instruções. には決して水分がかからないように注意 tripé, suporte, ou mesa LAKE 、 TANNOY 、 TURBOSOUND 、 TC ELECTRONIC 、  TANNOY, TURBOSOUND, TC ELECTRONIC, TC HELICON, 用されている場合 し、 花瓶など水分を含んだものは、 装置の Atenção especifi cados pelo TC HELICON 、 BEHRINGER 、 BUGERA  および ...
  • Page 5: Unpacking The Loudspeaker

    Typically 4 loudspeakers can be run from 2 amplifi er channels by wiring speakers in parallel. TLX212L and TLX215L subwoofers require 1 amplifi er channel and 1 controller channel. The required fi lters and conditioning is applied to the signal in the controller and the individual amplifi ed signals are fed to the speaker input.
  • Page 6: Amplifi Er Considerations

    HF 1 Amplifier Channel 1 > > NOTE: Since TLX subwoofers are wired 1+/- = LF1||LF2; 2+/- = LINK, in order to power multiple TLX212L or TLX215L enclosures, it is advised to construct SUB LINK BI-AMP, Input Low - Input/ >...
  • Page 7: Ground Stacking

    2 TLX43-FLB fl ybars. The TLX215L and TLX84 loudspeakers can be also be suspended in similar confi gurations, except only the top fl ybar is required for the mixed array. For maximum array sizes, weights and working load limits, please consult the TLX43-FLB or TLX84-FLB rigging manual.
  • Page 8 TLX LIVERPOOL SERIES Quick Start Guide LAKE Preset Overlays and Application Notes ARRAY SIZE COMPENSATION TLX Series preset modules for LAKE LM series controllers and LAB GRUPPEN / LAKE DSP amplifi ers (PLM+, D Series L) include preset overlays to assist with system The array size compensation overlay provides a convenient control to compensate tuning and optimisation.
  • Page 9: Technical Specifications

    TLX LIVERPOOL SERIES Quick Start Guide Technical Specifi cations Subwoofer Time Alignment TURBOSOUND TLX LAKE DSP settings include user adjustable delays on TLX43, TLX84, TLX212L and TLX43 TLX84 TLX212L TLX215L TLX215L channels. System 85 Hz – 20 kHz ±3 dB 67 Hz –...
  • Page 10 “Support” de nuestra página web aufgelistet sein, prüfen Sie bitte, ob Ihr Problem von unserem turbosound. com. En caso de que su país no aparezca en ese „Online Support“ gelöst werden kann, den Sie ebenfalls auf listado, acceda a la sección “Online Support” (que también turbosound.
