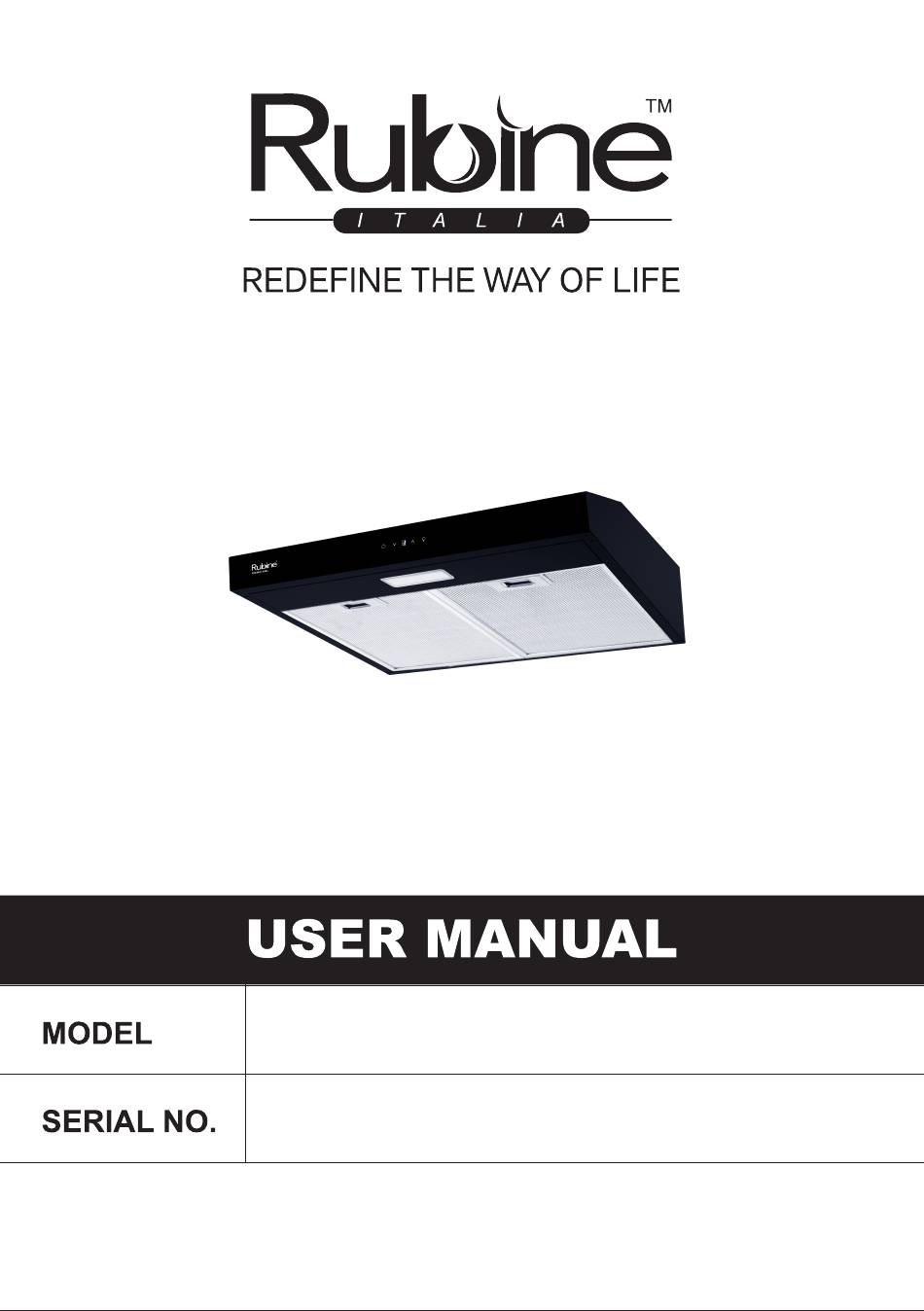

- Page 1 SLIM HOOD...
-
Page 3: Table Of Contents
Dear valued customer, Thanks for your purchase of our product. PLEASE READ & KEEP THIS USER MANUAL CONTENT INTRODUCTION ..................2 SAFETY PRECAUTION .................2-3 BEFORE INSTALLATION ...............4 INSTALLATION..............5-7 OPERATION INSTRUCTION............8 CLEANING AND MAINTENANCE .............9 TROUBLESHOOTING ................10... -
Page 4: Introduction
INTRODUCTION This instruction manual provides you with the guideline related to the installation, use and maintenance of the appliance. Please read this instruction manual & keep it for future reference. SAFETY PRECAUTION 1. Keep electrical appliances out of reach from children. Do not let them to operate the appliances without supervision. - Page 5 Electrical Shock Hazard Only plug this unit into a properly earthed outlet. Please seek advice from qualified engineer or authorities. Failure to follow these instructions might result in incident such as death, fire, or electrical shock.
-
Page 6: Before Installation
PREPARATION BEFORE INSTALLATION • Installation of cooker hood must be carried out by an authorized or qualified technician. • Remove all packaging materials from the cooker hood. Check and make sure that the cooker hood is not damaged. • Please ensure the power supply has switched OFF when installing the cooker hood. -
Page 7: Installation
INSTALLATION Method: To install to wall, drill 2 holes of Ø8mm on the suitable location according with the center distance of hole in the back of the cooker hood. Insert the nut into the holes. Insert the screws into the nuts and tight it. Then install cooker hood to the ... - Page 8 Note: 1.The ducting hose are optional accessories (for ducting system), it is not provided with the hood. 2.Take off the protection film before installation. 3.There are 2 methods for recirculation installation, which are' horizontal ventilation' and ' vertical ventilation'. For Vertical ventilation: See Pic A, do not install the round cover (outlet cover) so that the air can be exhaust from top For horizontal ventilation: See Pic B, please use tool to remove the rectangular cover, then the air can be exhaust from back.
- Page 9 Air ventilation setting Outdoor exhausting: Turn the adjuster to outdoor position, install with duct-out system, the air will be exhaust from the duct-out outlet. Recirculation: Install the carbon/ charcoal filter, turn the adjuster to indoor position, install the outlet cover, the air will be exhaust from the recirculation outlet.
-
Page 10: Operation Instruction
OPERATION INSTRUCTION Touch control On/Off button For turning on/off the cooker hood. Speed ” ” Icon For increasing the speed of the fan motor. Speed “ ” Icon For decreasing the speed of the fan motor. Light Icon Digital display Speed display:"1"... -
Page 11: Cleaning And Maintenance
CLEANING AND MAINTENANCE Before cleaning, please unplug/ switch off the electric supply. I. Regular Cleaning Use a soft cloth with lukewarm, mildly soapy water to wipe the hood surface. Never use metal pads, chemicals, abrasive materials or stiff brushes to clean the range hood. -
Page 12: Troubleshooting
TROUBLESHOOTING Malfunctions Possible Root Cause Checking The distance is too far Lower down the cooker hood between the cooker hood and installation height but within cooking appliance the safety guideline Weak Suction Strong convection due to too Close some of the windows or much ventilation doors Check if the plug is well... - Page 16 1-year...
