Summary of Contents for Rubine RCH-LESTE-BL

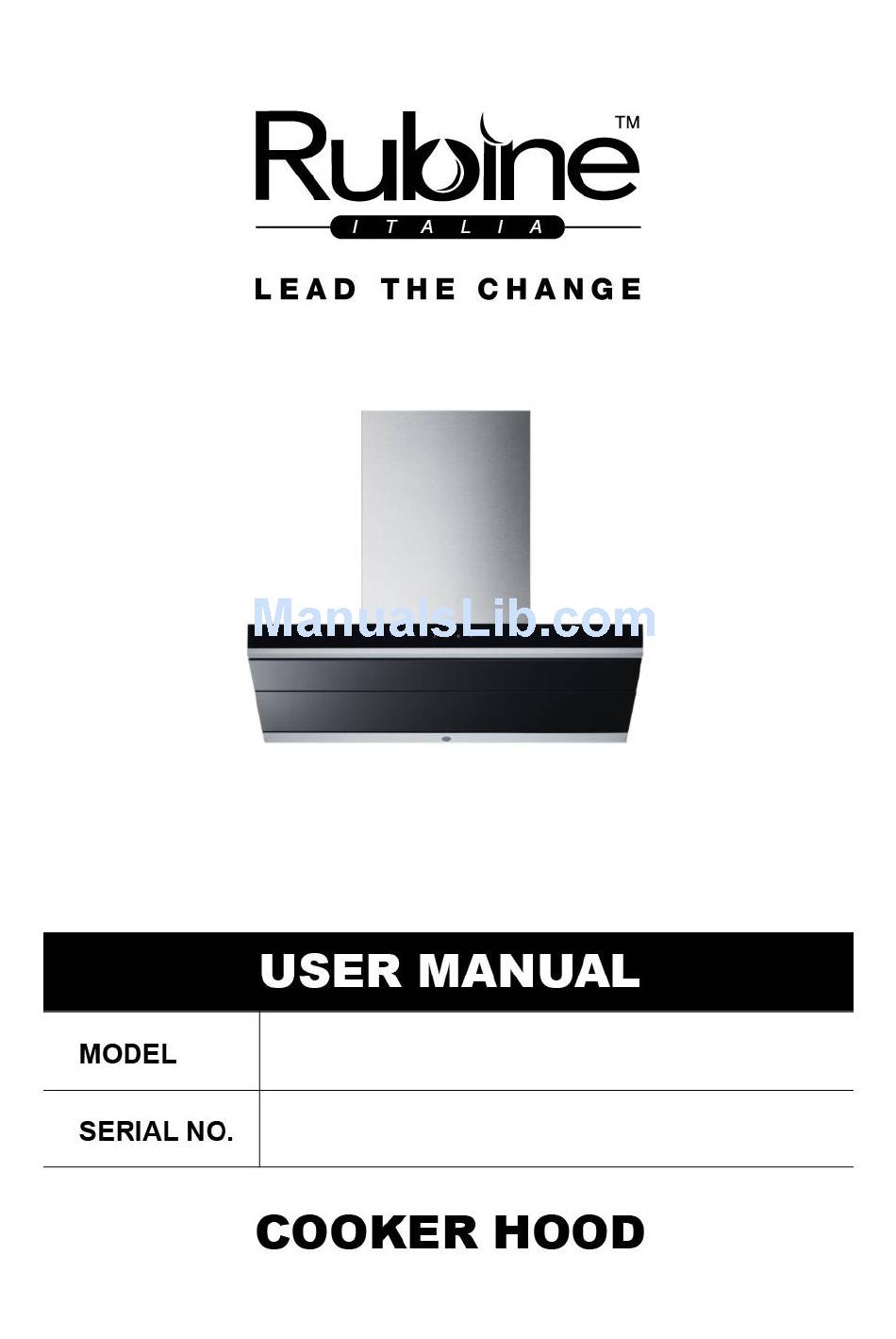

- Page 1 RCH-LESTE-BL...
-
Page 2: Table Of Contents
READ & SAVE THIS INSTRUCTIONS MANUAL CONTENTS SPECIFICATIONS --------------------------------------------------------------------------------------4 PRODUCT DIMENSION ------------------------------------------------------------------------------4 OPERATNG INSTRUCTIONS -----------------------------------------------------------------------5 INSTALLATION REQUIREMENT -----------------------------------------------------------------6 INSTALLATION PROCEDURES -------------------------------------------------------------------7 MAINTENANCE (installation of charcoal filter) --------------------------------------------------8 IMPORTANT SAFETY INSTRUCTIONS --------------------------------------------------------10 TROUBLE SHOOTNGS -----------------------------------------------------------------------------12 WARRANTY CARD ---------------------------------------------------------------------------------13... - Page 3 Dear Valued Customer, Congratulations and thanks for trusting RUBINE to be part of your kitchen appliances. This appliance is subject to strict Quality Control during the entire process of manufacturing and assembly. It is meticulously tested to ensure lowest defect possible when it is working in your kitchen.
-
Page 4: Specifications
SPECIFICATIONS Model Name : RCH-LESTE-BL Total Power 224W Motor Power : 220W LED Lamp 2x2W 220V – 240V Voltage Frequency 50Hz PRODUCT DIMENSION... -
Page 5: Operatng Instructions
OPERATION INSTRUCTION This is a highly sensitive touch control. Gently press the control to operate. Extraction On/ Off Light Boost Speed Switch • Touch ‘A’ for standby mode. Then, touch ‘D’ to operate the hood. ▪ 1 touch will run the hood in high speed ▪... -
Page 6: Installation Requirement
INSTALLATION REQUIREMENT 1. To have the best suction results, do not install cooker hood near to door and windows. External wind will reduce the efficiency of the appliance. (Fig. 1) 2. Install cooker hood directly above the hob. The optimum distance between the cooker good and hob is 500mm to 550mm. -
Page 7: Installation Procedures
INSTALLATION PROCEDURES SAFETY WARNING Some parts of the hood may have very sharp edges. Please wear protective gloves if you need to remove any parts during installation, cleaning or servicing. Make sure the wall able to hold/ withstand the weight of cooker hood. It should not have contact with any cable inside/ outside to avoid electric shock. -
Page 8: Maintenance (Installation Of Charcoal Filter)
MAINTENANCE To ensure efficiency & product lifespan, clean the cooker hood surface & fan regularly. Before any cleaning & maintenance, make sure the cooker hood is turned-off and unplugged. Wear glove to avoid scratch during maintenance. Use mild soap or detergent solution to clean the surface once a week depending on the usage Motor fans and other internal part should be cleaned twice a week, depending on usage. - Page 9 Replace & dismantle of Led Lamp Caution: Hot surface! To replace or dismantle the lamp, make sure it is turned-off and unplugged. Use a flat head screwdriver to pull out the lamp subassembly Pull out the connection with internal wires. Replace with new lamp Connect the lamp subassembly with internal wires and push the lamp into the hood.
-
Page 10: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS:... -
Page 12: Trouble Shootngs
TROBLESHOOTINGS Malfunctions Causes Action Light bulb is not install Light bulb Contact service centre & malfunction Light bulb is not install request technician to: while motor is correctly - install the light bulb operating - replace new light bulb Light bulb broken Plug &... - Page 14 Contact : 03 – 6286 9000 Website : http://www.e-quality.com.my/ Log on to www.rubine.com.my Click on ‘Support’, followed by ‘Warranty Registration’. Choose ‘Kitchen Appliances’ & Click Next. Website will direct you to ‘Exact Quality’ website. Click ‘Register Warranty’. You’re required to sign up as member.
