KoolMore KM-CR24-NG User Manual

Commercial gas range
Hide thumbs Also See for KM-CR24-NG:

Advertisement

Table of Contents

Commercial Gas Range
Models:
KM-CR24-NG, KM-CR24-LP, KM-CR36-NG, KM-CR36-LP, KM-CRG3660-NG, KM-CRG3660-LP,
KM-CRG4860-NG, KM-CRG4860-LP, KM-CR36CO-LP, KM-CR36CO-NG, KM-CR36CO-LP,
KM-CR36S2L-NG, KM-CR36S2L-LP, KM-CRG1236-NG, KM-CRG1236-LP, KM-CRG36-NG,
KM-CRG36-LP, KM-CRG60-NG, KM-CRG60-LP, KM-CR60-NG, KM-CR60-LP, KM-CRG3636-NG,
KM-CRG3636-LP, KM-CRG60-NG, KM-CRG60-LP, KM-CRGB60-NG, KM-CRGB60-LP
1. Functional Introduction..........................................2
2. Structural & Functional Features..............................2
3. Precautions & Recommendations............................3
5. Routine Inspection.................................................7
6. Cleaning & Maintenance........................................8
7. Failure Analysis & Trouble Shooting.........................9
8. Backsplash Assembly Instruction.............................10
9. Basic Features & Parameters...................................11
For any service-related Issues, please contact us:
Phone Number: 718-576-6342
Email address: support@koolmore.com
User Manual
Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KM-CR24-NG and is the answer not in the manual?

Questions and answers

Related Manuals for KoolMore KM-CR24-NG

Summary of Contents for KoolMore KM-CR24-NG

  • Page 1: Table Of Contents

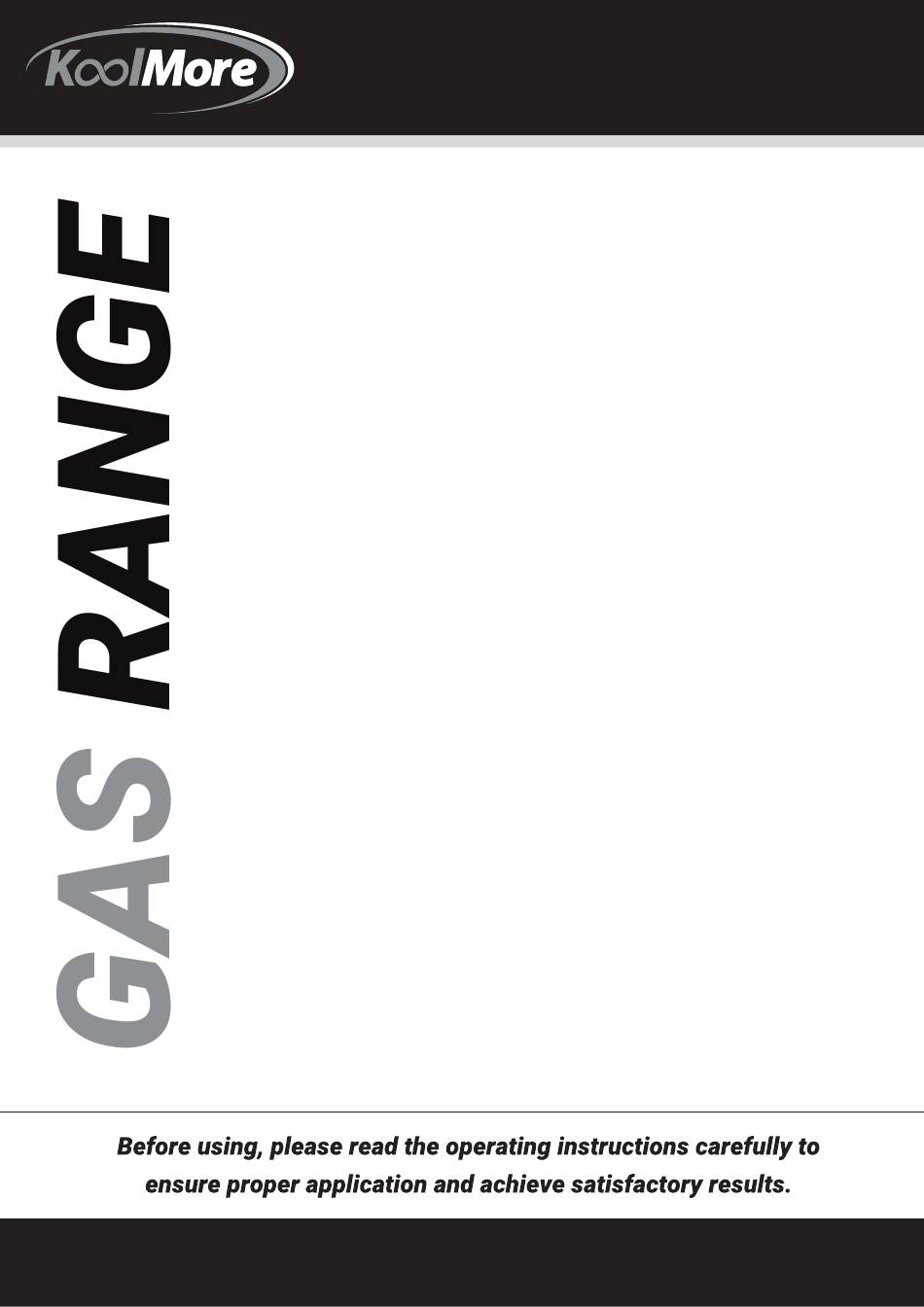

    User Manual Commercial Gas Range Models: KM-CR24-NG, KM-CR24-LP, KM-CR36-NG, KM-CR36-LP, KM-CRG3660-NG, KM-CRG3660-LP, KM-CRG4860-NG, KM-CRG4860-LP, KM-CR36CO-LP, KM-CR36CO-NG, KM-CR36CO-LP, KM-CR36S2L-NG, KM-CR36S2L-LP, KM-CRG1236-NG, KM-CRG1236-LP, KM-CRG36-NG, KM-CRG36-LP, KM-CRG60-NG, KM-CRG60-LP, KM-CR60-NG, KM-CR60-LP, KM-CRG3636-NG, KM-CRG3636-LP, KM-CRG60-NG, KM-CRG60-LP, KM-CRGB60-NG, KM-CRGB60-LP Contents 1. Functional Introduction……………………………………2 2. Structural & Functional Features...………………………2 3.
  • Page 2 WARNING • Any self-modification, incorrect installation, adjustment, or maintenance may result in property loss or injury. Please contact the manufacturer for any adjustments or maintenance, and ensure that the work is done by a trained and quali- fied person. • For your safety, keep the machine away from any liquids, gases, or other objects that are flammable or explosive. •...

  • Page 3: Functional Introduction

    Thank you again for choosing our product. 1. Functional Introduction This product has been manufactured by KoolMore, combining the best features from both domestic and international markets. It boasts a novel design, a reasonable structure, easy operation, durability, and convenient maintenance, making it the ideal equipment for the food industry.

  • Page 4: Precautions & Recommendations

    2. Precautions & Recommendations 2.1 Transportation and Storage During transportation, the machine should be handled with care and should not be turned upside down to prevent damage to the shell and internal components. The packaged machine should be stored in a well-ventilated warehouse free from corrosive gases. If it needs to be stored in an open-air environment temporarily, measures should be taken to protect it from rain.
  • Page 5 2.3 Special Notice 1. The installation, first use, and maintenance of this device should only be carried out by professional personnel or qualified individuals. 2. Please ensure the integrity of the appliance and remove the outer packaging. If you have any questions or concerns, please contact a specialist and refrain from using the appliance. If there is any danger, keep the packaging materials away from children, as they may include plastic bags, nails, and other hazardous items.

  • Page 6: Working Instructions & Operation Flow

    2.4 Griddle Seasoning Caution: Although this griddle plate is made of steel, the surface is relatively soft and can be easily scored or dented by the careless use of a spatula or scraper. To avoid damaging the plate surface, be careful not to dent, scratch, or gouge it. Do not attempt to knock off any loose food that may be on the spatula by tapping the corner edge of the spatula on the griddle surface.
  • Page 7 Hot Top and Griddle Top Burners: 1. Connect the gas supply to the device and use a lighter to ignite the pilot flame. If the device has not been used for a long time or is being used for the first time, it is normal for the ignition to take a little longer (approximately two or three minutes).

  • Page 8: Routine Inspection

    4. Routine Inspection Regular inspection is essential to ensure the safe and efficient operation of the machine. It is recommended to perform routine checks on a regular basis to prevent serious accidents. If the user notices any issues with the circuit or machine, it is important to stop using it immediately and address the problem.

  • Page 9: Cleaning & Maintenance

    5. Cleaning & Maintenance Regular cleaning and maintenance of the device is essential to ensure its safe and efficient operation. Before beginning any cleaning, make sure to turn off the device and the gas valve upstream of it. Cleaning: • Clean the burners and tray regularly to remove any debris that has accumulated. •...

  • Page 10: Failure Analysis & Trouble Shooting

    7. Failure Analysis & Trouble Shooting Symptoms Causes Solutions 1. The gas pressure is not enough. 1. Adjust the relieve valve to get a proper pressure. 2. The nozzle is blocked. 2. Unblock the nozzle. 3. Connection of the The pilot flame thermocouple is loose.

  • Page 11: Backsplash Assembly Instruction

    8. Backsplash Assembly Instruction: Cover Cover Support (for 60” only) Front Panel Panel Support Back Panel 1. Open the package and remove the backsplash components. 2. Assemble the required components according to the upper figure. 3. Slide the back panel into the front panel from the bottom of the front panel. 4.

  • Page 12: Basic Features & Parameters

    9. Basic Features & Parameters Model KM-CR24-LP/NG KM-CR36-LP/NG KM-CR36CO-LP/NG KM-CR60-LP/NG Dimension（inch） 23.9*32.6*60.3 36*32.6*60.3 36*42.3*61.2 60*32.6*60.3 Oven Size（inch） 20.6 25.8 13.7 26.8*25.8*13.7 26.8*26.1*14 26.8*25.8*13.7 Oven Type Standard Standard Convection Standard Temperature（F） 250-550 250-550 250-500 250-550 Oven 30000BTU 30000BTU 32000BTU 2*30000BTU Power Gas Range 4*30000BTU 6*30000BTU...

  • Page 13: Wiring Diagram For Convection Oven

    Model KM-CRG3636-LP/NG KM-CRG3660-LP/NG KM-CRG4860-LP/NG KM-CR36S2L-LP/NG Dimension（inch） 36*32.65*60.3 60*32.64*60.3 60*32.6*60.3 36*32.6*60.3 Oven Size（inch） 26.8*25.8*13.7 26.8*25.8*13.7 26.8*25.8*13.7 26.8*25.8*13.7 Oven Type Standard Standard Standard Standard Temperature（F） 250-550 250-550 250-550 250-550 Oven 30000BTU 2 x 30000BTU 2 x 30000BTU 30000BTU Gas Range 4 x 30000BTU 2 x 30000BTU 6 x 30000BTU Power...
  • Page 14 Equipment that has been altered, modified, or repaired by anyone other than an authorized service agency outside of preventative maintenance and cleaning. Parts deemed by Koolmore to be normal wear and tear parts, including hoses and select plastic or rubber components.
  • Page 16 4 x 30000BTU...
