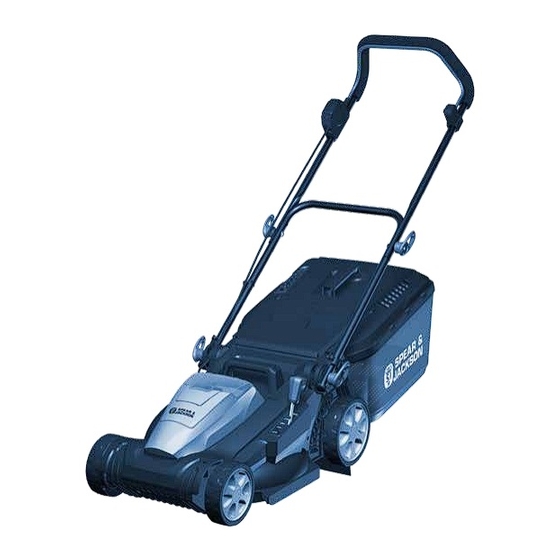

36V
Cordless
Lawnmower
SCR3637A
Important - Please read these instructions
fully before starting assembly
These instructions contain important information that will help
you get the best from your mower, ensuring it is assembled
correctly and safely. If you need help or have any missing parts
call After Sales Support on 0345 605 2068
ORIGINAL
INSTRUCTION
MANUAL
AFTER SALES SUPPORT
0345 605 2068

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCR3637A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spear & Jackson SCR3637A

Summary of Contents for Spear & Jackson SCR3637A

  • Page 1 ORIGINAL INSTRUCTION MANUAL Cordless Lawnmower SCR3637A Important - Please read these instructions fully before starting assembly AFTER SALES SUPPORT 0345 605 2068 These instructions contain important information that will help you get the best from your mower, ensuring it is assembled correctly and safely.
  • Page 2 SPEAR & JACKSON SINCE 1760 For more than 250 years gardeners have enjoyed high quality performance and great results using Spear & Jackson tools. Our garden power tools combine continuous innovation and the latest in manufacturing technologies with a proud heritage. Each product is carefully designed with performance, comfort and durability firmly in mind, which has earned Spear &...

  • Page 3: Table Of Contents

    CONTENTS Safety Information ........................4 Intended Purpose ..........................4 Warning Symbols ..........................4 Work Area Safety ..........................6 Electrical Safety ..........................6 Machine Use and Care ........................6 Personal Safety ..........................7 Battery & Charger ..........................7 Operating Safety ..........................8 Maintenance and Storage Safety ....................

  • Page 4: Safety Information

    SAFETY INFORMATION INTENDED PURPOSE The following warning symbols appear throughout this assembly manual and indicate the appropriate safety measures you should take when assembly and operating the mower. WARNING SYMBOLS Take extra care, beware Wait until all moving parts have stopped of hazards.
  • Page 5 SAFETY INFORMATION Rated Current of • Read all operating T3.15A Protection Fuse. instructions carefully and comply with them. It is important to understand Waste electrical these instructions and to products should not be disposed of with acquaint yourself with the household waste.

  • Page 6: Work Area Safety

    SAFETY INFORMATION WORK AREA SAFETY unplugging the charger. Keep the cord away from • Inspect the area where the heat, oil, sharp edges or machine is to be used and moving parts. Damaged or remove all objects which entangled cords increase can be thrown by the the risk of electric shock.

  • Page 7: Personal Safety

    SAFETY INFORMATION • Remove any adjusting key of starting the machine or wrench before turning accidentally. the machine on. A wrench • Store idle machines out of or a key left attached to a the reach of children and do rotating part of the machine not allow persons unfamiliar may result in personal injury.

  • Page 8: Operating Safety

    SAFETY INFORMATION OPERATING SAFETY • When battery pack is not in use, keep it away from other TRAINING metal objects, like paper • Read the instructions clips, coins, keys, nails, carefully. Be familiar with the screws or other small metal controls and the proper use objects, that can make of the machine.
  • Page 9 SAFETY INFORMATION used and remove all objects controls and correct which can be thrown by the operation of the product. machine. • Before using the product or • Before using, always after any impact, check for visually inspect to see that signs of wear or damage the blade, blade bolt and and repair as necessary.
  • Page 10 SAFETY INFORMATION loose parts. than grass, and when transporting the machine • Always ensure that the to and from the area to be air vents are kept clear of used. debris. • Switch on the motor • For your safety do not carefully according to use replacement parts or instructions and with feet...
  • Page 11 SAFETY INFORMATION to the letter. This will help to • Injuries and damage to prevent risks and hazards. property due to broken application tools or sudden • Always be alert when using impact of hidden objects the machine, so that you during use.

  • Page 12: Maintenance And Storage Safety

    SAFETY INFORMATION MAINTENANCE AND STORAGE SAFETY technician. • Keep all nuts, bolts and • Use parts and accessories screws tight to be sure the made for this machine by machine is in safe working the manufacturer. Failure to do so can result in personal condition.

  • Page 13: In The Box

    IN THE BOX PARTS Upper handle Cutting Height Upper Cover of Cable Clip Adjustment Handle Grass Collection Switch Lever Grass Collector Full Rear Wheel Indicator Wing knob Deflector Guard Front Wheel Safety Button Cable Guide Lower Cover of Deck Charger Grass Collector Grass Collection Handle...

  • Page 14: Assembly

    ASSEMBLY Unpacking i. Unpack all parts and lay them on a flat, stable surface. ii. Remove all packing materials and shipping devices if applicable. iii. Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact the aftersales helpline within 28 days of purchase.
  • Page 15 ASSEMBLY Fix the upper handle Fit the upper handle and lower handle together with the wing knobs. Before fitting the wing knob, check and ensure the cable guide is attached on the upper handle. If not, attach the cable guide on the upper handle as shown. Ensure the hole on the cable guide is aligned with the hole on the upper handle.
  • Page 16 ASSEMBLY Assemble the grass bag i. Insert the handle in the upper cover of grass bag. ii. Place the metal frame inside the grass collection bag, Make sure that these clips are fully secured to the metal frame. iii. To remove the mulching plug, grip the post and squeeze the lever, push down (1) to release the catch (2).

  • Page 17: Preparation

    PREPARATION Check battery capacity Push the power indicator to show remaining battery capacity. The battery is equipped with a charge-level indicator panel which indicates charge condition. This charge-level indicator panel consists of 4 LEDs on the battery. Press and hold the charge indicator button on the battery to actuate the charge level indicator.
  • Page 18 PREPARATION iii. The indicator lights on the charger show the charger status: Symbol Indicator lights Status red, charging paused, see flashing instructions below. red, connected to power continuous supply green, flashing at charging battery temperature green, flashing is too high, see at 2Hz instructions below green,...
  • Page 19 PREPARATION Fit the battery i. Lift the cover slide the battery along the rails and locks into position. ii. Insert the isolator key. Mowing tips • Verify that the lawn is free of stones, sticks, wires ,and other objects that could damage the lawn mower. •...

  • Page 20: Operation

    OPERATION Switching on i. Press the button (1). ii. Pull the switch bar (2) towards the handle and hold in position. Switching off Release the switch bar. Grass bag full indicator i. If the collection bag is empty or it is not full with grass, the grass full indicator will open.
  • Page 21 OPERATION Battery indicator panel • Battery indicator on the switch box can be used to indicate the battery status. Battery • Push the button to check on the battery status, 4 lights indicator indicate a fully charged battery, 1 light indicates the battery Mode indicator needs to be charged.
  • Page 22 OPERATION Using as a Mulcher Do not attach the collection bag and the mulching plug at the same time. The mulching plug allows the grass clippings to be deposited back on the lawn during cutting. To install plug: i. Lift the safety flap and detach the grass collection bag.

  • Page 23: Maintenance

    MAINTENANCE WARNING! Always switch the product off, disconnect it from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! i. Keep the underbody and cutting blade clean and free of debris. Remove clippings from the discharge chute. ii.
  • Page 24 MAINTENANCE Storage WARNING! To avoid damage to the cable, ensure the power cable is not caught between the folding sections. i. Switch the product off and remove the battery. ii. Clean the product as described above. iii. To reduce storage space, the upper handle can be folded down, turn the wing knobs anti-clockwise to loosen and release the handles.

  • Page 25: Technical Data

    TECHNICAL DATA Model SCR3637A Voltage No load speed 3100/min Cutting width 37cm Height of cut 22/32/42/52/62mm Net weight 13.6 kg Grass collector capacity 40 l Charger Model no. 40LFC15 Charger input 220-240V 50/60Hz 145W Charger output 3.0A Charging period (battery fully discharged)
  • Page 26 TECHNICAL DATA Sound values Measured sound pressure level L : 71.03 dB(A) Measured sound power level L : 91.03 dB(A) Uncertainty K: 0.89 dB(A) Guaranteed sound power level L : 96 dB(A) Vibration values Hand arm vibration a : 3.369m/s² Uncertainty K: 1.69m/s²...

  • Page 27: Troubleshooting

    TROUBLESHOOTING Suspected malfunctions are often due to causes that the user can fix themselves. Therefore, check the product using this section. In most cases the problem can be solved quickly. WARNING! Only perform the steps described within these instructions! All further inspection, maintenance and repair work must be performed by a qualified specialist if you cannot solve the problem yourself! Gloves and appropriate protective clothing must be worn when performing these operations.
  • Page 28 TROUBLESHOOTING Fault Possible Cause Solution Area of cut (battery duration) Height of cut too low Increase height of cut and walk slower not large enough Grass too high Increase height of cut and walk slower Grass wet or damp Wait until grass is dry and walk slower Grass is dense Increase height of cut, walk slower...

  • Page 29: Warranty

    WARRANTY If your device develops a fault, please don’t hesitate to contact our after sales support on 0345 605 2068, the majority of problems can be solved directly on the phone. 1. These warranty terms cover additional warranty rights and do not affect your statutory warranty rights.
