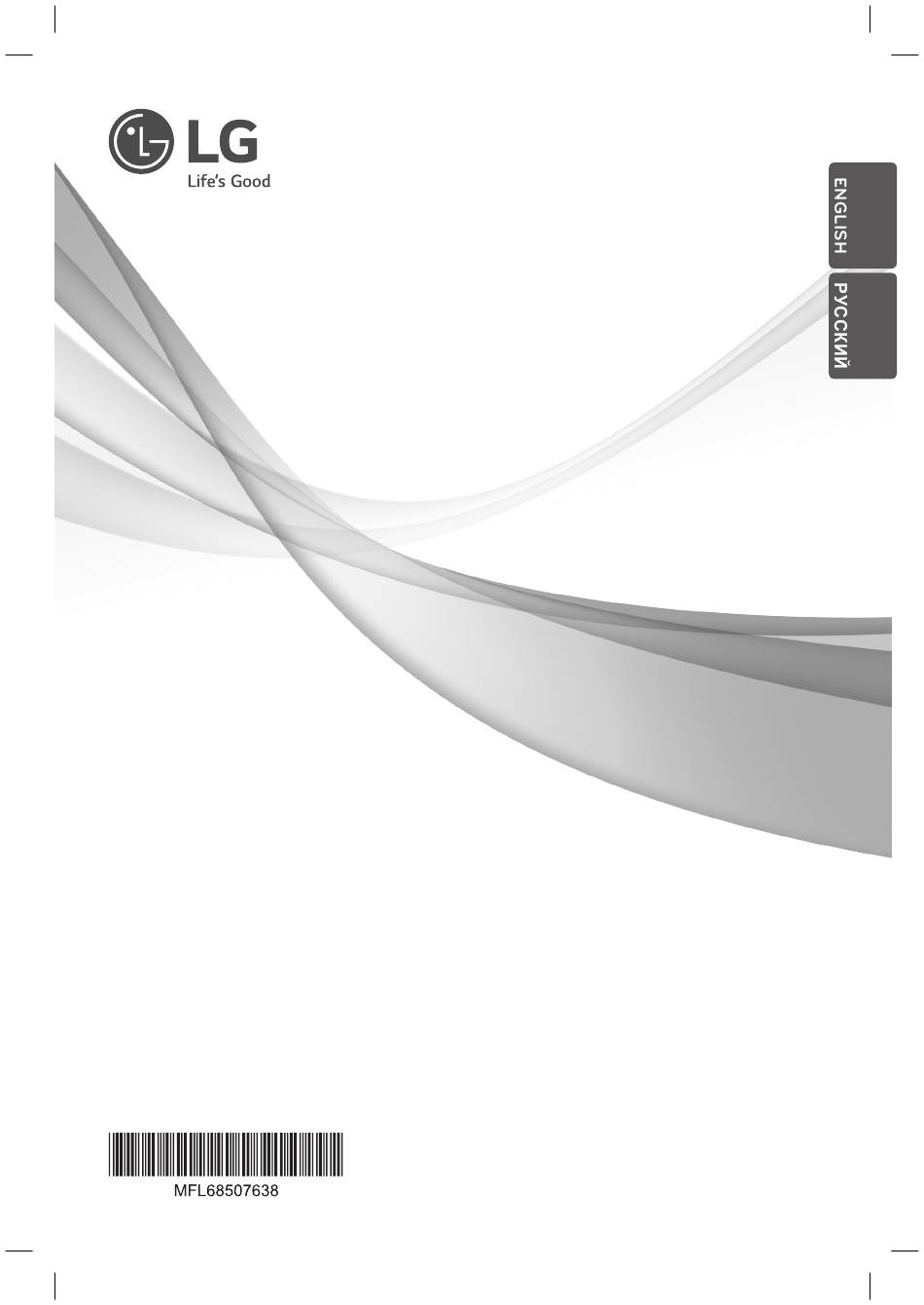

- Page 1 OWNER’S MANUAL BOTTOM FREEZER FRIDGE Please read this owner’s manual thoroughly before operating and keep it handy for reference at all times. GR-Y31FW*** www.lg.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS Storing Food PRODUCT FEATURES - Food Preservation Location - Food Storage Tips - Storing Frozen Food IMPORTANT SAFETY Adjusting the Fridge Shelves INSTRUCTIONS - Detaching the Shelf - Refitting the Shelf - Using the Folding Shelf COMPONENTS - When Closing the Door Fridge Exterior... -
Page 3: Product Features
PRODUCT FEATURES PRODUCT FEATURES * Depending on the model, some of the following functions may not be available. DOOR ALARM The Door Alarm function is designed to prevent fridge malfunctioning that could occur if a fridge door or freezer door remains open. If a fridge door or freezer door is left open for more than 60 seconds, a warning alarm sounds in 30 second intervals until it is closed. -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. This guide contains many important safety messages. Always read and obey all safety messages. This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others, or cause damage to the product. - Page 5 IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety precautions should be followed, including the following. This appliance is intended to be used in household and similar applications such as - staff kitchen areas, offices and other working environments;...
- Page 6 IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE. To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety precautions should be followed, including the following. CAUTION Installation The fridge must be properly installed in accordance with the Installer Instructions that were taped to the front of the fridge.
-
Page 7: Components
COMPONENTS COMPONENTS Use this page to become more familiar with the parts and features of your fridge. Page references are included for your convenience. *The appearance and specifications of the actual product may differ depending on the model. Fridge Exterior (Applicable to some models only) LED Display Door in Door release Displays the fridge and freezer’s... -
Page 8: Fridge Interior
COMPONENTS Fridge Interior (Applicable to some models only) Hygiene Fresh Filter LED interior lamps The interior lamps light up Shelf the inside of the fridge. Dairy Product Bin Used to preserve dairy products. Fridge Basket Shelf Folding Shelf Indoor Ice Bin Door-In-Door Ice cubes are automatically produced. -
Page 9: Installation
INSTALLATION INSTALLATION Installation Overview Please read the following installation instructions first after purchasing this product or transporting it to another location. 1 Unpacking your 2 Choosing the proper fridge location 3 Connecting the 4 Leveling and Door water supply and Alignment water line SUGGESTION FOR ENERGY SAVING... -
Page 10: Unpacking Your Fridge
INSTALLATION Unpacking Your Fridge Choosing the Proper Location Select a place where a water supply can be WARNING easily connected for the automatic icemaker. Use two or more people to move and install NOTE the fridge. Failure to do so can result in back or other injury. -
Page 11: Ambient Temperature
INSTALLATION How to Remove the Fridge Door Ambient Temperature Install this appliance in an indoor area where Removing the Left Fridge Door the temperature is between 13°C and 43°C. If the temperature around the appliance is too low or high, the cooling ability may be The water supply is connected to the adversely affected. - Page 12 INSTALLATION Removing the Right Fridge Door Remove the cover and pull out the tube Disconnect all wire harnesses Remove the top hinge cover screw Lift the hook (not visible), located at the bottom of the front side of the cover with a flat-head screwdriver.
- Page 13 INSTALLATION NOTE Rotate the hinge lever clockwise. Lift the top hinge free of the hinge lever latch. Collet Tube Insert Line Hinge Lever Latch 1) Gently insert the tube until only one line shows on the tube. CAUTION When lifting the hinge free of the hinge (Correct) lever latch, be careful that the door does not fall forward.
- Page 14 INSTALLATION Assembling the Right Fridge Door Connect the wire harness Install the right-side door first. Make sure that the plastic sleeve is inserted in the bottom of the door. Lower the door onto the middle hinge pin as shown in the figure. Make sure that the door-switch located inside the cover is tightly connected.
- Page 15 INSTALLATION Assembling the Left Fridge Door Push the water supply tube into the hole on the top case and pull it through the backplate. Install the left fridge door after the right door is installed. Make sure that the plastic sleeve is inserted in the bottom of the door.
-
Page 16: How To Remove The Freezer Door
INSTALLATION How to Remove the Freezer Height Adjustment Door (TURN OFF THE MAIN Leveling the doors may not be possible when POWER. Same procedure for the floor is not leveled, or is of weak or poor construction. The fridge is heavy and should left and right doors) be installed on a rigid and solid surface. -
Page 17: If The Heights Of The Freezer Doors Are
INSTALLATION If the heights of the Freezer doors Method 2, only allows a maximum of 3mm of adjustment) are different (1) Use the wider side of the number Method 1 is recommended. spanner to turn locking nut ( For freezer doors, use spanner clockwise to unscrew the locking nut. -
Page 18: Connecting The Water Line
INSTALLATION Connecting the Water Line Water Pressure A cold water supply. The water pressure must Before You Begin be between 20 and 120 psi (138 and 827kPa) on models without a water filter and between 40 and This water line installation is not covered by 120 psi (280 and 830 kPa) on models with a water the fridge warranty. -
Page 19: What You Will Need
INSTALLATION What You Will Need Water Line Installation Instructions ¼ in. outer diameter, to Copper Tubing, WARNING connect the fridge to the water supply. Be sure both ends of the tubing are cut When using any electrical device square. (such as a power drill) during To determine how much installation, be sure the device is tubing you need: measure... - Page 20 INSTALLATION FASTEN THE SHUTOFF VALVE CONNECT THE TUBING TO THE VALVE Fasten the shutoff valve to the cold water Place the compression nut and ferrule pipe with the pipe clamp. (sleeve) for copper tubing onto the end of the tubing and connect it to the shutoff valve.
-
Page 21: Turning On The Power
INSTALLATION Turning On The Power TURN THE WATER ON AT THE SHUTOFF VALVE Tighten any connections that leak. Plug in the fridge. CAUTION Check to see if leaks occur at the water line connections. CAUTION Connect to a rated power outlet. PLUG IN THE FRIDGE Have a certified electrician check Arrange the coil of tubing so that it does... -
Page 22: How To Use
HOW TO USE HOW TO USE Before use Clean the fridge. Clean your fridge thoroughly and wipe off all dust that may have accumulated during shipping. CAUTION Do not scratch the fridge with a sharp object or use a detergent that contains alcohol, a flammable liquid or an abrasive when removing any tape or adhesive from the fridge. -
Page 23: Control Panel
HOW TO USE Control Panel (Applicable to some models only) Control Panel Features LCD Display LED Display (Touch Button) Panel background lamp For easy viewing of the display, the background When power saving is in operation, display lamp is lighted in the following cases. window is turned OFF except the ice maker (ON/OFF) When you turn on the power... - Page 24 HOW TO USE Touch Button Functions Fridge Temperature The touch button is a static electricity Indicates the set target temperature of the fridge (Capacitive) switch, and it responds to and compartment in Celsius (°C). operates with the human body or object with The recommended Fridge set temperature in static electricity that approached within a set normal ambient conditions and loads is 3°C ~ 4°C.
- Page 25 HOW TO USE Express Freeze Change Water Filter When the water filter indicator turns on, you need to change the water filter. After changing This function increases both ice making and freezing capabilities. the water filter, press and hold the Change Filter button for three seconds to turn the indicator When you touch the Express Freeze button,...
- Page 26 HOW TO USE Ice On/Off Hygiene Fresh Press the Ice On/Off button for 3 seconds to turn The Hygiene Fresh function has three modes, the icemaker On/Off. Auto(when icon is lit up), Power(when icon and Power are lit up) and Off(default mode when <LCD Display>...
- Page 27 HOW TO USE Display window touch function NOTE <water mode> During the set amount water extraction, if you press “stop”, water extraction stops, and You directly touch the display window for it returns to the previous screen. operation. At this time, the amount of water extracted until that time is not memorized.
- Page 28 HOW TO USE If you select “100ml~”, it is switched to If you select “500ml~”, it is switched to the following screen, and when you press the following screen, and when you press “water out”, the water comes out as much as “water out”, the water comes out as much as selected amount along with the water filling selected amount along with the water filling...
- Page 29 HOW TO USE 2. Cold Water 4. Crushed After selecting “cold water”, if you press the After selecting “Crushed”, if you press water lever, cold water comes out along with the water out lever, ice crush comes out along with the ice filling display.
-
Page 30: In-Door Ice Bin
HOW TO USE In-Door Ice Bin To remove the in-door ice bin, grip the front handle, slightly lift the lower part, and slowly pull out the bin as shown. * Depending on the model, some of the following functions may not be available. CAUTION Keep hands and tools out of the ice compartment door and dispenser chute. -
Page 31: Automatic Icemaker
HOW TO USE Automatic Icemaker WARNING Personal Injury Hazard * Depending on the model, some of the DO NOT place fingers or hands on the following functions may not be available. automatic ice making mechanism while the fridge is plugged in. Ice is made in the automatic icemaker and sent to the dispenser. - Page 32 HOW TO USE Automatic Icemaker When You Should Turn the Icemaker Off (continued) When the water supply will be shut off for several hours. CAUTION When the ice bin is removed for more The first ice and water dispensed may than one or two minutes.
-
Page 33: Ice And Water Dispenser
HOW TO USE Ice and Water Dispenser NOTE If discolored ice is dispensed, check * Depending on the model, some of the the water filter and water supply. If the following functions may not be available. problem continues, contact a qualified service center. -
Page 34: Storing Food
HOW TO USE Storing Food Food Preservation Location (Applicable to some models only) Each compartment inside the fridge is designed to store different types of food. Store your food in the optimal space to enjoy the freshest taste. Fridge Basket Store beverages, water, etc. - Page 35 HOW TO USE Food Preservation Location (Applicable to some models only) (continued) Dairy Product Bin Store diary foods such as butter, cheese, etc. Folding Shelf Fold this shelf to store large-sized containers or food. Door-In-Door Store frequently-taken out foods such as beverages, snacks, etc. Extra Space Preserve small foods such as eggs, ham, etc.
-
Page 36: Food Storage Tips
HOW TO USE Storing Frozen Food Food Storage Tips * The following tips may not be applicable NOTE depending on the model. Check a freezer food guide or a reliable cookbook for further information about preparing Wrap or store food in the fridge in airtight and food for freezing or food storage times. -
Page 37: Adjusting The Fridge Shelves
HOW TO USE Storing Frozen Food (continued) Adjusting the Fridge Shelves Packaging The shelves in your fridge are adjustable to meet your individual storage needs. Your Successful freezing depends on correct model may have either glass or wire shelves. packaging. When you close and seal the package, it must not allow air or moisture in or Adjusting the shelves to fit different heights out. -
Page 38: Using The Folding Shelf
HOW TO USE Using the Folding Shelf When Closing the Door You can store taller items, such as containers or bottles, by simply pushing the front half of the shelf underneath the back half of the shelf. Pull the front of the shelf firmly toward you to return to a full shelf. -
Page 39: Big Fresh Zone
HOW TO USE Big Fresh Zone Refitting the Big Fresh Zone drawer Removal of the Big Fresh Zone drawer. Insert the left and right roller of the drawer into the guides whilst the draw is slightly The Moisture (balance) keeper helps optimize lifted at the front. -
Page 40: How To Remove And Refit The Vegetable Box
HOW TO USE How to remove and refit the How to refit vegetable box vegetable box Lift the vegetable box drawer assembly How to remove the vegetable box on to an angle and place it into the fridge compartment ready for fitting. While the fridge doors are wide open, take out all the shelves from the fridge compartment. -
Page 41: Extra Space (Multi Collection Corner)
HOW TO USE Extra Space (Multi collection Dairy Corner corner) You can store dairy products such as butter, Store small foods like eggs, ham, cheese, etc. cheese etc. If you close the fridge door with the dairy corner left open, the fridge door may not close properly. -
Page 42: Door-In-Door Shelf Disassembly
HOW TO USE Door-In-Door Shelf Disassembly Remove screws on both sides of magic (Applicable to some models only) space cover. Raise magicspace cover up and take it out. Hold the bottom of lower basket and raise it up to take it out. Hold the bottom of daily basket and raise it up to take it out. -
Page 43: Adjustable Moving Basket
HOW TO USE Adjustable Moving Basket Freezer Drawer Use the compartment for packed frozen foods It can be moved up and down as necessary, and and frequently-accessed foods. used conveniently. Use the bottom compartment for frozen foods. To move the Adjustable Moving Basket up or (Dried fish &... -
Page 44: Refitting The Freezer Drawer
HOW TO USE Freezer/Fridge basket Refitting the Freezer Drawer You can store small packaged frozen food Insert both rollers into the guides with (Freezer basket), small packaged refrigerated the front of the drawer slightly raised and food or beverages (Fridge basket) such as milk, gently push in. -
Page 45: Maintenance
MAINTENANCE MAINTENANCE Cleaning Both the fridge and freezer sections defrost automatically; however, clean both sections about once a month to prevent odors. Wipe up spills immediately. Always unplug the refrigeration before cleaning. General Cleaning Tips WARNING Unplug fridge or disconnect power. Use non-flammable cleaner. - Page 46 MAINTENANCE Inside Walls (allow freezer to warm Plastic Parts (covers and panels) up so the cloth will not stick) Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use window To help remove odors, you can wash the inside sprays, abrasive cleansers, or flammable fluids.
-
Page 47: Replacing The Water Filter
MAINTENANCE Replacing the Water Filter Remove Old Filter Turn the filter to replace to the left by ( ) 90°. NOTE Pull forward ( ) to remove the filter. This fridge does not require a filter bypass If you remove the water filter, some water plug when the filter is not in place. -
Page 48: Smart Diagnosis
Smart Diagnosis feature when instructed to hold your phone to the speaker. to do so by the LG call center agent. The transmission sounds that you will hear are normal and sound similar to a fax machine. -
Page 49: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING Review the Troubleshooting section before calling for service; doing so will save you both time and money. Problem Possible Causes Solutions Fridge and The fridge display control is set Cancel the OFF mode so that the unit Freezer section to OFF (some models). - Page 50 TROUBLESHOOTING Problem Possible Causes Solutions Fridge or Freezer Fridge was recently installed. It may take up to 24 hours for each compartment section is too to reach the desired temperature. warm. Air vents are blocked. Rearrange items to allow air to flow throughout the compartment.
- Page 51 TROUBLESHOOTING Problem Possible Causes Solutions Interior moisture Doors are opened often or for When the doors are opened often or for long buildup. long periods of time. periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment.
- Page 52 TROUBLESHOOTING Problem Possible Causes Solutions Frost or ice Condensation from food with a This is normal for food items with a high water crystals on frozen high water content has frozen content. food (inside of inside of the food package. sealed package).
- Page 53 TROUBLESHOOTING Problem Possible Causes Solutions Pulsating or Your fridge is designed to Normal Operation High-Pitched run more efficiently to keep Sound your food items at the desired temperature. The high efficiency compressor may cause your new fridge to run longer than your old one, but it is still more energy efficient than previous models.
- Page 54 TROUBLESHOOTING Problem Possible Causes Solutions Icemaker is not Demand exceeds ice storage The icemaker will produce approximately 50~80 making enough capacity. cubes in a 24 hour period. ice. House water supply is not Connect the fridge to a cold water supply with connected, valve is not turned adequate pressure and turn the water shutoff on fully, or valve is clogged.
- Page 55 TROUBLESHOOTING Problem Possible Causes Solutions Icemaker is not Doors are opened often or for If the doors of the unit are opened often, ambient making enough long periods of time. air will warm the fridge which will prevent the unit ice (continued).
- Page 56 TROUBLESHOOTING Problem Possible Causes Solutions Not dispensing Doors are not closed Ice will not dispense if any of the fridge doors are ice. completely. left open. Infrequent use of the dispenser. Infrequent use of the ice dispenser will cause the cubes to stick together over time, which will prevent them from properly dispensing.
- Page 57 TROUBLESHOOTING Problem Possible Causes Solutions Not dispensing New installation or water line Dispense 2.5 gallons of water (flush for water. recently connected. approximately 5 minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon amount continuously.
- Page 58 TROUBLESHOOTING Problem Possible Causes Solutions Ice has bad taste Water supply contains minerals A water filter may need to be installed to or odor. such as sulfur. eliminate taste and odor problems. NOTE: In some cases, a filter may not help. It may not be possible to remove all minerals / odor / taste in all water supplies.
-
Page 59: Product Information
PRODUCT INFORMATION PRODUCT INFORMATION GR-Y31FWASB Model Producer LG Electronics Category Refrigerator-Freezer Total ISO Gross Freezer Refrigerator Capacity (l) Total Freezer ISO Storage Two stars section Refrigerator Net / Packing 165/182 Weight (kg) Product 912 X 1797 X 923 Width x Height x...
