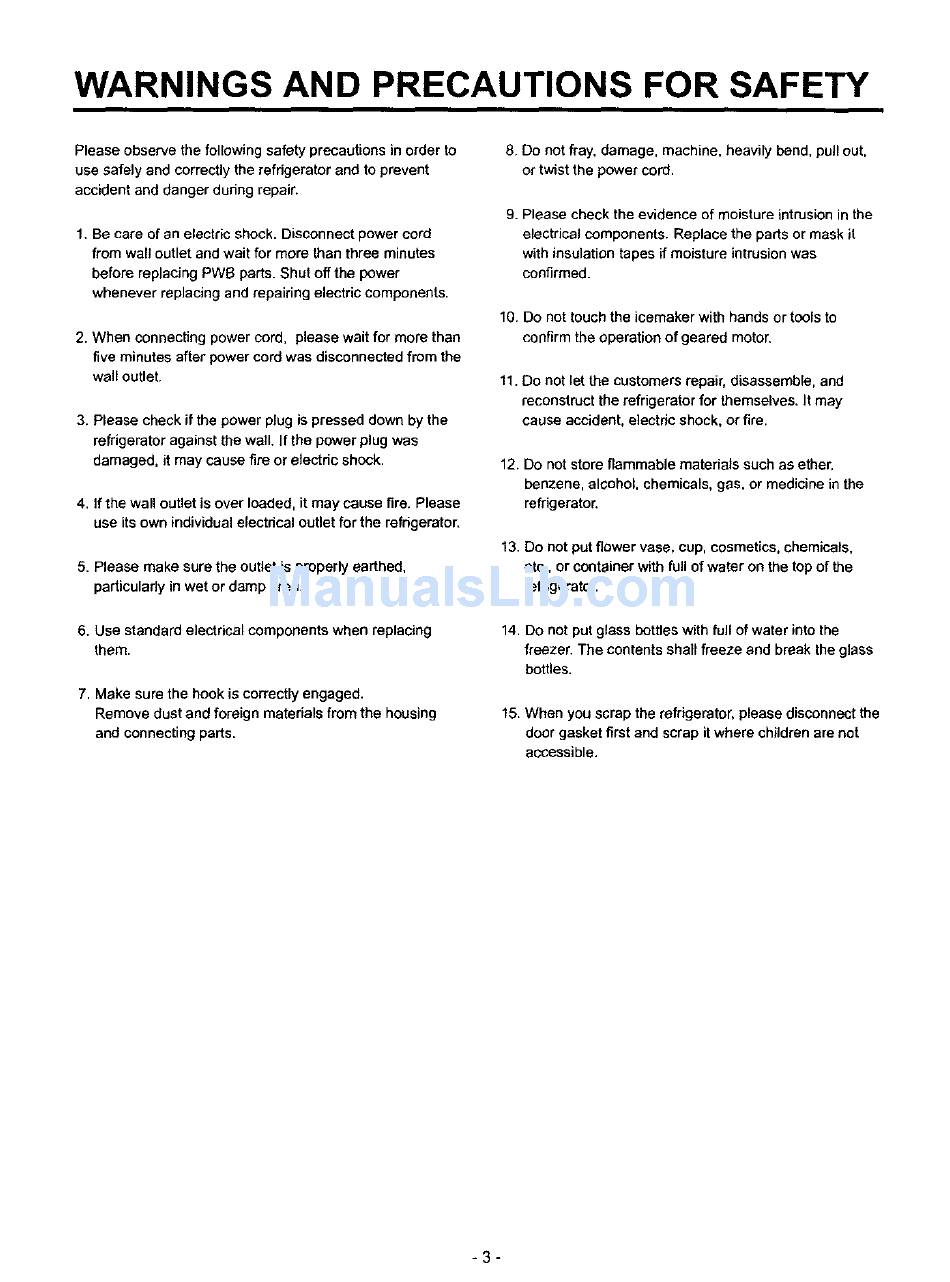

WARNINGS AND PRECAUTIONS
FOR SAFETY
Please observe the following safety precautions
in order to
use safely and correctly the refrigeretor
and to prevent
accident and danger dunng repair.
1. Be care of an electric shock. Disconnect power cord
from wall outlet and wait for more than three minutes
before replacing PWI_ parts. Shut off the power
whenever
replacing and repairing electric components.
2. When connecting
power cord,
please wait for more than
five minutes after power cord was disconnected
from the
wall outlet.
3. Please check if the power plug is pressed down by the
refrigerator
against the wall. If the power plug was
damaged,
it may cause fire or electdc shock.
4. If the wall outlet is over loaded, it may cause fire. Please
use its own individual electrical
outlet for the refrigerator.
5. Please make sure the outlet is properly earthed,
particularly in wet or damp area.
6. Use standard electrical
components
when replacing
them.
7. Make sure the hook is correctly engaged.
Remove dust and foreign materials from the housing
and connecting
parts.
8 Do net fray. damage, machine, heavily bond, pull out,
or twist the power cord.
9. Please check the evidence of moisture intrusion in the
electrical
components.
Replace the parts or mask it
with insulation
tapes if moisture intrusion was
confirmed.
10. Do not touch the icemaker with hands or tools to
confirm the operation of geared motor.
11. Do not let the customers
repair, disassemble,
and
reconstruct
the refrigerator
for themselves.
It may
cause accident, electric shock, or fire.
12. Do not store flammable
materials such as ether.
benzene, alcohol, chemicals,
gas, or medicine in the
refrigerator.
13. Do not put flower vase, cup, cosmetics, chemicals,
etc., or container with full of water on the top of the
refrigerato_
14. Do not put glass bottles with full of water into the
freezer. The contents shall freeze and break the glass
bottles.
15. When you scrap the refrigerator,
please disconnect the
door gasket first and scrap it where children are not
accessible.
-3-

Advertisement

loading
Need help?

Need help?

Do you have a question about the GR-L247 and is the answer not in the manual?

Questions and answers

John Kruik
July 7, 2025

Where is the water filter in my LG GR-L247NI fridge?

M G
June 27, 2025

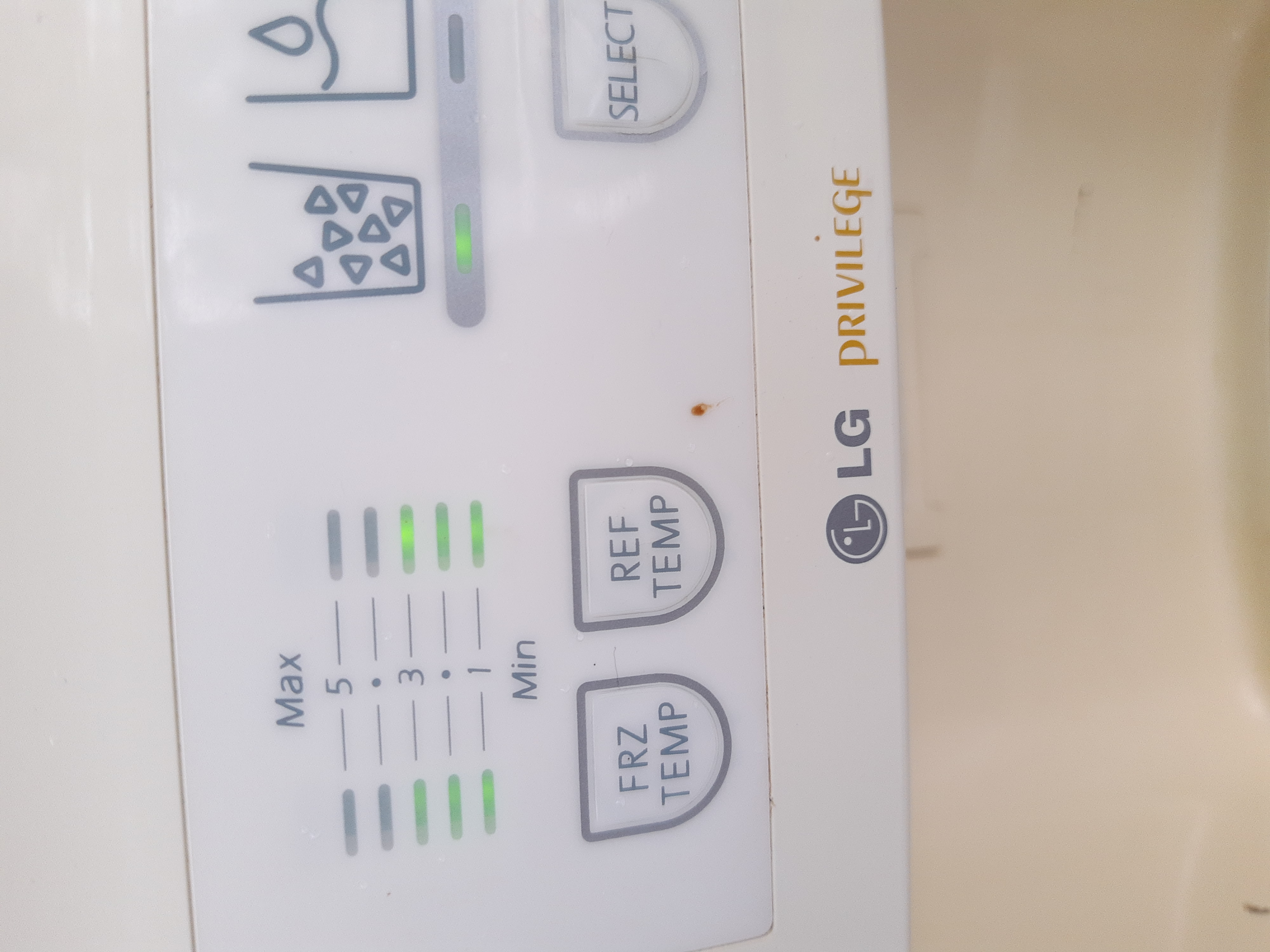

What causes the temp setting for the fridge and water and ice lights to go off and then the fridge does not work until unplugged and plugged in again It does this ones a day now or there about.
