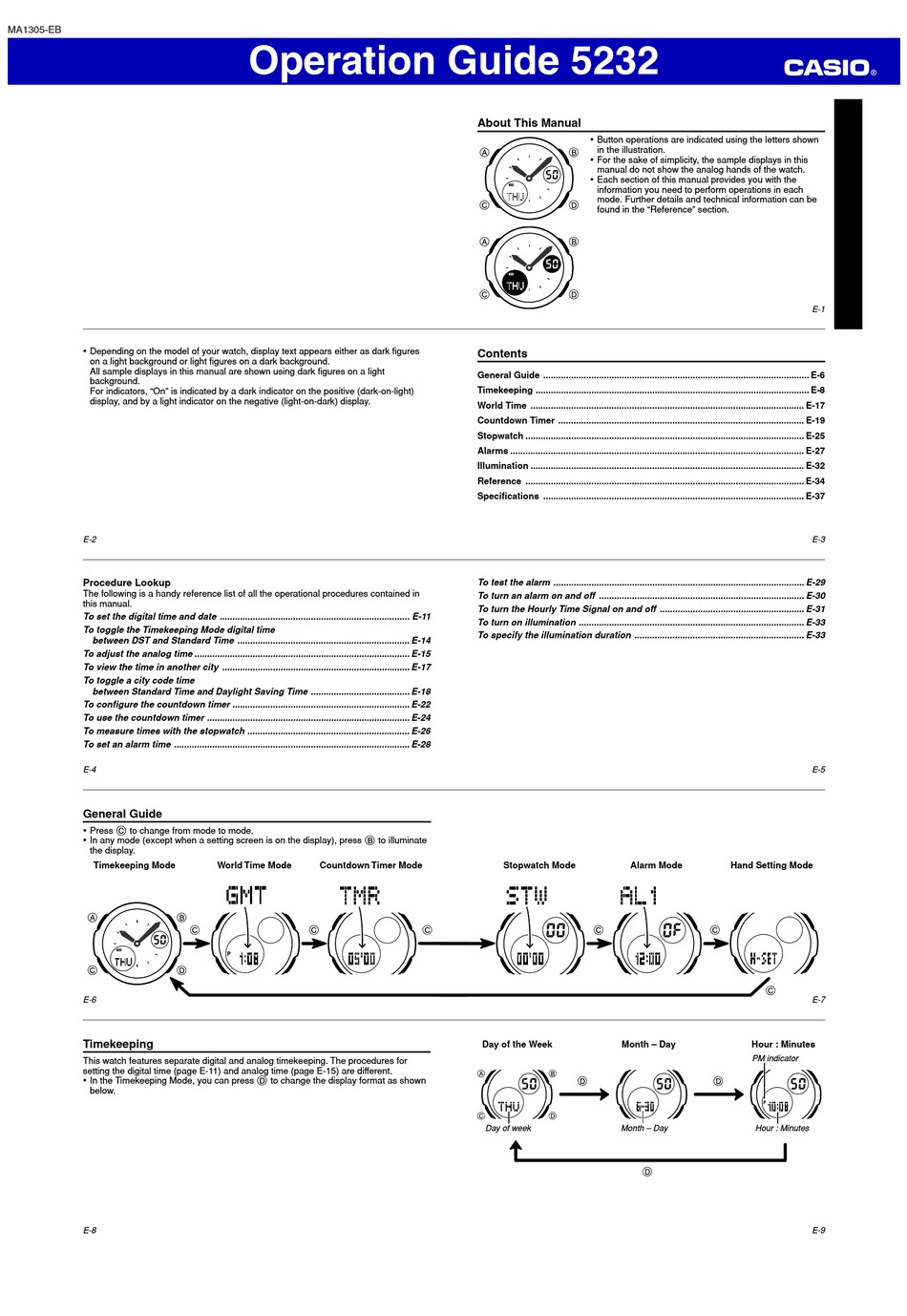

Casio 5232 Operation Manual

MA1305-EB
• Depending on the model of your watch, display text appears either as dark figures
on a light background or light figures on a dark background.
All sample displays in this manual are shown using dark figures on a light
background.
For indicators, "On" is indicated by a dark indicator on the positive (dark-on-light)
display, and by a light indicator on the negative (light-on-dark) display.
E-2
Procedure Lookup
The following is a handy reference list of all the operational procedures contained in
this manual.
To set the digital time and date ........................................................................... E-11
To toggle the Timekeeping Mode digital time
between DST and Standard Time .................................................................... E-14
To adjust the analog time ..................................................................................... E-15
To view the time in another city .......................................................................... E-17
To toggle a city code time
between Standard Time and Daylight Saving Time ....................................... E-18
To configure the countdown timer ...................................................................... E-22
To use the countdown timer ................................................................................ E-24
To measure times with the stopwatch ................................................................ E-26
To set an alarm time ............................................................................................. E-28
E-4
General Guide
• Press C to change from mode to mode.
• In any mode (except when a setting screen is on the display), press B to illuminate
the display.
Timekeeping Mode
E-6
Timekeeping
This watch features separate digital and analog timekeeping. The procedures for
setting the digital time (page E-11) and analog time (page E-15) are different.
• In the Timekeeping Mode, you can press D to change the display format as shown
below.
E-8
Operation Guide 5232
World Time Mode Countdown Timer Mode
About This Manual
• Button operations are indicated using the letters shown
in the illustration.
• For the sake of simplicity, the sample displays in this
manual do not show the analog hands of the watch.
• Each section of this manual provides you with the
information you need to perform operations in each
mode. Further details and technical information can be
found in the "Reference" section.
Contents
General Guide ......................................................................................................... E-6
Timekeeping ............................................................................................................ E-8
World Time ............................................................................................................ E-17
Countdown Timer ................................................................................................. E-19
Stopwatch .............................................................................................................. E-25
Alarms .................................................................................................................... E-27
Illumination ............................................................................................................ E-32
Reference .............................................................................................................. E-34
Specifications ....................................................................................................... E-37
To test the alarm ................................................................................................... E-29
To turn an alarm on and off ................................................................................. E-30
To turn the Hourly Time Signal on and off ......................................................... E-31
To turn on illumination ......................................................................................... E-33
To specify the illumination duration ................................................................... E-33
Stopwatch Mode Alarm Mode
Day of the Week Month – Day
Day of week Month – Day
E-1
E-3
E-5
Hand Setting Mode
E-7
Hour : Minutes
PM indicator
Hour : Minutes
E-9
