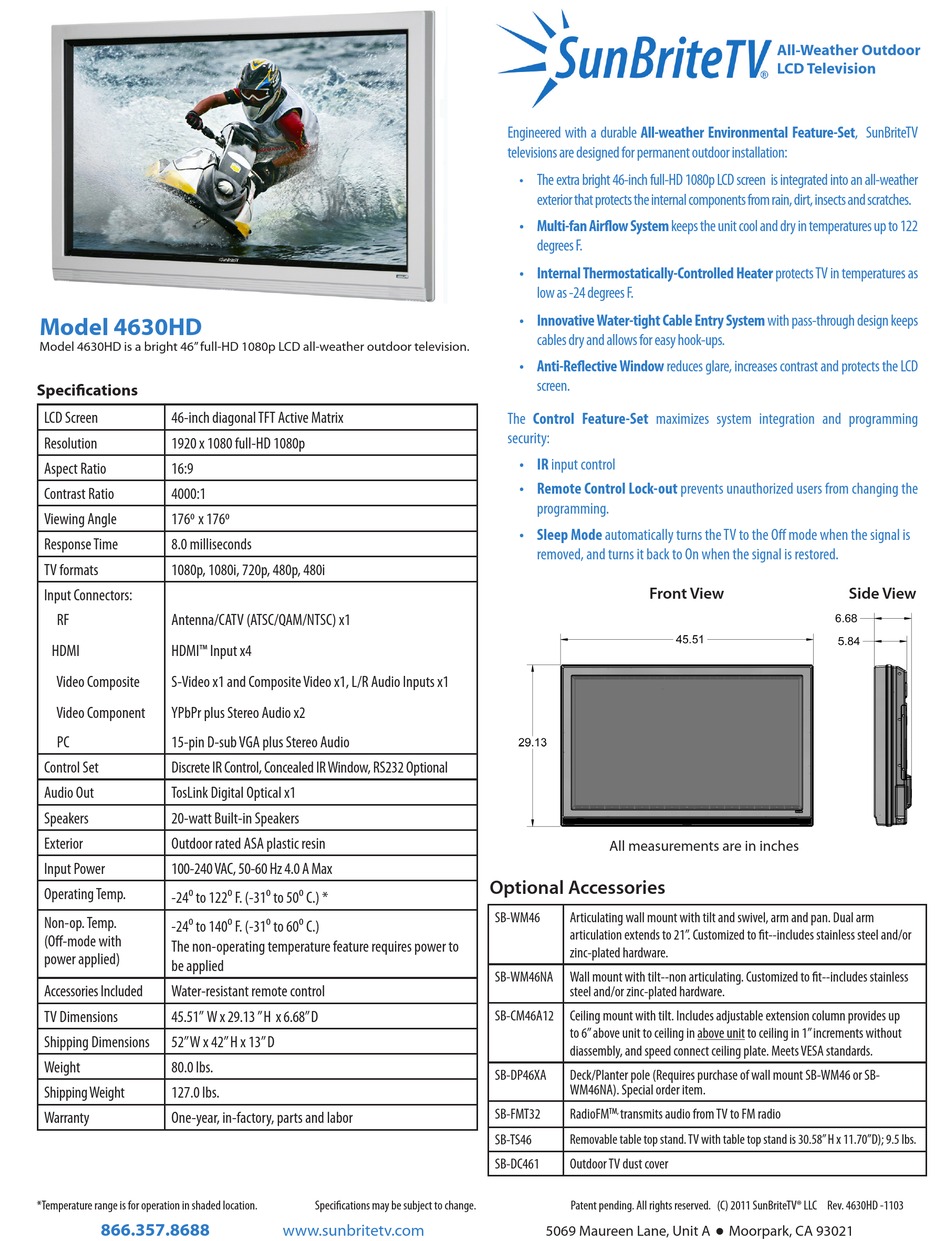

SunBriteTV 4630HD Specifications

Model 4630HD
Model 4630HD is a bright 46" full-HD 1080p LCD all-weather outdoor television.

Specifications

LCD Screen 46-inch diagonal TFT Active Matrix
Resolution 1920 x 1080 full-HD 1080p
Aspect Ratio 16:9
Contrast Ratio 4000:1
Viewing Angle 176 o x 176
Response Time 8.0 milliseconds
TV formats 1080p, 1080i, 720p, 480p, 480i
Input Connectors:
RF Antenna/CATV (ATSC/QAM/NTSC) x1
HDMI HDMI™ Input x4
Video Composite S-Video x1 and Composite Video x1, L/R Audio Inputs x1
Video Component YPbPr plus Stereo Audio x2
PC 15-pin D-sub VGA plus Stereo Audio
Control Set Discrete IR Control, Concealed IR Window, RS232 Optional
Audio Out TosLink Digital Optical x1
Speakers 20-watt Built-in Speakers
Exterior Outdoor rated ASA plastic resin
Input Power 100-240 VAC, 50-60 Hz 4.0 A Max
Operating Temp.
o
-24 to 122
Non-op. Temp. o
-24 to 140
(Off-mode with
The non-operating temperature feature requires power to
power applied)
be applied
Accessories Included Water-resistant remote control
TV Dimensions 45.51" W x 29.13 " H x 6.68" D
Shipping Dimensions 52" W x 42" H x 13" D
Weight 80.0 lbs.
Shipping Weight 127.0 lbs.
Warranty One-year, in-factory, parts and labor
*Temperature range is for operation in shaded location.
866.357.8688
o
o o o
F. (-31 to 50 C.) *
o o o
F. (-31 to 60 C.)
Specifications may be subject to change.
www.sunbritetv.com
Engineered with a durable All-weather Environmental Feature-Set, SunBriteTV
televisions are designed for permanent outdoor installation:
• The extra bright 46-inch full-HD 1080p LCD screen is integrated into an all-weather
exterior that protects the internal components from rain, dirt, insects and scratches.
• Multi-fan Airflow System keeps the unit cool and dry in temperatures up to 122
degrees F.
• Internal Thermostatically-Controlled Heater protects TV in temperatures as
low as -24 degrees F.
• Innovative Water-tight Cable Entry System with pass-through design keeps
cables dry and allows for easy hook-ups.
• Anti-Reflective Window reduces glare, increases contrast and protects the LCD
screen.
The Control Feature-Set maximizes system integration and programming
security:
• IR input control
• Remote Control Lock-out prevents unauthorized users from changing the
programming.
• Sleep Mode automatically turns the TV to the Off mode when the signal is
removed, and turns it back to On when the signal is restored.

Front View

All measurements are in inches

Optional Accessories

SB-WM46 Articulating wall mount with tilt and swivel, arm and pan. Dual arm
articulation extends to 21". Customized to fit--includes stainless steel and/or
zinc-plated hardware.
SB-WM46NA Wall mount with tilt--non articulating. Customized to fit--includes stainless
steel and/or zinc-plated hardware.
SB-CM46A12 Ceiling mount with tilt. Includes adjustable extension column provides up
to 6" above unit to ceiling in above unit to ceiling in 1" increments without
diassembly, and speed connect ceiling plate. Meets VESA standards.
SB-DP46XA Deck/Planter pole (Requires purchase of wall mount SB-WM46 or SB-
WM46NA). Special order item.
SB-FMT32 RadioFM transmits audio from TV to FM radio
TM,
SB-TS46 Removable table top stand. TV with table top stand is 30.58" H x 11.70"D); 9.5 lbs.
SB-DC461 Outdoor TV dust cover
Patent pending. All rights reserved. (C) 2011 SunBriteTV® LLC Rev. 4630HD -1103
5069 Maureen Lane, Unit A
All-Weather Outdoor
LCD Television

Side View

Moorpark, CA 93021
