Summary of Contents for American Standard TF-3229

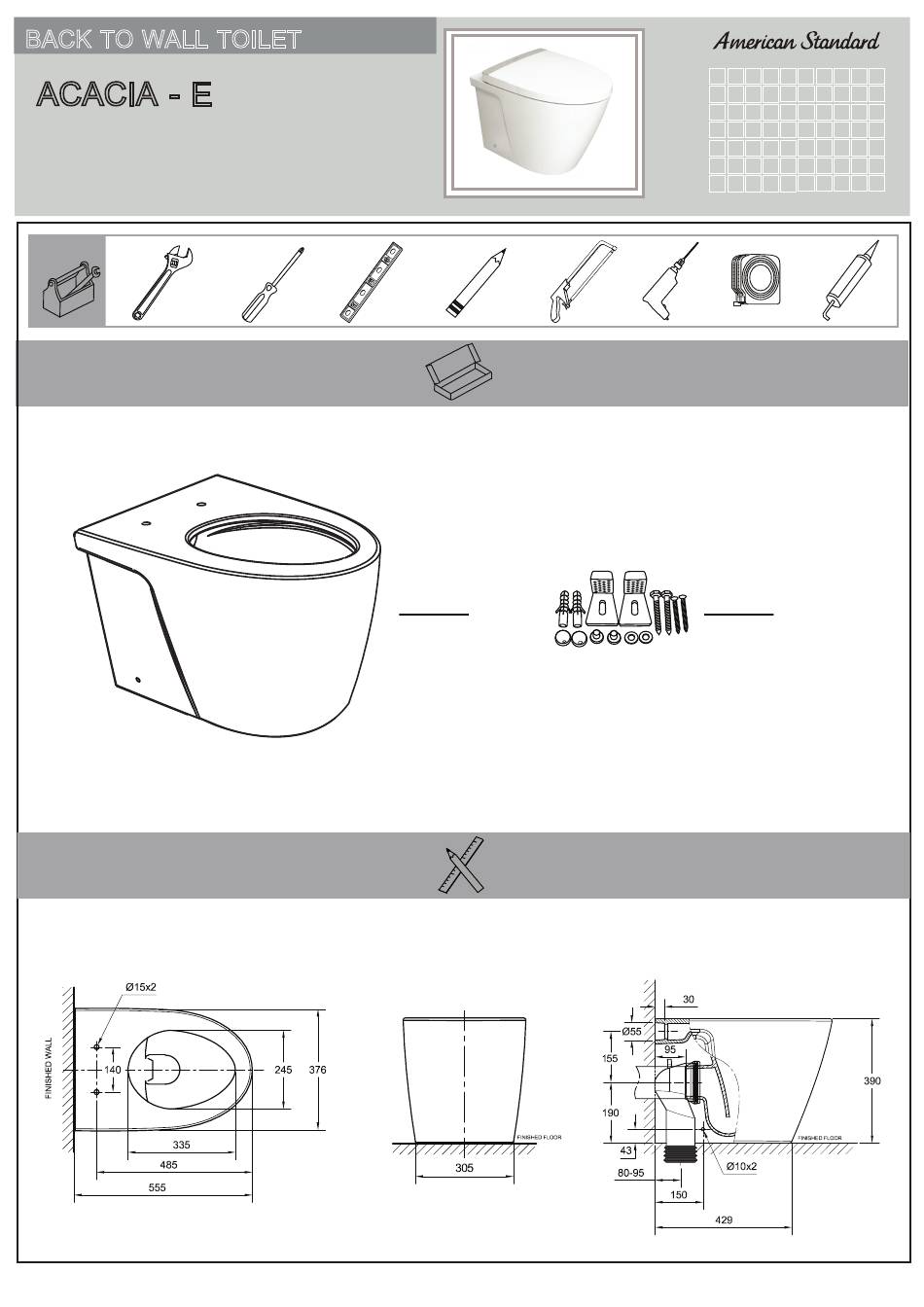

- Page 1 BACK TO WALL TOILET ACACIA - E Installation Manual TF-3229 Feb.2018 M31695 Rev.01...
- Page 2 INSTALLATION WITH CONCEALED TANK Finished wall Finished wall Cover for water inlet Cover for water outlet * Concealed tank VP-G30042 INSTALL P-TRAP WITH PLASTIC CONNECTOR 155 mm. 190 mm. 10mm. Solvent Cement 3 mm. * Solvent cement is not supplied * Connector is not supplied Feb.2018 M31695 Rev.01...
- Page 3 INSTALL S-TRAP WITH PLASTIC CONNECTOR 345 mm. 10 mm. ROUGHING - IN CONNECTOR CUTOUT (B) 80-85 mm. 30 mm. 85-90 mm. 35 mm. 90-95 mm. 40 mm. * Connector VP-3170000240 is not supplied Feb.2018 M31695 Rev.01...
- Page 4 * Silicone is not supplied Feb.2018 M31695 Rev.01...
- Page 5 IN CASE OF INSTALL WITH SENSOR FLUSH VALVE 115-140 mm. Dimensions as shown Refer manual A-8603-000-50 8603 30 mm. 345 mm. 80-95 mm. Finished Floor Finished Floor Waste Pipe Waste Pipe IN CASE OF INSTALL WITH CONCEALED CISTERN Front Push Button (VP-G30042) 180 - 210 15-65 1175...
-
Page 6: Troubleshooting Guide
ปั ญ หาและการแก้ ป ั ญ หา TROUBLE SHOOTING GUIDE Using this guide and referring to the accompanying คู ่ ม ื อ นี ้ ใ ช้ เ พื ่ อ เป็ น การแนะนำในการแก้ ป ั ญ หาเบื ้ อ งต้ น กั บ ปั ญ หาที ่ พ บได้ บ ่ อ ยที ่ ส ุ ด instructions should help you solve most common problems encountered.
