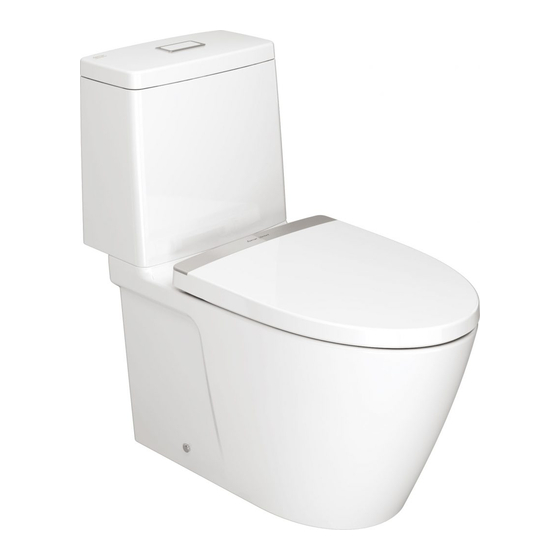

VORTEX WASH DOWN TOILET
ACACIA-E
ACACIA-E
Installation Manual
Thank you for selecting our products which have been the benchmarks of fine quality for years.To help ensure that the installation
Process will proceed smoothly, please read these instructions carefully before you begin. Also review the recommended tools and
materials list, carefully unpack and examine your new plumbing fixture.
ALL INSTALLATION PROCEDURES MUST COMPLY IN STRICT ACCORDANCE WITH APPLICABLE LOCAL PLUMBING AND BUILDING CODES
ขอบคุ ณ ที ่ เ ลื อ กใช้ ส ุ ข ภั ณ ฑ์ ข องอเมริ ก ั น สแตนดาร์ ด สุ ข ภั ณ ฑ์ ค ุ ณ ภาพมาตรฐานโลก เพื ่ อ ช่ ว ยให้ ก ารติ ด ตั ้ ง ดำเนิ น ไปด้ ว ยความถู ก ต้ อ งเรี ย บร้ อ ย โปรดอ่ า นคู ่ ม ื อ การ
ติ ด ตั ้ ง ให้ เ ข้ า ใจเสี ย ก่ อ น ตรวจสอบเครื ่ อ งมื อ และอุ ป กรณ์ ท ี ่ จ ำเป็ น ในการติ ด ตั ้ ง ควรระมั ด ระวั ง ในการเอาสุ ข ภั ณ ฑ์ อ อกจากกล่ อ งบรรจุ แ ละควรตรวจสอบความเรี ย บ
ร้ อ ยของสุ ข ภั ณ ฑ์ ก ่ อ นทำการติ ด ตั ้ ง แล้ ว จึ ง เริ ่ ม ลงมื อ ติ ด ตั ้ ง จริ ง .
ควรทำตามขั ้ น ตอนการติ ด ตั ้ ง ด้ ว ยความระมั ด ระวั ง และสอดคล้ อ งกั บ ความเหมาะสมของพื ้ น ที ่ บ ริ เ วณที ่ จ ะทำการติ ด ตั ้ ง และมาตรฐานของตั ว อาคาร

RECOMMENDED TOOLS AND MATERIALS

Putty Knife
มี ด ฉาบ
Pipe Wrench
ประแจจั บ ท่ อ

ROUGHING-IN DIMENSIONS

A. S-Trap Connector (VP-JT43N)
B. P-Trap Connector (VP-3815)
Note: dimensions are nominal and may vary within the range of manufacturing tolerances.
หมายเหตุ :
ขนาดของสุ ข ภั ณ ฑ์ อาจจะผั น แปรอยู ่ ใ นระดั บ เกณฑ์ ค วามคลาดเคลื ่ อ นของกระบวนการผลิ ต ที ่ ย อมรั บ ได้
TF-2307
(คู ่ ม ื อ การติ ด ตั ้ ง )
เครื ่ อ งมื อ ติ ด ตั ้ ง ที ่ แ นะนำ
Adjustable Wrench
ประแจเลื ่ อ น
Channel Lock Pliers
Drill
Hacksaw
สว่ า น
เลื ่ อ ยตั ด เหล็ ก
ขนาดกว้ า ง x ยาว x สู ง (มิ ล ลิ เ มตร)
ข้ อ ต่ อ ท่ อ น้ ำ ทิ ้ ง แบบลงพื ้ น
ข้ อ ต่ อ ท่ อ น้ ำ ทิ ้ ง แบบเข้ า ผนั ง
Piumber's Putty
คี ม ปากคี บ
or Caulking
Level
เครื ่ อ งวั ด ระดั บ น้ ำ
1
สารอุ ด รอยรั ่ ว หรื อ
Tape Measure
รอยต่ อ ของท่ อ น้ ำ
Phillips Screwdriver
Regular Screwdriver
ไขควงปากแฉก
ไขควงปากแบน
ตลั บ เมตร
Unit : mm
Unit : mm
May. 2014
Rev. 00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACACIA-E TF-2307 and is the answer not in the manual?

Questions and answers

Summary of Contents for American Standard ACACIA-E TF-2307

  • Page 1 VORTEX WASH DOWN TOILET ACACIA-E ACACIA-E TF-2307 Installation Manual (คู ่ ม ื อ การติ ด ตั ้ ง ) Thank you for selecting our products which have been the benchmarks of fine quality for years.To help ensure that the installation Process will proceed smoothly, please read these instructions carefully before you begin.
  • Page 2 PIPING PREPARATION จั ด เตรี ย มระบบสุ ข าภิ บ าล และการติ ด ตั ้ ง ท่ อ น้ ำ ทิ ้ ง และวาล์ ว เปิ ด -ปิ ด น้ ำ WATER SUPPLY PIPE : Connecting size ” WASTE PIPE FOR S-Trap (Fig. 1.1) : Size 4” (PVC. pipe class 8.5 or a regular pipe with an internal diameter of 103 mm.) at the connecting point with the toilet and a gradient of 2 cm.per 100 cm.
  • Page 3 CUTTING OF PLASTIC CONNECTOR Cutting of the waste connector as the figures show in the picture below. การตั ด ข้ อ ต่ อ น้ ำ ทิ ้ ง แบบลงพื ้ น ตั ด ข้ อ ต่ อ น้ ำ ทิ ้ ง ให้ ไ ด้ ข นาดตามที ่ ก ำหนดไว้ (ตามภาพ) (In case lenght of trap way is 305 mm.) กรณี...
  • Page 4 IT SHOWS ON HOW TO CONNECT THE PLASTIC TOILET INSTALLATION INTO THE FLOOR CONNECTOR INTO THE VC. การติ ด ตั ้ ง โถส้ ว ม ( ติ ด ตั ้ ง โถส้ ว มกั บ ข้ อ ต่ อ น้ ำ ทิ ้ ง แบบลงพื ้ น ) Diagram equipped with toilet complete with water ภาพแสดงการติ...
  • Page 5 CHECK LEVEL ตรวจระดั บ น้ ำ By the use of level gauge, check the levelness side to side (left & right ) after installation. หลั ง จากติ ด ตั ้ ง ตามตำแหน่ ง ที ่ ก ำหนดไว้ แ ล้ ว ทำการวั ด ระดั บ น้ ำ ด้...
  • Page 6 FIX THE TOILET การยึ ด โถส้ ว ม Fixing the toilet with the floor by using the screw with the floor fixing set. ยึ ด โถส้ ว มกั บ พื ้ น ห้ อ งน้ ำ ด้ ว ยอุ ป กรณ์ ย ึ ด พื ้ น (VP-955080) COMPLETE TOILET ASSEMBLY ประกอบชุ...
  • Page 7 Using this guide and referring to the accompanying instructions should help you TROUBLE SHOOTING GUIDE solve most common problems encountered. PROBLEM POSSIBLE CAUSE TO CORRECT 1. Poor flushing action a. Water level in tank is below prescribed level. a. Set to prescribed level. b.
  • Page 8 CARE AND MAINTENANCE Do not use harsh abrasives or caustic cleaners to clean fixture surface. A mild detergent, warm water, and a soft cloth will remove normal dirt and soap accumulations from fittings and surfaces. Rinse thoroughly after cleaing and polish with a soft dry cloth to restore original luster of material.
