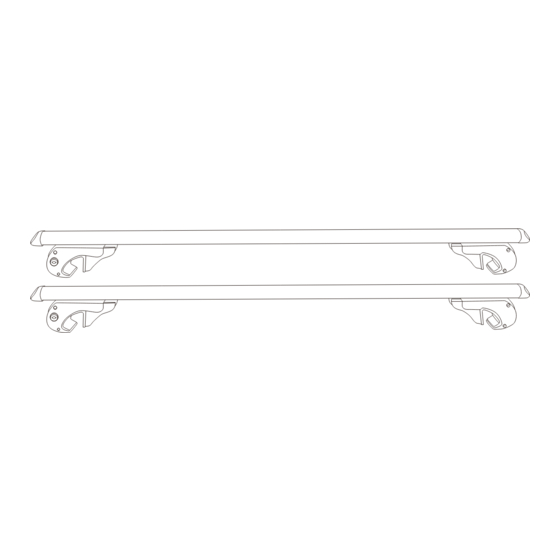

52" Aluminum Roof
Top Coss Bar
Set - Pair
Model 50220
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Maxxhaul 50220
Summary of Contents for Maxxhaul 50220
- Page 1 52” Aluminum Roof Top Coss Bar Instruction Manual Set - Pair & Parts List Model 50220 Read and understand this entire manual before setting-up, in- stalling, operating, or servicing this product. SAVE THIS MANUAL Copyright 2019 by Maxx Group, LLC All rights reserved.
- Page 2 Contents Checklist Aluminum Crossbars X2 Keys X2 Hex key driver X1 Mounting Instructions Step 1: Place the cross bars on the existing side rails on the vehicle. Make sure the bars protrude equally on both sides. Model 50220 Page 2...
- Page 3 The red guard will close and prevent the use of the hex key. Step 5: Load on crossbars should be evenly distributed over both bars. Load should be centered onto the crossbars. Do NOT exceed loading capacity of 60 kg / 130 lb Model 50220 Page 3...
- Page 4 Part Number Description Pipe plug Molding Aluminum Tube Hexagon bar wrench Weldment Left Shell Right Shell Live splint Block Block Screw Lock Core Lock Block Rivet Model 50220 Page 4...
