Maxxhaul 50027 Quick Setup Manual

Platform Hitch Mount 2-Bike Rack
Model 50027
Quick Set-Up Guide
Read Instruction Manual for Bike Rack
assembly and safety instructions. Read
Instruction Manual for attaching Bike Rack
to vehicle's hitch receiver.
Loading One Bike on the
Bike Rack
For one bike, only use the inward Wheel
Cradles (closest to the vehicle).
Remove outer Wheel Cradles or slide them
inward towards the Upright (and out of the
way).
Upright
Remove outer Wheel Cradle or set up so outer
Wheel Cradle is positioned inward (closest to Upright)
See photo above

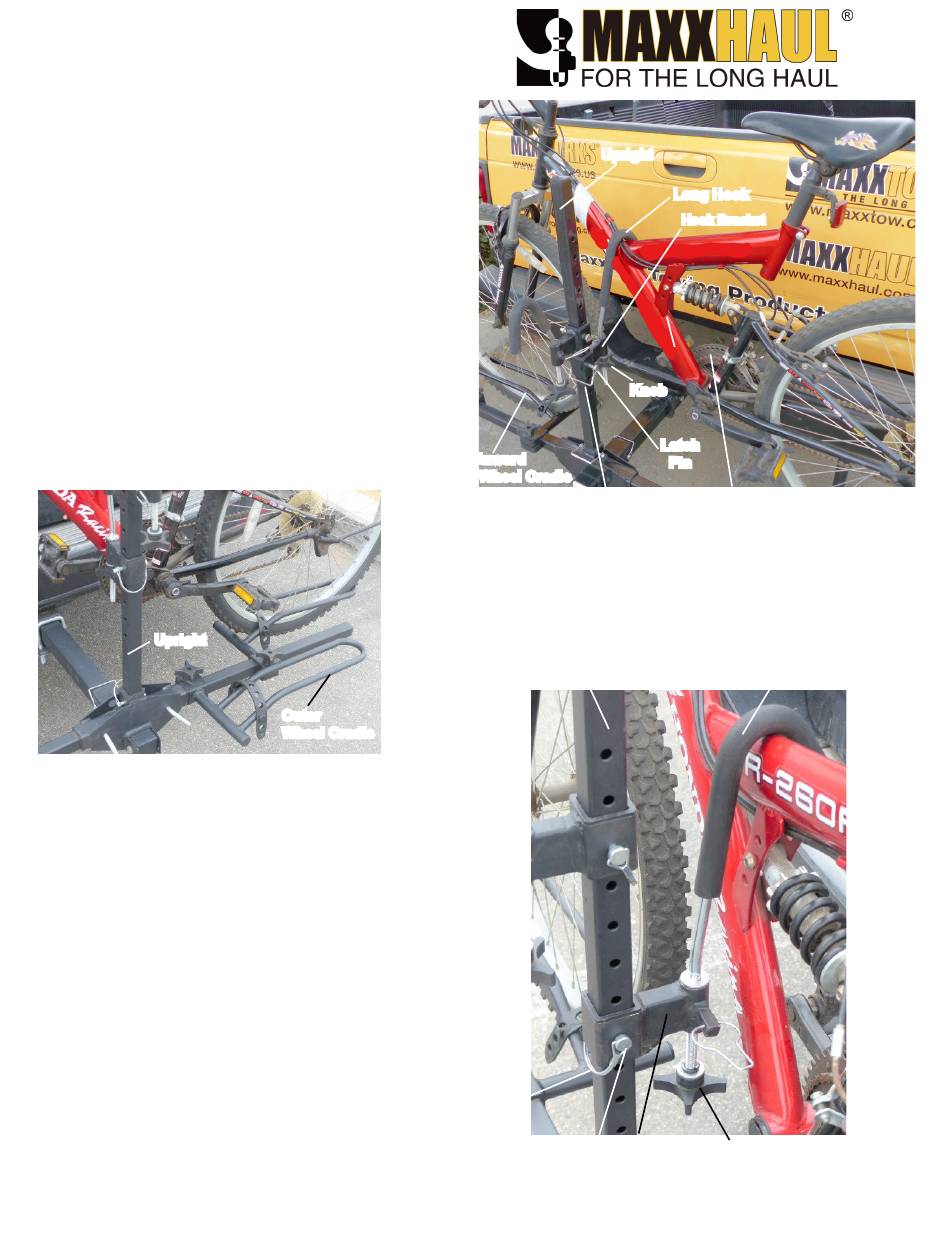

With bike resting in Wheel Cradles, slide Long Hook
down the Upright to engage with bike frame.
Thread Knob all the way down to end of Long Hook shaft.
See photo at right.
Position Hook Bracket on Upright so mounting holes
line up. Slide in small Latch Pin. Engage Latch Pin
safety wire. See photo at right.
Now thread the Knob up the shaft until it securely
tightens the Long Hook to the bike frame.
Continued on other side
Save this Quick Set-Up Guide. 5/19
Bike's sprocket must face outward with respect to
Bike Rack (sprocket should face rear of vehicle) with
bike's crank and pedal clear of Upright adjustment area.
Outer
Wheel Cradle
Upright
Knob
Inward
Wheel Cradle
Safety Wire
Upright
Safety
Wire
Hook
Latch
Bracket
Pin
Long Hook
Hook Bracket
Latch
Pin
Bike's sprocket faces vehicle
Long Hook
Knob
