MAXXHAUL
MAXXHAUL
FOR THE LONG HAUL

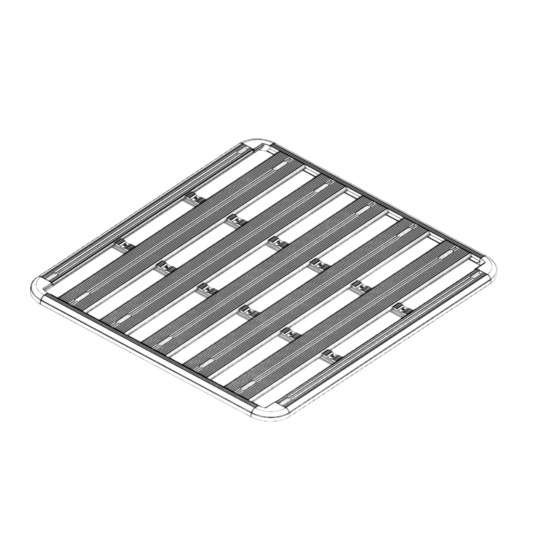

Aluminum Rooftop
Platform Rack 64" X 55"
50616
Read and understand this entire manual before assembling,
installing, operating, or servicing this product.
Copyright
2022 by MAXXHAUL. All rights reserved. No portion of this manual or any artwork contained
c
herein may be reproduced in any shape or form without the express written consent of MAXXHAUL. Due
to continuing improvements, actual product may differ slightly from the product described herein. Tools
required for assembly and maintenance may not be included.
INSTRUCTION MANUAL
*
CHECK YOUR VEHICLE OWNERS INSTRUCTIONS FOR VE-
HICLE MAXIMUM CARRYING CAPACITY. PLEASE MAKE SURE
YOU USE THE VEHICLE MANUFACTURER'S MAXIMUM ROOF
ALLOWANCE IF IT IS LOWER THAN 220 LB.
** LOAD MUST BE EVENLY DISTRIBUTED OVER THE PLATFORM,
AND MUST BE SECURELY HELD IN PLACE USING ROPES, TIE
DOWNS OR PROPER MANNERS.
SAVE THIS MANUAL
AND PARTS LIST
MAXIUM LOAD CAPACITY
As a Vehicle Rooftop Platform:
- Up to 170 lb when ON-ROAD use (Platform Net
Weight 50 lb gets substracted already) * **
- Up to 0.6x ON-ROAD Load Capacity when OFF-
ROAD use * **
As a Platform used on MaxxHaul Aluminum
Truck Racks (sku# 50613, 50614, 50621, 50620):
- Up to 450 lb when ON-ROAD use (Platform Net
Weight 50 lb gets substracted already) **
- Up to 0.6x ON-ROAD Load Capacity when OFF-
ROAD use **
Nov 2022
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Maxxhaul 50616
Summary of Contents for Maxxhaul 50616
- Page 1 2022 by MAXXHAUL. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of MAXXHAUL. Due to continuing improvements, actual product may differ slightly from the product described herein. Tools required for assembly and maintenance may not be included.
-
Page 2: Important Safety Information
Notify MAXXHAUL immediately if any hidden loss F. While assembling and using this Product, keep or damage is discovered after receipt. - Page 3 Product is critical and beyond the control Make sure the vehicle’s engine is OFF, with parking of MAXXHAUL. It neither guarantees, nor will it be brake set, before loading or unloading the Product. liable for any damage resulting from the attach-...
-
Page 4: Assemble The Product
Put the flipped frame on top of aligned Middle Bars (3), and align all mounting holes. Attach the Middle Bars (3) and the frame together using Hex Bolts (15), Spring Washers (16) and Flat Washers (17). ONLY hand tighten the hardware for now. Model 50616 Page 4... -
Page 5: Installation
DANGER assembly and setup. The installation of this Product CAUTION should be done by qualified service technicans. WARNING For safety, this product shall not be NOTICE mounted on crossbars which are shorter than 55”. CAUTION Model 50616 Page 5 NOTICE... -
Page 6: Operation
NOTICE This Product can be also be mounted on Pick-up Truck Racks (SKU#50613, 50614, 50620 or 50621) which are produced by MAXXHAUL. The procedure of installating this Platform on a Pick- up Truck Rack is same with above. Please refer... -
Page 7: Maximum Load Capacity
Weight 50 lb gets substracted already) * ** - Up to 0.6x ON-ROAD Load Capacity when OFF- ROAD use * ** As a Platform used on MaxxHaul Aluminum Truck Racks (sku# 50613, 50614, 50621, 50620): - Up to 450 lb when ON-ROAD use (Platform Net Weight 50 lb gets substracted already) ** - Up to 0.6x ON-ROAD Load Capacity when OFF-... -
Page 8: Parts List
Connection Bar 13 Spring Washer 6 Knob 14 Flat Washer 6 Connection Bracket 15 Hex Bolt M5 Cross-shape Block 16 Spring Washer 5 U-shape Bolt 17 Flat Washer 5 Plastic Plug A 18 Self-tapping Screw Diagram Model 50616 Page 8...
