EN
Washing Machine / User Manual
AL8200DDTD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AL8200DDTD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aspes AL8200DDTD

Summary of Contents for Aspes AL8200DDTD

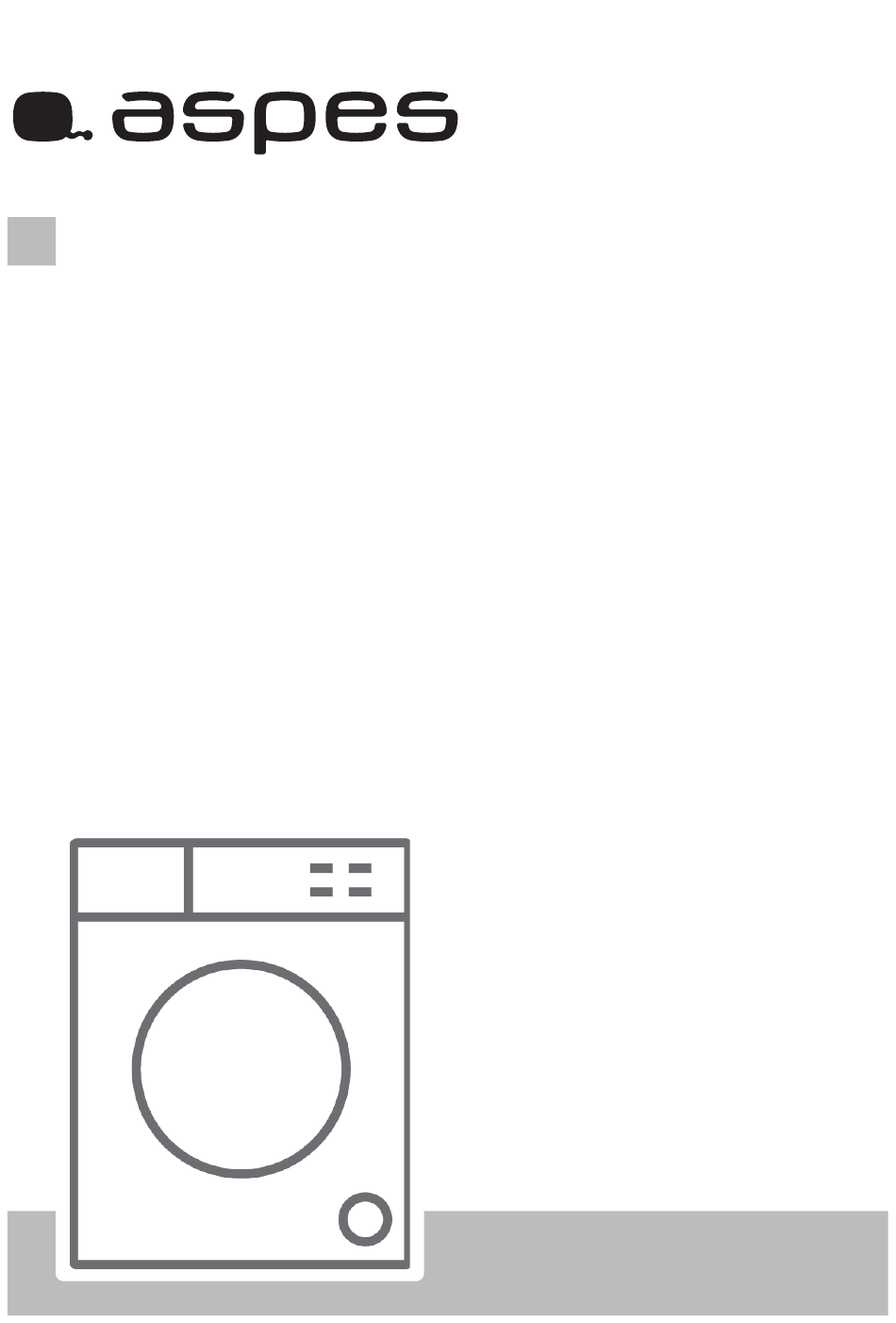

  • Page 1 Washing Machine / User Manual AL8200DDTD...
  • Page 2 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Type Meaning...

  • Page 3: Table Of Contents

    CONTENTS 1. SAFETY INSTRUCTIONS ....................1 1.1 General Safety Warnings ....................2 1.2 During Use ........................6 1.3 Packaging and Environment...................7 1.4 Savings Information ......................7 2. TECHNICAL SPECIFICATIONS ..................8 2.1 General Appearance.......................8 2.2 Technical Specifications ....................8 3. INSTALLATION .........................9 3.1 Removing the Transit Bolts.....................9 3.2 Adjusting the Feet / Adjusting Adjustable Stays..............9 3.3 Electrical Connection ......................9 3.4 Water Inlet Hose Connection ..................10...

  • Page 4: Safety Instructions

    1. SAFETY INSTRUCTIONS Operating voltage / frequency (V/Hz) (220-240) V~/50Hz Total current (A) Water pressure (Mpa) Maximum 1 Mpa / Minimum 0. 1Mpa Total power (W) 2200 Maximum washing capacity (dry laundry) (kg) • Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base.

  • Page 5: General Safety Warnings

    NOTE: For a softcopy of this user manual, please contact the following address: “info@aspes.es”. In your e-mail, please provide the model name and serial number (20 digits) which you can find on the appliance door. Read this user manual carefully.
  • Page 6 water supply if the Washing Machine is left unused for a long time. We also recommend that you leave the door open to prevent build up of humidity inside the Washing Machine. • Some water may be left in your Washing Machine as a result of quality checks during production.
  • Page 7 • Install your machine in a location that can be fully ventilated and preferably has constant air circulation. Read these warnings. Follow the advice given to protect yourself and others from risks and fatal injuries. RISK OF BURNS Do not touch the drain hose or any discharged water while your Washing Machine is running.
  • Page 8 secured. Make sure the plug in your sink does not block the plug hole. Danger of Fire • Do not store inflammable liquids near your machine. • The sulphur content of paint removers may cause corrosion. Never use paint removing materials in your machine.

  • Page 9: During Use

    and cleaning materials are consumed or come into contact with the skin and eyes. Keep cleaning materials out of the reach of children. 1.2 During Use • Keep pets away from your machine. • Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed.

  • Page 10: Packaging And Environment

    sources of damage. • Please do not throw away this user manual; keep it for future reference and pass it onto the next owner. NOTE: Specifications for the machine may vary depending on the product purchased. 1.3 Packaging and Environment Removal of packaging materials Packaging materials protect your machine from any damage that might occur during transportation.

  • Page 11: Technical Specifications

    2. TECHNICAL SPECIFICATIONS 2.2 Technical Specifications Operating voltage / (220-240) frequency V~/50Hz (V/Hz) Total current Maximum: Water 1 Mpa pressure Minimum : (Mpa) 0. 1 Mpa Total power 2200 Maximum dry laundry capacity (kg) Spinning revolution 1200 (rev / min) Programme number 2.1 General Appearance...

  • Page 12: Installation

    3. INSTALLATION 3.2 Adjusting the Feet / Adjusting Adjustable Stays 3.1 Removing the Transit Bolts 1. Do not install your machine on a surface (such as carpet) that would prevent ventilation at the base. • To ensure silent and vibration-free operation of your machine, install it on a firm surface.

  • Page 13: Water Inlet Hose Connection

    • The mains cord of your washing should be connected to cold water inlet machine is equipped with an earthed and red capped hose to the hot water plug. This plug should always be inlet (if applicable). inserted to an earthed socket of 10 •...

  • Page 14: Water Discharge Connection

    3.5 Water Discharge Connection 4.1 Detergent Drawer • Connect the water drain hose to a standpipe or to the outlet elbow of a household sink, using additional equipment. • Never attempt to extend the water drain hose. • Do not put the water drain hose from your machine into a container, bucket or bathtub.

  • Page 15: Sections

    4.2 Sections 4.3 Program Dial Main wash detergent compartment: This compartment is for liquid or powder detergents or limescale remover. The fluid detergent level plate will be supplied inside • To select the desired programme, turn your machine. (*) the programme dial either clockwise or Fabric conditioner, starch, detergent anti-clockwise until the marker on the compartment:...

  • Page 16: Using Your Washing Machine

    5. USING YOUR curtains or place them in a washing net or bag. WASHING MACHINE 6. Reverse textiles such as pants, knitwear, t-shirts and sweat shirts. 5.1 Preparing Your Laundry 7. Wash socks, handkerchiefs and other small items in a washing net. Can be Normal Do not bleach...

  • Page 17: Adding Detergent To The Machine

    weights of typical laundry items: of the detergent drawer. Do not exceed the MAX level. LAUNDRY TYPE WEIGHT (gr) • Thick softeners may cause clogging of Towel the drawer and should be diluted. Linen • It is possible to use fluid detergents in Bathrobe 1200 all programmes without a pre-wash.

  • Page 18: Additional Functions

    5.7 Additional Functions display. You can gradually reduce the washing water temperature between the maximum temperature for the selected programme and cold washing selections by pressing the temperature adjustment button. If you have skipped the washing water temperature you wanted, keep pressing the washing water temperature adjustment button until the desired temperature is displayed again.
  • Page 19 5. No Spin(*) 8. Pre-Wash(*) Auxiliary Auxiliary function function button 3 or 4 button 3 or 4 Pre-wash No Spin This allows you to give heavily soiled If you don’t want your laundry to be spun at laundry a pre-wash before the main the end of the selected wash programme, washing programme takes place.

  • Page 20: Child Lock

    11. Rapid Wash(*) 5.8 Child Lock Auxiliary function button 3 or 4 Rapid wash You can wash your laundry in a shorter time, using less energy and water by The child lock function prevents the selecting this additional function. machine being operated unintentionally or by unsupervised children.

  • Page 21: Programme End

    5.10 Programme End Your machine will stop by itself as soon as the programme you have selected finishes. • “END” will flash on the display panel • You can open the machine’s door and remove the laundry. • Leave the door of your machine open to allow the inner part of your machine to dry.

  • Page 22: Programme Table

    6. PROGRAMME TABLE Programme Laundry type / Descriptions Very dirty, cotton and flax textiles. (Underwear, linen, COTTON 90°C 90° tablecloth, towel (maximum 4 kg), bedclothes, etc. ) Dirty cotton and flax textiles. (Underwear, linen, Cotton Pre-Wash 60° 1&2 tablecloth, towel (maximum 4 kg), bedclothes, etc. ) Dirty cotton and flax textiles.
  • Page 23 • The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration. • Loading the household washing machine up to the capacity indicated by the manufacturer for the respective programmes will contribute to energy and water savings.
  • Page 24 6.1 Important Informations • Use detergents, softeners and other additives suitable for automatic washing machines only. Excessive foam has occurred and automatic foam absorption system has been activated due to too much detergent usage. • We recommend that periodic cleaning for washing machine every 2 months. For periodic cleaning please use Drum Clean programme.

  • Page 25: Cleaning And Maintenance

    7. CLEANING AND 7.2 Water Inlet Filters Water inlet filters prevent dirt and foreign MAINTENANCE materials from entering your machine. We recommend that these filters are cleaned when your machine is unable to receive 7.1 Warning sufficient water, although your water supply is on and the tap is open.

  • Page 26: Pump Filter

    7.3 Pump Filter meet the holes on the front panel side. 6. Close the filter cover. WARNING: The water in the pump may be hot, wait until it has cooled down before carrying out any cleaning or maintenance. (*) Specifications may vary depending on the machine purchased.

  • Page 27: Flush Stopper / Body / Drum

    8. FLUSH STOPPER / BODY / DRUM 1. Flush stopper Remove the detergent drawer and disassemble the flush stopper. Clean thoroughly to completely remove any softener residue. Refit the flush stopper after cleaning and check that it is seated properly. 2.

  • Page 28: Troubleshooting

    9. TROUBLESHOOTING Repair of your machine should be carried out by an authorised service company. If your machine requires repair or if you cannot solve an issue with the information provided below, then you should: • Unplug your machine from the mains power supply. •...

  • Page 29: Automatic Fault Warnings And What To Do

    FAULT POSSIBLE CAUSE TROUBLESHOOTING Increase the amount of detergent following the Hard water. manufacturer’s instructions. Unsatisfactory washing result. Your laundry is too tightly packed Check that your laundry is spread out. together in the drum. As soon as the machine is The end of water drain hose is too Check that the drain hose is at a suitable height.
  • Page 30 ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 31 ..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
  • Page 32 The minimum period which must supply the spare parts for the household washing machine is 10 years. www.aspes.es aspes@sareteknika.es; 902 99 69 01 / 944 04 14 08 52475281...
