Blueridge BE5V Series Installation Instructions Manual

One-piece variable speed air handler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
This is a safety alert symbol and should never be ignored. When you see this symbol on labels or in manuals, be alert to
the potential for personal injury or death.
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, personal
injury or loss of life. Installation and service must be
performed by a licensed professional HVAC installer or
equivalent, service agency, or the gas supplier.
IMPORTANT
The Clean Air Act of 1990 bans the intentional venting
of refrigerant (CFCs, HCFCs and HFCs) as of July
1, 1992. Approved methods of recovery, recycling or
reclaiming must be followed. Fines and/or incarceration
may be levied for noncompliance.
507789-02B

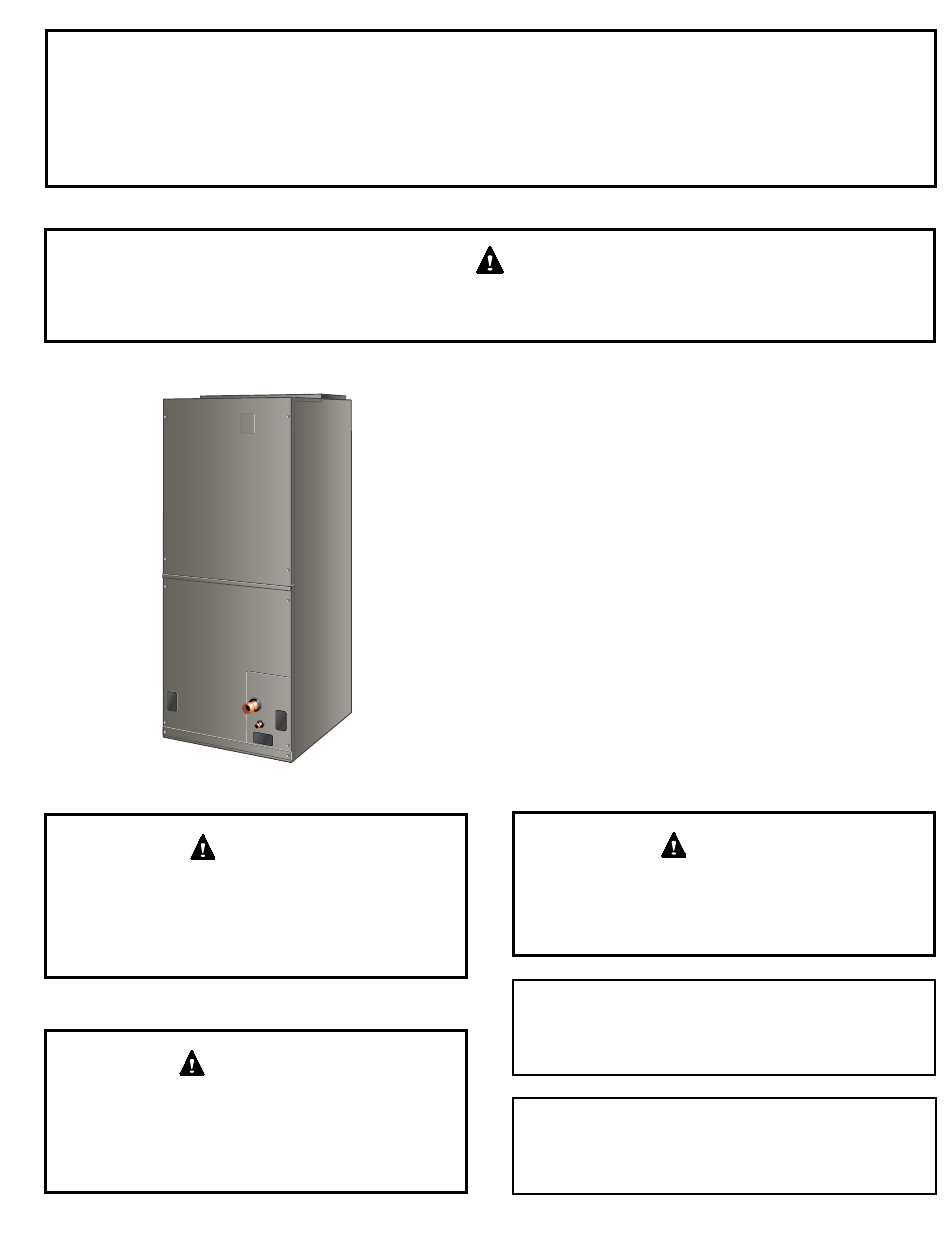

INSTALLATION INSTRUCTIONS
BE5V Series
One-Piece Variable Speed Air Handler
This manual must be left with the homeowner for future reference.

Table of Contents

Shipping and Packing List ...........................................3
General ........................................................................3
Requirements ..............................................................3
Installation Clearances ................................................4
Installation ...................................................................4
Condensate Drain........................................................7
Duct System and Filters .............................................9
Brazing Refrigerant Lines ............................................9
Sealing the Unit .........................................................11
Electrical Connections ...............................................12
BDC3 Blower Control ................................................16
Adjusting the Blower Speed ......................................16
Blower Performance ..................................................17
Checkout Procedures ................................................21
Professional Maintenance .........................................22
Homeowner Maintenance..........................................22
As with any mechanical equipment, contact with sharp
sheet metal edges can result in personal injury. Take
care while handling this equipment and wear gloves
and protective clothing.
*P507789-02B*
Issue 2336
CAUTION
Blue Summit LLC
8201 C National Turnpike
Louisville, KY 40214
(P) 507789-02B
Page 1 of 24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BE5V Series and is the answer not in the manual?

Questions and answers

Related Manuals for Blueridge BE5V Series

Summary of Contents for Blueridge BE5V Series

  • Page 1: Table Of Contents

    INSTALLATION INSTRUCTIONS BE5V Series One-Piece Variable Speed Air Handler This manual must be left with the homeowner for future reference. This is a safety alert symbol and should never be ignored. When you see this symbol on labels or in manuals, be alert to the potential for personal injury or death.

  • Page 2: Unit Dimensions - Upflow - Inches (Mm)

    Unit Dimensions – Upflow – Inches (mm) 1 (25) DETAIL OF PIPING PLATE 4-3/4 3/4 (19) (121) SUCTION LINE SUPPLY AIR LIQUID OPENING CONDENSATE LINE 14-1/2 DRAINS (2) (368) 2-3/8 (Horizontal) (60) 1 (25) 1 (25) CONDENSATE DRAINS (2) 4-3/8 (Upflow and (111) 2-3/4...

  • Page 3: Shipping And Packing List

    States, and any state laws, and local ordinances (including plumbing or waste water codes). The BE5V series air handler with aluminum coil is designed Local authorities having jurisdiction should be consulted for indoor installation only. As shipped, the unit is ready before installation is made.

  • Page 4: Use Of Air Handler During Construction

    • The air handler evaporator coil, supply fan assembly and duct system must be thoroughly cleaned following IMPORTANT final construction clean-up. Excessive condensation may occur if the unit is installed • All air handler operating conditions must be verified in a warm, humid place. When the unit is installed in an according to these installation instructions.
  • Page 5 finished enclosure. Knockouts are provided for electrical NOTE: When the unit is installed in horizontal applications, wiring entrance. a secondary drain pan is recommended. Refer to local codes. For ease in installation, it is best to make any necessary NOTE: This unit may be installed in left-hand or right-hand coil configuration changes before setting air handler in place.
  • Page 6 Left-Hand Air Discharge Rotate drip shield 180° front-to-back. For horizontal left-hand air discharge, the following field Remove plastic plug from left hole on coil front end modifications are required. seal and reinstall plug in back hole. Reinstall drip shield screw in front coil end seal. Drip shield should drain downward into horizontal drain pan inside coil.

  • Page 7: Condensate Drain

    Downflow Application If downflow application is required, separately order a THIS CORNER SHOULD BE 5/8" (+/- 1/8") HIGHER THAN DRAIN CORNER downflow conversion kit and install per kit instructions. See Table 1 for kit information. Also use metal or class I supply and return air plenums.
  • Page 8 OVERFLOW DRAIN LINE ABOVE FINISHED ALWAYS RUN AN OVERFLOW DRAIN LINE. IF NOT POSSIBLE TO SPACE? ROUTE OVERFLOW DRAIN LINE, INSTALL LOW VOLTAGE VENT MUST EXTEND OVERFLOW SWITCH KIT. WIRE SHUT DOWN ABOVE HEIGHT OF COMPRESSOR PER INSTRUCTIONS. COIL DRAIN PAN BY TWO INCHES (51MM) VENT PART #...

  • Page 9: Duct System And Filters

    Duct System and Filters Cabinet and Duct Flange CABINET DOOR FLANGE Duct System 1−1/2 The air handler is provided with flanges for the connection (38) of the supply plenum. Supply and return duct system must be adequately sized DUCT to meet the system’s air requirements and static pressure FLANGE capabilities.
  • Page 10 WALLS, DUCT SYSTEM, FLOOR JOISTS, OR OTHER PIPING. REMOVE RUBBER PLUG FROM BOTH LIQUID AND SUCTION LINES NOTE - BE5V SERIES UNITS USE NITROGEN OR DRY AIR AS A HOLDING CHARGE. IF THERE IS NO PRESSURE PIPING WHEN THE RUBBER PLUGS ARE REMOVED, CHECK THE PLATE COIL FOR LEAKS BEFORE INSTALLING.

  • Page 11: Sealing The Unit

    Sealing the Unit WARNING Seal the unit so that warm air is not allowed into the cabinet. To prevent the build-up of high levels of Warm air introduces moisture, which results in water blow- nitrogen when purging, it must be done in a off problems.

  • Page 12: Electrical Connections

    • Electrical wiring, disconnect means and over-current Electrical Connections protection are to be supplied by the installer. Refer to the air handler rating plate for maximum over- current protection, minimum circuit ampacity, as well WARNING as operating voltage. Select the proper supply circuit conductors in accordance with tables 310-16 and 310- Electric shock hazard! - Disconnect all power 17 in the National Electric Code, ANSI/NFPA No.
  • Page 13 208 Volt Conversion Disconnect all power supplies. 1. Disconnect all power supplies. Remove the air handler access panel. Remove the air handler access panel. Route the field supply wires to the air handler electrical connection box. Using the wiring diagram located on the unit access panel as a reference, move the 2 connected black Use UL-listed wire nuts to connect the field supply transformer leads from the 240 volt terminal on the...
  • Page 14 Figure 14. Typical Wiring Diagram – BE5V Air Handler with Electric Heat – (Variable-Speed Motor) Page 14 of 24 Issue 2336 507789-02B...
  • Page 15 WARNING USE COPPER CONDUCTORS ONLY Figure 15. Low Voltage Connections (Variable-Speed Motor) 507789-02B Issue 2336 Page 15 of 24...

  • Page 16: Bdc3 Blower Control

    NORM OPERATIONAL SELECTOR PINS Table 3 lists the recommended factory blower speed (AFFECTS BOTH TEST tap selections for BE5V series units. These settings are HEATING AND ADJUST HEAT COOL DELAY CFM RUN COOLING MODES) for nominal tonnage match-ups with the BE5V .

  • Page 17: Blower Performance

    Adjust Jumper The unit will provide 70% of the COOL CFM during first- stage cooling for two-stage outdoor units. 100% of COOL The ADJUST pins allow the motor to run at normal speed, speed is provided for systems with a single-stage outdoor slightly higher (approximately 10%) than normal speed, or unit.
  • Page 18 BE5V30 Blower Performance 0 through 0.80 in. w.g. External Static Pressure Range Jumper Speed Positions “HEAT” Speed First Stage “COOL” Speed Second Stage “COOL” Speed ADJUST Jumper Setting 1115 1340 1115 1340 NORM 1020 1220 1020 1220 – 1100 1100 NOTES - The effect of static pressure, filter and electric heater resistance is included in the air volumes listed.
  • Page 19 BE5V60 Blower Performance 0 through 0.80 in. w.g. External Static Pressure Range Jumper Speed Positions “HEAT” Speed First Stage “COOL” Speed Second Stage “COOL” Speed ADJUST Jumper Setting 1600 1835 2030 2190 1110 1285 1380 1615 1600 1835 2030 2190 NORM 1465 1675...
  • Page 20 Operating Sequence System Demand System Response Thermostat Demand Relative Humidity Air Handler System Step Comp Comments Condition Status (COOL) NO CALL FOR DEHUMIDIFICATION Normal Accetpable Compressor and indoor Operation - Y1 air handler follow Normal thermostat demand Accetpable High 100% Operation - Y2 Room Thermostat Calls for First-Stage Cooling BASIC MODE (only active on a Y1 thermostat demand)

  • Page 21: Checkout Procedures

    Heat Jumper The HEAT jumper is used to determine CFM during electric heat operation only. These jumper selections are activated 7 1/2 MIN 100% only when W1 is energized. 82% CFM COOLING DEMAND Delay Jumper The DELAY jumper is used to set the specific motor fan operation during cooling mode.

  • Page 22: Professional Maintenance

    Check the air flow from a register to confirm that the If water should start coming from the secondary drain system is moving cooled air. line, a problem exists which should be investigated and corrected. Contact a qualified service technician. Set the thermostat 5ºF higher than the indoor temperature.
  • Page 23 Installing Contractor’s Name_______________________ Installing Date_______________________________ Installing Contractor’s Phone_______________________ Air Handler Model #___________________________ Job Address____________________________________ Thermostat Line Voltage SUPPLY Disconnect Switch Integrated Control Temperature Duct Blower Motor Amps System Electric Heat Amps Duct Static RETURN Filter Drain Line DUCT SYSTEM TOTAL EXTERNAL STATIC (dry coil) dry coil wet coil SUPPLY AIR DUCT...
  • Page 24 Installing Contractor’s Name_______________________ Installing Date_______________________________ Installing Contractor’s Phone_______________________ Air Handler Model #___________________________ Job Address____________________________________ Line Voltage Disconnect Switch Thermostat Integrated Control Duct System Duct System Filter RETURN SUPPLY Electric Heat Amps Blower motor Amps Drain Line Duct Static Temperature DUCT SYSTEM TOTAL EXTERNAL STATIC (dry coil) dry coil wet coil...
