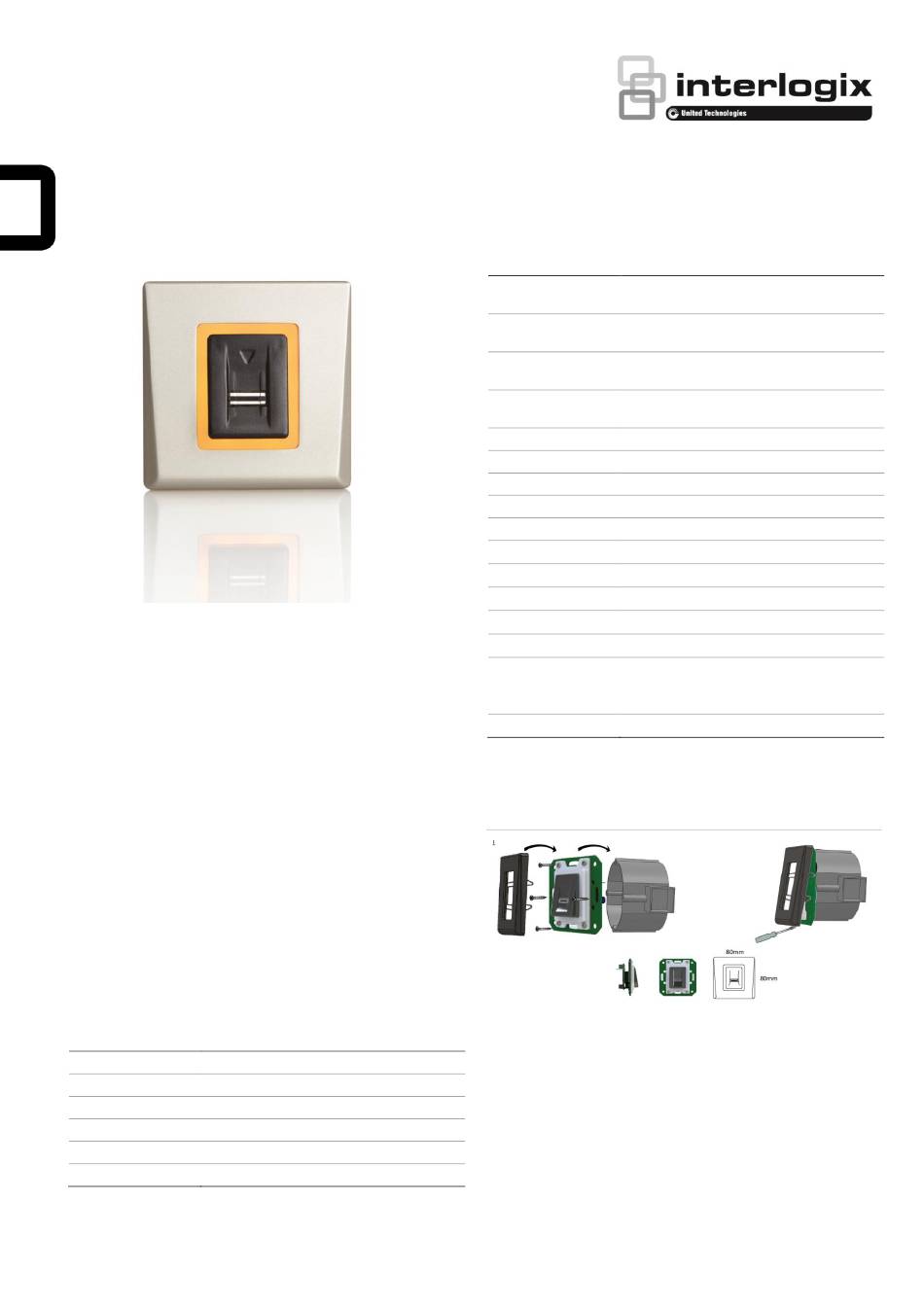

Interlogix ACL800FLW-BS Instruction Manual

ACL800FLW-BS – Flush Mount Biometric Swipe
capacitive Wiegand Reader - Installation Manual
Description / Operation
ACL800FLW-BS is a Wiegand biometric reader for access
control applications. It offers storage up to 100 fingerprints and
has a programmable Wiegand output (26 to 80 bits).
Configuration of the readers and fingerprint enrollment is done
through ACL800 BioManager Software.
Connection between the biometric readers is RS485 and it is
used for fingerprint transfer and configuration.
The connection between the biometric readers and the PC is
done through a ACL800FL-CONV-W converter (RS485 to
TCP/IP). Only one converter is needed per system and
supports up to 31 Biometric readers
The tamper switch output can trigger the alarm system, if an
attempt is made to open or remove the unit from the wall.
The sensor incorporates dedicated sensing hardware to
facilitate the detection of "spoofing" attacks based on fake
fingers. This data is embedded into the image data stream,
and is processed on the processor. The system is capable of
detecting and defeating well-known fake finger mechanisms,
such as molded "gummy" fingers.
The coating on the surface of the swipe sensor provides
protection from scratching and abrasion due to normal contact
with fingertips and any incidental contact with fingernails.
Specifications
Fingerprint capacity Up to 100 fingerprints
Technology Biometry
Use Indoors
Authentication Finger
Fingerprints per user 1-10 fingerprints
Interface Wiegand 26 to 80 bits; default: Wiegand 26bit
© 2018 United Technologies Corporation.
Interlogix is part of UTC Climate, Controls & Security, a unit of United Technologies Corporation. All rights reserved.
ACL800 BioManager (all access control
Protocol programming
systems)
Wiegand Cable
50 m
distance
Fingerprint Sensor
Swipe Capacitive
Type
1:1000 identification
970 msec, including feature extraction time
time
Fingerprint enrollment On the reader or from the USB desktop reader
Panel Connection Terminal blocks
Green and Red LED Externally controlled
Orange LED Idle mode
Buzzer ON/OFF Yes
Yes
Backlight ON/OFF
Yes, activated on frame removal
Tamper
100 mA at 12 VDC
Current requirements
40
IP Rating
9 to 14 VDC
Power supply
Operating
0 to +40°C
Temperature
5 to 93% noncondensing
Relative humidity
80 x 80 x 9 mm
Dimensions
Mounting
Figure 1: Mounting instructions
Note: Wall mount gang box not supplied!
P/N 1073498A• REV 01.01 • ISS 27AUG18
