Interlogix ATS1197 Installation Sheet

ATS1197 Smart Card Reader With Keypad
Installation Sheet
EN DE IT
1
(1) (2) (3)
1
4
7
EN: Installation Sheet
Mounting the unit
1. Remove power to the control panel, or 4-door DGP, as
applicable.
2. Remove the two front panel screws at the bottom of the
RAS (see Figure 1), and then remove the RAS back plate.
Retain the screws to secure the RAS later.
3. Position the RAS back plate (with the tamper spring at the
top) against the mounting surface to determine the
locations of mounting holes and for cabling access
(a reduced card reading range may occur if mounted on a
metal surface).
4. Mount the back plate on a flat surface using four screws
(the hole nearest the tamper spring must have a screw in
order for the tamper switch to work correctly).
5. Terminate the cable, as required (see wiring details
below).
6. For on-line mode, set the BUS address (DIP switches 1
through 4). For on-line mode, set the TERM switch (DIP
switch 5) as required. For off-line mode, the TERM switch
must be off (up). See DIP switch settings for details.
7. Mount the RAS on the back plate by engaging the top, and
then lowering the RAS to be flat against the back plate.
The rear tamper switch must be sealed for the system to
© 2019 UTC Fire & Security Americas Corporation, Inc.
2
2 3
5 6
8 9
0 #
(4)
RAS 1
( ) 1 ( ) 2
RAS 5
RAS 9
RAS 13
work correctly. Ensure that the back plate tamper spring
rests on the tamper switch actuator (protruding from the
resin in the back of the RAS) when the RAS is in position.
8. Fix the RAS to the back plate using the two screws
removed earlier from the bottom of the RAS.
9. Apply power to the control panel, or the 4-door DGP.
10. For online mode, use an LCD RAS on the BUS (or the
system management software) to program polling and set
up the required items for the new RAS. In particular, the
ATS1197 RAS must be programmed as a non-LCD RAS.
11. Check that the ATS1197 is communicating correctly and
verify that the tamper switch is working properly (i.e. "RAS
Tamper" is not showing on the LCD RAS).
WARNING: All power should be turned off to the control panel
before wiring the RAS.

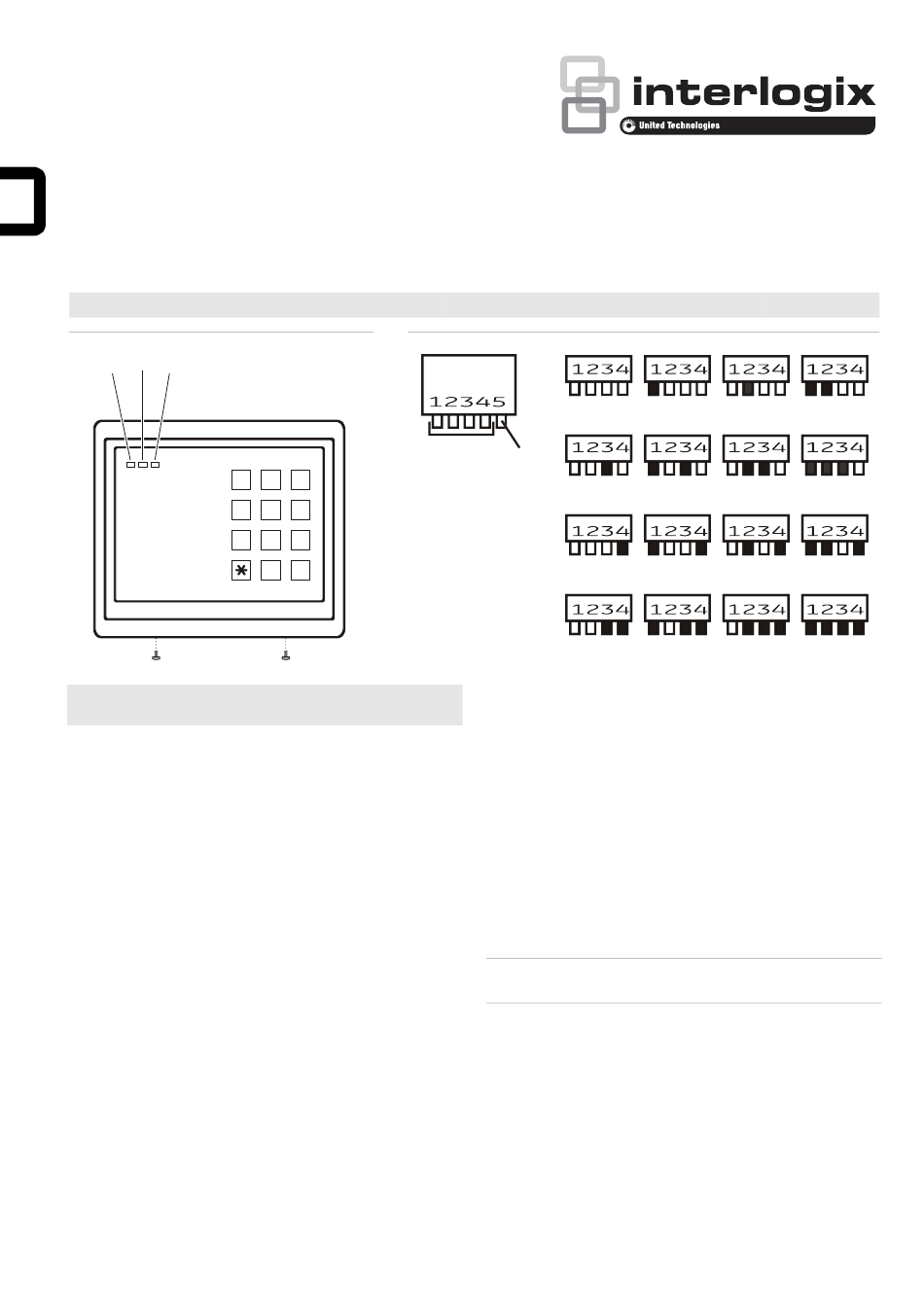

Location of features
Figure 1 legend
(1) Red/Green dual colour LED
(2) Yellow LED
Connecting control panel to keypad RAS
Refer to the ATS Control Panel Installation Guide for
instructions.
P/N MAINST-ATS1197 (ML) • REV D • ISS 11JUN19
1 / 14
RAS 2 RAS 3 RAS 4
RAS 6 RAS 7 RAS 8
RAS 10 RAS 11 RAS 12
RAS 14 RAS 15 RAS 16
(3) Red LED
(4) Locking screws
