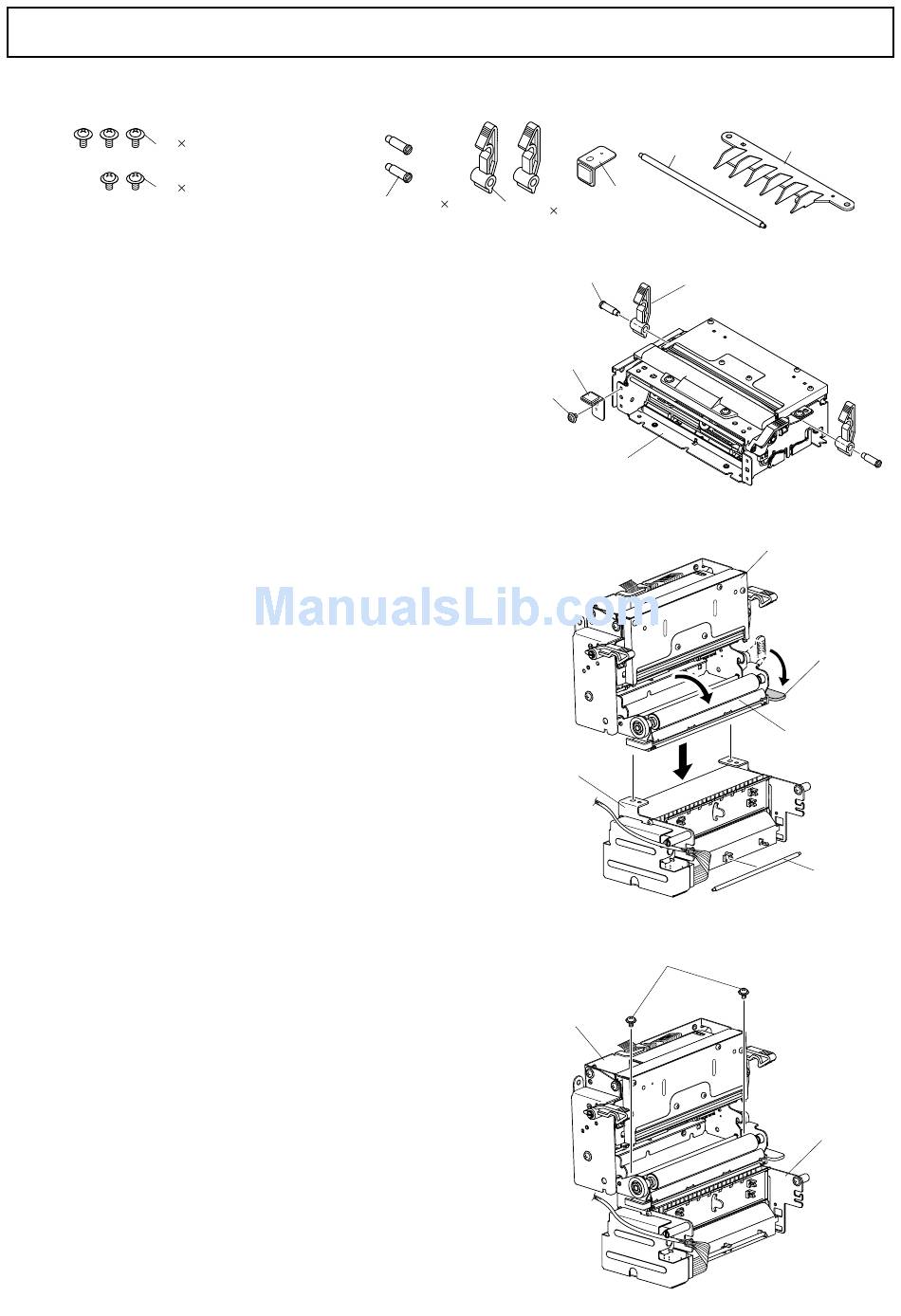

1. Opening the Package :
M3 6 screws (3)
(For Presenter/ Stopper Mounting)
M3 4 screws (2)
(For Loop Guide Mounting)
2. Mounting Procedures :
2-1 Mounting the Lock Lever
Screw in the two lock levers into the presenter with
the two lever screws.
2-2 Mounting the Stopper
Screw in the stopper into the presenter with the
screw.
2-3 Mounting the Presenter
1 Install the shaft in the presenter.
2 Lay the release lever on the mechanism side down
and open the mechanism platen holder toward the
direction of the arrow.
3 Position the screw holes, as shown in the figure, and
place the mechanism on top of the presenter.
4 Fasten the presenter to the mechanism using the two
screws.
Mounting the Presenter PR921
Check that all of the accessories are included.
Lever screw
Stopper
2
Lock lever
2
Lever screw
Stopper
Screw
Presenter
Presenter
Mechanism
Loop guide
Shaft
Lock lever
Mechanism
Release lever
Platen holder
Screw
80871281 PR921
Shaft
Presenter
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Star Micronics PR921
Summary of Contents for Star Micronics PR921
- Page 1 Mounting the Presenter PR921 1. Opening the Package : M3 6 screws (3) (For Presenter/ Stopper Mounting) M3 4 screws (2) (For Loop Guide Mounting) 2. Mounting Procedures : 2-1 Mounting the Lock Lever Screw in the two lock levers into the presenter with the two lever screws.
- Page 2 5 Lift the presenter in the direction of the arrow to close. 6 Close the right and left sides lock shafts with the lock lever. 7 It is recommended that the presenter cable be set in the position shown in the drawing on the mechanism side using the Fastener.
