PLEASE READ
BEFORE COMMENCING
OPERATION
numatic.com
This machine is suitable for DRY use
only.
Make sure that the filtration system
fitted to the machine is suitable for the
material being collected.
M-Class
Original Instructions
CAUTION, Read instructions before using the machine.

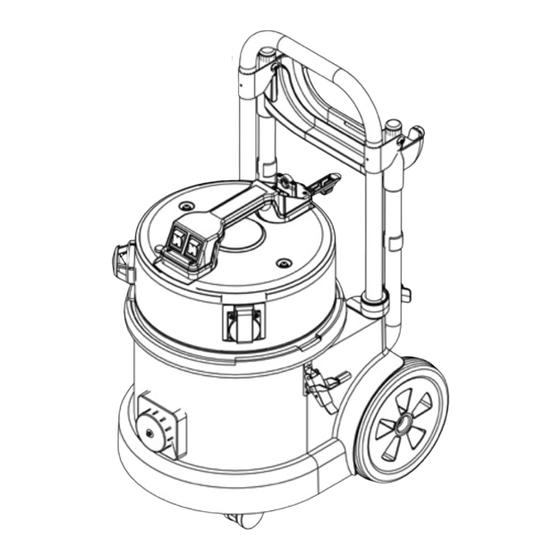

TEM390A-11
GB
620W (Kit AS10)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Numatic TEM390A-11
Summary of Contents for Numatic TEM390A-11
- Page 1 This machine is suitable for DRY use only. Make sure that the filtration system fitted to the machine is suitable for the material being collected. M-Class Original Instructions CAUTION, Read instructions before using the machine. TEM390A-11 620W (Kit AS10)
-
Page 2: Handle Assembly
Kit AS10 601102 2.9m NuFlexFlex Hose 900918 MultiFlo 300 mm Dry Floor Tool 601008 Stainless Steel Extension Tube x2 601430 FreeFlo 290 Floor Tool 601052 Stainless Steel Bend Tube 601999 5 Piece Accessory Kit 601176 Multi Size Power Adaptor Handle Assembly... - Page 3 Air Diffuser Hose and Wands...
-
Page 4: Machine Function
Machine Function On / Off If your appliance fails to operate, ensure that the Auto/Manual switch (2) is in the off position prior to switching the On/Off switch (1) to the On position. Auto / Manual Switch Auto Mode - If an external appliance fails to operate when connected to the vacuum auxiliary socket (3) please check and ensure that switch (1) &... -
Page 5: Using Your Machine
Using your Machine Low Flow Warning Light Low flow monitoring Slow Repeated Flash. The vacuum cleaner is fitted with a warning lamp that will illuminate and flash when the air speed in the suction hose falls below 20m/s. If problem persists... Causes Solution Suction hose blocked... -
Page 6: Cleaning Your Machine
Cleaning your Machine... -
Page 7: Replacing The Cartridge Filter
Replacing the Cartridge Filter 901649 H13 Filter Cartridge... - Page 8 Changing / Replacing Cable In the event of a breakdown contact your Numatic dealer or the Numatic Technical help line +44 (0)1460 269268...
-
Page 9: Moving Your Machine
Moving your Machine... -
Page 10: Maintenance
Caution Floor Sign Protection NOTE: A risk assessment should be conducted to determine which PPE should be worn. Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline +44 (0)1460 269268... - Page 11 Keep diff user fi lter (where fi tted) clean. • Use fi lter bags, they will enhance performance and help keep machine clean. • Use a Numatic Original fi lter bag under fi ne dust conditions. • Keep hoses and tubes clear. •...
- Page 12 For user servicing, the machine must be dismantled, cleaned and serviced, as far as is reasonably practicable, without causing risk to maintenance staff and others. All parts of this vacuum are safety critical only replace with the genuine Numatic spare parts. WARNING: This machine must only be operated by suitably trained and authorised personnel.
-
Page 13: Replacement Parts
Replacement Parts Filter 604165 TriTex Filter Hepaflo Filter bag 604016 10 x Hepaflo Filter bag NVM 2BH Dimensions Clean- Weight Drum Protection (Ready Sound Pressure Handle Up Size Class Range to work) Handle Down 400 x 450 x 1010mm 18 L 28 m 14.3 kg LpA ≤... - Page 16 DEUTSCHLAND Tel: 05 11 98 42 16 0 www.numatic.de Numatic International SAS. 13 / 17 rue du Valengelier. EAE La Tuilerie – 77500 CHELLES, FRANCE Tel: 01 64 72 61 61 www.numatic.fr Numatic International BV. Vennootsweg 15, 2404 CG, Alphen aan den Rijn, NEDERLAND Tel: 0172 467 999 www.numatic.nl...
