Appearance and Interface

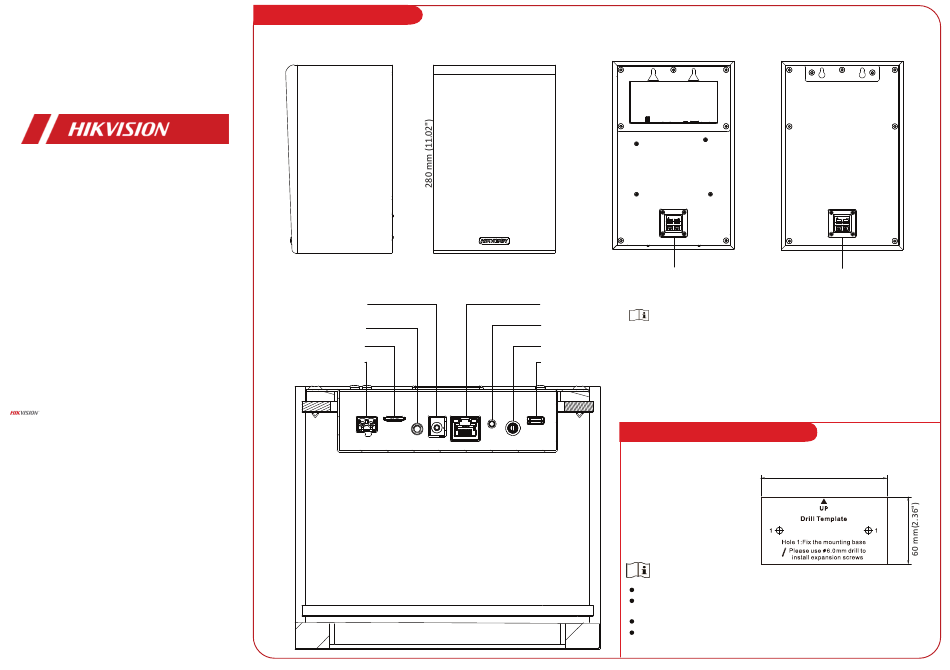

Dimensions
158 mm (6.22")
UD32572B
Top Interfaces-Primary Speaker
Power Input Interface
Audio Input Interface
*SIM Card Slot
Constant Pressure Input Interface
Rear Panel-Primary Speaker
181 mm (7.13")
*Constant Resistance Output
Network Interface
Reset
• The primary speaker and secondary speaker have similar appearance, but different interfaces.
the rear panel.
Volume Control
interface on the rear panel.
Debug Port
• The debug port is for purpose of debugging only.
• Speakers of certain models are designed with a SIM card slot. The actual device prevails.
• Speakers of certain models are designed with a constant resistance output interface. The
actual device prevails.
• The interface varies with the models. Please refer to the product datasheet for details.
2

Preparation Before Installation

Switch the power off before installation.
A mounting template is required for device installation. It is recommended to install the device
at a distance of 3.24 m~6.24 m from the ground and ≥ 0.69 m from the ceiling.
Complete the wiring of the device before installation. See Chapter 1 for detailed information.
Make sure that the power supply complies with the needs of the device. Please refer to the
product datasheet for details.
Rear Panel-Secondary Speaker
Constant Resistance Input
Note
◦ The primary speaker has interfaces on the top and a c onstant resistance output
◦ The secondary speaker has no interface on the top, but has a c
100 mm(3.94")
Note
interface on
onstant resistance input
