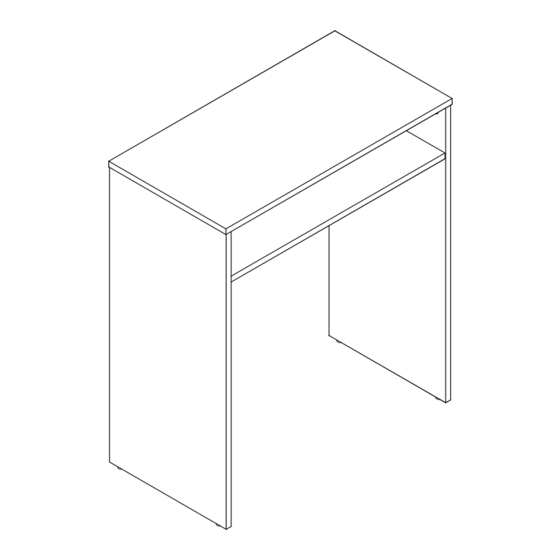

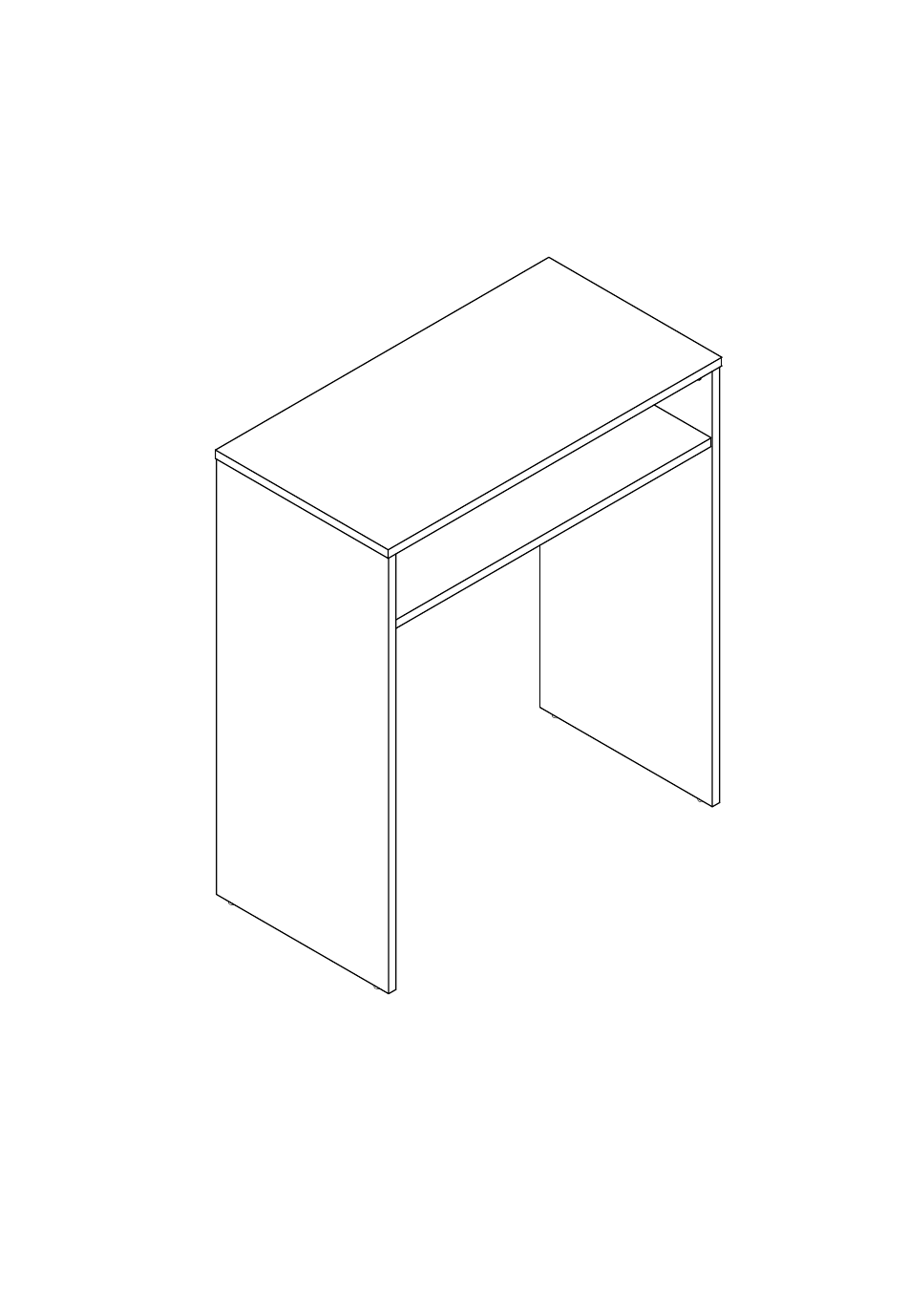

MANUAL DE MONTAGEM
ASSEMBLY INSTRUCTIONS
INSTRUCCIONES DE MONTAJE
COD BR: BC 95
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BC 95 and is the answer not in the manual?

Questions and answers

Summary of Contents for moovin BC 95

  • Page 1 MANUAL DE MONTAGEM ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE COD BR: BC 95...
  • Page 3 Sumário Summary Resumen Acessórios incluídos na caixa Hardware included in box Accesorios incluidos en la caja Leia atentamente este manual e siga os passos indicados para que o produto não perca a garantia e também para uma perfeita montagem. Read this manual and follow the steps in order to keep the guarantee and also for the perfect fit.
  • Page 4 Antes de começar Before starting Antes de comenzar Antes de começar a montagem prepare o ambiente, deixando-o completamente limpo e com bom espaço para iniciar o trabalho. Prepare the room before starting the assembly, leaving it completely clean and the area in good condition to start the work.
  • Page 5 Dimensões e ferramentas Dimensions and tools Dimensiones y herramientas Dimensões: L: 675 A: 780 P: 350 mm Dimensions: W: 26.57 H: 30.70 D: 13.77 inches Dimensiones: L: 675 A: 780 P: 350 mm Limpeza Cleaning Limpieza Pano levemente umedecido com água, seguido de pano seco, não utilizar produtos químico ou abrasivos. You can clean the product with slightly dampened cloth followed by a dry cloth.
  • Page 6 COD BR: BC 95 PEÇA DESCRIÇÃO QUANT. PART DESCRIPTION PIEZA DESCRIPCIÓN CANTIDAD TAMPO TAPA LATERAL ESQUERDA LEFT SIDE LATERAL IZQUIERDA LATERAL DIREITA RIGHT SIDE LATERAL DERECHA TRAVESSA TRAVERSE TRAVESAÑO PRATELEIRA SHELF REPISA...
  • Page 7 ACESSóRIOS INCLUÍDOS NA CAIXA 01 - HARDWARE INCLUDED IN BOX 01 - ACCESORIOS INCLUÍDOS EN LA CAJA 01 EF 000033 x 10 EF 000168 X 26 EF 000094 X 10 EF 000216 X 10 8x30 10X10 C/C GIZ x 01 PÉS REDONDOS x 4 TAPA FUROS x 10 CHALK x 01...
  • Page 8 = 8KG - 17.63LB PASSO 1 / STEP 1 / PASO 1 Fixe a ferragem EF 000094 nas peças 01, 02 e 03. Fix hardware EF 000094 in pieces 01, 02 and 03. Fije el herraje EF 000094 en las piezas 01, 02 y 03. EF 000094...
  • Page 9 PASSO 2 / STEP 2 / PASO 2 Insira a ferragem EF 000033 nas peças 02, 03, 04 e 05. Insert hardware EF 000033 in pieces 02, 03, 04 and 05. Añade el herraje EF 000033 en las piezas 02, 03, 04 y 05. PASSO 3 / STEP 3 / PASO 3 Conecte as peças 03, 04 e 05, insira a ferragem EF 000216 e gire para apertar.
  • Page 10 PASSO 5 / STEP 5 / PASO 5 Conecte a peça 01, insira a ferragem EF 000216 e gire para apertar. Connect piece 01, insert hardware EF 000216 and turn to tighten. Junte la pieza 01, añade el herraje EF 000216 y gire para apretar. PASSO 6 / STEP 6 / PASO 6 Fixe os pés utilizando a ferragem EF 000168.
  • Page 11 PASSO 8 / STEP 8 / PASO 8 Utilize o giz para dar o acabamento final ao produto. Use the chalk to give the final finish on the product. Utilize la tiza para dar el acabado final al producto.
