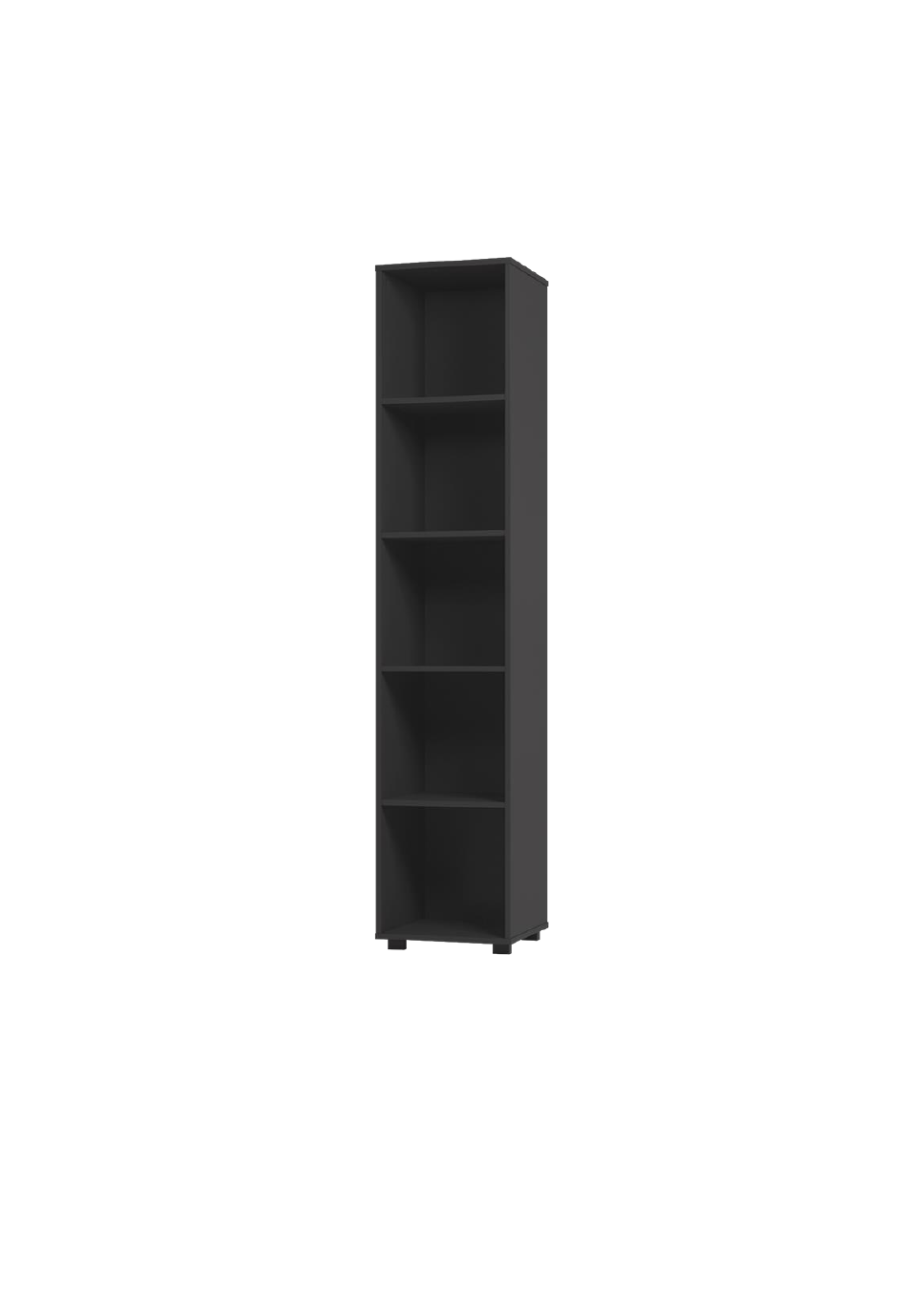

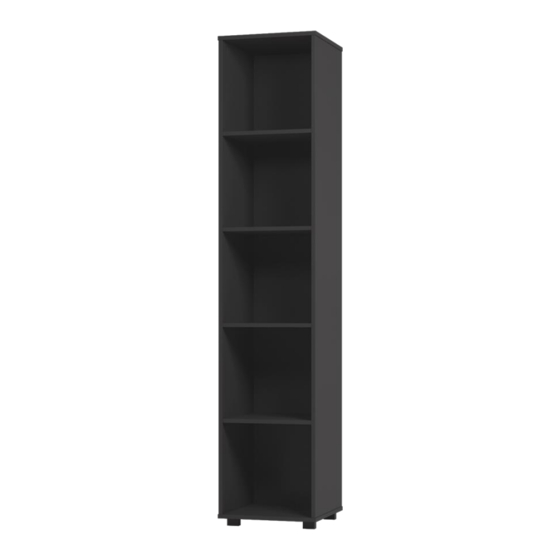

MANUAL DE MONTAGEM
ASSEMBLY INSTRUCTIONS
INSTRUCCIONES DE MONTAJE
COD BR: BAM 12
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BAM 12 and is the answer not in the manual?

Questions and answers

Summary of Contents for moovin BAM 12

  • Page 1 MANUAL DE MONTAGEM ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE MONTAJE COD BR: BAM 12...
  • Page 3 Sumário Summary Resumen Acessórios incluídos na caixa Hardware included in box Accesorios incluidos en la caja Leia atentamente este manual e siga os passos indicados para que o produto não perca a garantia e também para uma perfeita montagem. Read this manual and follow the steps in order to keep the guarantee and also for the perfect fit.
  • Page 4 Antes de começar Before starting Antes de comenzar Antes de começar a montagem prepare o ambiente, deixando-o completamente limpo e com bom espaço para iniciar o trabalho. Prepare the room before starting the assembly, leaving it completely clean and the area in good condition to start the work.
  • Page 5 Dimensões e ferramentas Dimensions and tools Dimensões: L: 385 A: 1863 P: 380 mm Dimensions: W: 15.15 H: 73.34 D: 14.96 inches Dimensiones: L: 385 A: 1863 P: 380 mm Limpeza Cleanig Limpieza Pano levemente umedecido com água, seguido de pano seco, não utilizar produtos químico ou abrasivos. Slightly dampened cloth and after a dry cloth, do not use chemicals or abrasives.
  • Page 6 COD BR: BAM 12 PEÇA DESCRIÇÃO QUANT. PART DESCRIPTION PIEZA DESCRIPCIÓN CANTIDAD BASE BASE BASE TAMPO TAPA LATERAL ESQUERDA LEFT SIDE LATERAL IZQUIERDA LATERAL DIREITA RIGHT SIDE LATERAL DERECHA PRATELEIRA SHELF REPISA COSTA BACK REVÉS...
  • Page 7 ACESSóRIOS INCLUÍDOS NA CAIXA 01 - HARDWARE INCLUDED IN BOX 01 - ACCESORIOS INCLUÍDOS EN LA CAJA 01 EF 000033 x 24 EF 000094 X 20 EF 000216 X 20 EF 000404 x 8 8x30 3,5X25 CC GIZ x 1 PÉS RETÂNGULARES x 4 EF 000132 x 4 EF 000168 X 84...
  • Page 8 = 4KG - 8.81LB PASSO 1 / STEP 1 / PASO 1 Fixe a ferragem EF 000094 nas peças 02, 03 e 04. Attach hardware EF 000094 into pieces 02, 03 and 04. Fije el herraje EF 000094 en las piezas 02, 03 y 04. EF 000094...
  • Page 9 PASSO 2 / STEP 2 / PASO 2 Insira a ferragem EF 000033 nas peças 03, 04 e 05. Insert hardware EF 000033 into pieces 03, 04 and 05. Añade el herraje EF 000033 en las piezas 03, 04 y 05. PASSO 3 / STEP 3 / PASO 3 Conecte as peças 03 e 05, insira a ferragem EF 000216 e gire para apertar.
  • Page 10 PASSO 5 / STEP 5 / PASO 5 Conecte a peça 02, insira a ferragem EF 000216 e gire para apertar. Connect piece 02, insert hardware EF 000216 and turn to tighten. Junte la pieza 02, añade el herraje EF 000216 y gire para apretar. PASSO 6 / STEP 6 / PASO 6 Conecte a peça 01 utilizando a ferragem EF 000132.
  • Page 11 PASSO 8 / STEP 8/ PASO 8 Fixe a peça 06 utilizando a ferragem EF 000168. Attach piece 06 using hardware EF 000168. Fije la pieza 06 utilizando el herraje EF 000168. PASSO 9 / STEP 9 / PASO 9 Utilize o tapa furos para cobrir os parafusos aparentes.
