Summary of Contents for Stagg PA4/200

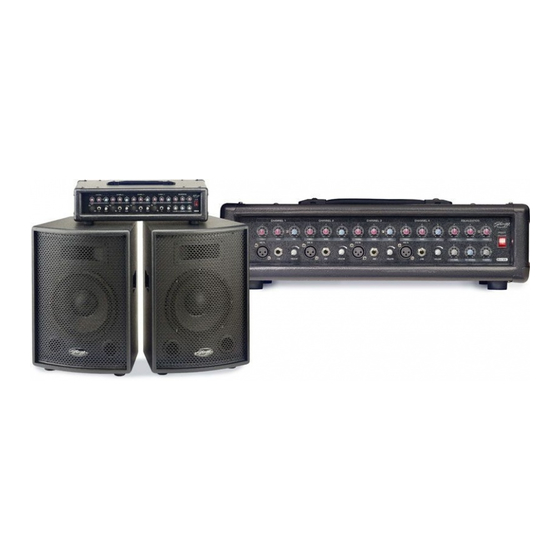

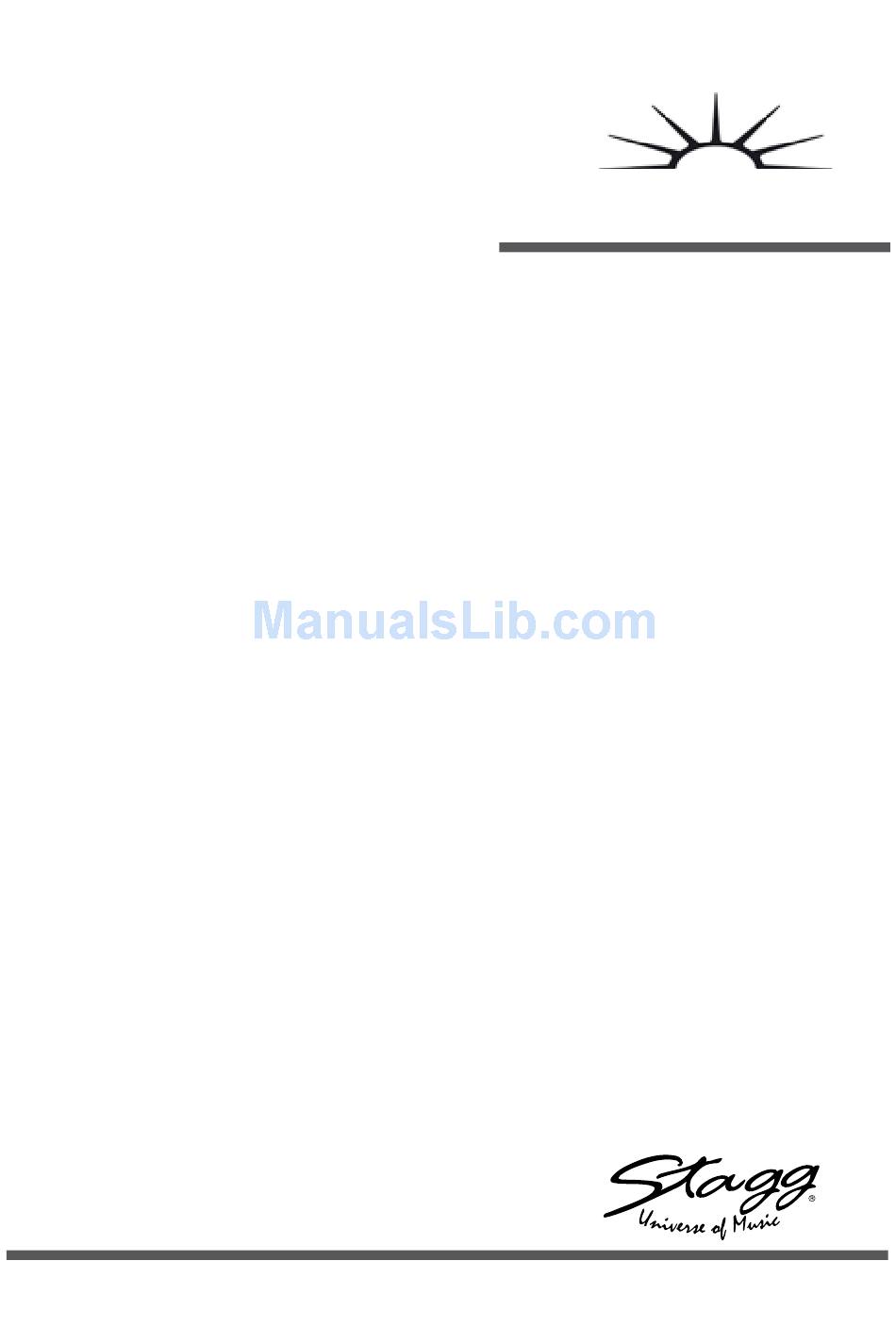

- Page 1 PA4/200 PA4/200 DSP USER MANUAL 4-CHANNEL PA SYSTEM...
- Page 2 USER MANUAL PA4/200 & PA4/200 DSP...
- Page 3 6) EFF: This control is used to set the level of the internal effect (Digital Reverb on PA4/200 and Digital Sound Processor on PA4/200 DSP) blended in to the input signals of each channel.
- Page 4 USER MANUAL PA4/200 & PA4/200 DSP...
- Page 5 1) POWER: This switch turns the powered mixer on or off. The switch is illuminated when the device is powered on. On PA4/200 models, this switch is located on the FRONT PANEL. 2) MAINS: This is the input socket into which the mains power cable must be connected. This powered mixer is supplied with a power cable with a moulded-on plug.
- Page 6 TECHNICAL SPECIFICATIONS : PA4/200 or PA4/200 DSP POWERED MIXER Max. Output Power Bande passante Input Impedance Sensitivity (@ max Rated Power) Input Channel EQ Master EQ Power Requirement Dimensions (H x W x D) Weight SPEAKER CABINETS 1x 10” / 150 W RMS / 4 Ohms Speaker...
- Page 7 3. «RoHS compliant» means this device conforms to the Directive (2002/95EC) on the restriction of the use of certain hazardous substances in electrical and electronic equipments, such as: Mercury, Lead, Cadmium, Hexavalent Chromium, Polybrominated Buphenyl (PBB) and Polybrominated Diphenyl Esthers (PBDE). RoHS compliant PA4/200 & PA4/200 DSP USER MANUAL...
- Page 8 DISTRIBUTOR / DEALER staggmusic.com...
