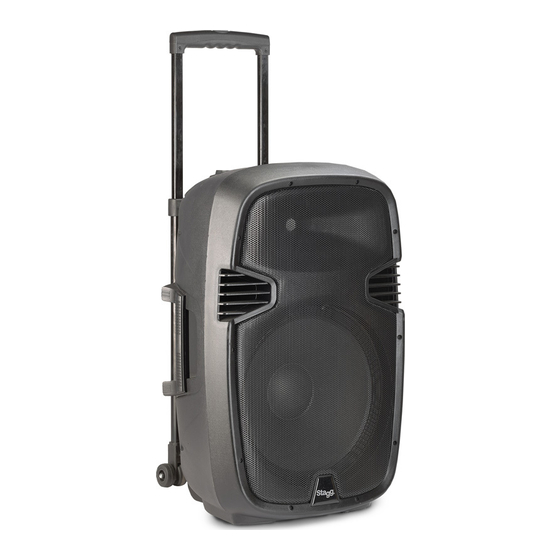

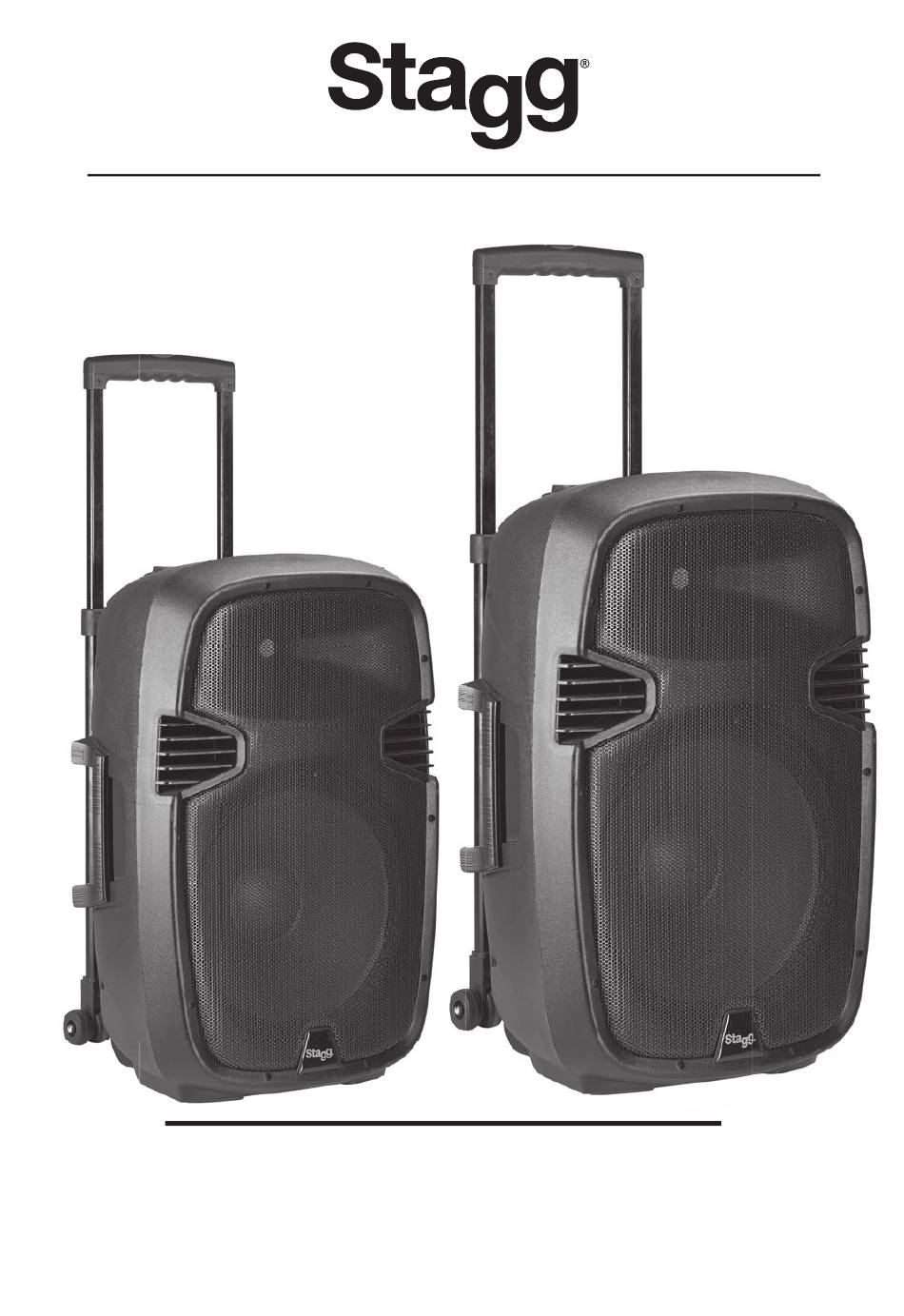

- Page 1 USER MANUAL RE-VOLT 12 - RE-VOLT 15 RE-VOLT 12U - RE-VOLT 15U BATTERY SPEAKERS Please read the instructions carefully before use...
- Page 2 This is a user manual for the Battery Speaker. It contains important safety information as well as the instructions required for the intended use of the device. Please read it carefully before use. Please note that the design and the technical specifications of the device are subject to change without any prior notice.
- Page 3 220-240 220-240 220-240 AC VOLTAGE turn plate if not correct and change value of fuse • Read the instructions printed on the rear panel of the cabinet. • Make sure that the cabinet is placed or installed in such a way that it cannot injure anyone. •...
- Page 4 23 27 26...
- Page 5 REAR PANEL RE-VOLT 12 & 15: 1- MIC VOLUME: Controls the volume of inputs 2 & 3. 2- Dual XLR /Phone jack input: The XLR connects to a low impedance microphone, the phone jack connects to a low impedance microphone or low signal high impedance source such as a guitar.
- Page 6 RE-VOLT 12U & 15U: These models have all features of RE-VOLT 12 or 15 but have on top two UHF wireless microphones and two build in receivers . To be operational you must insert two AA batteries in the microphones (screw off the lower part of the microphone housing) and the two antennas have to be connected to connectors 15 and 18.
- Page 7 TECHNICAL SPECIFICATIONS RE-VOLT12 WITHOUT WIRELESS Woofer: 12”, 33 oz, 2” VC Tweeter: 1” titanium diaphragm driver, 8 ohms Frequency response: 70 Hz - 20 KHz Sensitivity: 92 dB +/- 3 dB Impedance: 4 ohms Sound pressure level: 93 dB +/- 3 dB Features: Reverb, Bluetooth wireless technology, trolley ®...
- Page 8 TECHNICAL SPECIFICATIONS RE-VOLT15 WITHOUT WIRELESS Woofer: 15”, 33 oz, 2” VC Tweeter: 1” titanium diaphragm driver, 8 ohms Frequency response: 60 Hz - 20 KHz Sensitivity: 92 dB +/- 3 dB Impedance: 4 ohms Sound pressure level: 95 dB +/- 3 dB Features: Reverb, Bluetooth wireless technology, trolley ®...
