Stagg 15 GA DR USA User Manual

1 2 3 4 5

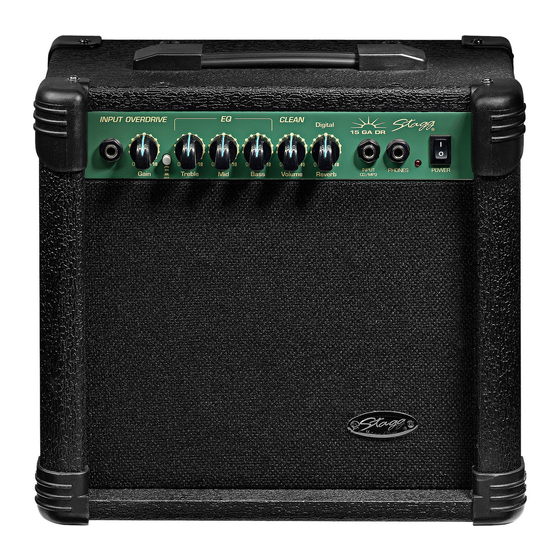

FRONT PANEL:

1. INPUT: Plug your guitar in here. We recommend that you always use a high-quality shielded guitar
cable to prevent any background noise interference or unwanted feedback.
2. (Overdrive) GAIN: This control determines the distortion intensity of the amplifier's overdrive setting.
Adding GAIN will make your guitar sound more distorted.
3. (Overdrive) SWITCH: This switch activates the amplifier's built-in overdrive function, which adds
distortion to the signal.
4. (Clean) VOLUME: This control determines the amplifier's overall output volume.
5. TREBLE: This control determines the level of high frequencies in the output signal. Adding TREBLE will
make your guitar sound brighter and sharper.
6. MID: This control determines the level of middle frequencies in the output signal. Adding MID will make
your guitar sound rounder and fuller. As this control is PARAMETRIC, it also allows you to vary the central
frequency of the midrange. When turned to the left, it will add low-mid and cut upper-mid. As you turn the
control to the right, you will increase the upper-mid presence, while cutting the low.
7. BASS: This control determines the level of low frequencies in the output signal. Adding BASS will make
your guitar sound warmer and heavier.
8. DIGITAL REVERB: This is the reverb intensity control. This controls the amount of reverb that is added
back to the original dry signal. Adding DIGITAL REVERB will produce a reverberation effect in your guitar
sound, as though you were playing in a large hall. A little can go a long way in adding that special depth to
your sound. If engaged, the reverb is always active in either overdrive or clean mode.
9. CD/MP3 INPUT: This is a line level 1/4" (Ø 6.3 mm) stereo jack into which an MP3/CD/Tape player
may be connected.
10. PHONES: This is a 1/4" (Ø 6.3 mm) standard jack output to connect the headphones. When
headphones are connected, no sound is produced from the speaker.
11. POWER LED: When this red LED is lit, the amplifier is ready to work. When it is off, it means the
amplifier is powered off.
12. POWER: This switch turns the amplifier on or off.
2
USER'S MANUAL
6 7 8 9 10 11
15 GA DR USA
1 2

BACK PANEL:

WARNING: This amplifier must be earthed. Please check that the supply voltage details given on the
rating label (located on the rear panel) are in accordance with your electricity supply.
1 POWER FUSE: In the event of the power fuse having to be replaced, first unplug the power cable
from the mains outlet. Then remove the fuse cover and replace the power fuse with one of the same type
and value. Never plug the power cable back into the mains outlet without the fuse cover. When powering
on the amplifier, if the power fuse blows up again, go to a suitable service centre for repair.
MAINS CABLE: This amplifier features a power cable with a moulded-on plug. If the socket outlets in the
home are not suitable for the plug supplied with this amplifier, use an appropriate plug adapter that can
handle the power required for this amplifier. In case the power cable or plug is damaged, unplug it in a
safe way from the mains outlet and go to a suitable service centre for replacement.
Max. Rated Power / Loudspeaker
Frequency Response
Total Harmonic Distortion
Signal to Noise Ratio
Input Impedance
Power Consumption
Maximum Input Level
Maximum Gain
Dimensions (H x W x D)
Weight
Features and Specifications are subject to change without notice.
15 GA DR USA
CM
C US
CONFORMS TO
UL STD. 60065
CERTIFIED TO
CAN/CSA STD.
C22.2 No.60065:03
1

TECHNICAL SPECIFICATIONS

15 Watts RMS @ 8 Ohms load / 6.5" speaker
80 Hz to 15 kHz
0.8% (Clean Mode)
- 55 dB @ max Rated Power
220k Ohms
25 Watts max
45 mV (RMS)
42 dB (@ 1kHz)
31 x 35 x 19 cm / 12.2 x 13.8 x 7.5 in.
6.3 kg / 13.9 lbs
3
DATE
USER'S MANUALS
