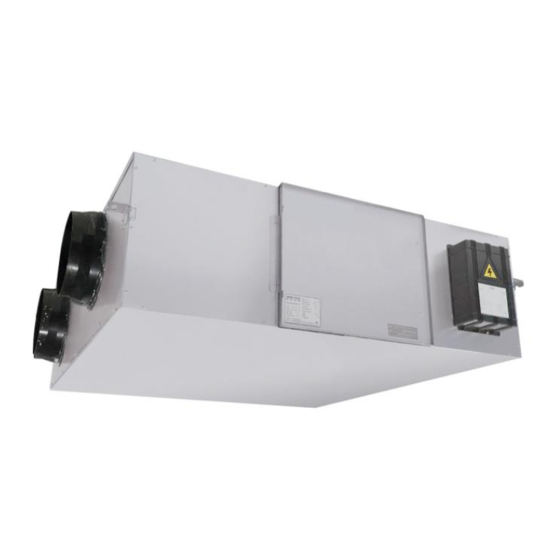

Technical Manual of Holtop

Energy Recovery Ventilator

XHBQ-D2DCTHC

XHBQ-D3DCTHC

XHBQ-D4DCTHC

XHBQ-D6DCTHC

XHBQ-D8DCTHC

XHBQ-D10DCTHC

XHBQ-D13DCTHC

XHBQ-D15DCTHC

XHBQ-D20DCTHC

XHBQ-D26DCTHC

Attention

Please read this manual carefully before using the equipment. For safety precautions,

please read carefully before const n ructioor use, and use the equipment safely.

Models:

XHBQ-D2DCPMTHC

XHBQ-D3DCPMTHC

XHBQ-D4DCPMTHC

XHBQ-D6DCPMTHC

XHBQ-D8DCPMTHC

XHBQ-D10DCPMTHC

XHBQ-D13DCPMTHC

XHBQ-D15DCPMTHC

XHBQ-D20DCPMTHC

XHBQ-D26DCPMTHC

Table of Contents

Need help?

Do you have a question about the XHBQ-D2DCTHC and is the answer not in the manual?

Questions and answers

Summary of Contents for HOLTOP XHBQ-D2DCTHC

Page 1 Technical Manual of Holtop Energy Recovery Ventilator Models: XHBQ-D2DCTHC XHBQ-D2DCPMTHC XHBQ-D3DCTHC XHBQ-D3DCPMTHC XHBQ-D4DCTHC XHBQ-D4DCPMTHC XHBQ-D6DCTHC XHBQ-D6DCPMTHC XHBQ-D8DCTHC XHBQ-D8DCPMTHC XHBQ-D10DCTHC XHBQ-D10DCPMTHC XHBQ-D13DCTHC XHBQ-D13DCPMTHC XHBQ-D15DCTHC XHBQ-D15DCPMTHC XHBQ-D20DCTHC XHBQ-D20DCPMTHC XHBQ-D26DCTHC XHBQ-D26DCPMTHC Attention Please read this manual carefully before using the equipment. For safety precautions,...
Page 2: Table Of Contents
Contents Safety Considerations Unit Specifications Dimension 9-10 Installation Considerations 11-14 15-17 Electrical Installation Precautions for use Controller Instructions 19-26 Maintenance Failure diagnosis...
Page 3: Safety Considerations
Safety Considerations Safety attentions Please read the following safety instructions before installation. And ensure that the unit is installed correctly. Please observe all instruction in order to avoid any injury or damage to equipment or property. The following symbols indicate potential levels of caution. Situations with a risk or death or Situations with a risk of injury or serious injure.
Page 4 Safety Considerations Power cable and wires must be installed by To avoid condensation, insulation should be a qualified electrical engineer. Improper fitted to fresh air ducts. Other ducting may connection can cause over heating. Fire and also require insulation depending on dew loss of efficiency.
Page 5: Unit Specifications
Specifications XHBQ- XHBQ- XHBQ- XHBQ- XHBQ- Model D2DCTHC D3DCTHC D4DCTHC D6DCTHC D8DCTHC Performance Airflow(m Airflow (l/s) External pressure(Pa) Cooling 55-66 57-70 57-70 59-74 55-66 Enth. Eff (%) Heating 59-70 61-72 60-74 61-78 57-76 Temp. Eff (%) 70-82 68-82 69-83 70-83 68-83 Noise Db(A) 31.5...
Page 6 Specifications XHBQ- XHBQ- XHBQ- XHBQ- XHBQ- Model D10DCTHC D13DCTHC D15DCTHC D20DCTHC D26DCTHC Performance Airflow(m 1000 1300 1500 2000 2600 Airflow (l/s) External pressure(Pa) Cooling 58-70 56-68 63-71 60-68 56-68 Enth. Eff (%) Heating 62-75 59-70 65-73 62-72 59-70 Temp. Eff (%) 70-83 70-83 76-80...
Page 7 Specifications XHBQ- XHBQ- XHBQ- XHBQ- XHBQ- Model D2DCPMTHC D3DCPMTHC D4DCPMTHC D6DCPMTHC D8DCPMTHC Performance Airflow(m Airflow (l/s) External pressure(Pa) Cooling 55-66 57-70 57-70 59-74 55-66 Enth. Eff (%) Heating 59-70 61-72 60-74 61-78 57-76 Temp. Eff (%) 70-82 68-82 69-83 70-83 68-83 Noise Db(A) 31.5...
Page 8 Specifications XHBQ- XHBQ- XHBQ- XHBQ- XHBQ- Model D10DCPMTHC D13DCPMTHC D15DCPMTHC D20DCPMTHC D26DCPMTHC Performance Airflow(m 1000 1300 1500 2000 2600 Airflow (l/s) External pressure(Pa) Cooling 58-70 56-68 63-71 60-68 56-68 Enth. Eff (%) Heating 62-75 59-70 65-73 62-72 59-70 Temp. Eff (%) 70-83 70-83 76-80...
Page 9: Dimension
Dimensions Dimensions Electric Electric XHBQ-D2DCTHC XHBQ-D3DCTHC Model XHBQ-D2DCTHC Φ144 XHBQ-D3DCTHC Φ144 XHBQ-D4DCTHC Φ144 Electric Electric XHBQ-D3DCPMTHC XHBQ-D2DCPMTHC XHBQ-D4DCPMTHC Model XHBQ-D2DCPMTHC Φ144 XHBQ-D3DCPMTHC Φ144 XHBQ-D4DCPMTHC Φ144...
Page 10 Dimensions Dimensions Electric Electric The access door The access door control control XHBQ-D13DCTHC XHBQ-D6DCTHC～XHBQ-D10DCTHC XHBQ-D13DCPMTHC XHBQ-D6DCPMTHC～XHBQ-D10DCPMTHC Model XHBQ-D6DCTHC 833.5 20.5 451.5 115.5 139.5 Φ194 XHBQ-D8DCTHC 1134 1189 20.5 Φ242 XHBQ-D10DCTHC 1134 1134 1068 1189 20.5 Φ242 XHBQ-D13DCTHC 1243 1193 241 1172.5 1248 20.5 629.5 Φ242 XHBQ-D6DCPMTHC...
Page 11: Installation Considerations
Installation Considerations Installation Considerations Protect the unit to avoid dust or other obstructions entering the unit and accessories during installa- SERVICE PORT SERVICE PORT SERVICE PORT XHBQ-D2DCTHC XHBQ-D3DCTHC XHBQ-D6DCTHC～XHBQ-D26DCTHC XHBQ-D4DCTHC XHBQ-D2DCPMTHC XHBQ-D6DCPMTHC～XHBQ-D26DCPMTHC XHBQ-D3DCPMTHC XHBQD4DCPMTHC Be sure the ceiling height is no less than the Figures in above table B column。...
Page 12 Installation Considerations Unit must not be installed close to boiler flues. Fol- lowing phenome- should be avoided in the ducting installation. Multiple reducers/ crimped duct Multiple direction changes Serve bends Exessive use of flex-duct and long flex-duct runs should be avoided. Fire dampers must be fitted as per national and local fire regulations.
Page 13 Installation Considerations Ducting 1. Connection of unit vents and ducts should be taped or sealed to prevent air leakage, and should com- ply to relevant guidelines and regulations. 2. The two outdoor vents should face downward toward the outside to prevent any rain water ingress. (angle 1/100 1/50).
Page 14 Installation Considerations Installation Diagram XHBQ-D2DCTHC～XHBQ-D4DCTHC XHBQ-D2DCPMTHC～XHBQ-D4DCPMTHC Suspending Pole Exhaust Duct Supply Duct Return Duct Supply Air insulation Return Air Outside Fresh Air Duct XHBQ-D6DCTHC～XHBQ-D26DCTHC XHBQ-D6DCPMTHC～XHBQ-D26DCPMTHC...
Page 15: Electrical Installation
A cable fixing device offered by installer is recommended Spec. of power supply Model Spec. of normal controller cable cable XHBQ-D2DCTHC to XHBQ-D26DCTHC 3×1.5mm 2×0.5mm XHBQ-D2DCPMTHC to XHBQ-D26DCPMTHC We do not accept any liability for any problems caused by the user’s self and non-authorized re-...
Page 16 Input2 PCB Board AC220V Fire signal input (Default is short circuit) Input1 Temperature and humidity sensor Valve Temp1 Temp2 Temp3 Temp4 1059 Black White Yellow Bypass- valve Model Power supply Panel type XHBQ-D2DCTHC to XHBQ-D13DCTHC 220V~50Hz HDK-CK-DC XHBQ-D2DCPMTHC to XHBQ-D13DCPMTHC...
Page 17 Electrical Installation Wiring Diagrams Exhaust Supply Yellow Black Yellow Black Blue White Red Blue White Red FAN1 FAN2 Control panel CO2 sensor Reserved port for RS485 connection Bypass control switch Input4 Master slave panel Differential pressure signal input Input3 communication Input2 External ON/OFF signal PCB Board...
Page 18: Precautions For Use
Precautions for Use Commissioning 1. Check the wiring after the installation works are completed, and there must be commissioning. 2. Turn on the power supply, and carry out the commissioning and operation according to controller instructions. Check the working conditions of the blower, exhaust fan and bypass. The motor will stop running for more than 10 seconds when the bypass valve of the ventilator is operating.
Page 19: Controller Instructions
Touch Screen Controller Introduction Display screen and Buttons Repair Fan speed sleep Temperature type Temperature display Auto mode Week Filter alarm Bypass on/off Clock Weekly timer on/off Communication DOWN Button SET Button UP Button ON/OFF Button MODE Button Operation Instructions 1.
Page 20 Touch Screen Controller Introduction Touch Screen Controller Introduction COMM COMM RA temperature OA temperature COMM COMM FR temperature SA temperature SA temperature setting CO2 concentration Current humidity Setting humidity HUMI. COMM Humidity control Timing on/off mode Sleep mode...
Page 21 Touch Screen Controller Introduction 3. Fan speed setting: Fan speed setting in manual mode: under SA or FR temperature interface, press the arrow keys of “△” and “▽” to set the fan speed. The speed of exhaust fan can be set in "FR" interface, while the speed of the supply fan can be set in "SA"...
Page 22 Touch Screen Controller Introduction 5. Temperature setting function: in temperature setting interface, press the arrow buttons of “△” and “▽” to adjust the setting temperature within the range of 15 to 30℃. If the supply air temperature is higher than the setting temperature, the electric heater will stop, and the p-heat and r- heat icons will disappear.
Page 23 Touch Screen Controller Introduction Contents Range Default Unit Record Position 0：150 air volume 1 : 250 air volume 2: 350 air volume 3: 200 air volume 4: 300 air volume DC type selection 5: 400 air volume 6: 600 air volume 7: 800/1500 air volume 8: 1000/2000 air volume 9: 1300/2000 air volume...
Page 24 Touch Screen Controller Introduction 7. Filter alarm, Parameter 18 to set the filter alarm time. When the operation time of the ventila- tor exceeds the setting time, the filter icon will flashes to remind user clean the filter. After cleaning, COMM COMM Filter alarm On...
Page 25 Touch Screen Controller Introduction Modbus Protocol Baud rate 9600bps, Even/Odd No, Date bit 8, Stop bit 1, communication interval > 200ms. Register range readable writable function description remarks, address value on-off state 0(0x0000) √ √ 0 - off 1 - on 1(0x0001) 1-10 Supply fan speed...
Page 26 Touch Screen Controller Introduction 12(0x000c) Bypass switch, 1=on 0=off √ 13(0x000d) P-heating state 1=on 0=off √ R-Heating state 1=on 0=off √ √ √ √ √ √ √ √ 0-23 System time: hour √ √ 0-59 System time: minute √ √ System time: Week √...
Page 27: Maintenance
Maintenance Power must be isolated before installation and maintenance to avoid injury or electric shock. Supply power cables, main circuit breaker and earth leakage protection, must comply with national regulations. Failure to observe could cause unit failure, electric shock or fire. Standard filtration is supplied with this unit and must be used.
