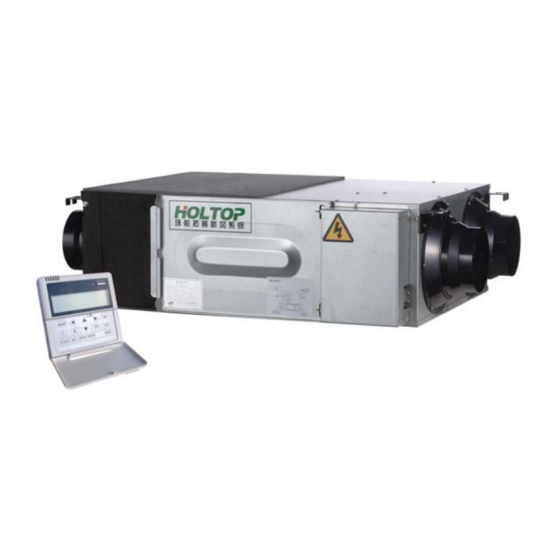

- Page 1 Technical Manual of Holtop Energy Recovery Ventilator Models: XHBQ-D2THA to XHBQ-D13THA Attention Please read this manual carefully before using the equipment Beijing Holtop Air Conditioning Co., Ltd.
-
Page 2: Specifications
Specifications XHBQ- XHBQ- XHBQ- XHBQ- XHBQ- XHBQ- XHBQ- Model D2THA D3THA D4THA D6THA D8THA D10THA D13THA 1000 Airflow 1000 1300 (m3/h) 1000 1300 External (Pa) pressure Cooling Enthalpy Eff.(%) Heating Temp.Eff. Noise dB(A) 31.5 34.5 37.5 Voltage (V) Current (A) 0.56 0.72 0.96... -
Page 3: Dimensioned Drawings
Dimensioned Drawings XHBQ-D2THA to D13THA Models Electric Electric Model XHBQ-D2THA φ144 XHBQ-D3THA Φ144 XHBQ-D4THA Φ144 XHBQ-D6THA φ194 XHBQ-D8THA 1116 1045 φ242 XHBQ-D10THA 1134 1116 1045 1190 φ242 XHBQ-D13THA 1134 1116 1045 1190 φ242... -
Page 4: Installation Considerations
Service ports should be installed to allow access for filter maintenance. SERVICE PORT SERVICE PORT Inner ceiling Model height B XHBQ-D3THA XHBQ-D4THA XHBQ-D6THA XHBQ-D8THA XHBQ-D10THA 1134 Inner ceiling Model XHBQ-D13THA 1134 height B XHBQ-D8TZA XHBQ-D2THA XHBQ-D10TZA 1216... -
Page 5: Installation Diagram
Installation Considerations Installation Diagram Fresh Air Duct Outside Fresh Air Duct Suspending Pole Supply Air Return Air Exhaust Duct Exhaust Air Out Fresh Air In Supply Air Return Air Insulation Discharge Duct Physical Installation 1.Installer to prepare suitable threaded hangers with adjustable nuts and gaskets. 2.Install as shown by the image above. - Page 6 Installation Considerations 1. Be sure the ceiling height is no less than the Figures in above table B column. 2. Unit must not be installed close to boiler flues. 3. Following phenomenon should be avoided in the ducting installation. Multiple reducers/ crimped duct Multiple direction changes Serve bends 4.
-
Page 7: Electrical Installation
We do not accept any liability for any problems caused by the user’s self and non-authorized re- engineering to the electrical and control systems. Model Capacitor Power Supply Control Panel Model XHBQ-D2THA, XHBQ-D3THA 1.5μF 450V AC XHBQ-D4THA 3μF 450V AC XHBQ-D6THA 3.5μF... -
Page 8: Wiring Diagrams
Wiring Diagrams XHBQ-D2THA to D13THA Joint of control panel and cable Standard length: 5m Control panel COMM1 * S2 CN12 By-pass switch Connect the tin end of cable Fire alarm signal input to the port, no sequence Fault signal output... - Page 9 Beijing Holtop Air Conditioning Co., Ltd Factory address: No. 5 Yard, 7th Guanggu Street, Badaling Economic Development Zone, Yanqing District, Beijing, China International Marketing Center Address: Room 2101, Headquarter Center No. 25, Tian An Hi-Tech Ecological Park, No. 555 Panyu Ave, Guangzhou, China...
