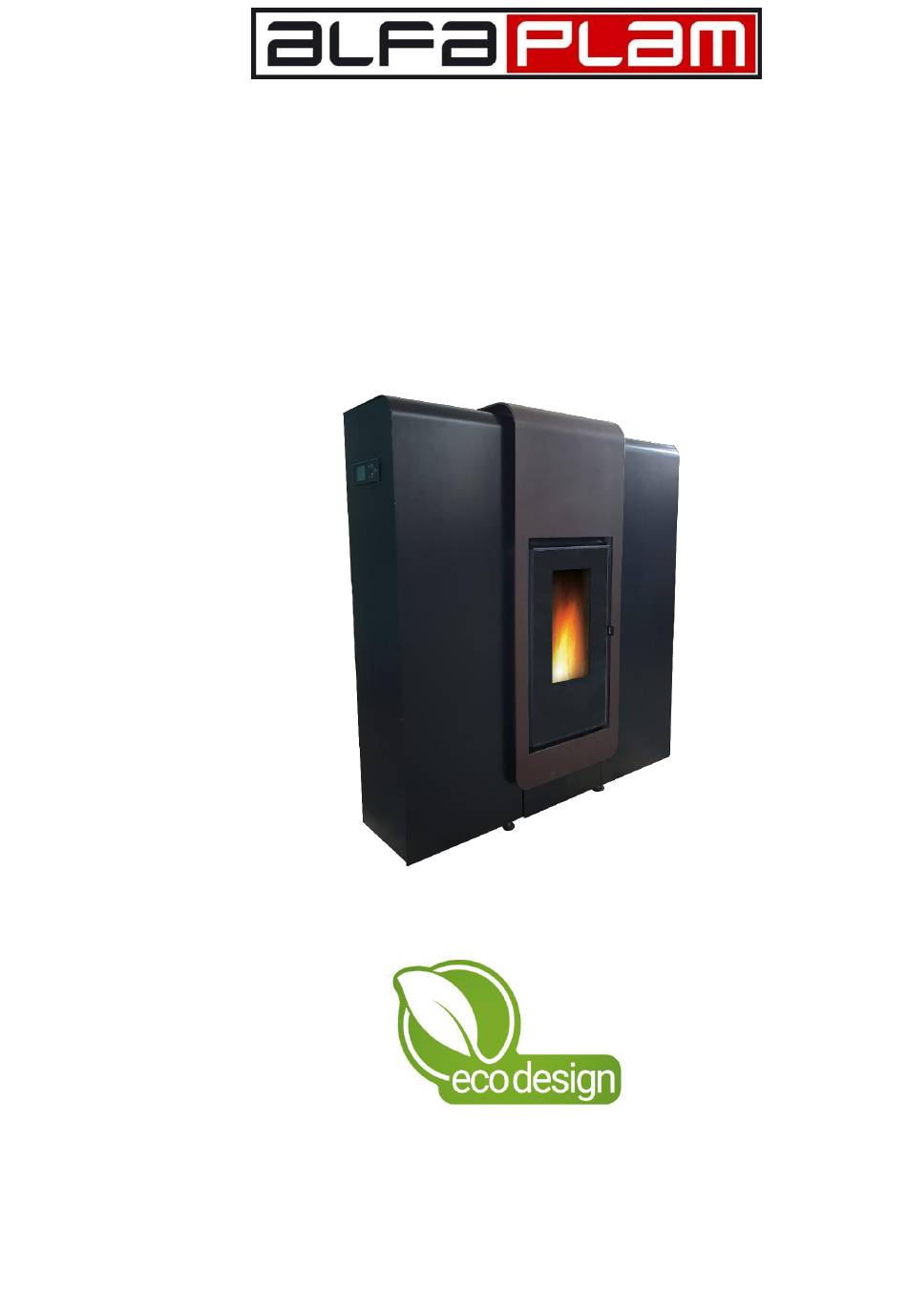

A.D. METALNA INDUSTRIJA VRANJE
Radnička br: 1
PELLET STOVE
CFA XILA
This product meets the requirements of the Ecodesign Directive in terms of efficiency and air pollution level, in order
to contribute to the reduction of energy consumption and negative environmental impact.
INSTALLATION, USE, AND MAINTENANCE MANUAL
ENG_v.2.0
1612294

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CFA XILA and is the answer not in the manual?

Questions and answers

Summary of Contents for alfaplam CFA XILA

  • Page 1 A.D. METALNA INDUSTRIJA VRANJE Radnička br: 1 PELLET STOVE CFA XILA This product meets the requirements of the Ecodesign Directive in terms of efficiency and air pollution level, in order to contribute to the reduction of energy consumption and negative environmental impact.
  • Page 2 Introduction First of all, we would like to use the opportunity to express our gratitude to you for buying this ALFA PLAM product. We have prepared this short manual for you in order to make the use of our product as easy as possible. Special technical problems mentioned here should be considered by persons included in assembling, installation, and putting the product into operation, in order to provide operations to be carried out as proper as possible.
  • Page 3: Table Of Contents

    CONTENT: INTRODUCTION ............................1 Product serial number ......................... 1 Materials ............................. 1 Certification ..........................1 Dimension characteristics ......................1 1.4.1. In detail ..........................2 Technical characteristics of the product ..................2 Fuel .......................... 2 Safety recommendations ......................4 General recommendations ......................4 INSTALLATION ............................
  • Page 4: Introduction

    INTRODUCTION Product serial number The product serial number can be found on the nameplate affixed to the back of the device as well as on the cover of this manual. The product serial number shall be required any time when a customer requests ancillary services. Materials Products of ALFA PLAM a.d.
  • Page 5: In Detail

    B: Air intake C: Electric connections 1: Manual resetting thermostat 2: Room temperature sensor 3: On/off switch 4: Power supply cable Technical characteristics of the product Product: CFA XILA Unit measures Max. Min. Heating power 4,25 CO Emission (at 13% of oxygen)
  • Page 6 Wood pellets that are used as fuel for this stove must have excellent quality properties such as the ones prescribed by the standards DIN 51731, ONORM M 7135, and EN plus A1, for which numerous basic items are given below. CAUTION: To achieve the best possible level of operation of the stove, we recommend the use of the wood pellets that are verified by the accredited body.
  • Page 7: Safety Recommendations

    Safety recommendations CAUTION: Read carefully the enclosed manual with instructions before installation. CAUTION: the burner must be emptied before turning on the device in case there are any difficulties when turning on the device itself. It is strictly forbidden to use any other type of solid or liquid fuel except wood pellets with a diameter of 6 mm, for which the stove is designed.
  • Page 8: Installation

    This manual must be considered an integral part of the product and must be used during its full useful time. It must be kept at a safe place. If the Manual is lost or damaged, ask for a replacement copy from your seller. Environment for use CAUTION: The device must be installed in a ventilated environment, it must be provided with sufficient air for combustion, in line with applicable regulations.
  • Page 9: Characteristics Of The Flue Pipe

    CAUTION: Avoid touching the electrical cables with wet hands. Figure 2.2: Maximum safety distance of the combustion material [cm] CAUTION: After determining the place where you will place the stove, it is possible to adjust the legs on the side of the stove to achieve the desired height..
  • Page 10: Smoke Exhaust Towards The Roof Via Traditional Chimney

    this type of system configuration are given below: Always ensure that there is an inspection opening (I) to allow for regular cleaning procedures as well as the removal of moisture that may form. The chimney pot (T) must be made so as to be resistant to wind and water; Pay attention that the chimney is properly insulated in the part that passes through the wall.
  • Page 11: Disassembling And Waste Disposal

    Figure 2.6: Example of the connection with the chimney In case of fire in the chimney or the flue pipe, immediately extinguish the stove and disconnect it from the power system. Disassembling and waste disposal The packaging consists of materials that are not toxic or harmful. There is no need for special conditions for its disposal.
  • Page 12: Using The Product

    * Optional terminals USING THE PRODUCT Before we describe in detail the operation of the product, we would like to remind you that, while using it, you must observe the relevant national and local provisions, rules and applicable laws. For a better understanding of how the product works, diagrams of the display control panel are shown, followed by a detailed description, as well as what needs to be done to start the stove for the first time.
  • Page 13: Safety Devices

    Proper operation of the device is performed when there is no uncontrolled air inlet; therefore, the door SHOULD be firmly closed and, in the same way, it is necessary to check whether all other ways are closed except the intended one. Therefore, it is a good habit to check that the door seal adheres well to the chamber, over its entire circumference (whether it seals well).
  • Page 14: The Control Panel (Display): Use And Features

    Check whether the environment in which the device is installed is ventilated sufficiently, as prescribed in this Manual. The control panel (display): use and features The main frame shows: time and date, chrono activation, combustion energy, heat energy, functional state, current room temperature, set room temperature, LEDs Display...
  • Page 15: Visualizations

    Probe error when controlling during the testing phase Prob This informs that the planned period of operation has been reached. It is necessary to clean the Clean furnace or boiler. Door open Door The message appears if the system is turned off during ignition (after preload) by the external device: Block ignition the system will stop when it goes into operation mode.
  • Page 16 Press P4 and P5 to list the submenus until you reach the Crono submenu. Press P3 once again and enter the Chrono submenu The following is shown on the display: Chrono Modality Chrono program Program Modality Chrono program Press P4 and P5 to select the Modality or Chrono program and then press P3 to enter one of the two submenus. 3.4.1.1 Modality Allows selection of desired modality or disables all set programs.
  • Page 17: User Menu 2

    The following is shown on the display once the Weekly submenu or the weekly ○ 00:00 00:00 program is entered. ○ 00:00 00:00 ○ 00:00 00:00 The programs are activated and deactivated in the same way as with the daily programming.
  • Page 18: Stabilization

    the igniter. 3.6.2.2 Ignition Preload In this phase there is the initial dispensing of pellets or the auger loads a certain amount of pellets necessary for ignition. In this phase the igniter, auger and flue gas engine are active. 3.6.2.3 Ignition – Fixed Phase This phase is a fixed time period that lasts for 180 seconds and in case that the furnace ignition requirement is reached before the expiry of this phase it will always last until the end and only after the expiration of the fixed time period will the furnace move into stabilization phase.
  • Page 19: Management Of Pellet Loading Calibration

     If the furnace is turned on but the temperature of exhaust. gases is lower than 50°C, the system enters the shutdown point with error Er15.  If the furnace is turned off or in extinguish or block phase, the system returns to its previous state. ...
  • Page 20 Wait for the furnace Er07 Encoder error Missing encoder signal to shut down and Contact the service center then press P2 for more than 3 seconds Flue gas engine is not Wait for the furnace responding to shut down and Er08 Encoder error then press P2 for...
  • Page 21: Maintenance

    The fan may be blocked or malfunctioning (in this case, request technical assistance The ventilation is not working The door's seal may be worn or damaged The holes in teh burner may be blocked by deposits (see section 5.1.3.4) The stove may not have been subjected to regular maintenance (see sections 5.1.3 and 5.2) There may not be sufficient combustion air (if the problem still persists The burner is being filled with too many pellet...
  • Page 22 Figure 6.1: Combustion chamber In the upper part of the chamber there is a cleaning cover attached with 6 nuts (shown by arrow A in the picture, picture 6.2). Unscrewing the nuts and removing the cover leads to the part inside the chamber (arrow B) where ash accumulates due to the burning of the pellets.
  • Page 23 Figure 6.3: Opening the cover for cleaning in the lower part of the chamber CAUTION: Cleaning procedures may be carried out only when the stove is completely cold. CAUTION: Disconnect the power cord from the power socket. By using a special handle delivered with the stove, the customer has to move left and right a laver at the back side of the stove at least once per day.
  • Page 24 After the winter, it is recommended that you empty all remaining pellets from the tank and store it in accordance with the notes given in the first section. Flue pipes and chimney should be thoroughly cleaned (at least once during the season of use) to prevent the risk of fire. You are recommended to check the gaskets of the combustion chamber, since their excessive wearing may lead to the disruption of the combustion process.
  • Page 25: Special Maintenance

    Figure 6.5: Cleaning the ashtray Under the burner support there is an ashtray box (arrow A in Figure 6.5) that collects ash as a combustion product as some particles of unburned pellets. The ashtray is easily accessible by opening the oven door. It is simply pulled back using its handle and the accumulated ash is released.
  • Page 26: Quality Control

    Figure 6.6: Access to the exchanger (tube) The smoke engine with housing (arrow A in Figure 6.7) must be cleaned at least once every two years. After removing the condensate collector (arrow B) from the exhaust pipe of the smoke engine housing, it is necessary to unscrew the 3 nuts with which the motor housing is attached to the furnace chamber.
