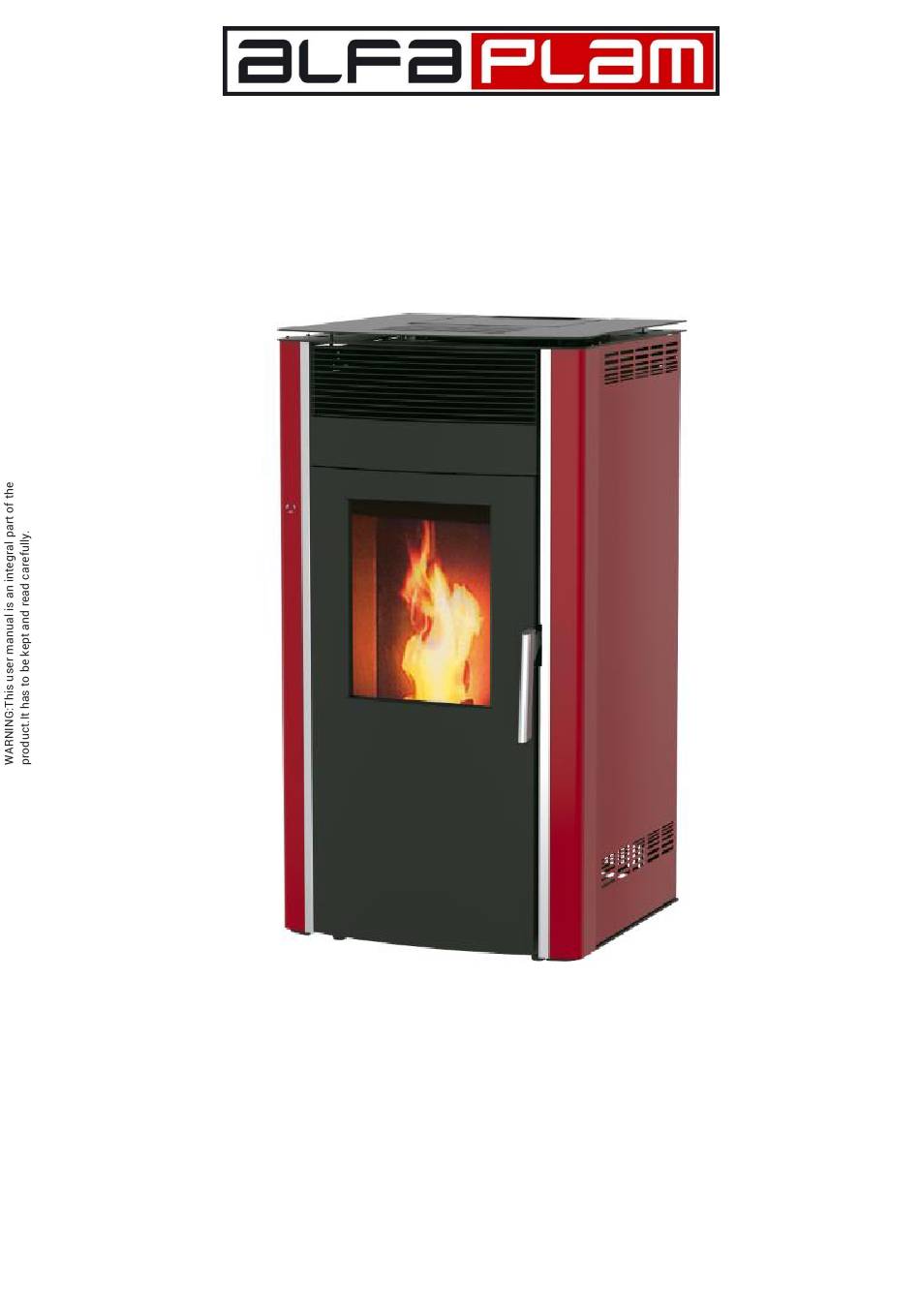

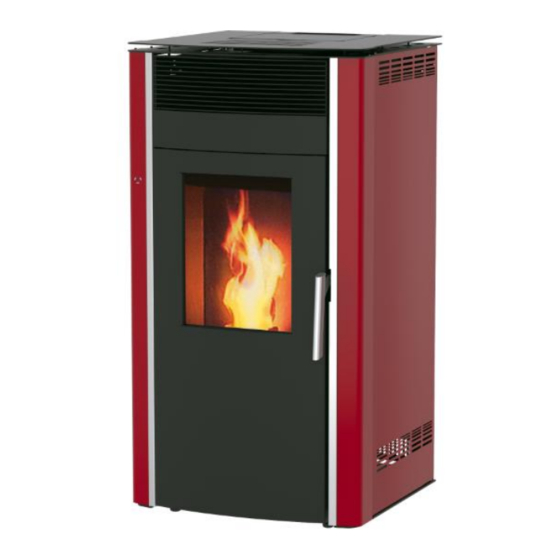

- Page 1 METAL INDUSTRY VRANJE st:Radnička n-1 PELLET STOVE LUCA S LUCA S8 INSTRUCTIONS FOR ASSEMBLY, USE, AND MAINTENANCE EN_V.1.0...
- Page 2 Introduction Firstly, we would like to take this opportunity to thank you for purchasing this product of ALFA PLAM. We have prepared this brief manual for you to make the use of our products easier. Special technical problems specified herein have to be considered by the persons involved in the putting together, assembly, and commissioning of the product to ensure that operations are carried out as accurately as possible.
-
Page 3: Table Of Contents
Contents Product serial number ..........................1 1.1 Materials ..............................1 1.2 Certification ............................. 1 1.3 Dimensions .............................. 1 In detail BEHIND: ..........................2 1.4 Technical characteristics of the product LUKA S ..................2 1.5 Technical characteristics of the product LUKA S8 ..................3 1.6 Fuel characteristics .......................... - Page 4 4.6.2 Pellet feeding calibration management ..................16 4.6.3 Managing the correction of the flue gas motor ................. 16 4.6.4 Safety thermostat ........................16 4.6.5 Periodical cleaning of the furnace .................... 16 4.6.6 Shutting down during the ignition phase .................. 17 4.7 Potential problems and solutions ......................
-
Page 5: Product Serial Number
Product serial number Product serial number can be found on the label affixed to the back of the device and on the cover of this manual. The product serial number would be needed any time the user seeks auxiliary services. Materials The products of the ALFA PLAM brand usually utilise the materials with the following properties:... -
Page 6: In Detail Behind
A: The flue gas pipe diameter ø 80 B: Air intake Ø 50 cm C: Electric connections In detail BEHIND: 1: Thermostat for manual reset 2: Room temperature 3. ON/OFF switch 4: Power supply cable Technical characteristics of the product LUKA S Product:LUKA S Unit of measure Min. -
Page 7: Technical Characteristics Of The Product Luka S8
Technical characteristics of the product LUKA S8 Product:LUKA S8 Unit of Min. measure Heating power 2,64 Emission of CO (at 13% of oxygen) 0,0149 0,0207 Efficiency 85,36 91,56 Rated electric energy Rated voltage Rated frequency Fuel Pellet Fuel consumption per hour kg/h 1,905 0,633... -
Page 8: Safety Recommendations
⚠ ATTENTION: If the device is not used during a sufficiently long period of time (more than fifteen days), all the remaining pellets have to be removed from the tank to prevent it from becoming too wet as this may cause a malfunction of the product. -
Page 9: General Recommendations
⚠ ATTENTION: Any person who performs the interventions on the product must first read and fully understand the contents of this manual and be fully familiar with the control panel of the product. ⚠ ATTENTION: The product may be used, changed and programmed only by adults. In accurate or random settings may lead to dangerous situations or malfunctions. -
Page 10: Installation
⚠ ATTENTION: The room must have a capacity of not less than 20 m and must possess all the necessary ventilation conditions, as described in Chapter 2 of this manual. These conditions will provide the necessary air flow to allow for proper combustion (40 m /h). -
Page 11: Pipe Characteristics
If the floor is made of flammable material (e.g. hard wood), it is recommended to protect it by placing a layer of non- flammable material under and around the stove. For more information on the minimum safe distance from the flammable materials (see figure 2.2.a): - Minimal distance from the flammable floor (F = 4 cm);... -
Page 12: The Smoke Exhaust Towards The Outer Wall
Picture 2.3:Exhaust duct The room in which heating body will be mounted should not have aspirators because they can reduce pressure in the environment. It is strictly forbidden to close all the air openings. The exhaust duct should be cleaned at least once a year; we recommend that you perform a thorough cleaning of the exhaust channel and its connection. -
Page 13: Dismantling And Disposing Of Waste
H>0.50m Picture 2.6.An example of the connecting with the chimney In case of fire in the chimney or pipe, immediately turn off the furnace and disconnect it from the mains. Dismantling and disposing of waste The packaging consists of materials which are not toxic or harmful. Special conditions for its disposal are not required. The user is responsible for disposal of the remaining packaging components. -
Page 14: Furnace Management System
When loading the pellets, make sure that the pellets do not accidentally fall into the other internal parts of the machine, except in a suitable container. Only use the pellet with the diameter from 6 to 8 mm. Pellet feeding Furnace management system In the furnace, an advanced control system is installed which provides a safe, efficient and reliable management of the operation and maximum functional use of the furnace. -
Page 15: The Control Panel (Display): Use And Functions
The control panel (display): use and functions 4 .2. 1 Dis pla y K100 The main frame shows: time and date, Chrono activation, combustion energy, heat energy, functional condition, the current room temperature, set room temperature, LEDs Presentation Explanation Main Temp. The current value of the room temperature State Functional condition of the furnace... -
Page 16: Other Messages
4 .2. 3 Oth e r me ssa ge s Description Code Error on the probe during the control in the check phase Prob Notifies that the planned period of work has been achieved. The furnace or the boiler have to be Clean cleaned. -
Page 17: Chrono
Manual Load This procedure activates the manual feed of the pellets with the activation of the set Manual feeding modality of the auger motor. The feeding is terminated automatically after 600 seconds. The system has to be off for the function to be activated. Cleaning Reset Menu for the resetting of function “System maintenance 2”. -
Page 18: User Menu 2
Daily Monday ● 09:30 - 11:1 ○ 00:00 - 00:0 ○ 00:00 - 00:0 This program envisages that the oven activates on Monday at 9:30 and will be deactivated at 11:15. Save your settings by pressing the P1 button. In the daily programming it is possible to switch the program from the previous day to the next day. Procedure is as follows: Select the day of the week for programming and setting the ignition and shutdown time. -
Page 19: Ignition Of The Furnace And The Functional States
This menu displays the following: communication address of the board, typology of the board, firmware code and firmware version. The data cannot be changed. Board typologies that may occur are the following: MSTR Master INP Input KEYB Keyboard OUT Output CMPS Composit SENS Sensor COM Communication... -
Page 20: Off
dispensing of pellets stops and the flue gas motor and ambient fan are operating at maximum capacity in order to cool the oven as soon as possible. Minimal duration of the shutting off phase is 30 seconds, and the condition for the furnace to cool down completely is for the temperature of flue gases to be less than 68°C. -
Page 21: Shutting Down During The Ignition Phase
4 .6. 6 Sh utt in g do w n du r ing th e i gn it ion pha s e When the system is turned off during the ignition phase (after the preheater phase) through an external device or internal Chrono device, the system goes into shutdown phase when it enters the mode of operation at the end of ignition. -
Page 22: Stove Maintenance
of the furnace the ignition phase, the adequate more than 3 seconds Check the flue temperature of flue gases was pipes for dirtiness and not achieved. draft Faulty flue gas probe Contact the repair shop The power outage during Press and hold P2 Check the Er15 Interruption of... -
Page 23: Routine Maintenance, Activity Type 1
To thoroughly clean the glass ceramic, we recommend a cloth sprayed with a small amount of a suitable detergent to be used to remove the dirt (see Figures 1 and 2). Never spray detergent or any other liquid cleaner directly on ceramic glass (see Figure 3). NEVER use abrasive sponges or similar products to clean the ceramic glass, as they may cause irreparable damage. -
Page 24: Special Maintenance
Remove the ash tray by hand and empty it. Use a vacuum of sufficient power (1000-1300W) to remove all the ash accumulated in the combustion chamber, the ash pan and the door. After you've finished cleaning, re-assemble all the elements in the reverse order from the order in which you removed them. -
Page 25: Special Maintenance Activities Type 3
the component of the "kit for smoke extraction", located in the section where the container for the collection of dust on the heat exchanger is located. After you've finished cleaning, re-assemble all the elements in the reverse order from the order in which you removed them.
