A.D. METALNA INDUSTRIJA VRANJE
Radnička br: 1

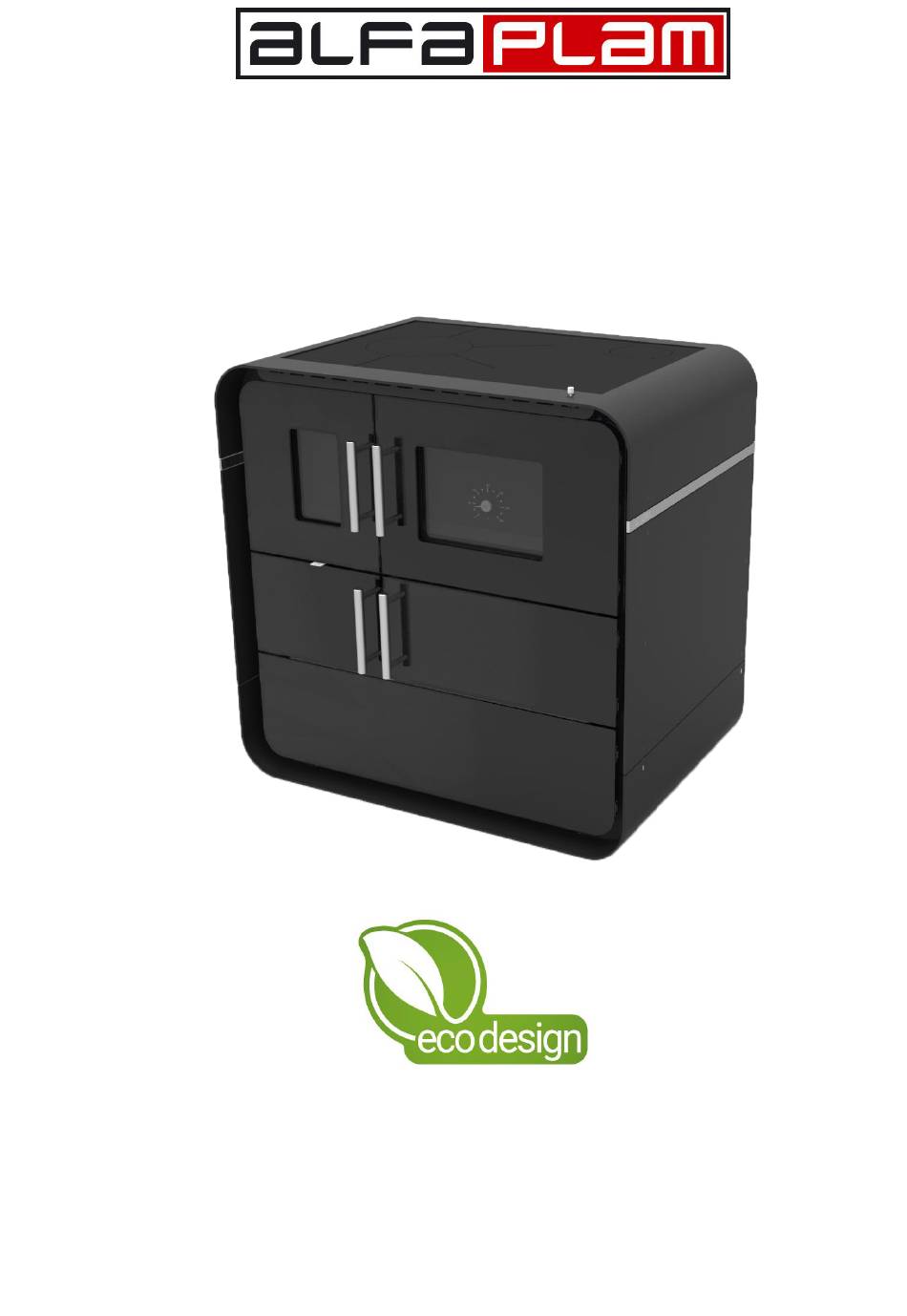

Solid fuel stove
FUTURO L
INSTRUCTIONS FOR INSTALLATION, USE, AND HANDLING
This product meets the requirements of the Ecodesign Directive in terms of efficiency and air pollution level,
in order to contribute to the reduction of energy consumption and negative environmental impact.
ENG_v.1.0
1612016
Advertisement
Table of Contents
Related Manuals for alfaplam FUTURO L
Summary of Contents for alfaplam FUTURO L
- Page 1 A.D. METALNA INDUSTRIJA VRANJE Radnička br: 1 Solid fuel stove FUTURO L INSTRUCTIONS FOR INSTALLATION, USE, AND HANDLING This product meets the requirements of the Ecodesign Directive in terms of efficiency and air pollution level, in order to contribute to the reduction of energy consumption and negative environmental impact.
- Page 2 Ensure that children are aware of the risks and keep them away from the stove during operation. INSTRUCTIONS FOR INSTALLATION, USE, AND HANDLING These instructions for installation, use and handling apply to the FUTURO L stove. When using the stove, you have to comply with national and European norms and regulations.
- Page 3 Contents: TECHNICAL CHARACTERISTICS OF THE STOVE ..................1 STOVE INSTALLATION ..........................1 HANDLING ............................... 1 3.1. ASHTRAY HANDLING ........................1 3.2. AIR CONTROL ........................... 2 3.2.1. PRIMARY AIR ........................2 3.3. Heating stopple ..........................2 3.4. Oven door (Figure 1, Position 6) ....................... 2 3.5.
- Page 4 1. TECHNICAL CHARACTERISTICS OF THE STOVE FUTURO L Rated heating capacity (kW) 5,33 kw with split logs 156 with split logs ◦C) Waste gas temperature ( Necessary pressure in the chimney (Pa) Stove dimensions (width x depth x height) 866 x 600 x 860...
- Page 5 3.2. AIR CONTROL Figure 3 We make air control with a special key over the slide shutter handle as shown in Figure 3 item 9. 3.2. 1. PR I MAR Y A IR Primary combustion air, and thus the heating capacity of the stove, is determined through the primary air opening. That air is controlled on the ashtray support through the slide shutter for the primary combustion air (Figure 1, item 2).
- Page 6 4.1. Fuelling * Set the stopple handle in the “+’’ position, the heating stopple is opened * Open the slide shutter handle for primary air at the greatest air release (Figure 3, item 9) * Open the firebox door * Put wooden wool, wooden sawdust or paper * Put 2-3 small pieces of wood over it * Ignite * Close the firebox door...
- Page 7 The stove should be cleaned with pure water and soft cloth and with soap in special cases. Cleaning intervals depend on the use of fuel, the time in which the stove was used and the way of use. Unnecessary creation of dust can be avoided if the following cleaning order is complied with: * Remove the cooking plate and clean it thoroughly outside.
