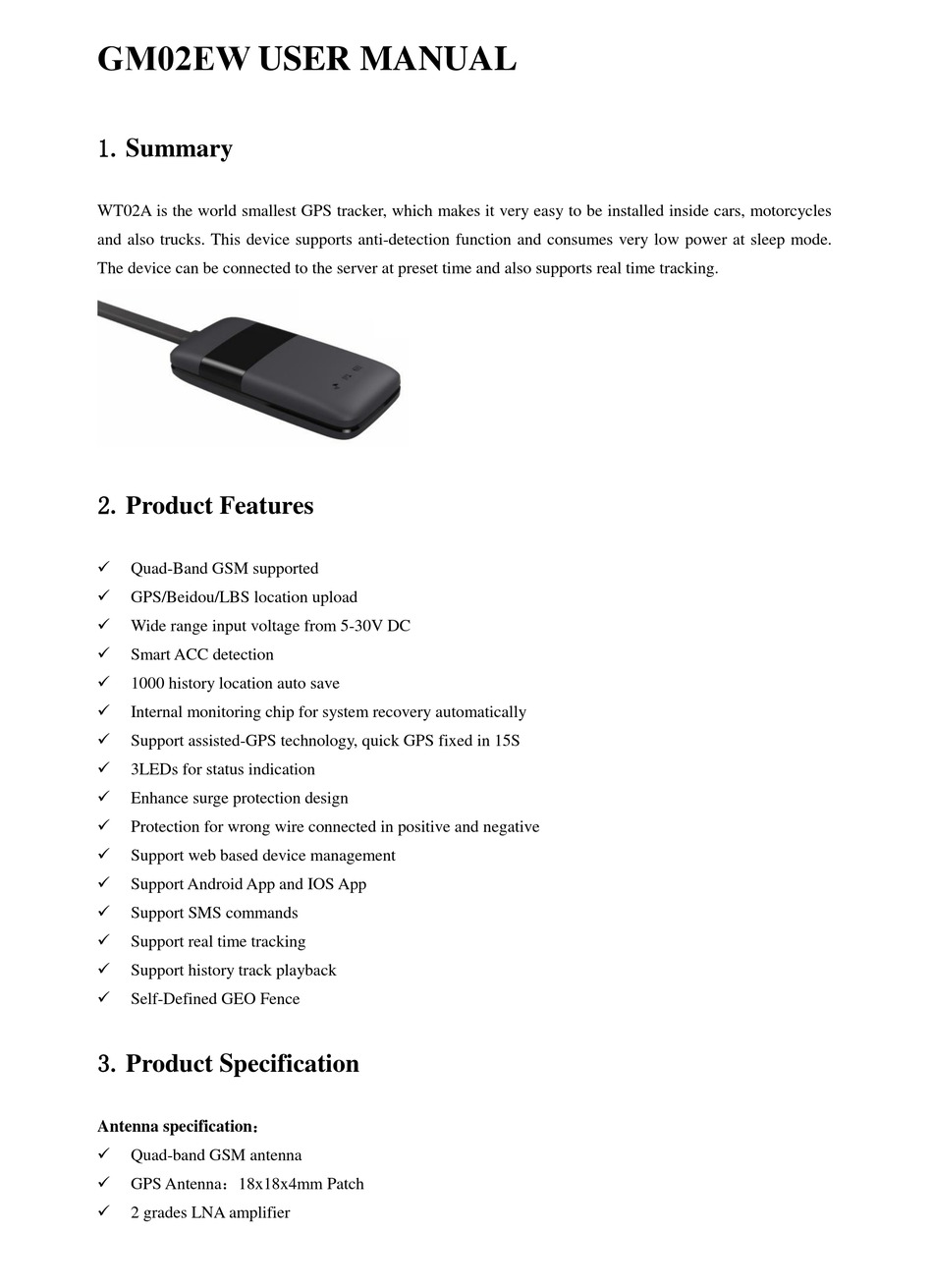

GM02EW USER MANUAL
1. Summary

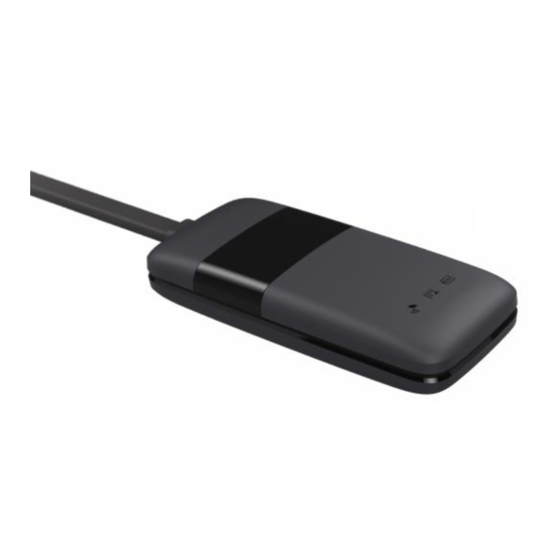

WT02A is the world smallest GPS tracker, which makes it very easy to be installed inside cars, motorcycles
and also trucks. This device supports anti-detection function and consumes very low power at sleep mode.
The device can be connected to the server at preset time and also supports real time tracking.
2. Product Features
Quad-Band GSM supported
GPS/Beidou/LBS location upload
Wide range input voltage from 5-30V DC
Smart ACC detection
1000 history location auto save
Internal monitoring chip for system recovery automatically
Support assisted-GPS technology, quick GPS fixed in 15S
3LEDs for status indication
Enhance surge protection design
Protection for wrong wire connected in positive and negative
Support web based device management
Support Android App and IOS App
Support SMS commands
Support real time tracking
Support history track playback
Self-Defined GEO Fence
3. Product Specification
Antenna specification：
Quad-band GSM antenna
GPS Antenna：18x18x4mm Patch
2 grades LNA amplifier

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GM02EW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Goome GM02EW

Summary of Contents for Goome GM02EW

  • Page 1 GM02EW USER MANUAL 1. Summary WT02A is the world smallest GPS tracker, which makes it very easy to be installed inside cars, motorcycles and also trucks. This device supports anti-detection function and consumes very low power at sleep mode. The device can be connected to the server at preset time and also supports real time tracking.

  • Page 2: Getting Start

    Voltage and current specification:  Working voltage: DC 5-30V  Average current: 30mA at DC 12V  1500W Surge protection Environment specification:  Working temperature: -20°C～75°C  Working humidity: 20%RH-95%RH  Storage temperature: -40℃～85℃ GPS Specification:  GPS/Beidou Support  Accuracy: 5M ...

  • Page 3: Status Led Description

    3.2 Installation Guide 1) SIM Card This device uses Mirco-SIM card, please select this type of SIM card from your operator. The following picture shows how to open SIM cover and insert SIM card. 2) Installation WT02A supports 12V/24V battery system. Connect the RED wire to 12V and the BLACK wire to the ground.

  • Page 4: Manage Your Device

    4. Manage your device To log into the online tracking and management system, please use the IMEI number as the account name, and put the last 6 digits of the IMEI as default password. You can also contact your distributor(also the service provider) to create one account for you.
  • Page 5 3) Restore Factory Settings Instruction Format Example Restore Factory default FACTORY# FACTORY# Note: Restore factory setting, part of settings will restore factory default. Example: Send: FACTORY# Return: Factory Reset OK 4) Reset Device Instruction Format Example RESET RESET# RESET# Note: Device will reboot.

  • Page 6: Troubleshooting

    Return: EXT-POWER: 12.80V; (Input voltage indication) V-BAT: 85%; (Internal battery voltage indication) GPRS:NORMAL; (NORMAL: Connected to the server, FAILED: Fail to connect to the server.) GSM Signal:MIDDLE, (GSM signal level, H-High, M-Middle, L-Low ) GPS: FIXED, (GPS status: FIXED and INVALID) GPS Signal:MIDDLE, (GPS signal level, H-High, M-Middle, L-Low) ACC: ON;(ACC status, ON-Engine start, OFF-Engine stop) Fuel Supply:ON;...
