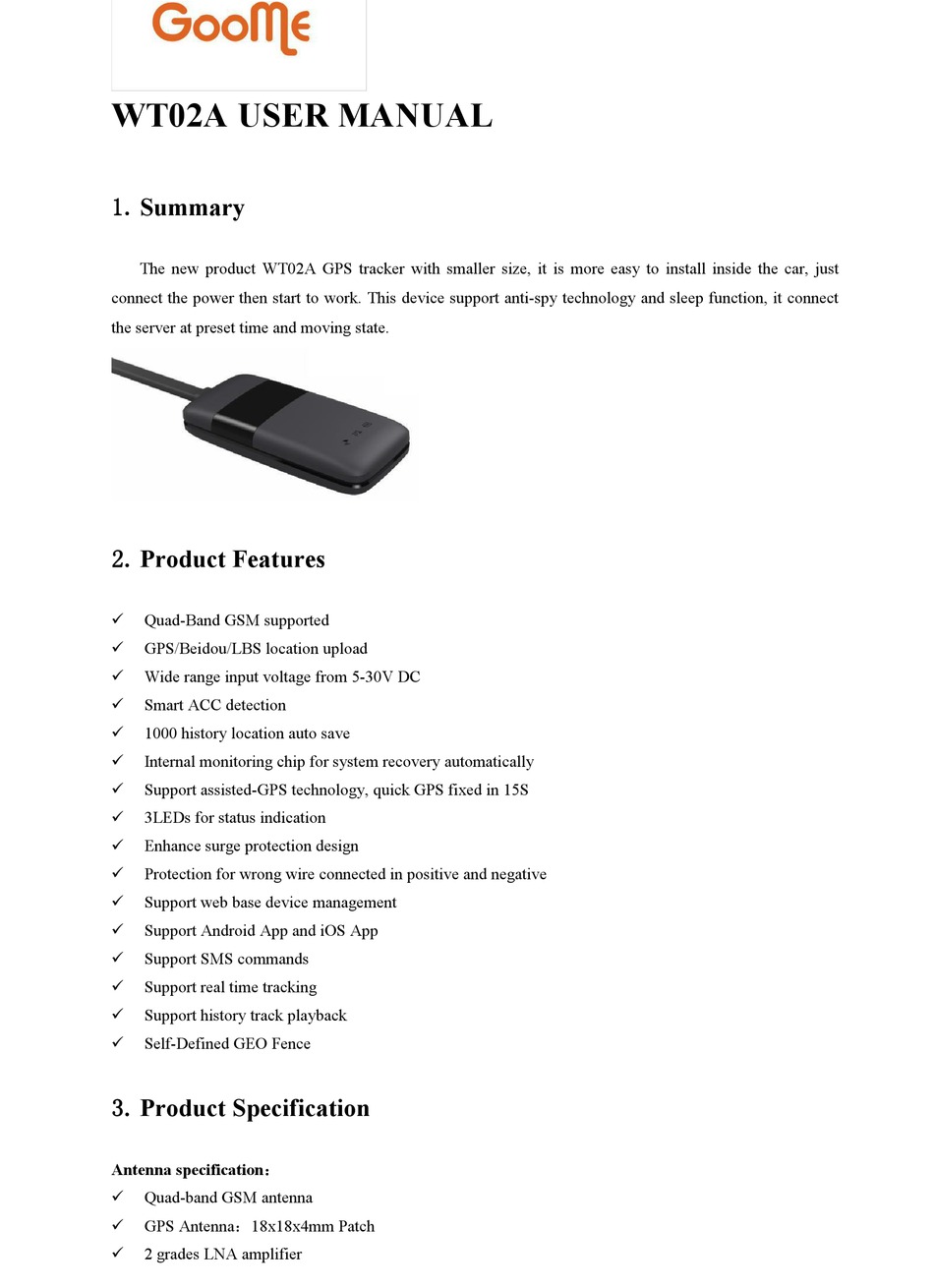

WT02A USER MANUAL
1. Summary

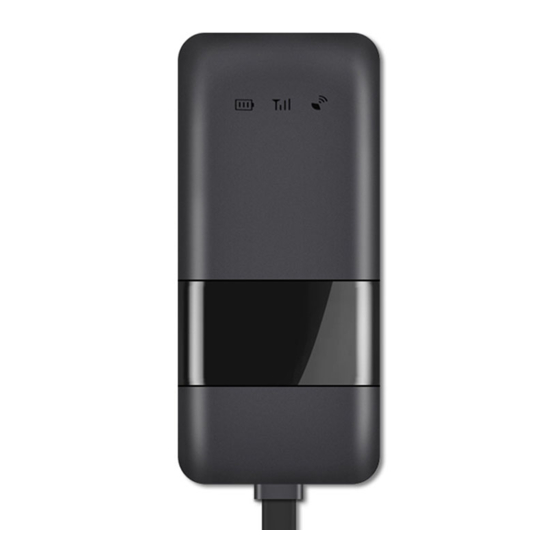

The new product WT02A GPS tracker with smaller size, it is more easy to install inside the car, just
connect the power then start to work. This device support anti-spy technology and sleep function, it connect
the server at preset time and moving state.
2. Product Features
Quad-Band GSM supported
GPS/Beidou/LBS location upload
Wide range input voltage from 5-30V DC
Smart ACC detection
1000 history location auto save
Internal monitoring chip for system recovery automatically
Support assisted-GPS technology, quick GPS fixed in 15S
3LEDs for status indication
Enhance surge protection design
Protection for wrong wire connected in positive and negative
Support web base device management
Support Android App and iOS App
Support SMS commands
Support real time tracking
Support history track playback
Self-Defined GEO Fence
3. Product Specification
Antenna specification：
Quad-band GSM antenna
GPS Antenna：18x18x4mm Patch
2 grades LNA amplifier
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Goome WT02A
Summary of Contents for Goome WT02A
- Page 1 WT02A USER MANUAL 1. Summary The new product WT02A GPS tracker with smaller size, it is more easy to install inside the car, just connect the power then start to work. This device support anti-spy technology and sleep function, it connect the server at preset time and moving state.
-
Page 2: Getting Start
Weight: 22g 3．Getting Start 3.1 Packing list: Please check if all the accessories are in the gift box before use, accessories may different compare with the picture. list: - WT02A Unit - SIM Cover - Power Cable - User Manual... -
Page 3: Installation
SIM-Cutter. The following picture shows how to open SIM cover and insert SIM card. 2) Installation WT02A support 12V/24V battery system, the RED wire connect to 12V and the BLACK wire connect to the ground, please make sure the good isolation in wire connected point. To prevent short circuit, we recommend the professional installation. -
Page 4: Manage Your Device
2) Manage device using APP After login, select the device you need to manage, including retime tracking, history track playback and settings. WT02A support anti-spy mode(MODE1), you need to set by APP or web. Mode description as follow: Mode1: We also call this anti-spy mode, device will disconnect to the server when in stop, and it will online when moving or keep online for 5 minutes at preset time. - Page 5 TIME ZONE:8.00 ; (Default TimeZone ) LANGUAGE:EN; (EN – English, CN - Chinese) LCWL : OFF (Geo fence, notify by SMS) Mode :2 (Current working mode, default mode2) Protocol : WT02A (Current Protocol type) 6) Check Working Status Instruction Format...
-
Page 6: Trouble Shutting
Send: STATUS# Example Return: EXT-POWER: 12.80V; (Input voltage indication) V-BAT: 85%; (Internal battery voltage indication) GPRS:NORMAL; (NORMAL: Connected to the server, FAILED: Fail to connect to the server.) GSM Signal:MIDDLE, (GSM signal level, H-High, M-Middle, L-Low ) GPS: FIXED, (GPS status: FIXED and INVALID) GPS Signal:MIDDLE, (GPS signal level, H-High, M-Middle, L-Low) ACC: ON;(ACC status, ON-Engine start, OFF-Engine stop) Fuel Supply:ON;... - Page 7 Please check if the GPS face to the sky and no shielding by metal part, don’t test near the high building or under the tree. Shanghai Goome Industrial Co., Ltd/Shanghai Jiyu Industrial Co., Ltd English Web.: www.goomegpstracker.com Add.:5th floor, Zhufuguoji Building (B), 2699 Youyi Road, Baoshan district, Shanghai, China.
