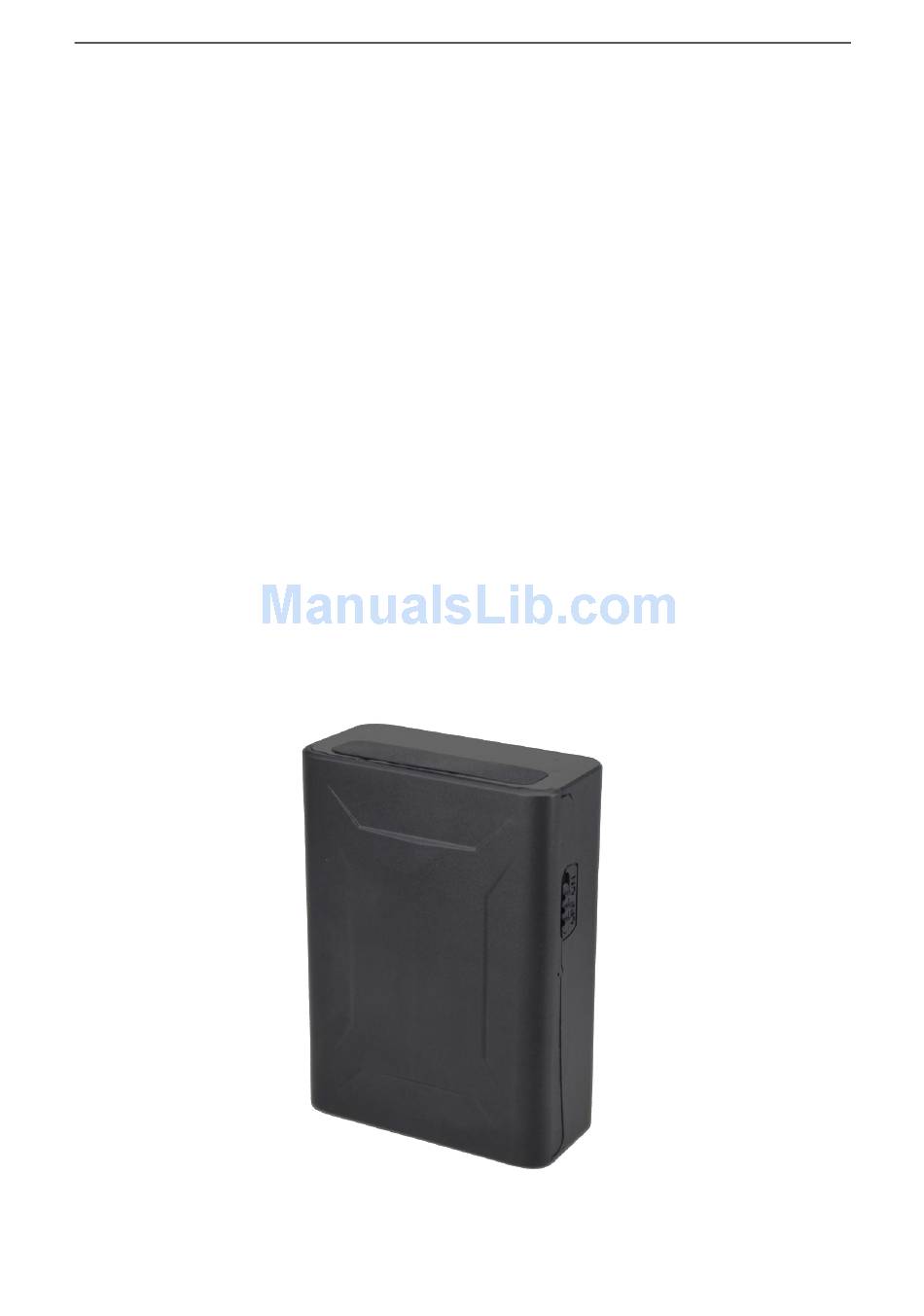

Page 1: User Manual

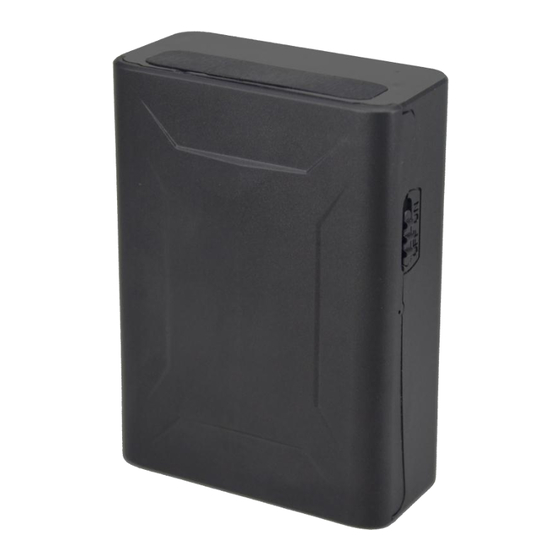

[在此处键入] GM03CW Car GPS Tracker User Manual... -
Page 2: Table Of Contents
Content 1. Product components and interface definitions Product Introduction product picture product configuration checklist Products interface definitions Product light is defined 2. Instructions for the machine parameters and function specifications function setting and installation 3. Common problem analysis and after-sales Common problem analysis announcements RFQ and After-sale service... -
Page 3: Product Components And Interface Definitions
Product Components and Interface Definitions 1、 1.1 Product Introduction Name: Long Standby GPS Tracker Type: BSJ-A5E-3 Size: L86mm*W62mm*H30mm 1.2 Product Picture 1.3 Product Configuration Checklist Packing List Name quantity Unit Remark BSJ—A5E-3 host USB cable User manual、warranty card、certification Package box Optional list Name quantity... -
Page 4: Products Interface Definitions
1.4 Products interface definitions 1.5 Product light is defined Flash: GSM in the initialization Slow flash: GSM signals is normal （red） Long bright: GPRS on line not light: Not yet received the GSM signal/not insert SIM card/GSM dormancy ：GPS Flash Signal in the search Light is defined ：GPS... -
Page 5: Instructions For The Machine Parameters And Function
2、Instructions for the machine parameters, and function 2.1 Specifications Item Specifications remark Working voltage DC 5V Working current 46mA @4V Motion Model: 7.5mA@4V The static current: 70uA@4V power saving mode: Standby current <3.5uA Size L86*W62*H30MM Location Accuracy <10 meter Communication GPS+GPRS Communication way Working temperature... -
Page 6: Setting And Installation
2.3 setting and installation 2.3.1 device installation (1) inspection device Whether to check the equipment appearance is good, fittings is complete. (2) Install SIM card Open the device SIM card into the cato. Please avoid overexertion is damaged, please make sure that a SIM card with Internet access, only at the same time satisfy the electricity and insert SIM card terminal can work normally. -
Page 7: Common Problem Analysis And After-Sales
3、Common problem analysis and after-sales 3.1 Common problem analysi fault phenomenon reason analysis handling method SIM card Contact network operators pay cost Owe downtime Reinstall the SIM card Card contacts are in good condition With reference to the instruction to set Center cannot monitor On-line parameter error parameters...
