Speed Queen ADE3LR User Manual

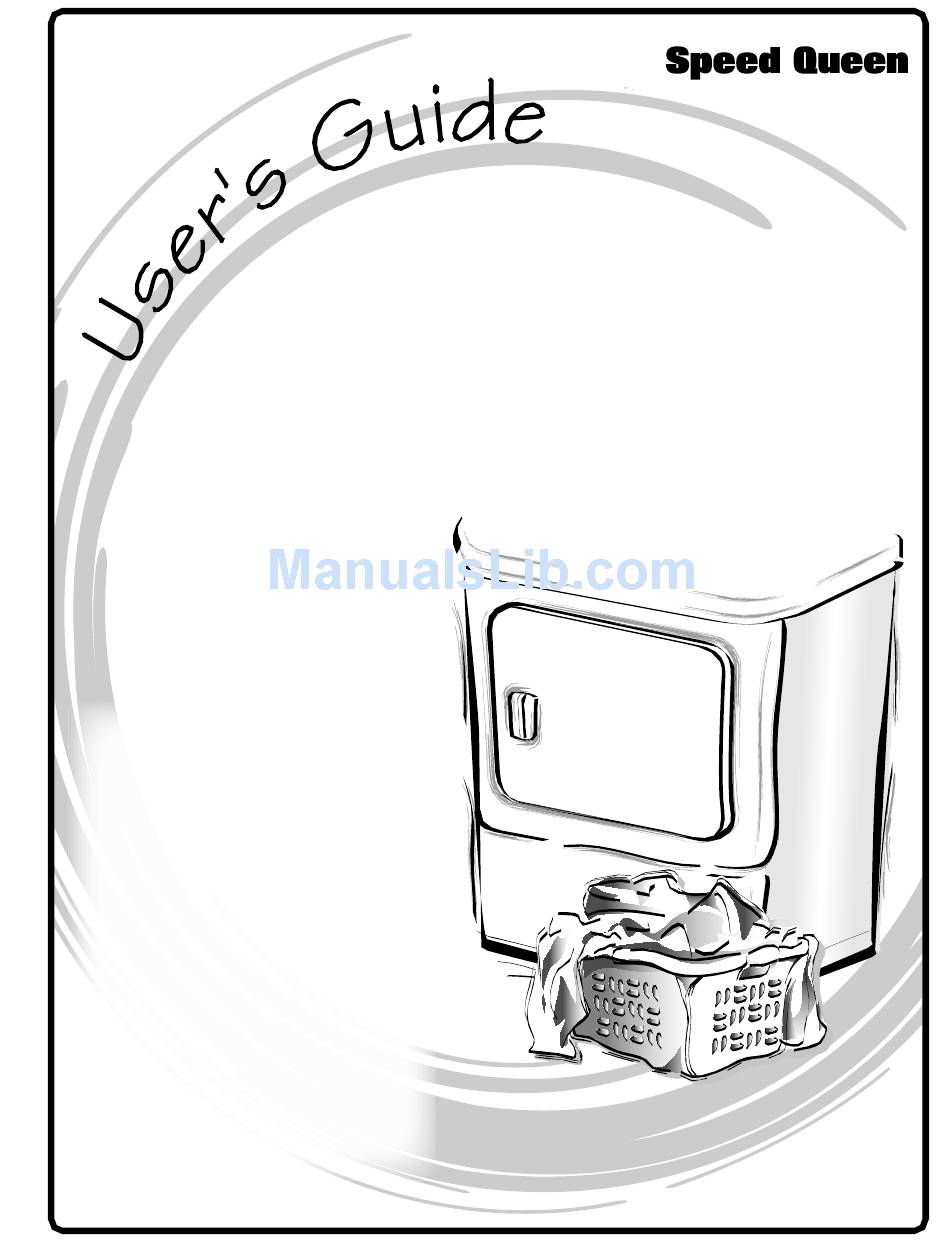

Speed queen ade3lr: user guide
Hide thumbs Also See for ADE3LR:
Table of Contents

Advertisement

Quick Links

See also: Instruction and Installation Manual
Inside ...
Before Drying . . . . . . . . 6
Maintenance . . . . . . . . . 15
Troubleshooting . . . . . . 17
Para bajar una copia de estas instrucciones
en español, visite www.speedqueen.com.
www.speedqueen.com
for your dryer
Part No. 513218
February 2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADE3LR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Speed Queen ADE3LR

Summary of Contents for Speed Queen ADE3LR

  • Page 1: Table Of Contents

    Before Drying ..6 Drying Special Items . . 8 Operating Your Dryer . . 11 Clothing Care Labels . . 14 Maintenance ..15 Troubleshooting .

  • Page 2: Product Registration

    •Installation and service must be performed by a qualified installer, service agency or the gas supplier. Product Registration New owners of Speed Queen equipment are encouraged to register their appliance to insure proper warranty coverage. Register online at www.speedqueen.com or return...

  • Page 3: Safety Information

    5. Before the dryer is removed from service or discarded, remove the door to the drying compartment. 6. Do not reach into the dryer if the cylinder is revolving. 7. Do not install or store the dryer where it will be exposed to the water and/or weather.
  • Page 4 The dryer will stop tumbling when the door is opened. Do not use the dryer if it does not stop tumbling when the door is opened or starts tumbling without pressing or turning the START mechanism.
  • Page 5 26. ALWAYS follow the fabric care instructions supplied by the garment manufacturer. 27. Never operate the dryer with any guards and/or panels removed. 28. DO NOT operate the dryer with missing or broken parts. 29. DO NOT bypass any safety devices.

  • Page 6: Before Drying

    • Use the correct cycle for the type of fabric being dried. • Locate your dryer so the exhaust duct is as short and straight as possible. • Do not open the door during the drying cycle.
  • Page 7 If the dryer is overloaded, it could cause discoloration or permanent heat damage to the load. • There should be space in the dryer for the clothes to tumble freely and help to reduce wrinkles. • Large and small pieces together make up loads which will tumble well.

  • Page 8: Drying Special Items

    • DO NOT dry in the dryer unless recommended by the manufacturer. • Fiberglass may shred. Particles may remain in the dryer and rub off on the next load. • “Beta” fiberglass may be dryer dried if recommended by the manufacturer.
  • Page 9 • Elastic may be dried as for fabric. • Do not overdry. • DO NOT dry foam rubber items in the dryer with heat. Fire may result. Use NO HEAT Fabric Selector setting only. • Choose DELICATE or NO HEAT Fabric Selector setting.
  • Page 10 • Choose DELICATE or NO HEAT Fabric Selector setting. • Follow manufacturer’s suggestions. • Some rugs are heat sensitive and should be removed from the dryer when damp, or dried with no heat. • Choose heat for fabric.

  • Page 11: Operating Your Dryer

    AUTOMATIC REGULAR/DELICATE cycle — MAX DRY, MORE DRY, and LESS DRY. Time Dry Cycle This cycle will operate dryer for up to 75 minutes. Cottons and heavyweight items dry best between 50 and 75 minutes, and lightweight items dry best between 20 and 40 minutes.

  • Page 12: To Dry Clothes

    DRY2025 3. Add clothes loosely into dryer drum. Add fabric softener sheet, if desired. NOTE: To avoid damage to dryer, do not use more than one fabric softener sheet per load. 4. Close loading door. Dryer will not operate with the door open.

  • Page 13: Optional Drying Rack

    8. Push timer knob in to start dryer. NOTE: To stop dryer at any time, open the door or turn timer knob to an OFF position. To restart dryer, close door, reset timer if necessary, and push in the timer knob.

  • Page 14: Clothing Care Labels

    Clothing Care Labels The symbols below appear on many clothing care labels. Following the instructions on each label will help ensure the best laundry results. WASH Machine Wash Cycle Normal Permanent Gentle/ TLW2010N TLW2011N TLW2012N Press/Wrinkle Delicate Hand wash Resistant Cold Warm TLW2015N...

  • Page 15: Maintenance

    To remove crayon or ball point ink off the dryer drum, put the heat on high and use old rags in the dryer to absorb the crayon or ink. If unsuccessful, contact the appliance dealer.

  • Page 16: Lint Filter

    Lint Filter The lint filter is located at the front of the dryer in the lower part of the door opening. CLEAN THE LINT FILTER BEFORE DRYING EACH LOAD. Remove lint filter cover, clean lint filter and replace cover. Annually remove lint filter and screw to vacuum the duct under it.

  • Page 17: Troubleshooting

    The electric dryer itself does not have an electrical fuse. • Gas dryer only – Make sure equipment and main gas line valve is turned on. • Check exhaust duct to outside to see if it is kinked, blocked or needs cleaning.

  • Page 18: Contact Information

    Phone: (920)748-3121 Date Purchased___________________________ Model Number____________________________ Serial Number____________________________ When calling or writing about your dryer, PLEASE GIVE THE MODEL AND SERIAL NUMBERS. The model and serial numbers are located on the nameplate. The nameplate will be in the location shown in the illustration below. Please include a copy of your bill of sale and any service receipts you have.

This manual is also suitable for:

Ade4bfAde4brAdg3lrAdg4bfAdg4brDryer
