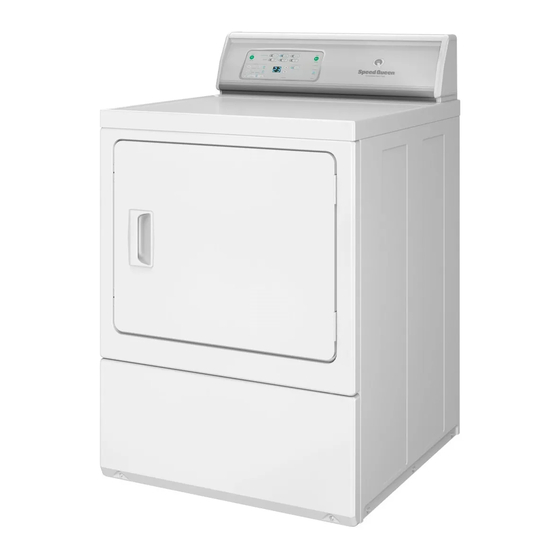

Speed Queen ADEE8RGS Original Instructions Manual

Speed Queen ADEE8RGS Original Instructions Manual

Gas dryer
Hide thumbs Also See for ADEE8RGS:

Advertisement

Quick Links

Installation Instructions

for Dryers
Original Instructions
Keep These Instructions for Future Reference.
(If this machine changes ownership, this manual must accompany machine.)
Part No. 514319R1
www.speedqueen.com
October 2014
www.goedekers.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADEE8RGS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Speed Queen ADEE8RGS

  • Page 1: Installation Instructions

    Installation Instructions for Dryers Original Instructions Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 514319R1 www.speedqueen.com October 2014 www.goedekers.com...
  • Page 2 www.goedekers.com...
  • Page 3: Front Matter

    Front Matter Front Matter WARNING WARNING WARNING • Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any Risk of fire. Highly flammable material. other appliance. W881 • WHAT TO DO IF YOU SMELL GAS: •...
  • Page 4 Front Matter WARNING • Installation of unit must be performed by a quali- fied installer. • Install clothes dryer according to manufacturer’s instructions and local codes. • DO NOT install a clothes dryer with flexible plas- tic venting materials. If flexible metal (foil type) duct is installed, it must be of a specific type identified by the appliance manufacturer as suita- ble for use with clothes dryers.
  • Page 5: Table Of Contents

    Table of Contents Dimensions..................... 6 Installation..................... 8 Before You Start.....................8 Supplies..................... 8 Parts Included..................... 8 Order of Installation Steps................8 Position and Level the Dryer................8 Connect Dryer Exhaust System..............11 Exhaust Direction..................12 Exhaust System..................12 Gas Dryers - Connect Gas Supply Pipe............13 Electric Dryer Only - Connect Electrical Plug..........15 Earth/Ground Information................
  • Page 6: Dimensions

    Dimensions Dimensions Electric Dryers DRY2495N_SVG 23.19 in. [589 mm] * 36 in. [914 mm] * 40.77 in. [1036 mm] * 43 in. [1092 mm] 15.4 in. [391 mm] * 15.44 in. [392 mm] 26.875 in. [683 mm] 4 in. [102 mm] 0.4 in.
  • Page 7 Dimensions Gas Dryers DRY2496N_SVG 1. 3/8 in. N.P.T. Gas Connection 23.19 in. [589 mm] * 36 in. [914 mm] * 40.77 in. [1036 mm] * 43 in. [1092 mm] 15.4 in. [391 mm] * 15.44 in. [392 mm] * 2.8 in. [70 mm] 2.3 in.
  • Page 8: Installation

    Installation Installation Before You Start • Installation Instructions • User’s Guide • Dryer Rack Reply Card Supplies • Warranty Bond For most installations, the basic supplies you will need are: • Three screws (electric dryers only). Refer to Electric Dryer Only - Connect Electrical Plug.
  • Page 9 Installation DRY2662N_SVG 1. Dryer Base 2. Level 3. Leveling Leg Figure 2 www.goedekers.com © Part No. 514319R1 Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT...
  • Page 10 Installation Front View (Without Closet Door) DRY2663N_SVG Side View (Closet Door) DRY2664N_SVG Front View (Closet Door) 2 (G) DRY2637N_SVG 1. Closet Door 2. Centered Air Openings (G) (2 Openings minimum) 3. Outer Wall of Enclosure Figure 3 www.goedekers.com © Copyright, Alliance Laundry Systems LLC - DO NOT COPY or TRANSMIT Part No.
  • Page 11: Connect Dryer Exhaust System

    Installation Free Standing/Alcove In- Area Description stallation Closet Installation Dryer sides and rear clearance 0 in. [0 mm] 0 in. [0 mm] Dryer top clearance 12 in. [305 mm] 12 in. [305 mm] Dryer front clearance Not Applicable 2 in. [51 mm] Exhaust duct clearance to com- 2 in.
  • Page 12: Exhaust Direction

    Installation • Be certain old exhaust ducts are cleaned before installing your WARNING new dryer. • Use 4 inch [102 mm] diameter rigid or flexible metal duct. • The male end of each section of duct must point away from This gas appliance contains or produces a chemical the dryer.
  • Page 13: Gas Dryers - Connect Gas Supply Pipe

    Installation To prevent backdraft when dryer is not in operation, outer end of NOTE: Weather hood should be installed at least 12 in- exhaust pipe must have a weather hood with hinged dampers (ob- ches [305 mm] above the ground. Larger clearances may be necessary for installations where heavy snow- tain locally).
  • Page 14 Installation Natural Gas Altitude Adjustments WARNING Altitude Orifice Size Part To reduce the risk of gas leaks, fire or explosion: feet [m] inches [mm] • The dryer must be connected to the type of gas 10,000 [3050] 0.0785 [1.99] 503781 as shown on nameplate located in the door re- cess.
  • Page 15: Electric Dryer Only - Connect Electrical Plug

    Installation NOTE: The dryer and its appliance main gas valve must Earth/Ground Information be disconnected from the gas supply piping system during any pressure testing of that system at test pres- This appliance must be properly connected to protective earth/ sures in excess of 1/2 psi [3.45 kPa].
  • Page 16 Installation NOTE: Four-wire cord is required for new branch-cir- NOTE: Connect the dryer to the power supply with the cuit installations, mobile homes or where codes do not MAXIMUM RATED VOLTAGE listed on the serial plate. permit grounding through neutral. NOTE: Use COPPER WIRE only.
  • Page 17: Connecting Power Cord With Four-Wire Plug

    Installation 6. Secure the strain relief to the power cord, or wires, where they enter the dryer cabinet. 7. Check the continuity of the earth/ground connection before plugging the cord into an outlet. Use an acceptable indicating device connected to the center earth/ground pin of the plug and the green screw on the back of the cabinet.
  • Page 18: Reverse Door, If Desired

    Installation 3. Remove earth/ground screw from earth/ground to neutral wire 4-Wire Connection and save for use in Step 5. Earth/ground to neutral wire will be attached to the neutral terminal in Step 6. DRY2468N_SVG 1. Earth/Ground Screw DRY2482N_SVG Figure 12 1.
  • Page 19 Installation The door on this dryer is completely reversible. To reverse door proceed as follows: 1. Remove four hinge attaching screws. D273P_SVG Figure 18 5. Remove door strike from door liner and reinstall on opposite side. D675I_SVG Figure 15 2. Remove all nine screws. DRY1917N_SVG Figure 19 6.
  • Page 20: Wipe Out Inside Of Dryer

    Installation 8. Using screwdriver, remove two door plugs, and reinstall on Plug In the Dryer opposite side of door opening. This appliance is to be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 Electric Dryer Connect the dryer to an electrical power source.
  • Page 21: Recheck Steps

    Installation (alternating current) circuit protected by a 15 Ampere fuse, WARNING equivalent fusetron or circuit breaker. The three-prong earth/ground plug on the power cord should be plugged directly into a polarized three-slot effective earth/ground This unit is equipped with a three-prong (earth/ receptacle rated 120 Volts AC (alternating current) 15 Amps.
  • Page 22 Installation IMPORTANT: This operation is to be conducted by qualified personnel only. 1. To view the burner flame, remove the lower front panel of the dryer. 2. Close the loading door and start the dryer in a heat setting (re- fer to the operation instructions).
  • Page 23 www.goedekers.com...
  • Page 24: Installer Checklist

    Installer Checklist Installer Checklist Fast Track for Installing the Dryer Position and Level Reverse Door, if De- the Dryer. sired. CHECK CHECK DRY2634N_SVG D675I_SVG1 Connect Dryer Exhaust Wipe Out Inside of System. Dryer. CHECK CHECK D610I_SVG DRY1915N_SVG1 GAS ONLY Plug In the Dryer. Electric •...
