Page 1 Intelligent Drivesystems, Worldwide Services MANUAL BU 0500 GB NORDAC SK 500E Frequency Inverters BU 0500 GB Getriebebau NORD GmbH & Co. KG Rudolf-Diesel-Straße 1 D-22941 Bargteheide Tel.: +49 45 32 - 40 10 Fax: +49 45 32 - 40 12 53...
Page 2 NORDAC SK 500E Manual Safety instructions NORDAC SK 500E Frequency Inverter Safety and operating instructions for drive power converters (as per: Low voltage guideline 73/23/EEC ) 1. General 4. Installation During operation, drive power converters may have, depending The installation and cooling of the equipment must be...
Page 3 Caution: Incompatibility of the function of parameter P113 with older software versions Published by Getriebebau NORD GmbH & Co. KG Rudolf- Diesel- Str. 1  D-22941 Bargteheide  Germany  http://www.nord.com/ Telephone +49 (0) 45 32 / 401-0  Fax +49 (0) 45 32 / 401-555 BU 0500 GB...
Page 4 Commissioning (implementation of the intended use) is not permitted until it has been ensured that the machine complies with the EMC directive 89/336/EEC and that the conformity of the end product meets the machine directive 89/392/EEC (note EN 60204).  Getriebebau NORD GmbH & Co. KG, 2009 BU 0500 GB...
Page 5: Table Of Contents
2.13 Colour and contact assignments for the incremental encoder......50 2.14 RJ45 WAGO connection module ................. 50 2.15 Setpoint card ± 10V for NORDAC SK 500E ............51 3 DISPLAY AND OPERATION ...................... 52 3.1 Modular modules ....................52 3.2 Technology unit overview ..................
Page 6 NORDAC SK 500E Manual 3.2.2 ControlBox, SK TU3-CTR ................... 56 3.2.3 ParameterBox, SK TU3-PAR ..................62 3.2.4 ParameterBox parameters ..................69 3.2.5 ParameterBox error messages ................... 73 3.2.6 Profibus module, SK TU3-PBR, …-24V ..............75 3.2.7 CANopen module, SK TU3-CAO ................75 3.2.8 DeviceNet module, SK TU3-DEV ................
Page 7: General Information

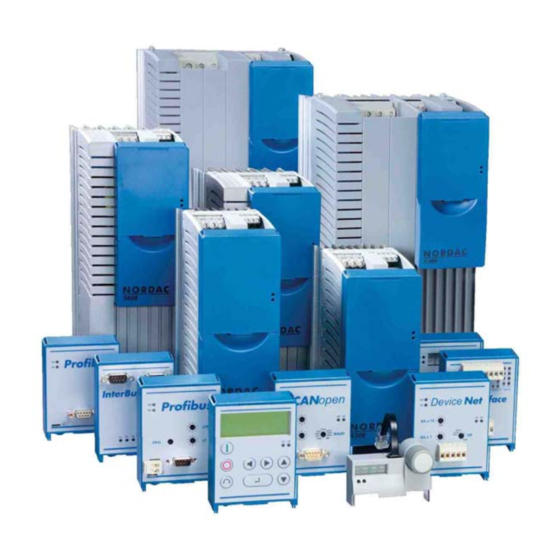

1 General information General information The NORDAC SK 500E is based on the tried and tested Nord platform. These devices feature a compact design with optimum control characteristics. These devices are provided with sensorless vector current control system which in combination with asynchronous three-phase motor types constantly ensures an optimised voltage-to-frequency ratio.
Page 8: Overview
NORDAC SK 500E Manual 1.1 Overview Properties of the basic device SK 500E:  High starting torque and precise motor speed control setting with sensorless current vector control.  Can be mounted next to each other without additional spacing ...
Page 9: Delivery
Covering for the control terminals Operating manual Available accessories: Braking resistor, for energy feedback (Section 2.6) Interface converter RS232  RS485 (additional description BU 0010) NORD CON, PC parameterising software > www.nord.com < ePlan macros for producing electrical circuit diagrams >...
Page 10: Safety And Installation Information
NORDAC SK 500E Manual 1.4 Safety and installation information NORDAC SK 500E frequency inverters are equipment for use in industrial high voltage systems and are operated at voltages that could lead to severe injuries or death if they are touched.
Page 11: Approvals
1.5 Approvals 1.5.1 European EMC guideline If the NORDAC SK 500E is installed according to the recommendations in this instruction manual, it meets all EMC directive requirements, as per the EMC product standard for motor-operated systems EN 61800-3. (See also Section. 8.3 Electromagnetic compatibility [EMC].) 1.5.2 UL approval -File No.
Page 12: Type Code / Device Design
NORDAC SK 500E Manual 1.6 Type code / device design SK 500E-250-323-A-CP Versions: CP = “ColdPlate” or “External heat sink technology” Radio interference filter class: O = without, A or B limit value Mains voltage: x12 = 115V, x23 = 230V, x40 = 400V Number of mains phases: 1 = single phase, 3 = 3-phase * Digits before comma for power: 0 = 0.xx, 1 = 0x.x0, 2 = 0xx.0...
Page 13: Assembly And Installation
Assembly and installation 2.1 Installation NORDAC SK 500E frequency inverters are available in various sizes depending on the output. Attention must be paid to a suitable position when installing. The equipment requires sufficient ventilation to protect against overheating. For this the minimum guideline distances from adjacent components above and below the frequency inverter, which could obstruct the air flow apply.
Page 14: Dimensions
NORDAC SK 500E Manual 2.2 Dimensions 2.2.1 SK 500E, standard version Weight Housing dimensions Wall-mounting (Sect. 2.3.1) Device type approx. [kg]  SK 5xxE-250- … 74 * SK 5xxE-750- … SK 5xxE-111- … 74 * SK 5xxE-221- … SK 5xxE-301- …...
Page 15: 500E
2 Assembly and installation 2.2.2 SK 500E…-CP in ColdPlate version Weight Housing dimensions Wall mounting approx. Device type [kg]  SK 5xxE-250- …-CP SK 5xxE-750- …-CP SK 5xxE-111- …-CP SK 5xxE-221- …-CP Mounting details in Section 2.3.2 SK 5xxE-301- …-CP SK 5xxE-401- …-CP SK 5xxE-551- 340…-CP SK 5xxE-751- 340…-CP...
Page 16: Mounting Dimensions
NORDAC SK 500E Manual 2.3 Mounting dimensions 2.3.1 SK 500E, standard version For wall mounting of the SK 500E, two (or four, for size 5 and above) appropriate brackets are supplied. These are inserted into the cooling element at the rear of the device as shown in the illustration. For this, no further accessories are needed.
Page 17: 500E
2 Assembly and installation 2.3.2 SK 500E…-CP in ColdPlate version According to the size of the frequency inverter, the dimensions for the drilling pattern listed below must be observed. Depth of the Size Height H Width W Cold Plate 75.33 75.33 90.33 90.33...
Page 18: External Heat Sink Kit
NORDAC SK 500E Manual 2.4 External heat sink kit The SK 500E series with ColdPlate technology (SK 5xxE-…-CP) can be extended with the external heat sink kit. In this construction, the heat sink is outside of the control cabinet and therefore does not need a “suitable cooling surface”.
Page 19: Mounting The External Heat Sink Kit
2 Assembly and installation 2.4.1 Mounting the external heat sink kit: Before installing the device, please make certain that the walls of the control cabinet can bear the load. An opening in the wall of the control cabinet, with the dimensions of the supplied heat sink is necessary for the installation.
Page 20: Dimensions Of External Heat Sink
NORDAC SK 500E Manual 2.4.2 Dimensions of external heat sink Cold-Plate Weight Heat sink dimensions dimensions Device type approx. [kg] SK 5xxE-250- … SK 5xxE-750- … SK TH1-1 SK 5xxE-111- … SK 5xxE-221- … SK TH1-2 All dimensions in [mm]...
Page 21: Emc- Kit
2 Assembly and installation 2.5 EMC- Kit For optimum EMC-compliant wiring, the optional EMC Kit must be used. This includes a screening angle, two hammer clips and two fixing screws. The EMC Kit provides the possibility of attaching the screening of the motor cable to a large surface of the frequency inverter (interference source).
Page 22: Brake Resistor (Br)
NORDAC SK 500E Manual 2.6 Brake resistor (BR) During dynamic braking (frequency reduction) of a three phase motor, electrical energy is returned to the frequency inverter. In order to avoid an overvoltage switch-off of the frequency inverter, an external brake resistor can be used.
Page 23: Electrical Data Br
2 Assembly and installation 2.6.1 Electrical data BR Energy Connecting Continuous Inverter type Resistance consumptio cable / Resistor type rating terminals SK 5xxE-250-112-O … SK BR4-240/100 2 x 1.9mm 240  100 W 1.0 kWs SK 5xxE-370-112-O Mat. Nr. 275991110 AWG 14/19 SK 5xxE-550-112-O …...
Page 24: Dimensions Bottom-Mounted Br
NORDAC SK 500E Manual 2.6.2 Dimensions bottom-mounted BR Fixing dimensions Size Resistor type  SK BR4-240/100 SK BR4-150/100 SK BR4-400/100 SK BR4- 75/200 SK BR4-220/200 C = instalment depth of the frequency inverter + bottom-mounted BR all measurements in mm SK BR4-...
Page 25: Line Choke (Accessory)
2 Assembly and installation 2.7 Line choke (accessory) To reduce input side current harmonics, additional inductivity can be installed into the line supply to the inverter. These chokes are specified for a maximum supply voltage of 230V or 480V at 50/60 Hz. The protection class of the chokes is IP00 and they must therefore be installed in a control cabinet.
Page 26 NORDAC SK 500E Manual Input choke 3 x 380 - 480 V Detail: mounting Inverter type NORDAC Continuous Type Inductance SK 500E current SK CI1-460/6-C 0.75 ... 2.2 kW 3 x 4.88 mH Mat. - Nr.: 276995004 3.0 ... 4.0 kW SK CI1-460/11-C 11 A 3 x 2.93 mH...
Page 27: Output Choke (Accessories)
2 Assembly and installation 2.8 Output choke (accessories) To reduce interference signals from the motor cable or to compensate for cable capacitance in long motor cables, an additional output choke can be installed into the inverter output. Take care during installation that the pulse frequency of the frequency inverter is set to 3-6 kHz (P504 = 3-6).
Page 28: Wiring Guidelines
NORDAC SK 500E Manual 2.9 Wiring guidelines The frequency inverter has been developed for use in an industrial environment. In this environment, high levels of electromagnetic interference can influence the frequency inverter. In general, correct installation ensures safe and problem-free operation. To meet the limit values of the EMC directives, the following instructions should be complied with.
Page 29: Electrical Connection
2 Assembly and installation 2.10 Electrical connection WARNING THESE DEVICES MUST BE EARTHED. Safe operation of the devices presupposes that qualified personnel mount and operate it in compliance with the instructions provided in these operating instructions. In particular, the general and regional mounting and safety regulations for work on high voltage systems (e.g.
Page 30 NORDAC SK 500E Manual When using specific wiring sleeves, the maximum connection cross-section can be reduced. NOTE: To connect the power unit, the following screwdrivers must be used: Size Screwdriver Frequency Inverter Type Size Size 1 - 4 Cross-head Pozidrive/Supadrive size: 1 Slot-head 0.6 x 3.5...
Page 31: Mains Supply (X1-Pe, L1, L2/N, L3)
2 Assembly and installation 2.11.1 Mains supply (X1-PE, L1, L2/N, L3) No special safety measures are required on the mains input side of the frequency inverter. It is advisable to use the normal mains fuses (see technical data) and a main switch or circuit breaker.
Page 32: Motor Cable (X2 - U, V, W, Earth)
NORDAC SK 500E Manual 2.11.3 Motor cable (X2 - U, V, W, earth) The motor cable may have a total length of 100m if this is a standard cable. If a screened motor cable is used, or if the cable is laid in a metal conduit which is well earthed, the total length should not exceed 30m.
Page 33: Motor - Ptc Connection (X13 - T1, T2) (Size 5 And Above)
2 Assembly and installation 2.11.5 Motor – PTC connection (X13 – T1, T2) (size 5 and above) (As per EN 60947-8) For size 5 and 6 devices, the connection of the motor thermistor is made via terminals T1 and T2. For smaller sizes of inverter (S 1—4) the thermistor must be connected to digital input 5 (DIN5) on plug block X5 (See section 2.12 “Electrical connection of...
Page 34: Safe Pulse Block 24 V (X8 - 86, 87, 89, 88)
NORDAC SK 500E Manual 2.11.7 Safe pulse block 24 V (X8 - 86, 87, 89, 88) Series SK 51xE and SK 53xE frequency inverters are equipped with the option “Functional safety” (See supplementary operating instruction BU 0530). Connection of the corresponding control cables is made via terminal block X8.
Page 35: Dc-Coupling (X2 - +B, -Dc)
2 Assembly and installation 2.11.8 DC-coupling (X2 - +B, -DC) In drive engineering, DC-coupling is advisable if motors act as drivers and generators at the same time in the system. Here, the energy from the drive which is acting as a generator can be fed back to the drive which is acting as a motor.
Page 36: Jumper "A" Mains Input
NORDAC SK 500E Manual (4) Ensure that the coupling is disconnected as soon as one of the devices is no longer ready for operation. (5) For a high availability a braking resistor (possibly lower power) must be used. If different sizes of frequency inverters are used, the braking resistor must be connected to the larger of the two frequency inverters.
Page 37: Jumper "B" Motor Output
2 Assembly and installation 2.11.10 Jumper “B” motor output This jumper makes the device suitable for IT networks or reduces the leakage current of the frequency inverter to earth. This may be necessary of several frequency inverters are operated via a single FI circuit breaker.
Page 38: Internal Jumper Switching
NORDAC SK 500E Manual 2.11.11 Internal jumper switching As delivered, the jumpers are set in the “normal position”. With this, the mains filter has its normal effect and leakage current. L2/N Cyzk Cyzk Cyzk Cyzk Jumper B Jumper A Size 1 - 4...
Page 39: Electrical Connection Of The Control Unit
2 Assembly and installation 2.12 Electrical connection of the control unit The control terminals are on the front cover of the frequency inverter. The equipment differs according to the version (SK 500E / 505E / 510E / 511E/ 515E/ 520E / 530E / 535E) and size (S 1-4 or S 5-6). Connection terminals: Plugs, terminals and connectors can be released with a small screwdriver.
Page 40: Terminal Blocks
NORDAC SK 500E Manual 2.12.1 Terminal blocks Size 1 to 4 devices (S 1 – 4) X9/X10: 2x RJ45 socket X11: 1x RJ12 socket to connect the to connect the CAN/CANopen RS232 or RS485 interface interface only with SK 52x/53xE...
Page 41 2 Assembly and installation Size 5 to 6 devices (S 5 – 6) X9/X10: 2x RJ45 socket X11: 1x RJ12 socket to connect the to connect the CAN/CANopen RS232 or RS485 interface interface X4: analog inputs and outputs ±10V max. 5mA -10V …...
Page 42: Details Of The Sk 5X0E Control Connections
NORDAC SK 500E Manual 2.12.2 Details of the SK 5x0E control connections Terminal X5:42 (VO15V), internal 15V control voltage! Terminal 42. Here the frequency inverter provides the control voltage. Terminal Function Data Description / wiring suggestion Parameter [factory setting] Terminal block X3 (See also Chap. 2.12) K1.1...
Page 43 2 Assembly and installation Terminal Function Data Description / wiring suggestion Parameter [factory setting] Terminal block X5 For SK 5x0E, internal 15V supply DIN1 digital input 1 Each digital input has a reaction time of 1 – 2ms. [ON right] P420 Connection with internal 15V: DIN2...
Page 44 NORDAC SK 500E Manual Terminal Function Data Description / wiring suggestion Parameter [factory setting] Terminal block X6 (only SK 520/530E) GND /0V Reference potential 0V digital for digital signals The incremental encoder input can be used for the exact regualtion of speed...
Page 45 Assignments of the n.c..for direct SUB-D9 plug socket: connection to a PC + 5V with NORD CON Mat. No. 278910240 DIP switches 1/2 (top side of SK 5x0E) Plug designation DIP switch 1 Terminal resistor for RS485 interface (RJ12);...
Page 46: Details Of The Sk 5X5E Control Connections
NORDAC SK 500E Manual 2.12.3 Details of the SK 5x5E control connections Size 1 - 4: Terminal X5:44 (VI24V): Control voltage 24V external! The frequency inverter must be provided with an external 24V supply. Size 5 – 6: Terminal X5:44 (VO24V): Control voltage 24V internal! Here, the frequency inverter provides the power supply, which can either be supplied from the internal low voltage generator or optionally via the terminals X12:44/X12:40.
Page 47 2 Assembly and installation Terminal Function Data Description / wiring suggestion Parameter [factory setting] For SK 5x5E, external 24V supply Terminal block X5 DIN1 digital input 1 P420 [ON right] Each digital input has a reaction time DIN2 digital input 2 P421 of 1 –...
Page 48 NORDAC SK 500E Manual Terminal Function Data Description / wiring suggestion Parameter [factory setting] Terminal block X6 (only 535E) GND /0V Reference potential 0V digital for digital signals The incremental encoder input can be used for the exact regualtion of speed...
Page 49 SUB-D9 plug socket: n.c..for direct connection to a PC + 5V with NORD CON Mat. No. 278910240 DIP switches 1/2 (top side of SK 5xxE) Plug designation DIP switch 1 Terminal resistor for RS485 interface (RJ12); ON = switched in...
Page 50: Colour And Contact Assignments For The Incremental Encoder
NORDAC SK 500E Manual 2.13 Colour and contact assignments for the incremental encoder. Cable colours, Function Assignment for SK 52xE/53xE for incremental encoder 15V (/ 24V) supply brown / green X5:42/44 VO 15V (/ VI VO 24V) 0V supply white / green...
Page 51: Setpoint Card ± 10V For Nordac Sk 500E
If a bipolar setpoint (analog difference signal (-10V … + 10V)) is available, this must be converted to a 0 … 10V signal by means of a setpoint converter. In this case, the appropriate module is available from NORD. This module is suitable for snap-on rail-mounting and should be installed near to the frequency inverter in the control cabinet.
Page 52: Display And Operation
NORDAC SK 500E Manual Display and operation In the delivery condition (without technology unit) 2 LEDs (green/red) are visible externally. These indicate the current status of the device. The green LED indicates that the mains voltage is present and operational, while a flashing code that increases in speed shows the degree of overload at the frequency inverter output.
Page 53: Technology Unit Overview
3.2 Technology unit overview 3.2 Technology unit overview Module Description Data 4-digit 7 segment LED display, For the commissioning, parameterisation, configuration and SimpleBox single button operation control of the frequency inverter. Storage of the parameters SK CSX-0 is not possible. Mat.
Page 54: Simplebox, Sk Csx-0
NORDAC SK 500E Manual 3.2.1 SimpleBox, SK CSX-0 This option is used as a simple parameterisation, display and control tool for the frequency inverter SK 5xxE. With this, even in active BUS operation, data can be read out and parameterisation made especially if the frequency inverter slot is occupied with a BUS unit.
Page 55 3.2 Technology unit overview Functions of the SimpleBox: When the frequency inverter is ready for operation any initial value (P104/P113 for keyboard operation) is indicated by a flashing display. This frequency is immediately used on being enabled. 7 Segment During operation, the currently set operating value (selection in P001) or an error code (Section 6) is LED display displayed.
Page 56: Controlbox, Sk Tu3-Ctr
NORDAC SK 500E Manual 3.2.2 ControlBox, SK TU3-CTR This option is used as a simple parameterisation, display and control tool for the frequency inverter SK 5xxE. Features  4-digit, 7-segment LED display  Direct control of a frequency inverter  Display of the active parameter set and operating values ...
Page 57 3.2 Technology unit overview ControlBox functions: Switching on the frequency inverter. The frequency inverter is now enabled with the set jog frequency (P113). A preset minimum frequency (P104) may at least be provided. Parameter >Interface< P509 and P510 must = 0. Switching off the frequency inverter.
Page 58 NORDAC SK 500E Manual Parameterisation with the ControlBox The frequency inverter can only be controlled via the ControlBox, if it has not previously been enabled via the control terminals or via a serial interface (P509 = 0 and P510 = 0). In addition, for this the parameter “PotentiometerBox Function”...
Page 59 3.2 Technology unit overview Parameterisation with the ControlBox The parameterisation of the frequency inverter can be performed in the various operating states. All parameters can always be changed online. Switching to the parameter mode occurs in different ways depending upon the operating states and the enabling source. 1.
Page 60 NORDAC SK 500E Manual Changing parameter values To access the parameter section, one of the value keys, must be pressed. The display changes to the menu group display P 0 _ _ ... P 7 _ _ . After pressing the ENTER key access to the menu group is obtained and the required parameter can be selected with the value keys.
Page 61 3.2 Technology unit overview Menu structure with the SimpleBox Operating values display (or operational) P7 - - P6 - - following m ains ON _ _ _ _ P5 - - P4 - - P0 - - P1- - P2 - - P3 - - P0 0 1 P4 0 0...
Page 62: Parameterbox, Sk Tu3-Par
NORDAC SK 500E Manual 3.2.3 ParameterBox, SK TU3-PAR This option is for simple parameterisation and control of the frequency inverter, as well as the display of current operating settings and states. Up to 5 data sets can be stored and managed, stored and transferred in this device.
Page 63 3.2 Technology unit overview Functions of the ParameterBox Graphic-capable, backlit LCD display for displaying operational values and parameters for the connected frequency inverter and ParameterBox parameters. Display Using the SELECTION keys enables toggling between the menu levels and menu items. Press the keys together to go back one level.
Page 64 NORDAC SK 500E Manual Menu structure The menu structure consists of various levels that are each arranged in a ring structure. The ENTER key moves the menu on to the next level. Simultaneous operation of the SELECTION keys moves the menu back a level.
Page 65 3.2 Technology unit overview , short description Select language The following steps must be carried out to change the menu language used in the ParameterBox display. On switching on the ParameterBox for the first time, “German” or “English” will be offered for selection. The selection is made by pressing the selection keys (arrow R/L) and confirming with the ENTER key.
Page 66 NORDAC SK 500E Manual Controlling the frequency inverter with the ParameterBox The frequency inverter can only be completely controlled via the ParameterBox if the parameter >Interface< (P509) is set to the >Control terminal or Keyboard< function (=0) (factory setting) and the inverter is not enabled via the control terminal.
Page 67 3.2 Technology unit overview Parameterising with the ParameterBox The parameterising mode is entered by selecting the menu group >Parameterising< in level 1 of the ParameterBox and confirming this with the ENTER key. The parameter level of the connected frequency inverter is now visible. SELECTION keys VALUE keys Selection forward...
Page 68 NORDAC SK 500E Manual Screen layout during parameterisation If the setting of a parameter is changed, then the value flashes intermittently until confirmed with the ENTER key. In order to retain the factory settings for the parameter being edited, both VALUE keys must be operated simultaneously.
Page 69: Parameterbox Parameters
3.2 Technology unit overview 3.2.4 ParameterBox parameters The following main functions are assigned to the menu groups: Menu group Master function Display (P10xx): Selection of operating values and display layout Parametrierung (P11xx): Programming of the connected inverter and all storage media Parameter administration (P12xx): Copying and storage of complete parameter sets from storage media and...
Page 70 NORDAC SK 500E Manual Parameter Setting value / Description / Note Display >ENTER< / >OK< U1 P1 ONLINE E ready P1001 P1002 P1003 P1005 P1004 Value keys Values for display Actual frequency Value + Value - U1 P1 ONLINE E ready...
Page 71 3.2 Technology unit overview Parameterisation Parameter Setting value / Description / Note P1101 Object selection FI and S1 … S5 Selection of the object to be parameterised. [ … ] The ongoing parameterisation process relates to the object selected. Only the devices and storage objects recognised during the bus scan are available in the selection list.
Page 72 NORDAC SK 500E Manual Options Parameter Setting value / Description / Note P1301 Language Value range: Selection of languages for operation of the ParameterBox see right hand column Available languages: German English [ … ] Dutch French Spanish Swedish P1302...
Page 73: Parameterbox Error Messages
The connected inverter is not listed in the database of the ParameterBox; no communication can be established.  Please contact your Getriebebau Nord Representative. Software version not The software of the connected frequency inverter is not listed in the ParameterBox database, no communication can be set up.
Page 74 NORDAC SK 500E Manual Display Fault Cause  Remedy Error number text in the Parameter Box ParameterBox operating error Source and target are different Copying objects of different types (from / to different inverters) is not devices possible. Source is empty...
Page 75: Profibus Module, Sk Tu3-Pbr
3.2 Technology unit overview 3.2.6 Profibus module, SK TU3-PBR, …-24V A large number of different automation devices can exchange data using Profibus. PLC's, PC's, operating and monitoring devices can all communicate via a uniform bus in serial bit mode. Data exchange is specified in DIN 19245 Part 1 and 2 and application specific upgrades in Part 3 of this standard.
Page 76: Devicenet Module, Sk Tu3-Dev
NORDAC SK 500E Manual 3.2.8 DeviceNet module, SK TU3-DEV DeviceNet is an open communication profile for distributed industrial automation systems. It is based on the CANbus system. Up to 64 participants can be linked to one Bus system. The transfer rate (125. 250. 500 kBit/s) and the Bus addresses are set using rotary coding switches or the applicable parameters.
Page 77: Tu3-As1, As Interface
3.2 Technology unit overview 3.2.10 SK TU3-AS1, AS interface The Actuator-Sensor-Interface (AS interface) is a bus system for the simple field bus level. The transmission principle is a single master system with cyclical polling. A maximum of 31 slaves (or 62 A/B slaves) can be operated on an up to 100m long unshielded two-wire cable in any network structure (tree/line/star).
Page 78: Commissioning
4.1 Factory settings All frequency inverters supplied by Getriebebau NORD are pre-programmed with the default setting for standard applications with 4 pole standard motors (same voltage and power). For use with motors with other powers or number of poles, the data from the rating plate of the motor must be input into the parameters P201...P207 under the menu item >Motor data<...
Page 79: Minimum Configuration Of Control Connections
4 Commissioning 4.2 Minimum configuration of control connections If the frequency inverter is to be controlled via the digital and analog inputs, this can be implemented immediately in the condition as delivered. Settings are not necessary for the moment. Minimum circuitry VO 10V Potentiometer, 10kOhm GND/0V...
Page 80: Kty84-130 Connection (Software Version 1.7 And Above)
NORDAC SK 500E Manual 4.3 KTY84-130 Connection (software version 1.7 and above) The current vector regulation of the SK 500E series can be further optimised by the use of a KTY84-130 temperature sensor (R =500, R =1000). In particular there is the advantage that after an th(0°C)
Page 81: Frequency Addition And Subtraction Via Operating Boxes
4 Commissioning 4.4 Frequency addition and subtraction via operating boxes (Software version 1.7 and above) If the parameter P549 (PotentiometerBox Function) is set to 4 “Frequency addition” or 5 “Frequency subtraction”, a value can be added or subtracted via the value keys with the ControlBox or the ParameterBox.
Page 82: Parameterisation
NORDAC SK 500E Manual Parameterisation Every frequency inverter is factory-set for a motor of the same power. All parameters can be adjusted "online". There are four switchable parameter sets available during operation. As delivered, all parameters are visible; however, some can be hidden with parameter P003.
Page 83 5 Parameterisation Availability of the parameters Due to certain configurations, the parameters are subject to certain conditions. The following tables (from Section. 5.1 onwards) list all parameters together with the particular information. Device Supervisor Parameter set Parameter Set value / Description / Note P000 …...
Page 84: Operating Display
NORDAC SK 500E Manual 5.1 Operating display Abbreviations used: FI = Frequency inverter SW = Software version, stored in P707. S = Supervisor parameters are visible or hidden dependent on P003. Parameter Device Supervisor Parameter Set value / Description / Note...
Page 85 5.1 Operating display Parameter Device Supervisor Parameter Set value / Description / Note P002 Display factor 0.01 ... 999.99 The selected operating value in parameter P001 >Select of display< is multiplied with the scaling factor in P000 and displayed in >Operating parameter display<. [ 1.00 ] It is therefore possible to display system-specific operating such as e.g.
Page 86: Basic Parameters
NORDAC SK 500E Manual 5.2 Basic parameters Parameter Parameter Set value / Description / Note Device Supervisor P100 Parameter set 0 ... 3 Selection of the parameters sets to be parameterised. Four parameters sets are available. All parameter set-dependent parameters are identified by P.
Page 87 5.2 Basic parameters Parameter Parameter Set value / Description / Note Device Supervisor P104 Minimum frequency 0.0 ... 400.0 Hz The minimum frequency is the frequency supplied by the FI as soon as it is enabled and no additional setpoint is set. [ 0.0 ] In combination with other setpoints (e.g.
Page 88 NORDAC SK 500E Manual Parameter Parameter Set value / Description / Note Device Supervisor P107 Brake reaction time 0 ... 2.50 s Electromagnetic brakes have a physically-dependent delayed reaction time when applied. This can cause a dropping of the load for lifting applications, as the brake only takes over the load after [ 0.00 ]...
Page 89 5.2 Basic parameters Parameter Parameter Set value / Description / Note Device Supervisor P108 Disconnection mode 0 ... 12 This parameter determines the manner in which the output frequency is reduced after "Blocking" (controller enable  low). [ 1 ] 0 = Voltage block: The output signal is switched off immediately.
Page 90 NORDAC SK 500E Manual Parameter Parameter Set value / Description / Note Device Supervisor P109 DC brake current 0 ... 250 % Current setting for the functions of DC current braking (P108 = 3) and combined braking (P108 = 5).
Page 91 5.2 Basic parameters Parameter Parameter Set value / Description / Note Device Supervisor P114 Brake ventilation time 0 ... 2.50 s Electromagnetic brakes have a delayed reaction time during release, which depends on physical factors. This can lead to the motor running while the brake is still applied, which will cause the [ 0.00 ] inverter to switch off with an overcurrent report.
Page 92: Motor / Characteristic Curve Parameters
NORDAC SK 500E Manual 5.3 Motor / characteristic curve parameters Parameter Parameter Set value / Description / Note Device Supervisor P200 Motor list 0 ... 53 The factory settings for the motor data can be edited with this parameter. The factory setting in parameters P201...P209 is a 4-pole DS standard motor with the nominal FI power setting.
Page 93 5.3 Motor / characteristic curve parameters Parameter Parameter Set value / Description / Note Device Supervisor P203 Nominal motor current 0.1 ... 300.0 A The nominal motor current is a decisive parameter for the current vector control. P204 Nominal motor voltage 100 ...
Page 94 NORDAC SK 500E Manual Parameter Parameter Set value / Description / Note Device Supervisor P211 Dynamic boost 0 ... 150 % The dynamic boost affects the torque generating current and is therefore a load-dependent parameter. The factory 100% setting is also sufficient for typical applications.
Page 95 5.3 Motor / characteristic curve parameters Parameter Parameter Set value / Description / Note Device Supervisor P217 Oscillation damping 0 ... 400 % With the oscillation damping, idling current harmonics can be damped. Parameter 217 is a measure of the damping power. [ 10 ] For oscillation damping the oscillation component is filtered out of the torque current by means of SW1.6 and above...
Page 96 NORDAC SK 500E Manual Parameter Parameter Set value / Description / Note Device Supervisor P2xx Control/characteristic curve parameters Output voltage P204 P211 P215 P210 Output frequency P201 NOTE: P216 Time "typical" Current vector control (factory setting) Settings for the... Linear rev./f. characteristic curve...
Page 97 5.3 Motor / characteristic curve parameters Parameter Parameter Set value / Description / Note Device Supervisor P220 Parameter identification ... up to 240s The motor data is automatically determined by the FI with this parameter. In most cases this leads to considerably better drive characteristics, as DC asynchronous motors are subject to [ 0 ] manufacturing tolerances which are not documented on the rating plate.
Page 98: Control Parameters
NORDAC SK 500E Manual 5.4 Control parameters Only available in SK 520E/53xE with the use of an incremental encoder. Connection, see Section 2.13. Parameter Parameter Set value / Description / Note Device Supervisor SK 520E P300 Servo mode and above 0 ...
Page 99 5.4 Control parameters Parameter Parameter Set value / Description / Note Device Supervisor SK 520E P312 Torque current controller P and above 0 ... 800 % Current controller for the torque current. The higher the current controller parameters are set, the more precisely the current setpoint is maintained.
Page 100 NORDAC SK 500E Manual Parameter Parameter Set value / Description / Note Device Supervisor SK 520E P320 Weak field control limit and above 0 ... 110 % The weak field limit determines at which speed / current the controller will begin to weaken the field.
Page 101: Control Terminals
5.5 Control terminals 5.5 Control terminals Parameter Parameter Set value / Description / Note Device Supervisor P400 Analog input function 1 0 ... 82 The FI analog input can be used for various functions. It must be noted that only one of the functions given below is possible at any time.
Page 102 NORDAC SK 500E Manual Parameter Parameter Set value / Description / Note Device Supervisor 14 = Actual value process controller *, activates the process controller, analog input 1 is connected to the actual value encoder (compensator, air can, flow volume meter, etc.).
Page 103 5.5 Control terminals Parameter Parameter Set value / Description / Note Device Supervisor P401 Mode analog input 1 0 ... 3 0 = limited to 0 – 10V: An analog setpoint smaller than the programmed adjustment 0% (P402) does not lead to undershooting of the programmed minimum frequency (P104). [ 0 ] Therefore does not lead to any rotation direction reversal.
Page 104 NORDAC SK 500E Manual Parameter Parameter Set value / Description / Note Device Supervisor P402 Analog input adjustment 1: 0% -50.00 ... 50.00 V This parameter sets the voltage that should correspond with the minimum value of the selected function for the analog input 1. In the factory setting (setpoint) this value is equivalent to the [ 0.00 ]...
Page 105 5.5 Control terminals Parameter Parameter Set value / Description / Note Device Supervisor P406 Analog input mode 2 0 ... 3 0 = limited to 0 – 10V [ 0 ] 1 = 0 - 10V 2 = 0 – 10V monitored 3 = - 10V –...
Page 106 NORDAC SK 500E Manual Parameter Parameter Set value / Description / Note Device Supervisor P415 PID control D-component 0 ... 400.0 %ms This parameter is only effective when the function PID actual frequency is selected. [ 1.0 ] If there is a rule deviation, the D-component of the PID controller determines the frequency change multiplied by time (%ms).
Page 107 5.5 Control terminals Parameter Parameter Set value / Description / Note Device Supervisor P418 Analog output function 0 ... 52 Analog functions (max. load: 5mA analog, 20mA digital): [ 0 ] An analog voltage (0 ... +10 Volt) can be taken from the control terminals (max. 5mA). Various functions are available, whereby: 0 Volt analog voltage always corresponds to 0% of the selected value.
Page 108 NORDAC SK 500E Manual Parameter Parameter Set value / Description / Note Device Supervisor Digital functions: All relay functions described in Parameter >Function Relay 1< P434 can also be transferred via the analog output. If a condition has been fulfilled, then there will be 10V at the output terminals.
Page 109 5.5 Control terminals Parameter Parameter Set value / Description / Note Device Supervisor P420 Digital input 1 0 ... 72 Enable right as factory setting, control terminal 21 (DIN1) [ 1 ] Various functions can be programmed. These can be seen in the following table. P421 Digital input 2 0 ...
Page 110 NORDAC SK 500E Manual List of the possible functions of the digital inputs P420 ... P425, P470 Value Function Description Signal No function Input switched off. Enabled right The FI delivers an output signal with the rotation field right if a High positive setpoint is present.
Page 111 5.5 Control terminals Value Function Description Signal Fixed frequency 5 The frequency from P433 is added to the actual setpoint value. High ... 25 reserved ... 29 impulse functions: Descriptions on next page. PID controller On/Off Switching the PID controller / process controller function on High and off (high = ON) Enable right blocked...
Page 112 NORDAC SK 500E Manual Impulse input functions: 2...22kHz (only for DIN2 and DIN3 or 4) For these functions the particular input evaluates the impulse frequency present. The frequency range 2kHz to 22kHz thereby covers the range of values from 0 to 100%. The inputs operate up to a maximum impulse frequency of 32kHz. The voltage level may be between 15V and 24V and the switch-on cycle between 50 and 80%.
Page 113 5.5 Control terminals Parameter Parameter Set value / Description / Note Device Supervisor P426 Quick stop time 0 ... 320.00 s Setting of the stop time for the fast stop function that can be triggered either via a digital input, the bus control, the keyboard or automatically in case of a fault.
Page 114 NORDAC SK 500E Manual Parameter Parameter Set value / Description / Note Device Supervisor P434 Function output 1 (K1) 0 ... 38 Control terminals 1/2: The settings 3 to 5 and 11 work with 10% hysteresis, i.e. the relay contact closes (fct.
Page 115 5.5 Control terminals Parameter Parameter Set value / Description / Note Device Supervisor 14 = ... 29 reserved (excluding 18) Closes 30 = Bus IO In Bit 0 / Bus In Bit 0 * Closes 31 = Bus IO In Bit 1 / Bus In Bit 1 * Closes 32 = Bus IO In Bit 2 / Bus In Bit 2 * Closes...
Page 116 NORDAC SK 500E Manual Parameter Parameter Set value / Description / Note Device Supervisor SK 520E P452 Hysteresis output 3 and above 1 ... 100 % Functions are identical to P436! [ 10 ] SK 520E P455 Function output 4 (DOUT2) and above 0 ...
Page 117 5.5 Control terminals Parameter Parameter Set value / Description / Note Device Supervisor P464 Fixed frequency modes 0 ... 1 This parameter determines the form in which fixed frequencies are to be processed. 0 = Addition to main setpoint: Fixed frequencies and the fixed frequency array are added [ 0 ] to each other.
Page 118 NORDAC SK 500E Manual Parameter Parameter Set value / Description / Note Device Supervisor P466 Minimum frequency process controller -400.0 ... 400.0 Hz With the aid of the minimum frequency process controller the control ratio can also be kept to a minimum ratio, even with a master value of “zero”, in order to enable adjustment of the...
Page 119 5.5 Control terminals Parameter Parameter Set value / Description / Note Device Supervisor P481 ... - 01 Function Bus I/O Out Bits ... - 10 0 ... 38 The Bus I/O Out Bits are perceived as multi-function relay outputs. They can be set to the same functions (P434;...
Page 120: Additional Parameters
NORDAC SK 500E Manual 5.6 Additional parameters Parameter Parameter Set value / Description / Note Device Supervisor P502 ... - 01 Leading function value ... - 03 0 ... 21 Selection of up to 3 master values: [ 0 ]...
Page 121 BU 0080 = DeviceNet BU 0090 = AS Interface 9 = CAN Broadcast * www.nord.com 10 = CANopen Broadcast * *) Keyboard control (ControlBox, ParameterBox) is blocked, parameterisation is still possible. **) If the communication during keyboard control is interrupted (time out 0.5 sec), the FI will block without an error message.
Page 122 NORDAC SK 500E Manual Parameter Parameter Set value / Description / Note Device Supervisor P510 ... - 01 Setpoint source ... - 02 0 ... 10 Selection of the setpoint source to be parameterised. [ 0 ] Master setpoint value source...
Page 123 5.6 Additional parameters Parameter Parameter Set value / Description / Note Device Supervisor P516 Masking frequency 1 0.0 ... 400.0 Hz The output frequency around the frequency value (P517) set here is masked. [ 0.0 ] This range is transmitted with the set brake and acceleration ramp; it cannot be continuously supplied to the output.
Page 124 NORDAC SK 500E Manual Parameter Parameter Set value / Description / Note Device Supervisor P523 Factory setting 0 ... 2 By selecting the appropriate value and confirming it with the ENTER key, the selected parameter range is entered in the factory setting. Once the setting has been made, the value of the [ 0 ] parameter returns automatically to 0.
Page 125 5.6 Additional parameters Parameter Parameter Set value / Description / Note Device Supervisor P536 Current limit 0.1 ... 2.0 / 2.1 The inverter output current is limited to the set value. If this limit value is reached, the inverter (x nominal FI reduces the actual output frequency.
Page 126 NORDAC SK 500E Manual Parameter Parameter Set value / Description / Note Device Supervisor P540 Rotation direction mode 0 ... 7 For safety reasons this parameter can be used to prevent a rotation direction reversal and therefore the incorrect rotation direction.
Page 127 5.6 Additional parameters Parameter Parameter Set value / Description / Note Device Supervisor P542 Set analog output 0.0 ... 10.0 V The analog output of the FI can be set with this function, independently of the actual operating state. To do this, the relevant analog output must be set to the function "External control" (P418 = 7). [ 0.0 ] This function can either be used manually or in combination with a bus control.
Page 128 NORDAC SK 500E Manual Parameter Parameter Set value / Description / Note Device Supervisor P546 Bus setpoint 1 0 ... 47 In this parameter, a function is allocated to the output setpoint 1 during bus actuation. [ 1 ] Further details can be found in the respective BUS operating instructions or in the NOTE: description of P400.
Page 129 InterBus Technology modules SK TU3-CAO SK TU3-DEV SK TU3-IBS Setting USS protocol (Profile “Nord”) DS402 profile AC Drives profile Drivecom profile With the use of the internal CANbus (CANnord/CANopen) via the integrated customer Note: interface (RJ45, X9/10, SK 520/53xE) the settings in this parameter have no effect.
Page 130 NORDAC SK 500E Manual Parameter Parameter Set value / Description / Note Device Supervisor P554 Min. chopper trigger point 65 ... 100 % The switching threshold of the brake chopper can be influenced with this parameter. An optimised value for numerous applications is set in the factory setting. This parameter can be increased for...
Page 131: Positioning
The parameter group P6xx is only included in SK 53xE frequency inverters. These are used to set the positioning control of the SK 53xE A detailed description of these parameters can be found in manual BU 0510. (www.nord.com) 5.8 Information...
Page 132 NORDAC SK 500E Manual Parameter Parameter Set value / Description / Note Device Supervisor P705 ... - 01 UZW previous fault 1...5 ... - 05 0 ... 1000 V DC This parameter stores the link voltage that was being delivered at the time the error occurred. The values of the last 5 errors are stored.
Page 133 5.8 Information Parameter Parameter Set value / Description / Note Device Supervisor P711 Output status (SK 520E) 00000000 ... Displays the actual status of the signal relays. 11111111 (binary) (Display with *SK-TU3-PAR)  Bit 0 = Output 1 (K1) Bit 2 = Output 3 (DOUT1) ...
Page 134 NORDAC SK 500E Manual Parameter Parameter Set value / Description / Note Device Supervisor P723 Actual voltage components Ud 0 ... 500 V Displays the actual field voltage component. P724 Actual voltage components Uq 0 ... 500 V Displays the actual torque voltage component.
Page 135 5.8 Information Parameter Parameter Set value / Description / Note Device Supervisor P734 W phase current 0.0 ... 999.9 A Displays the actual W phase current. This value can deviate somewhat from the value in P719, due to the measurement NOTE: procedure used, even with symmetrical output currents.
Page 136 NORDAC SK 500E Manual Parameter Parameter Set value / Description / Note Device Supervisor P741 ... - 01 Bus Out process data ... - 13 0000 ... FFFF (hex) This parameter informs ... - 01 = Status Word Status word, source from P509.
Page 137 5.8 Information Parameter Parameter Set value / Description / Note Device Supervisor P748 ... - 01 SK 520E Status CANopen … and above ... - 03 0000 ... FFFF (hex) [01] = CANbus/CANopen Status [02] = reserved [03] = reserved Bit 0 = 24V Bus supply voltage Bit 1 = CANbus in status “Bus Warning”...
Page 138: Parameter Monitoring, User Settings
NORDAC SK 500E Manual 5.9 Parameter monitoring, User settings (P)  Parameter set dependent, these parameters can be differently adjusted in 4 parameter sets. S  Supervisor parameter, visibility depends on P003. Setting after commissioning Parameter Factory Super- Name setting visor OPERATING DISPLAYS (5.1)
Page 139 5.9 Parameter monitoring, User settings Setting after commissioning Parameter Factory Super- Name setting visor P213 (P) ISD ctrl loop gain [%] P214 (P) Torque precontrol [%] P215 (P) Boost precontrol [%] P216 (P) Time boost precontrol [s] P217 (P) Oscillation damping [%] P218 (P) Modulation depth [%] P219...
Page 140 NORDAC SK 500E Manual Setting after commissioning Parameter Factory Super- Name setting visor P413 (P) P-component PID control [%] 10.0 P414 (P) I-component PID control [%/ms] 10.0 P415 (P) D-component PID control [%ms] P416 (P) Ramp time PI setpoint. [s.]...
Page 141 5.9 Parameter monitoring, User settings Setting after commissioning Parameter Factory Super- Name setting visor P480 Function Bus I/O In Bits P481 Function Bus I/O Out Bits P482 Norm. Bus I/O Out Bits [%] P483 Hyst. Bus I/O Out Bits [%] ADDITIONAL PARAMETERS (5.6) P502 Leading function value...
Page 142 NORDAC SK 500E Manual Setting after commissioning Parameter Factory Super- Name setting visor P547 (P) Function Bus - set point 2 P548 (P) Function Bus - set point 3 P549 PotentiometerBox function P550 ParameterBox Orders P551 Drive profile P552 CAN cycle time P554 Min.
Page 143 5.9 Parameter monitoring, User settings Parameter Name Actual status and displayed values INFORMATION (5.8), read only P700 Current error P701 Last error 1...5 P702 Freq. previous fault 1...5 P703 Current previous fault 1...5 P704 Voltage previous fault 1...5 P705 UZW previous fault 1...5 P706 P-set last error 1...5 P707...
Page 144 NORDAC SK 500E Manual Parameter Name Actual status and displayed values INFORMATION (5.8), read only P741 Process data Bus Out [hex] P742 Database version P743 Inverter type P744 Configuration level P745 Module version P746 Module status P747 Inverter voltage range 230/400V...
Page 145: Error Messages
6 Error messages Error messages Errors cause the frequency inverters to switch off, in order to prevent a device fault. The following options are available to reset an error (acknowledge): 1. Switching the mains off and on again, 2. By an appropriately programmed digital input (P420 ... P425 / P470 = Function 12), 3.
Page 146 NORDAC SK 500E Manual Display Cause Error in the ControlBox  text in the Parameter Box Remedy Group Detail in P700 / P701 t limit has triggered, e.g. > 1.5 x I for 60s (please also note Inverter overcurrent E003 P504) ...
Page 147 6 Error messages Display Cause Error in the ControlBox  text in the Parameter Box Remedy Group Detail in P700 / P701 Error in EEPROM data EEPROM parameter loss E008 (maximum value exceeded) )  Software version of the stored data set not compatible with the software version of the FI.
Page 148 NORDAC SK 500E Manual Display Cause Error in the ControlBox  text in the Parameter Box Remedy Group Detail in P700 / P701 Internal customer unit (internal databus) faulty or damaged by 11.0 Customer unit E011 radio radiation (EMC) (AnalogDigital converter error) ...
Page 149 6 Error messages Display Cause Error in the ControlBox  text in the Parameter Box Remedy Group Detail in P700 / P701 Parameter identification error Automatic identification of the connected motor was 19.0 E019 unsuccessful 19.1 Motor star/delta circuit is not ...
Page 150: Technical Data
NORDAC SK 500E Manual Technical data 7.1 SK 500E: General Data Function Specification Output frequency 0.0 ... 400.0Hz Pulse frequency 3.0 ... 16.0kHz, standard setting = 6kHz Power reduction > 8kHz for 230V device, >6kHz for 400V device. Typical overload capacity 150% for 60s, 200% for 3.5s...
Page 151: Electrical Data 115V
7 Technical data 7.2 Electrical data 115V Size 1 Device type: SK 5xxE… -250-112-O -370-112-O -550-112-O -750-112-O 230V 0.25 kW 0.37 kW 0.55 kW 0.75 kW Nominal motor power (4–pole standard motor) 240V ½ hp ¾ hp 1 hp Mains phases Number 1 AC 110 ...
Page 152 NORDAC SK 500E Manual Size 2 / 3 Device type: SK 5xxE… -111-323-A -151-323-A -221-323-A -301-323-A -401-323-A Nominal motor power 230V 1.1 kW 1.5 kW 2.2 kW 3.0 kW 4.0 kW (4–pole standard motor) 240V 1½ hp 2 hp 3 hp...
Page 153: Electrical Data 400V
7 Technical data 7.4 Electrical data 400V Size 1 / 2 Device type: SK 5xxE… -550-340-A -750-340-A -111-340-A -151-340-A -221-340-A 400V 0.55 kW 0.75 kW 1.1 kW 1.5 kW 2.2 kW Nominal motor power (4–pole standard motor) 480V ¾ hp 1 hp 1½...
Page 154: Electrical Data For Ul Certification
NORDAC SK 500E Manual Size 5 / 6 Device type: SK 5x5E… -112-340-A -152-340-A -182-340-A -222-340-A 400V 11.0 kW 15.0 kW 18.0 kW 22.0 kW Nominal motor power 480V (4–pole standard motor) 15 hp 20 hp 25 hp 30 hp...
Page 155 7 Technical data Electrical data 230V Size 1 - 230V mains Device type: SK 5xxE… -250-323-A -370-323-A -550-323-A -750-323-A Nominal motor power 220V 0.25 kW 0.37 kW 0.55 kW 0.75 kW (4–pole standard motor) 240V ½ hp ¾ hp 1 hp 3 / 4 4 / 5 5 / 7...
Page 156 NORDAC SK 500E Manual Electrical data 400V Size 1 / 2 - 400V Netz Device type: SK 5xxE… -550-340-A -750-340-A -111-340-A -151-340-A -221-340-A Nominal motor power 380V 0.55 kW 0.75 kW 1.1 kW 1.5 kW 2.2 kW (4–pole standard motor) 460…480V...
Page 157: General Conditions For Coldplate Technology
7 Technical data 7.6 General conditions for ColdPlate technology The standard frequency inverter is supplied with a smooth flat mounting surface instead of a heat sink. This means that the FI must be cooled via the mounting surface, but has a low installation depth. For all devices there is no fan.
Page 158 For the design of the control cabinet the heat production of the device of approx 5% of the nominal power must be taken into consideration. In case of any further queries, please contact Getriebebau NORD. Subject to technical alterations...
Page 159 7 Technical data BU 0500 GB Subject to technical alterations...
Page 160: Additional Information
NORDAC SK 500E Manual Additional information 8.1 Setpoint processing in the SK 500E Main setpoint sources Frequency main setpoint Funct. digital input: Direction of rotation P429-P433 Fixed frequency 1-5 Jog frequency P113 (also with ControlBox) Scaling Scaling P105 Analog input 1...
Page 161 8 Additional information Limitation Auxiliary Frequency Min/Max- Current setpoint Masking ramp limitation limit frequencies function P105 SETPOINT P112 FREQUENCY controller P102,P103 P111 P516- P413- P104 P106,P107 P519 P536,P537 P416 P505 P108,P114 Frequency setpoint Maximum frequency Torque limit Current limit BU 0500 GB Subject to technical alterations...
Page 162: Process Controller
NORDAC SK 500E Manual 8.2 Process controller The process controller is a PI controller which can be used to limit the controller output. In addition, the output is scaled as a percentage of a master setpoint. This provides the option of controlling any downstream drives with the master setpoint and readjusting using the PI controller.
Page 163: Process Controller Parameter Settings
8 Additional information 8.2.2 Process controller parameter settings (Example: setpoint frequency: 50 Hz, control limits: +/- 25%)     Setpointfr P415      Setpointfr     P105 (maximum frequency) [Hz] : 100%  ...
Page 164: Electromagnetic Compatibility Abbreviation: Emc)
EN 61000--62 and EN 61000-6-4 for interference immunity and interference emissions. ATTENTION NORDAC SK 500E Frequency inverters are intended exclusively for commercial use. They are therefore not subject to the requirements of the standard EN 61000-3-2 for radiation of harmonics.
Page 165 8 Additional information Jumper position Cable emissions 150kHz - 30 MHz Device type See Section Max. motor cable, shielded Class A 1 Class B 1 2.8.6 - 2.8.7 2 - 1 SK 5xxE-250-323-A … SK 5xxE-401-323-A 2 - 2 2 - 1 SK 5xxE-550-340-A …...
Page 166: Reduced Output Power
NORDAC SK 500E Manual 8.5 Reduced output power The SK 5xxE frequency inverter series is designed for certain overload situations. For example, 1.5x overcurrent can be used for 60 sec. For approx. 3.5 sec a 2x overcurrent is possible. A reduction of the overload capacity or its time must be taken into account in the following circumstances: Output frequencies <...
Page 167: Reduced Overcurrent Due To Time
8 Additional information 8.5.2 Reduced overcurrent due to time The possible overload capacity changes depending on the duration of an overload. Several values are cited in this table. If one of these limiting values is reached, the frequency inverter must have sufficient time (with low utilisation or without load) in order to regenerate itself.
Page 168: Reduced Overcurrent Due To Output Frequency
NORDAC SK 500E Manual 8.5.3 Reduced overcurrent due to output frequency To protect the power unit at low output frequencies (<4.5Hz) a monitoring system is provided, with which the temperature of the IGBTs (integrated gate bipolar transistor) due to high current is determined. In order to prevent current being taken off above the limit shown in the diagram, a pulse switch-off (P537) with a variable limit is introduced.
Page 169: Reduced Output Current Due To Mains Voltage
8 Additional information 8.5.4 Reduced output current due to mains voltage The devices are designed with thermal characteristics according to the nominal output currents. Accordingly, for lower mains voltages, higher currents cannot be taken off in order to maintain the stated power constant. For mains voltages above 400v there is a reduction of the permissible continuous output current, which is inversely proportional to the mains voltage, in order to compensate for the increased switching losses.
Page 170: Maintenance And Servicing Information
This is important in order to keep repair times as short and efficient as possible. On request you can also obtain a suitable return good voucher from Getriebebau NORD. Internet information You can find the comprehensive manuals in German and in English on our Internet site.
Page 171 BU 0500 GB Subject to technical alterations...
Page 172: Keyword Index
NORDAC SK 500E Manual Keyword index Control parameters ...... 98 Control terminals ......101 3-Wire-Control ......111 FI circuit-breaker .... 10, 37, 169 Control voltage ......33 Functional safety ......34 CSA ..........11 cUL ..........11 Accessories ........9 Current vector control ....
Page 173 9 Keyword index Low voltage guideline ..... 2 ParameterBox ......62 SK CO1- ........27 ParameterBox parameters ... 69 SK EMC 1- ........21 Parameterisation ....59, 82 SK TU3-CTR ........ 56 Magnetizing ........95 PC-Slave ........72 SK TU3-PAR ........ 62 Mains supply ........
Page 174: Representatives / Branches
Fax +55-11-6402 88 30 mark.alexander@nord.com info@nord-ca.com info@nord-br.com Mexico Indonesia India NORD DRIVE SYSTEMS SA DE CV NORD Drivesystems Pvt. Ltd. PT NORD Indonesia Mexico Regional Office 282/ 2, 283/2, Plot No. 15 Jln. Raya Serpong KM7, Av. Lázaro Cárdenas 1007 Pte.
Page 175 Fax +46-8-594 114 14 Fax +34-93-7233147 info@nord-sk.com info@nord-se.com info@nord-es.com Ukraine Turkey Switzerland GETRIEBEBAU NORD GmbH NORD-Remas Redüktör San. ve Tic. Ltd. Getriebebau NORD AG Repräsentanz Sti. Bächigenstr. 18 Vasilkovskaja, 1 office 306 Tepeören Köyü CH - 9212 Arnegg 03040 KIEW TR - 34959 Tuzla –...
Page 176 NORDAC SK 500E Manual BU 0500 GB...
Page 177 Fax +49-4532 / 401 - 253 info@nord-de.com www.nord.com North branches South branches Getriebebau NORD GmbH & Co. KG Getriebebau NORD GmbH & Co. KG Rudolf-Diesel-Str. 1  22941 Bargteheide Katharinenstr. 2-6  70794 Filderstadt-Sielmingen Fon +49-4532 / 401 - 0...

nord NORDAC SK 500E Manual

Quick Links

Need help?

Questions and answers

Related Manuals for nord NORDAC SK 500E

Summary of Contents for nord NORDAC SK 500E

Table of Contents
