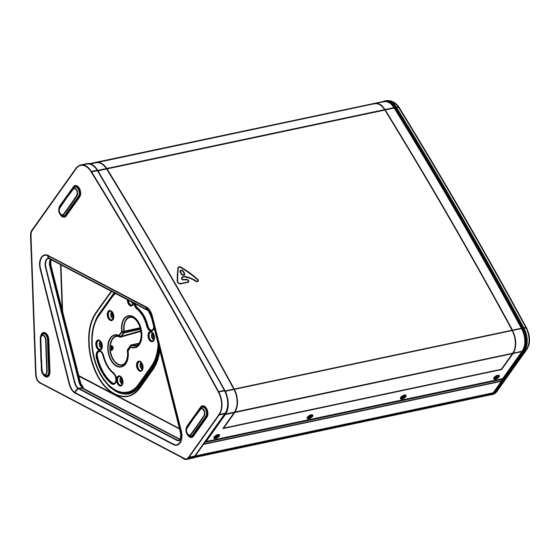

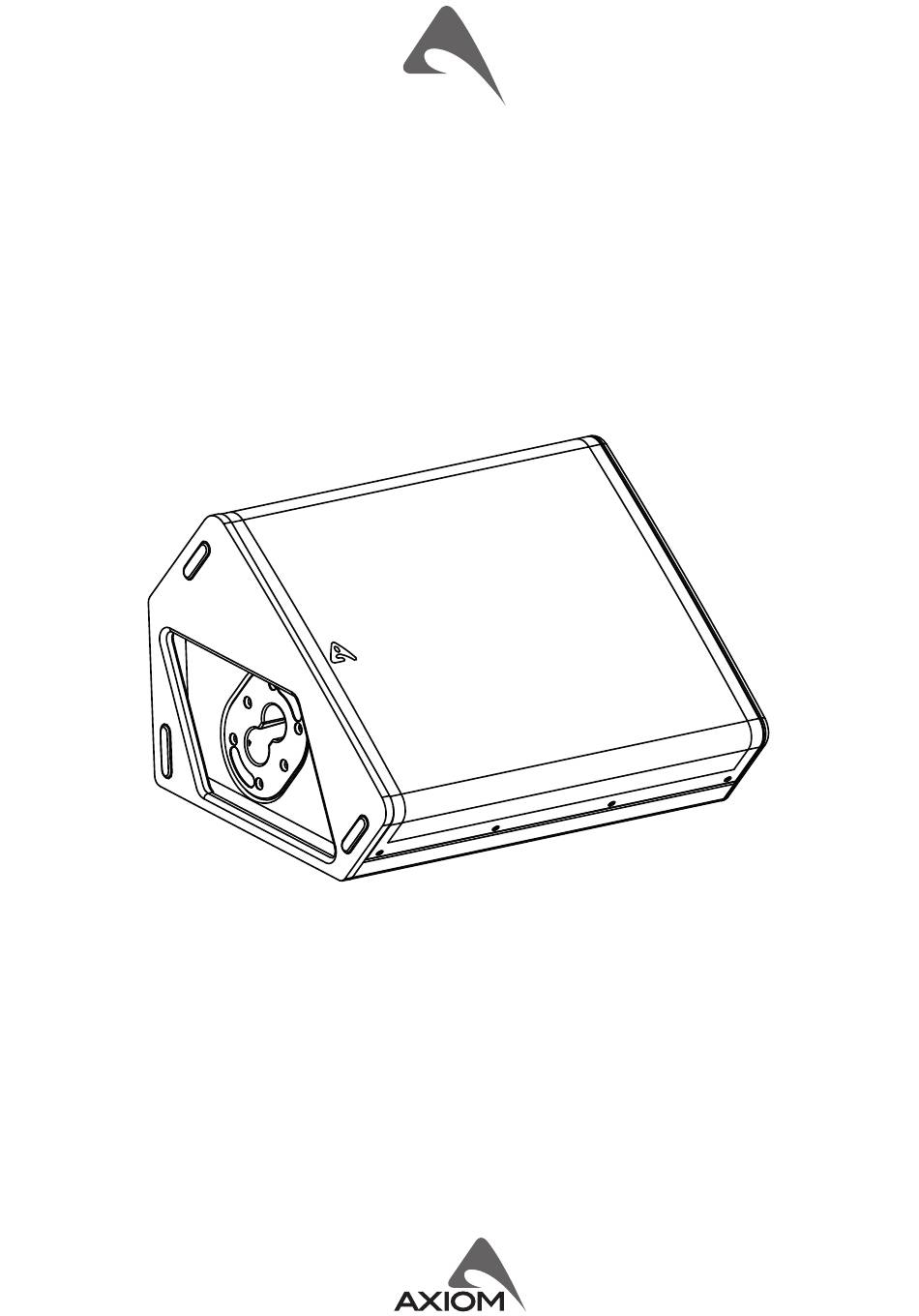

- Page 1 CX14A Powered Processed Stage Monitor USER MANUAL revision 2023-09-04...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Watch for these symbols: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 3 FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
-
Page 4: Table Of Contents
The special shape of the LF cone allows precise and controlled conical dispersion of 80°. The reduced size and weight of the birch plywood cabinet makes the CX14A one of the most compact and lightweight stage monitors in its category. The 45° and 55° angled sides enable it to be positioned at differing distances from the performers depending on the stage size and type of monitoring needed. -
Page 5: Mechanical Drawing
20.0” OPTIONAL ACCESSORIES CXCASE14PT Carrying Case for 2 box unit CAT5SLU01/05/10 1x Cat5e with NEUTRIK connectors, 1/5/10 m length COVERCX14A Cover for CX14A NAC3FXXA-W-L Neutrik Powercon® BLUE PLUG AR100LUxx 1x Cat6e - 1x Audio with NEUTRIK connectors various length NAC3FXXB-W-L Neutrik Powercon®... -
Page 6: I/O And Control Operations
Powercon® NAC3FCB power output connector (grey). This is connected in parallel with the MAINS ~ / IN. The maximum load applicable depends on the mains voltage. With 230V~ we suggest to link a maximum of 4 CX14A loudspeakers, with 120V~ we suggest to link a maximum of 2 CX14A loudspeaker. -
Page 7: Preset Button
This PRESET is the same as NORMAL WEDGE but with a low cut at 110 Hz 48 dB/oct. To be selected when a CX14A is used in combination with a subwoofer to form a DRUM FILL or a SIDE FILL system. It can be used also in case you need to cut drastically the monitor LF response. - Page 8 EXAMPLE OF PRONET NETWORK WITH CX14A WEDGE MONITOR USB 2.0 port network 1) pressed if the USB2CAND is the first device 2) not pressed if other AXIOM system is connected to the other connector notebook do not with PRONET AX software...
-
Page 9: Editing User Presets
EDITING USER PRESETS If you connect the CX14A stage monitor to a PC, using PRONET AX Control Software you can edit the user presets. Here below a typical stage setup of a band using 8 CX14A wedges from a monitor engineer point of view: Setup - Device Name: here you can assign a unique name at the unit (twelve characters are available). - Page 10 Note: a delay higher than 10 mS (3 m) is easily audible and it can be annoying to singers and musicians. PEQ - EQ1-5: 5-band full parametric EQ. Note: CX14A is already optimized for the best performance for wedge monitoring, so we suggest to make only small adjustments to adjust the response for particular enviroments or instrument mic’ing.
- Page 12 PROEL S.p.A. (World Headquarters) - Via alla Ruenia 37/43 - 64027 Sant’Omero (Te) - ITALY Tel: +39 0861 81241 Fax: +39 0861 887862 www.axiomproaudio.com...
