KEY FEATURES
• High-Output Coaxial Active Stage Monitor
• Single magnet neodymium motor
• Dual taper angle monitor configuration (45° or 55°)
• Very compact size Low-profile design
• Dual-angle pole holder for multipurpose applications
INTRODUCTION
The CX14A is a coaxial stage monitor designed specifically for live sound,
although the very compact, low-profile enclosure also makes it suitable for
theatre and television applications.
The combination of a high-performance coaxial transducer, a carefully designed
cabinet, and powerful Class D amplifier together with CORE DSP processing
provides very high SPL before feedback and excellent intelligibility even at very
high power.
The unique 14" LF transducer's coaxial design offers a very stable acoustical
pattern over 80° in both the horizontal and vertical axes. The high frequency
range is reproduced by a low-distortion compression driver equipped with a 3"
aluminium voice coil and polyester/titanium diaphragm. The special shape of the
LF cone allows precise and controlled conical dispersion of 80°.
The reduced size and weight of the birch plywood cabinet makes the CX14A
one of the most compact and lightweight stage monitors in its category. The 45°
and 55° angled sides enable it to be positioned at differing distances from the
performers depending on the stage size and type of monitoring needed.
A convenient dual-angle pole holder allows the CX14A to be mounted on a
standard speaker stand to be used as a multipurpose front of house loudspeaker.
TECHNICAL SPECIFICATION
SYSTEM
System's Acoustic Principle
Frequency response (±3 dB)
Horizontal Coverage Angle
Vertical Coverage Angle
Maximum Peak SPL
TRANSDUCERS
LF
HF
ELECTRICAL
Input Impedance
Input Sensitivity
Signal Processing
Direct access Controls
* Nominal consumption is measured with pink noise with a crest factor of 12 dB, this can be considered a standard music program.
revision 2018-05
USER MANUAL
CX14A
Powered Processed Stage Monitor
2-way coaxial vented enclosure
70 Hz – 18 kHz (Processed)
80° (-6 dB)
80° (-6 dB)
131 dB @ 1m
One 14" (355mm), 3"(75mm) voice coil,
waterproof cone
One 2" driver, 3" (75mm) aluminium voice
coil, polyester/titanium diaphragm
20 kΩ balanced, 10kΩ unbalanced
+4 dBu / 1.25 V
CORE processing, 96kHz / 40bit floating
point SHARC DSP, 24 bit AD/DA converters
4 Presets (NORMAL WEDGE, COUPLED, LOW
CUT, USER), Network Termination, GND Link
• Coaxial Transducers, 14" woofer, 2" HF compression driver
• 80° constant coverage
• 96KHz / 40 bit floating point CORE processing with PRONET remote control
• Class D amplifier module with SMPS
Remote Control
Network protocol
Amplifier Type
Output Power
Mains Voltage Range (Vac)
Consumption*
Mains Connector
Mains Link Connector
IN / OUT Connectors
IN / OUT Network Connectors
Cooling
ENCLOSURE & CONSTRUCTION
Dimensions
Taper
Pole holder
Enclosure Material
Paint
Net Weight
PRONET AX control software
CANBUS
Class D with SMPS
900W + 300W
230 V~ ±15% or 115 V~ ±15% 50/60 Hz
575 W (nominal) 1200 W (max)
PowerCon® (NAC3MPA)
PowerCon® (NAC3MPB)
Neutrik XLR-M / XLR-F
ETHERCON® (NE8FAV)
Variable speed DC fan
507mm W x 316mm H x 403mm
Stage Monitor: 45° and 55°
One on the side, dual-angle
15 mm, reinforced Phenolic Birch
High resistance, black water based paint
16 Kg / 35.3 lbs
Advertisement
Table of Contents
Related Manuals for Axiom CX14A
Summary of Contents for Axiom CX14A
-

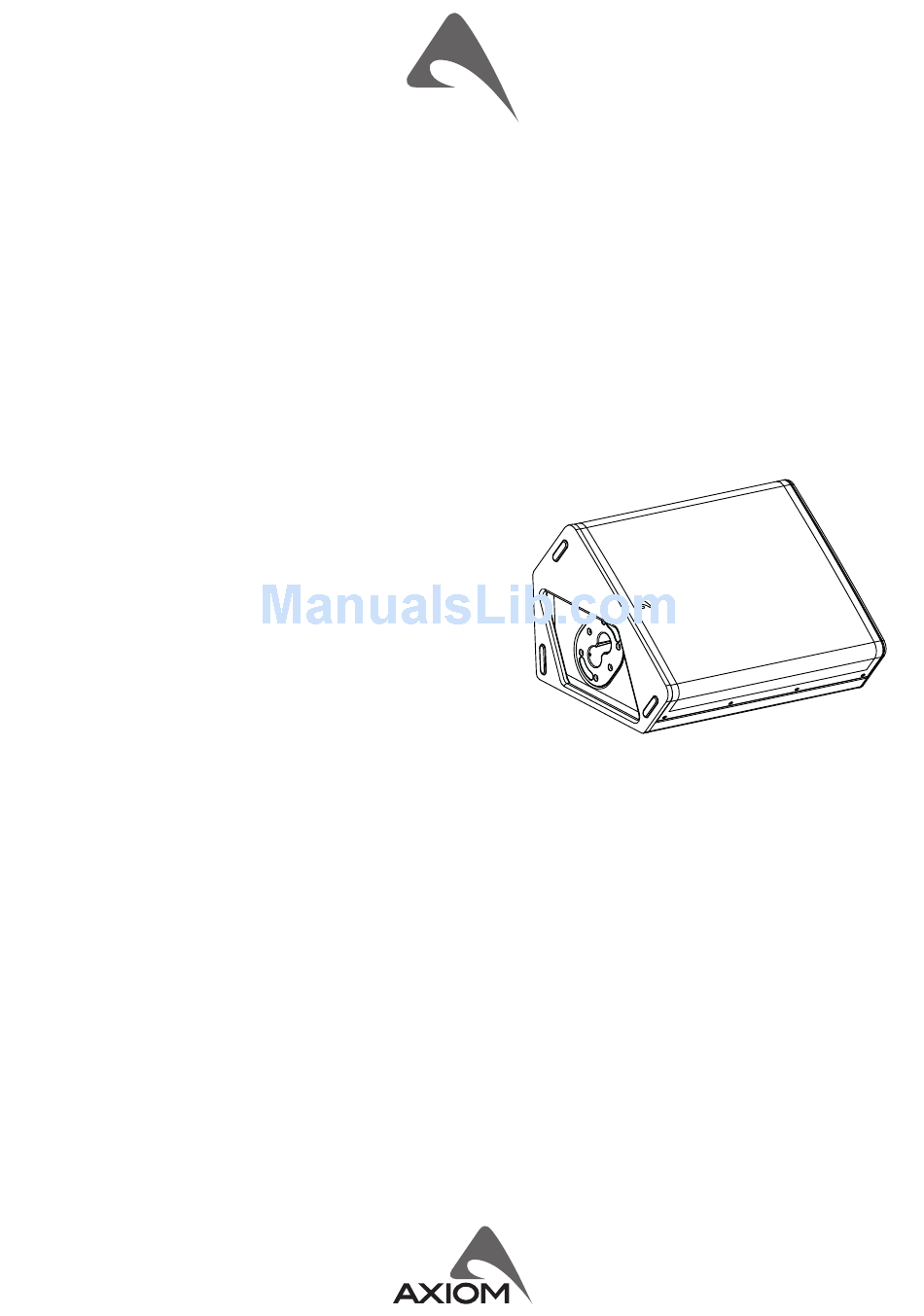

Page 1: User Manual
The special shape of the LF cone allows precise and controlled conical dispersion of 80°. The reduced size and weight of the birch plywood cabinet makes the CX14A one of the most compact and lightweight stage monitors in its category. The 45°... - Page 2 55° 35,0cm 40,3cm 50,7cm 13.8” 15.9” 20.0” OPTIONAL ACCESSORIES CXCASE14PT Carrying Case for 2 box unit COVERCX14A Cover for CX14A NAC3FCA Neutrik Powercon® BLUE PLUG NAC3FCB Neutrik Powercon® WHITE PLUG NE8MCB Neutrik Ethercon PLUG NC3MXXBAG Neutrik XLR-M NC3FXXBAG Neutrik XLR-F...
- Page 3 LOW CUT This PRESET is the same as NORMAL WEDGE but with a low cut at 110 Hz 48 dB/oct. To be selected when a CX14A is used in combination with a subwoofer to form a DRUM FILL or a SIDE FILL system. It can be used also in case you need to cut drastically the monitor LF response.
- Page 4 POWER AMPLIFIERS Powering the loudspeaker drivers is a well-proven DA series Class D amplifier module used in many of the Axiom powered loudspeaker products, with audio quality that is comparable to some of the best analogue Class A-B designs, but with the benefit of lower weight and better than 90% efficiency.
- Page 5 EXAMPLE OF PRONET NETWORK WITH CX14A WEDGE MONITOR USB 2.0 port network 1) pressed if the USB2CAND is the first device 2) not pressed if other AXIOM system is connected to the other connector notebook do not with PRONET AX software...
- Page 6 EDITING USER PRESETS If you connect the CX14A stage monitor to a PC, using PRONET AX Control Software you can edit the user presets. Here below a typical stage setup of a band using 8 CX14A wedges from a monitor engineer point of view: Setup - Device Name: here you can assign a unique name at the unit (twelve characters are available).
- Page 7 PEQ - EQ1-5: 5-band full parametric EQ. Note: CX14A is already optimized for the best performance for wedge monitoring, so we suggest to make only small adjustments to adjust the response for particular enviroments or instrument mic’ing. PRESET: you can store or recall preset in the device’s memory or load and save presets in your computer HD as *.pcf files.
- Page 8 LIMITED WARRANTY Proel warrants all materials, workmanship and proper operation of this product for a period of two years from the original date of purchase. If any defects are found in the materials or workmanship or if the product fails to function properly during the applicable warranty period, the owner should inform about these defects the dealer or the distributor, providing receipt or invoice of date of purchase and defect detailed description.
