Summary of Contents for PowerPoint P65564FFSS
- Page 1 Frost Free Fridge Freezer P65564FFSS INSTRUCTIONS: Please read and keep safe for future use. Serial No.
-
Page 2: Table Of Contents
INSTALLATION AND USER INSTRUCTIONS Features………………………………………………………………………………………………….. 3 Transportation instructions................. 4 Introduction & safety warnings..............5 Electrical Requirements/Installation ………………… ........6 Food Storage …………………………………………………………………….…………………….. 7 Defrosting/Arrangement of Food ..............9 Temperature Control ………………………………………………………………………………..10 Cleaning and Care………………................ 11 Top Tips ……………..................12 Problem solving ................... 14 Technical data/Health &... -
Page 3: Features

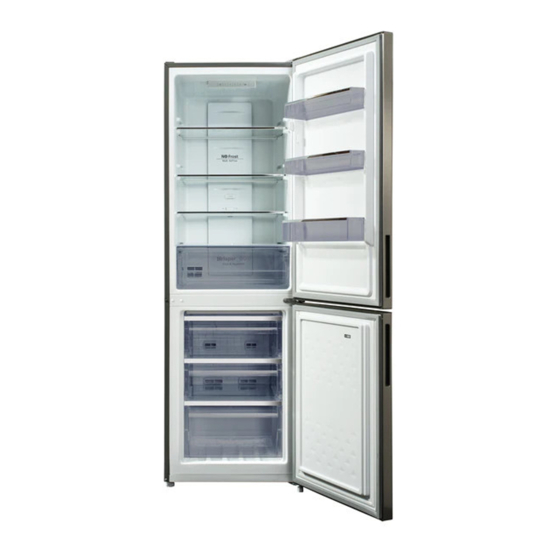

Features Operation panel Fridge glass shelves Crisper cover Crisper Freezer drawers Levelling feet Bottle racks... - Page 4 Transportation of your Appliance • When transporting, never tilt to more than 45 degrees • The appliance should be transported only in a vertical upright position • The packaging as supplied must be intact during transportation • If during the course of transport the appliance has to be transported horizontally, it must only be laid on its left hand side when standing in front of the appliance.
- Page 5 Before First Use IMPORTANT: Do NOT connect your appliance to the electricity supply until all packing and transit protectors have been removed. • Leave to stand for at least 4 hours before switching on to allow compressor oil to settle if transported horizontally, if the appliance is switched off at any time, wait 30 minutes before switching back on to allow the coolant fluid to settle •...
-
Page 6: Electrical Requirements/Installation
Make sure that mains cable is not caught under the appliance during and after carrying / moving the appliance, to avoid the mains cable becoming cut or damaged. Care must be taken while cleaning / carrying the appliance to avoid Touching the bottom of the condenser metal wires at the back of the Appliance as you may injure your fingers and hands. - Page 7 Installation Instructions 1. Install the refrigerator on a flat surface in order to prevent vibration and noise. 2. The cord should be secured behind the appliance to avoid injury 3. Choose a dry well-ventilated place 4. Minimum space in the room where the refrigerator is being installed is 10 cubic metres.
-
Page 8: Food Storage
You check the temperature with an accurate thermometer or wait 24 hours. Food Storage How to Use the Refrigerator Compartment: • Cooked /fresh foods may be stored in your refrigerator. Hot foods must first be allowed to reach room temperature before storage •... - Page 9 Freezing Fresh Food: • Do not freeze too large a quantity at any one time. The quality of the food is best-preserved when it is frozen right through as quickly as possible • Do not exceed the freezing capacity of your appliance in 24 h which is 4 kg (9 lb) •...
-
Page 10: Temperature Control
5. Bottles can be placed in the door section. 6. To store raw meat, wrap in polythene bags and place on the lowest shelf. Do not allow to come into contact with cooked food to avoid contamination. For safety, only store raw meat for two to three days. 7. - Page 11 and the mode indicator light will go off after 3 seconds. The temperature modes cycle as following: “2→4→5→6→8→FAST COOL→2” In the spring and autumn seasons when ambient temperatures range between 16-35℃, it is advisable to set the temperature at Mode 4, 5 or 6, and adjust the air regulating lever to the MID.
-
Page 12: Cleaning And Care
In case of power failure, the refrigerator will maintain the operating state before power failure when power supply is restored. 1.5 Power-on delay In order to protect the refrigerator compressor from being damaged in the case of short-time power failure (i.e., less than 5 minutes), the compressor will not be started immediately after it is powered on. -
Page 13: Top Tips
• Disconnect the refrigerator from the electric power supply by removing the plug from the wall socket • Remove all food • Clean and dry the inside as instructed in the directions above for cleaning • Leave the doors open to prevent any unpleasant smells from building up while the refrigerator is not used. - Page 14 • Don't put hot food into the appliance • Don't put liquid-filled bottles or sealed cans containing carbonated liquids into the freezer as they may burst • Don't exceed the maximum freezing loads (4 kg in any 24 hours) when freezing fresh food •...
-
Page 15: Problem Solving
Problem Solving Check the following: • That the plug is inserted properly in the socket and that the power supply is on • That the fuse has blown/circuit breaker has tripped/main distribution switch has been turned off • That the temperature control has been set correctly •... - Page 16 There may be too much food in the refrigerator, possible incorrect temperature selection Symptom: Smell inside the appliance. Cause: Some of the food is not properly wrapped or covered. The inside of the refrigerator needs cleaning; Liquids such as milk may have been spilled in the fridge.
-
Page 17: Technical Data/Health & Safety
Technical Data... - Page 18 Health & Safety The use of any electrical appliance requires the following common sense safety rules. There is danger of injury or death and damage to the appliance. Location • This appliance is intended to be used in household use only •...
- Page 19 Children • Children should be supervised to ensure that they do not play with this appliance • Teach children to be aware of dangers in the kitchen • Do not allow children to play with the appliance or tamper with the controls •...
-
Page 20: Disposal/Warranty Information
Warranty Information. Registering Your 2 Year Guarantee Your standard one year guarantee is extended for an additional 1 year when you register the product within 28 days of purchase with the supplier Shomar Ltd. If you do not register the product with Shomar Ltd within 28 days, your product is guaranteed for 1 year. - Page 21 This guarantee is valid in Ireland and the UK only. PowerPoint products are intended for household use only. See usage limitations in “safety instructions”. Shomar Ltd has a policy of continuous improvement in product quality and design. The company, therefore reserves...
- Page 22 Contact Details The After Sales Division for PowerPoint Appliances is located at the offices of the Brand owner and Distributor – Shomar Ltd, Unit 9 Western Industrial Estate, Dublin 12, Republic Of Ireland. Helplines (office hours) & Spare Parts contact number is 01-4505327 or email us anytime service@shomar.ie...
