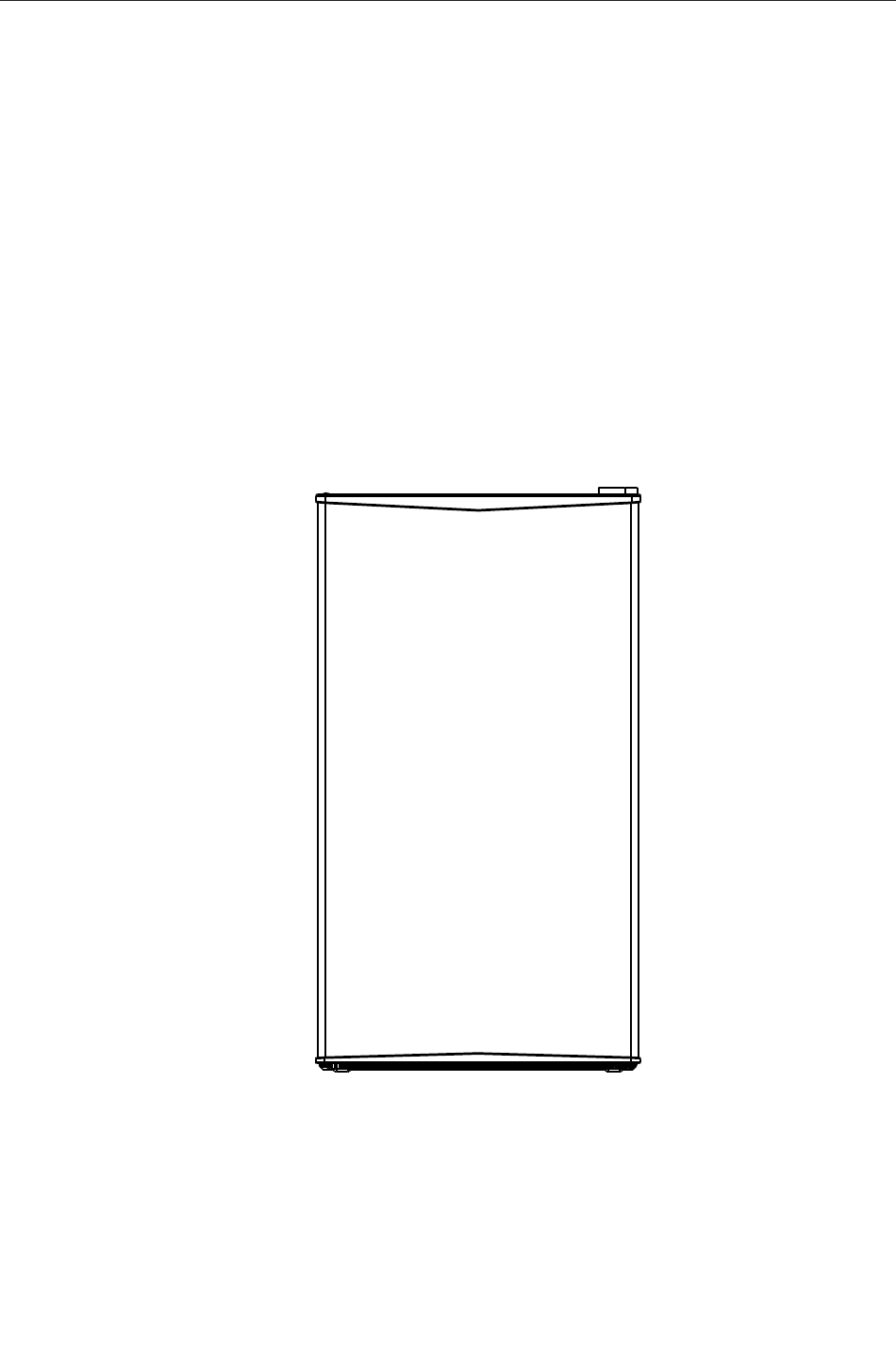

- Page 1 User Manual P4481IBMDW...
-
Page 2: Table Of Contents
CONTENTS 2 1 Placement 2 2 Level ing feet 3 1 Key components 4 Maintenance of refrigerator 4 1 Cleaning Stop using 5 Trouble shooting 5 1 Trouble shooting... - Page 3 1 Safety warnings 1.1 Warning This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non- retail applications.
- Page 4 Refrigerant and cyclopentane foaming material used for the appliance are flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.
- Page 5 This is a prohibition symbol. Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user. Prohibition symbol This is a warning symbol. It is required to operate in strict observance of instructions marked with this symbol;...
- Page 6 1 4 War nings for using Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.
- Page 7 Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber of the refrigerator; otherwise the bottles or enclosed containers may crack due to freezing to cause damages. 1.6 War nings for energy 1)Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
-
Page 8: 1 Placement
2 Proper use of refrigerators 2 1 Placement Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body. Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect. -
Page 9: 2 Level Ing Feet L
2 Levelling feet 1) Schematic diagram of the levelling feet 3) Adjusting procedures: a. Turn the feet clockwise to raise the refrigerator; b. Turn the feet counterclockwise to lower the refrigerator; c. Adjust the right and left feet based on the procedures above to a horizontal level. - Page 10 Door Right-Left Change Putty knife Cross screwdriver 5/16 Masking tape 1 Power off the refrigerator, and remove all objects from the door trays. ix the door with tape 3 dismantle the upper hinge cover, screws and upper hinge, and remove the plastic upper hinge cover screw hole caps from the other side upper hinge...
- Page 11 (optional 2 4 Changing Replacement of incandescent lamps: Disconnecting the power supply before carrying out the bulb replacement , Hold and remove the light bulb cover. Dismantle the old bulb by unscrewing it counterclockwise.replace by a new bulb (Max. 15W) by screwing it clockwise, and make sure it is fixed in the bulb holder tightly.
-
Page 12: 1 Key Components
3 1 Key components Little door Drain tray Lamp Temperature- control knob Fence Little door Drain tray Temperature- control knob Fence Refrigerating chamber The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term. Suggested storage time 3days to 5days. - Page 13 3 2 Functions Turn the temperature control knob to MAX, the internal temperature of the refrigerator becomes lower. Turn the temperature control knob to MIN, the internal temperature of the refrigerator becomes higher. The letter on the knob only represents the level, but does not mean the specific temperature, the "OFF"...
-
Page 14: Maintenance Of Refrigerator
4 Maintenance of refrigerator 4.1 Cleaning Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent. Please turn off the power before cleaning interior, remove all foods, two tablespoons of baking soda and a quart of warm water. -
Page 15: Trouble Shooting
5.Trouble shooting 5 1 You may try to solve the following simple problems by yourself. Check whether the appliance is connected to power or Failed operation Check whether the voltage is too low Check whether there is a power failure or partial circuits have tripped Odorous foods shall be tightly wrapped Odor Check whether there is any rotten food... - Page 16 Table 1 Climate classes Ambient temperature range Class Symbol + 10 to + 32 Extended temperate Temperate + 16 to + 32 Subtropical + 16 to + 38 Tropical + 16 to + 43 Extended temperate: ‘this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C’;...
