Quick Installation Guide
Wireless Access Point
Setup with videos
Visit https://www.tp-link.com/support/setup-video/ or scan the QR code to search for
the setup video of your product model.

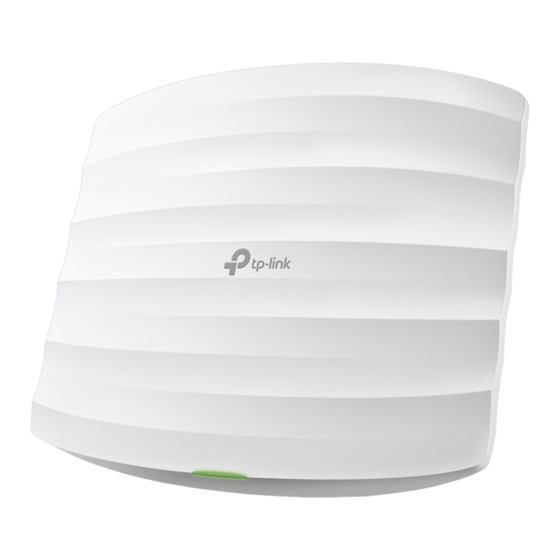

Hardware Overview
1
Note: The image may differ from the actual product.
Front Panel
LED Indicator
The device is initializing or working properly.
Solid Green:
The device is in an isolated state.
Solid Yellow:
The device is working abnormally.
Flashing Yellow:
Flashing Yellow, Green: The device is updating. Do not disconnect or power off the device.
Quickly Flashing Yellow, Green: The device is being reset to its factory default settings.
Rear Panel
RESET
With the device powered on, press and hold the button for about 5 seconds until the LED
is quickly flashing yellow then green, then release the button. The device will restore to
factory default settings.
ETH1 (PoE)
The port is used to connect to the PoE port of the provided PoE adapter or a PSE (Power
Sourcing Equipment), such as a PoE switch, for both data transmission and Power over
Ethernet (PoE) through Ethernet cable.
ETH2 (Only for EAP245 / EAP265 HD)
The port is a Gigabit Ethernet port used for bridging.
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
pezzo o cerca il tuo prodotto tra le
Hardware Installation
2
The EAP can be ceiling-mounted or wall-mounted. Choose a mounting method according to your
needs. Follow the steps below for the appropriate installation.
Option 1: Ceiling Mounting
Option1: Ceiling Mounting
Note: Make sure that the ceiling tile is bigger than the EAP.
Washers (Qty.3)
Drill Hole for Ethernet cable
migliori offerte di Wireless e Bluetooth
Option 2: Wall Mounting
M3×30 Pan-head Screws (Qty.3) Wing Nuts (Qty.3)
1
Remove the ceiling tile.
2
X3
Place the mounting bracket in the center of the
ceiling tile. Mark three positions for the screw holes
and a position for the Ethernet cable hole.
Drill three 4mm diameter holes for the screws and a
25mm diameter hole for the Ethernet cable at the
marked positions.
3
Secure the mounting bracket to the ceiling tile
using three M3x30 pan-head screws, washers and
wing nuts, as shown on the left.
4
Feed the Ethernet cable through the hole
and set the ceiling tile back into place.
5
Connect the Ethernet cable to the ETHERNET port.
Attach the EAP to the mounting bracket by aligning
the arrow mark on the EAP with the arrow mark
on the mounting bracket, then rotate the EAP until
it locks into place, as shown on the left.
TP-Link EAP245 1
Option2: Wall Mounting
Note: For security reasons, it is not recommended to install the EAP with the louver downward.
M3×28 Plastic Wall Anchors (Qty.3)
M3×20 Self-tapping Screws (Qty.3)
X3
1
If your Ethernet cable feeds through the wall, you
can position the mounting bracket to make the
cable through the fixing hole. Mark three positions
for the screw holes and then drill three 6mm
diameter holes at the marked positions.
2
Insert the plastic wall anchors into the 6mm
diameter holes.
3
Secure the mounting bracket to the wall by driving
the self-tapping screws into the anchors. Make
sure that the shoulders of the mounting bracket
are on the outside.
4
Connect the Ethernet cable to the Ethernet port
on the EAP.
5
Attach the EAP to the mounting bracket by
aligning the arrow mark
arrow mark
the EAP until it locks into place, as shown on the
left.
Tip:
To remove the EAP from the mounting bracket, insert a paper clip in the Security Slot to release the
Locking Tab and rotate the EAP until it is detached from the mounting bracket, as shown below.
on the EAP with the
on the mounting bracket, then rotate
Locking Tab
Security Slot
