- Page 1 EVO Manufacturing Jeep Wrangler JK/JL and JT Gladiator JK/JL/JT Gladiator Quarter Pounder D Rings EVO- 1073...
- Page 2 Before starting installation procedure please read http://evomfg.com/Returns-Warranties-Shipping CAREFULLY READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL AND KEEP FOR FUTURE REFERENCE. IF YOU HAVE ANY QUESTIONS ABOUT THE PRODUCT CALL EVO MANUFACTURURING. FAILURE TO FOLLOW GUIDELINES COULD RESULT IN MALFUNCTION OF PARTS OR INJURY. PLEASE HAVE A TRAINED PROFESSIONAL ASSIST WITH OR INSTALL ALL PRODUCTS.

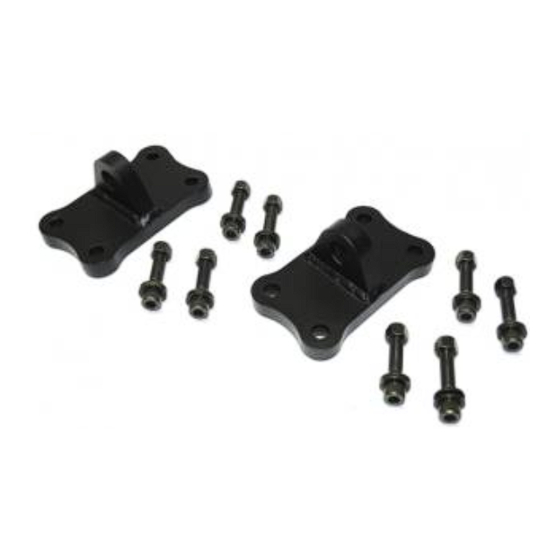

- Page 3 Parts included: Table below shows EVO MFG D Rings for Quarter Pounder bumper. Description Part # Quantity Quarter Pounder D-Ring Mounts EVO-1073...
- Page 4 Recommended Tools: o Standard sockets o Wrench set o drill Safety Steps for installation o For installing EVO MFG products always use wheel chokes to block rear tires from rolling. o Always make sure you have everything necessary ready before install. o If you have to, carefully lift front of vehicle by front frame rails extending suspension until tires leave the ground, place frame on...
- Page 5 FRONT INSTALL After putting vehicle safely into park, chalking tires and removing key. 1. Unbolt the 8 bolts on the inside of the bumper, retain for reuse. Support bumper with stand, it may shift after bolts are removed. Note: May need to drill one of the bumper bolt holes, drill large enough to insert supplied bolts.
- Page 6 2. Place EVO MFG D-Rings onto the bumper and line up the mounting holes. Install supplied bolts/nuts. After Install: o Tighten all bolts securing purchased parts to specified locations. o After completing installation using provided instructions, go through all steps again to make sure nothing was missed, not tightened or improperly assembled.
- Page 7 Recommended Torque: Size Grade 2 Grade 5 Grade 8 18-8 S/S Coarse Fine Coarse Fine Coarse Fine Coarse Fine 19.8 #10* 22.8 31.7 5/16 11.8 7/16 9/16 1†...
